LY-10

Single 10" two-way multi-purpose full-range Loundspeaker

LY-10
LY-10
LY-10
LY-10
LY-10
LY-10
LY-10
LY-10

10" High-power, ultra-low distortion bass

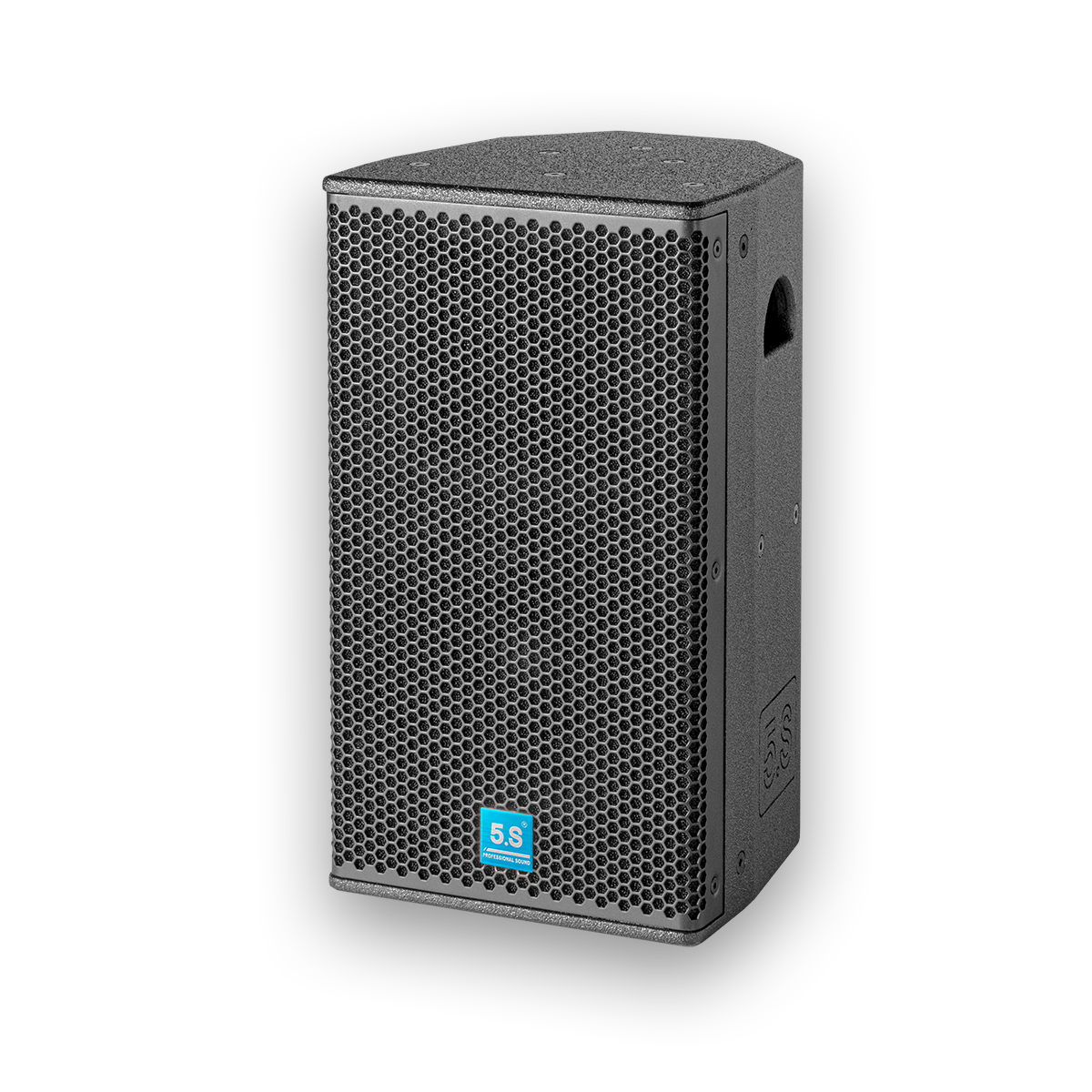

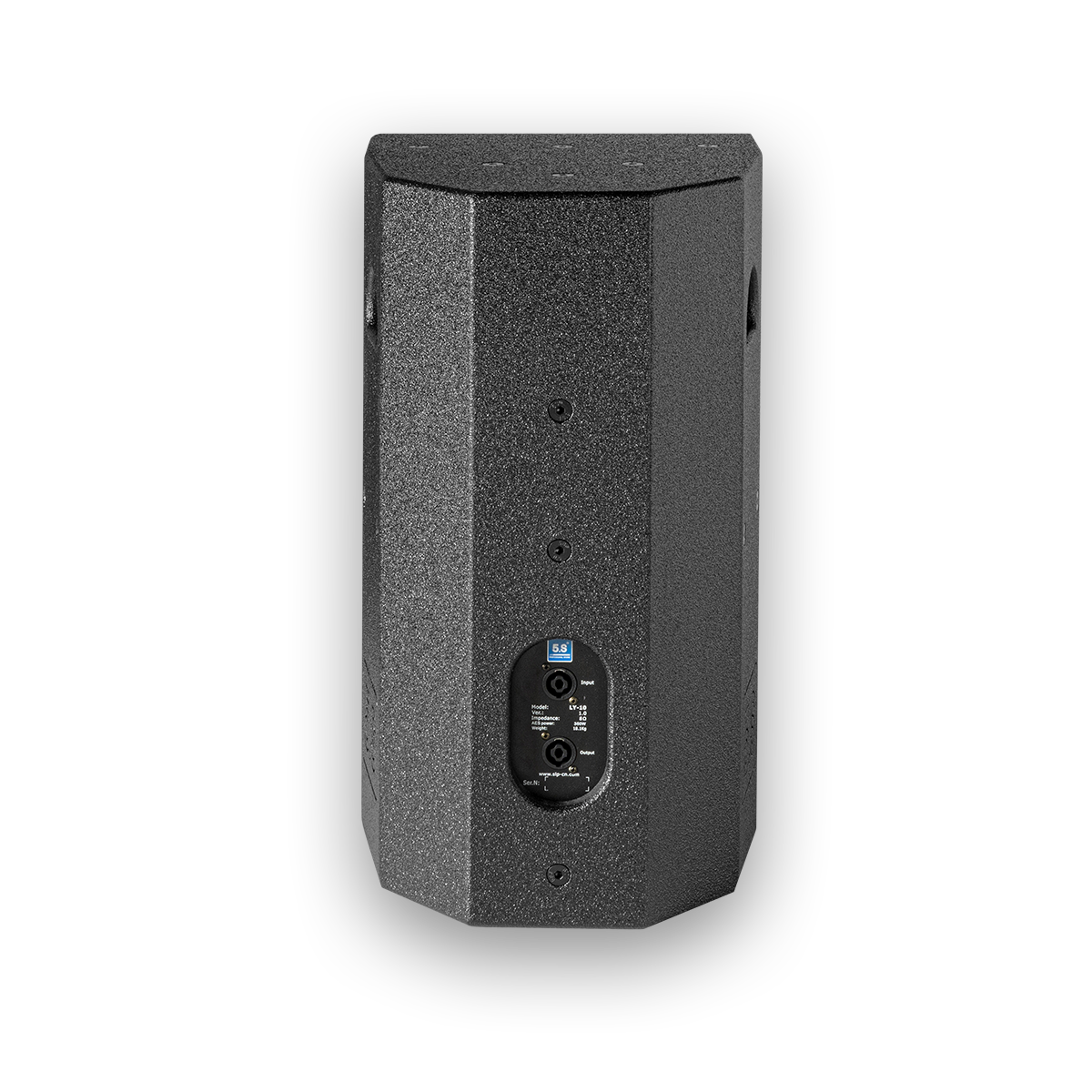

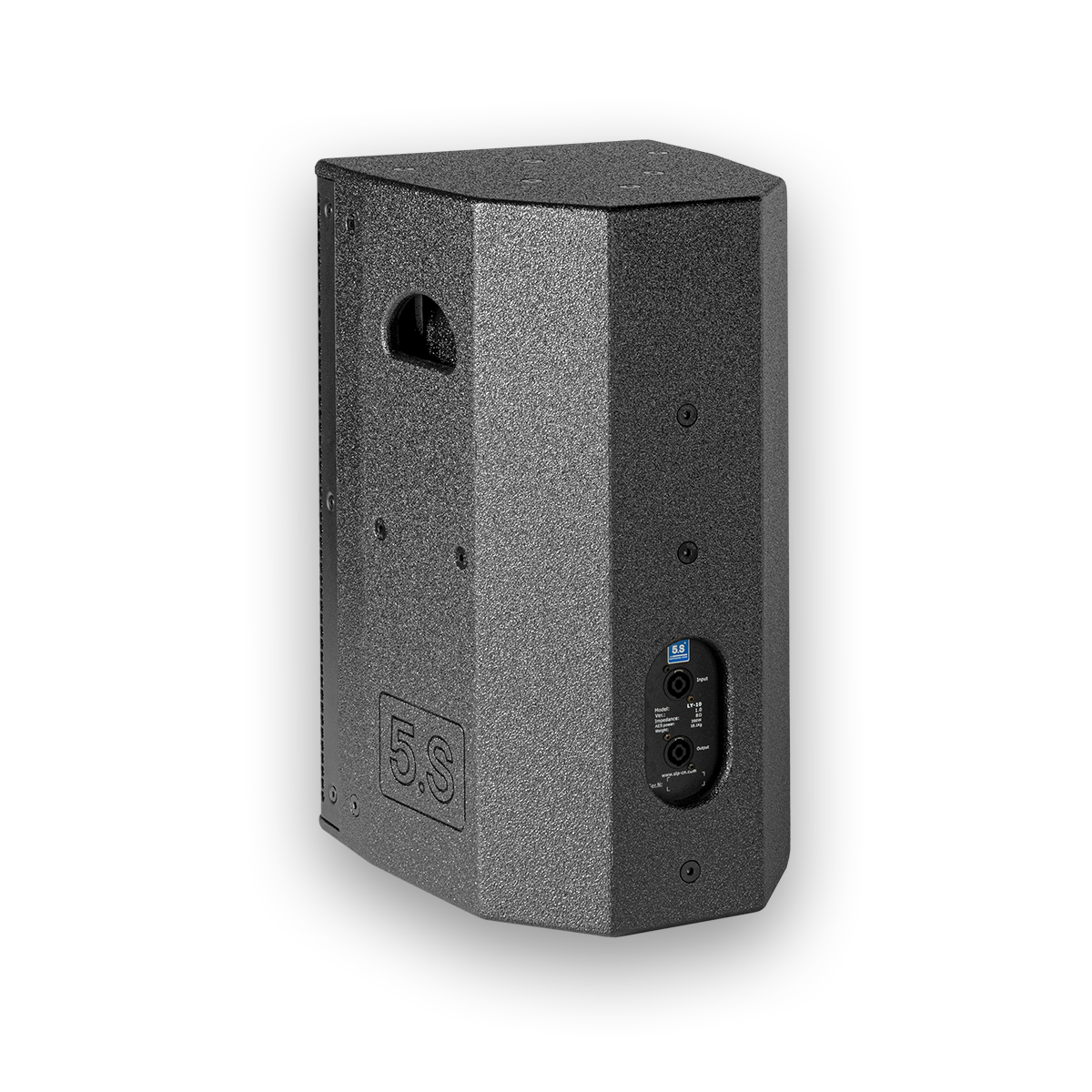

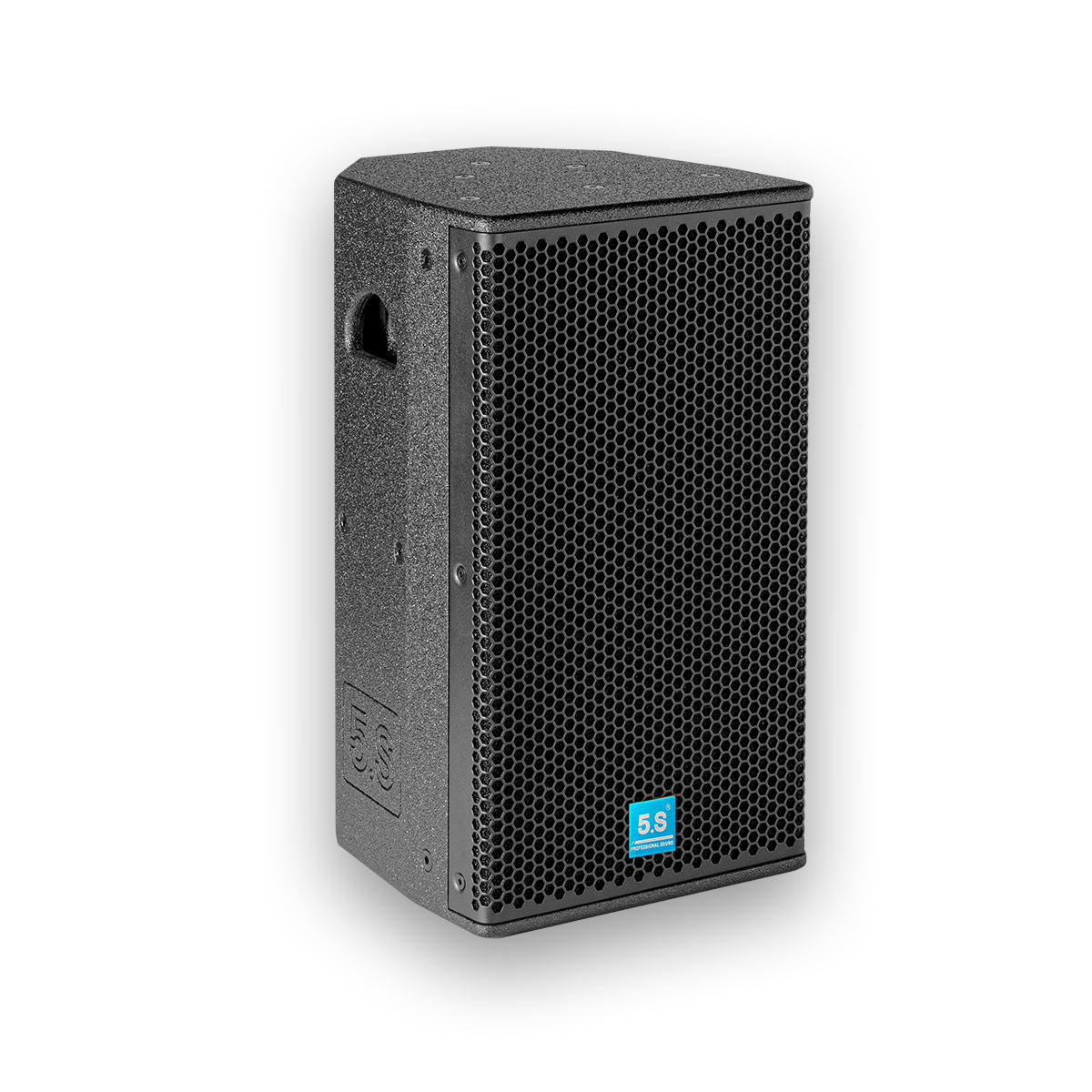

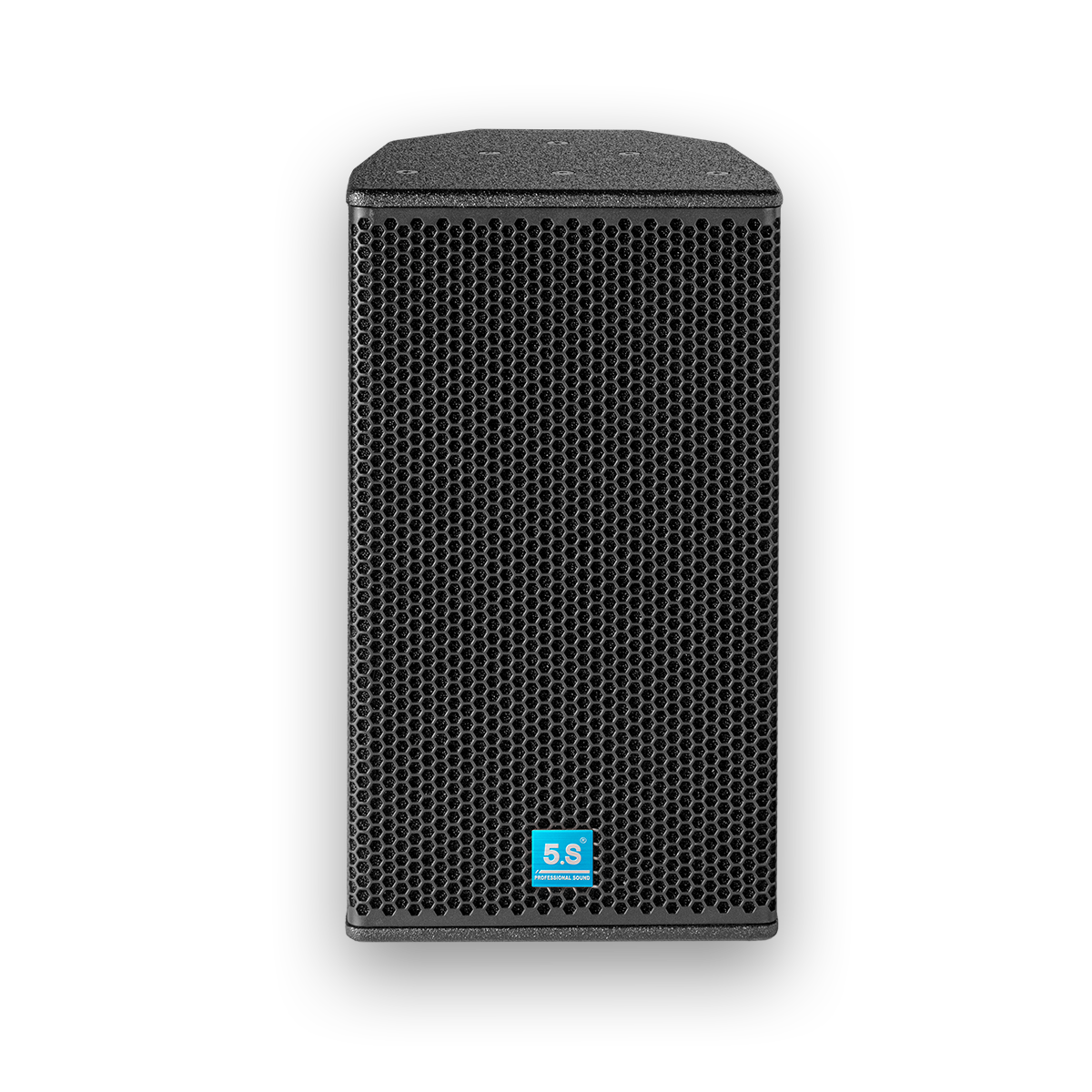

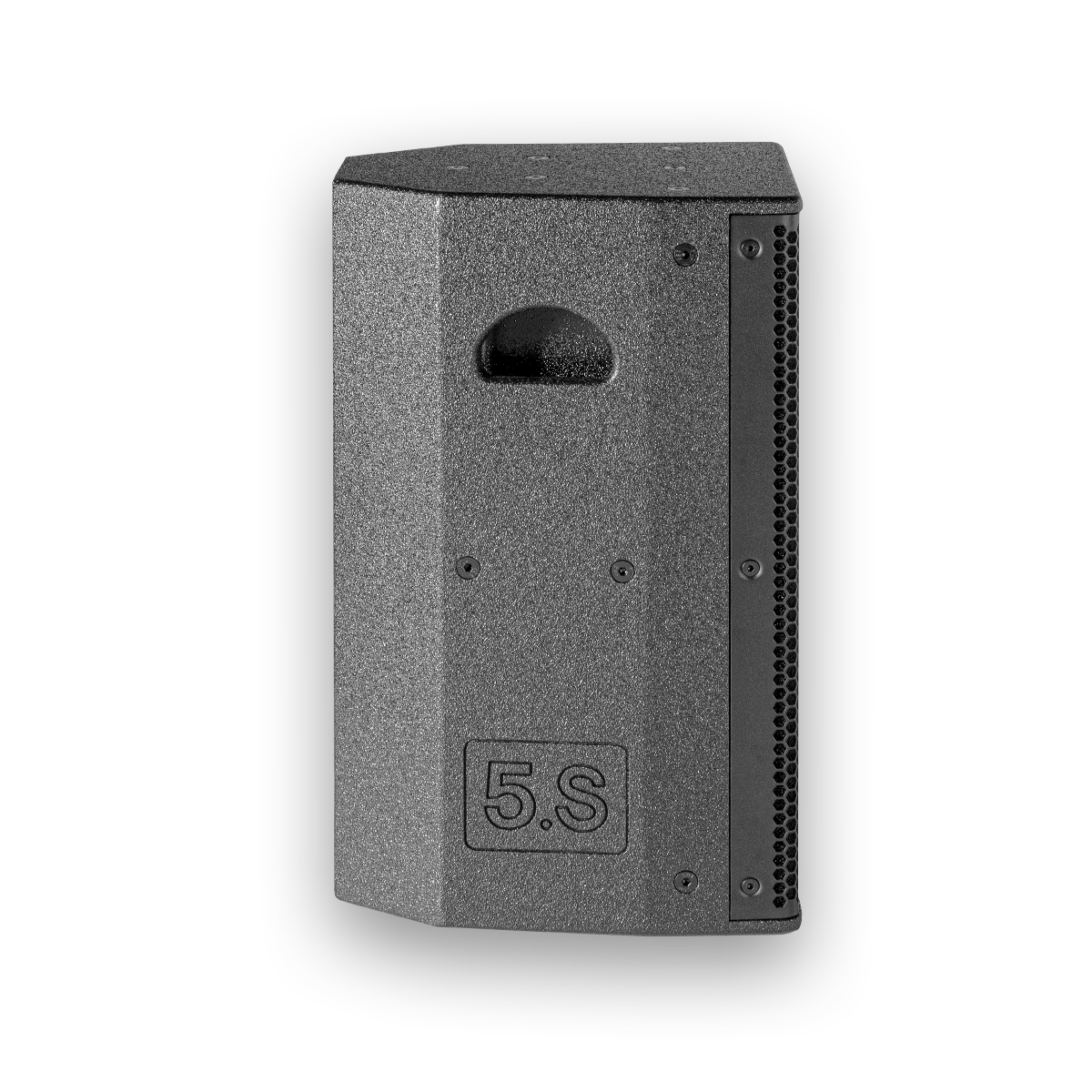

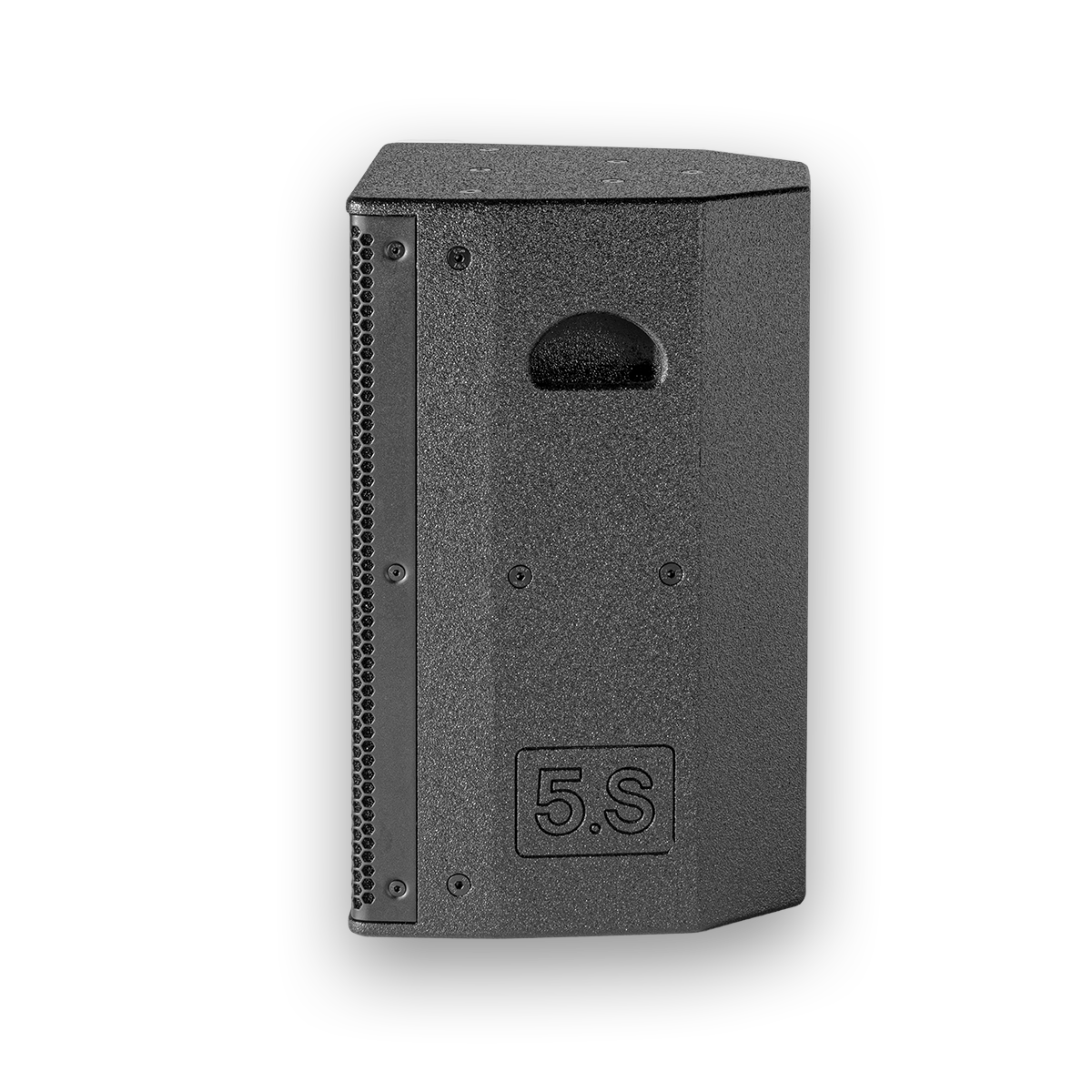

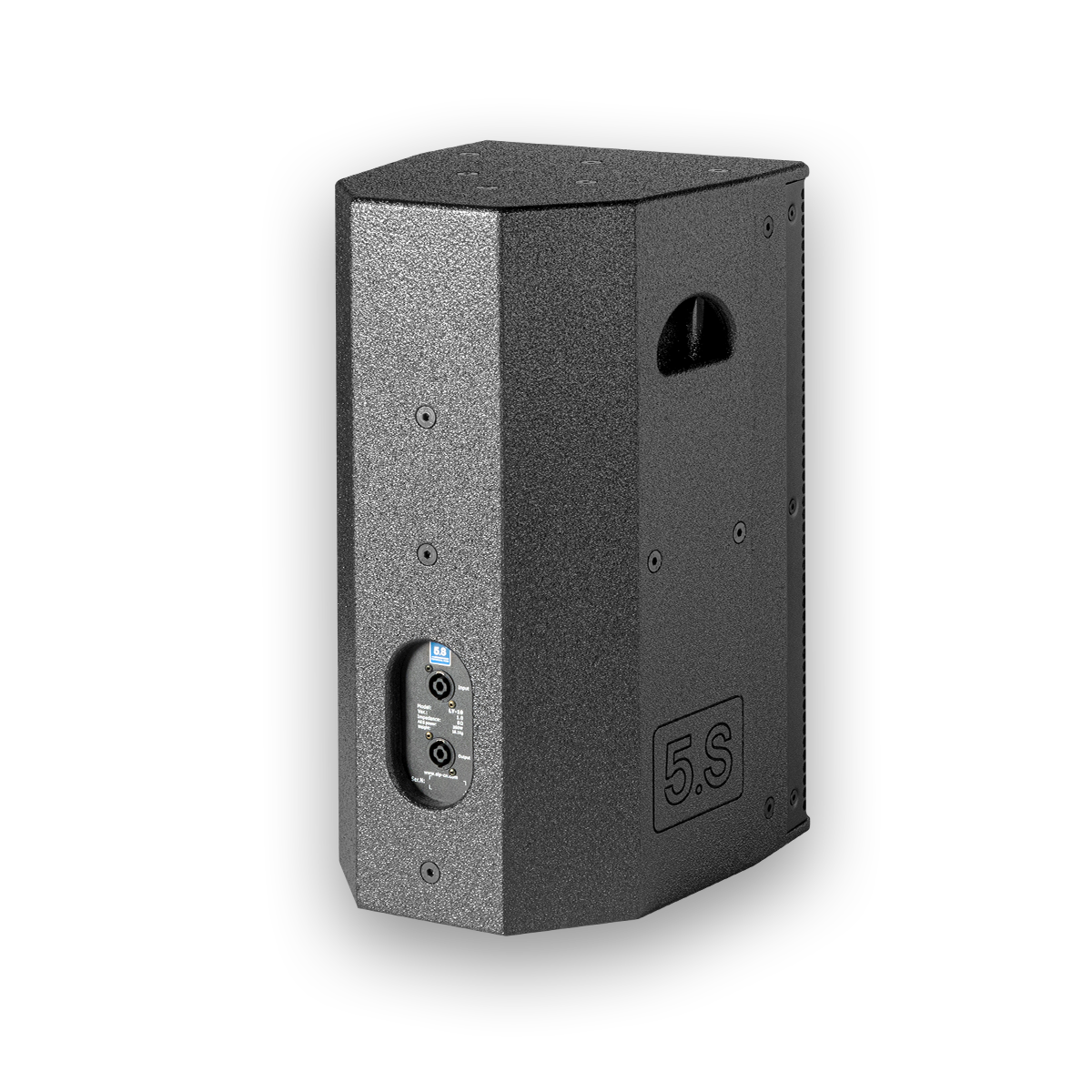

  • The Audio LY-10 is a trapezoidal front-ported enclosure featuring a built-in 10" high-power, ultra-low distortion woofer and a 90°x60° rotatable square fiberglass horn with a 1" throat compression driver. It is a 2-way versatile full-range speaker system.


Main Features

  • Rated Power: 350W (AES)
  • Peak Power: 1400W (AES)
  • Input Connection: 2*NeutrikTM 1+1-
  • Sensitivity: 95dB
  • Maximum Sound Pressure Level: 126dB
  • Nominal Impedance: 8 Ohms
  • Dispersion Angle: 90° X 60°
  • Net Weight: 16.5Kg
  • Enclosure Dimensions: 306mm*510mm*320mm (W*H*D)

Product Description

Audio LY-10 is a trapezoidal front-ported enclosure featuring a built-in 10" high-power, ultra-low distortion woofer and a rotatable 90°x60° square fiberglass horn with a 1" throat compression driver, making it a versatile 2-way full-range speaker system. As a 2-way system, the LY-10 can be driven directly or paired with a dual-channel amplifier system to achieve exceptional high output performance.

Audio LY-10 is suitable for high-end KTVs, nightclubs, mid/near-field sound reinforcement, private clubs, plazas, and other venues requiring audio solutions.

  • Rated Power: 320W (AES)
  • Peak Power: 1280W (AES)
  • Input Connection: 2*NeutrikTM 1+1-
  • Sensitivity: 95dB
  • Maximum Sound Pressure Level: 126dB
  • Nominal Impedance: 8 ohms
  • Dispersion Angle: 100° conical
  • Net Weight: 6.0 kg
  • Enclosure Dimensions: 155mm*350mm*205mm (W*H*D)
