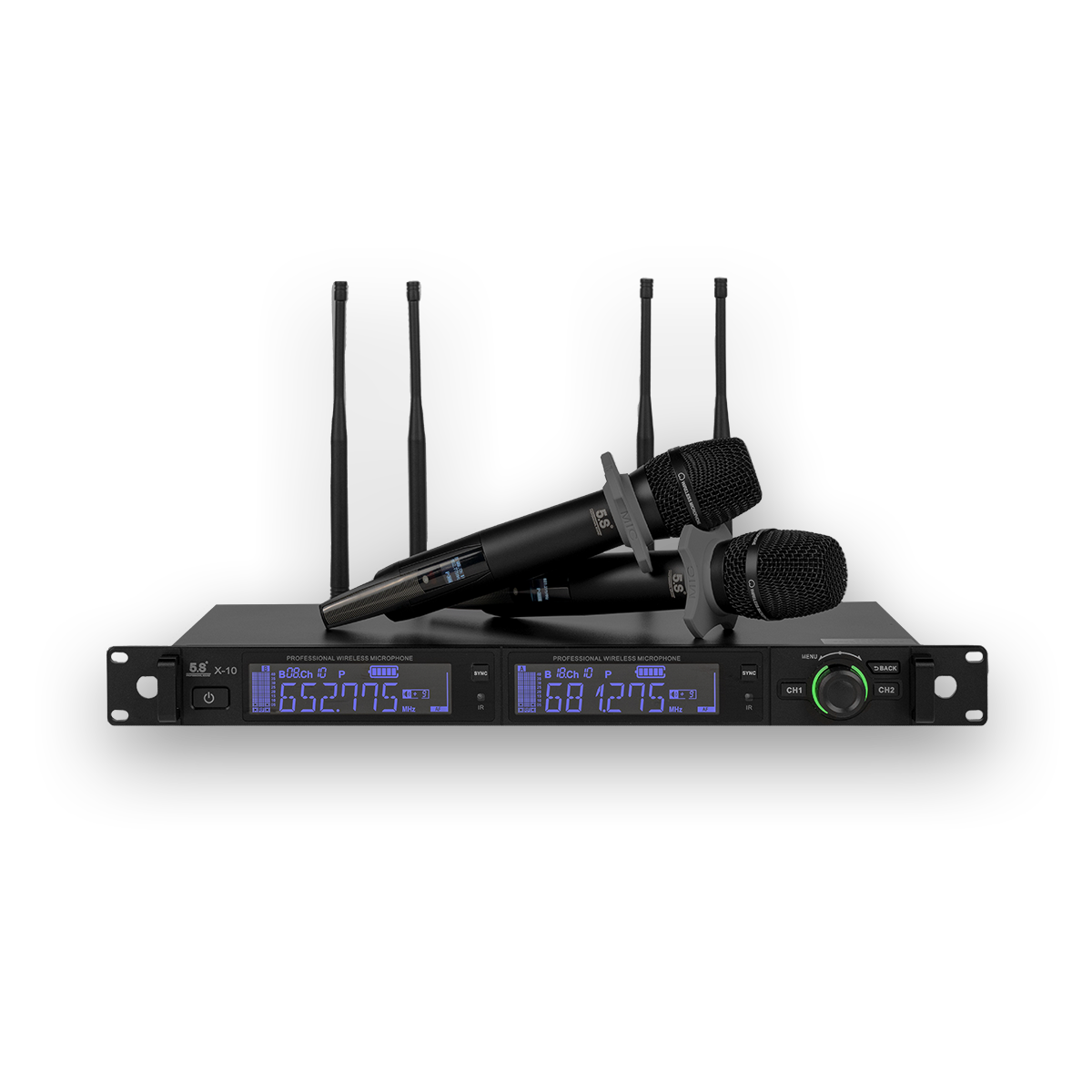

Product Description
- Utilizing pure automatic frequency selection (true diversity) reception mode, not only does it have a long reception range, but each independent channel also features individual encryption with strong anti-interference capability, eliminating cross-frequency issues.
- Equipped with dual antennas and dual receiving circuits for true diversity reception, the system adopts a new, faster single-channel digital automatic frequency selection long-range microphone.
- The receiver features automatic scanning for clear frequencies, a panel function lock for secure operation, and independent adjustable channels with up to 2,280 frequencies per channel.

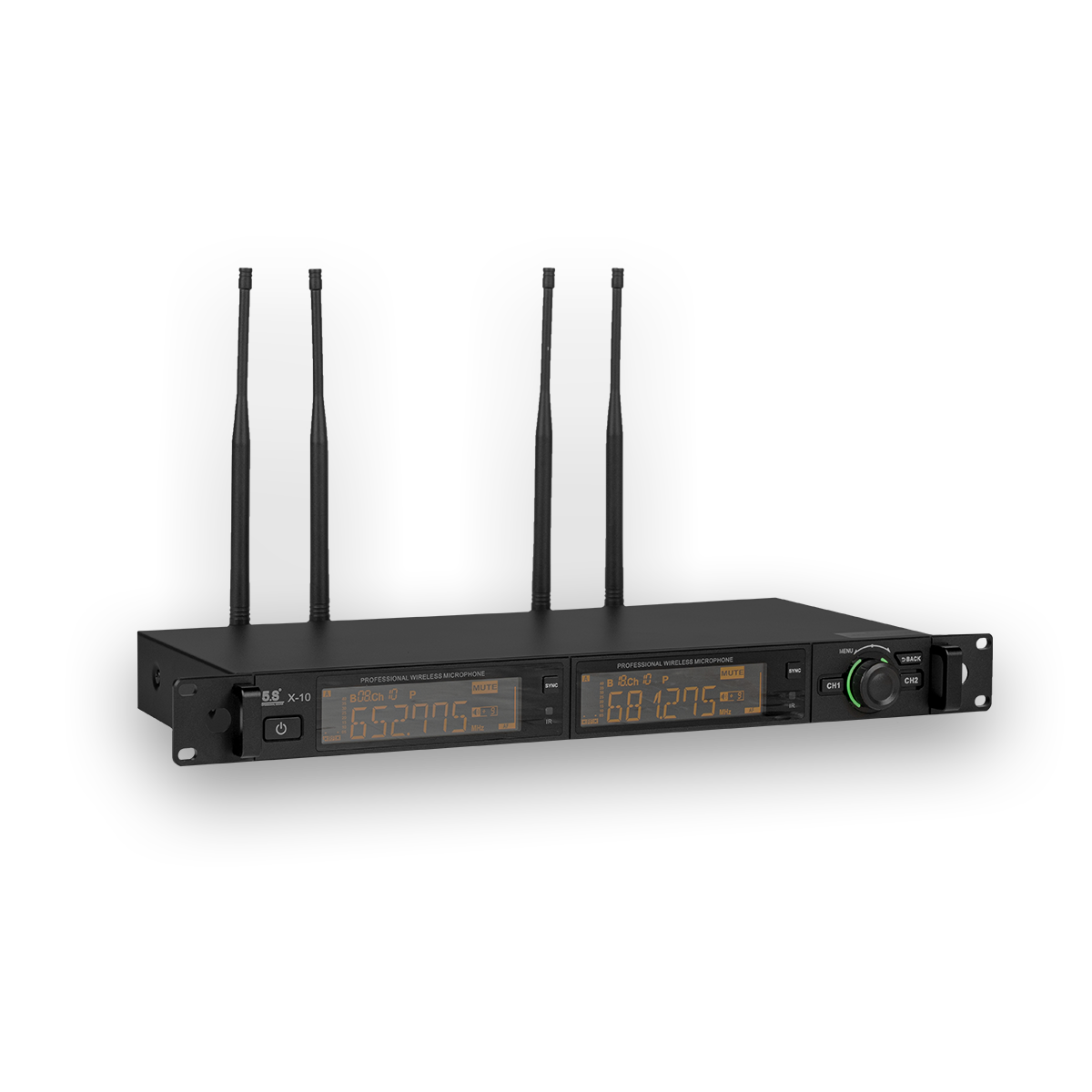

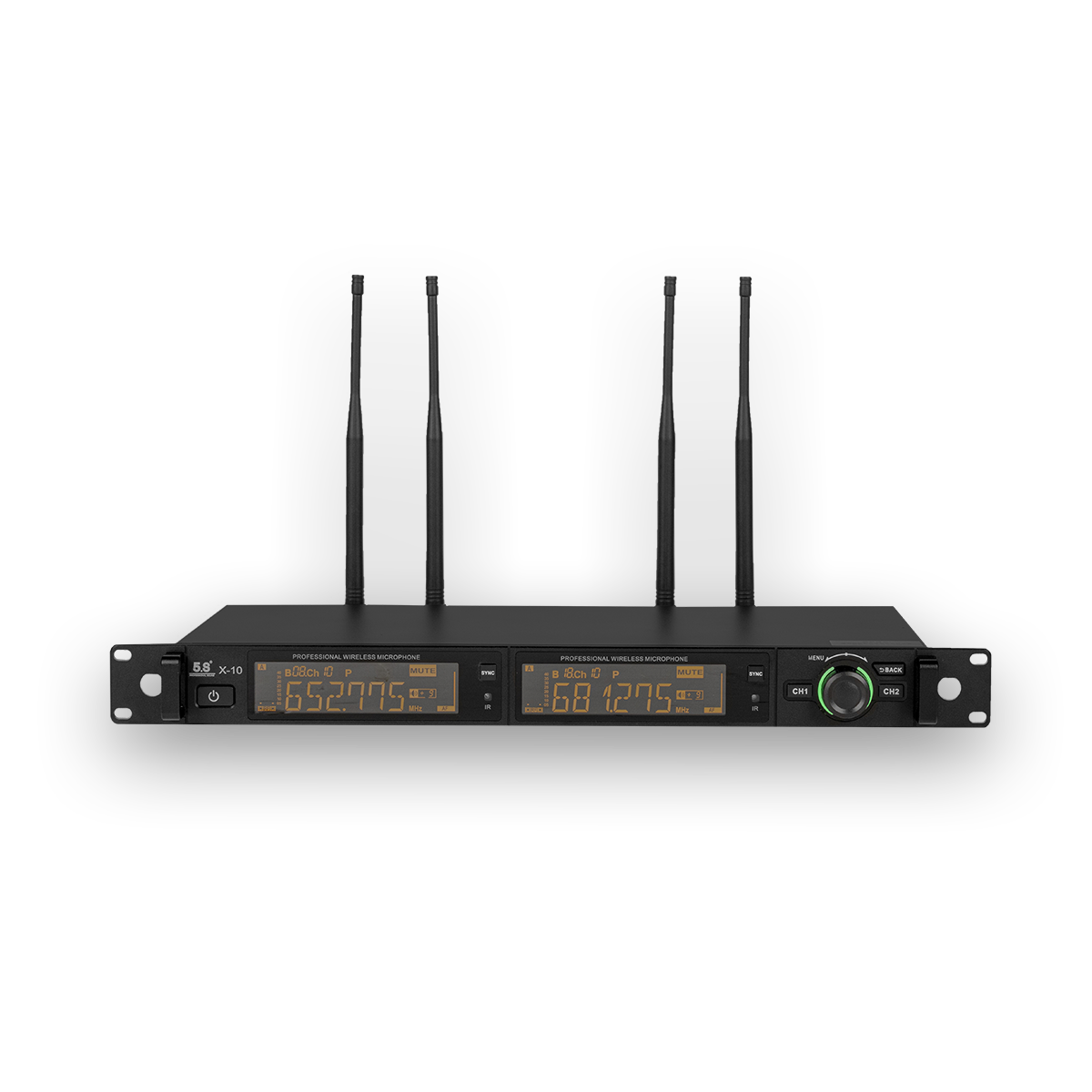

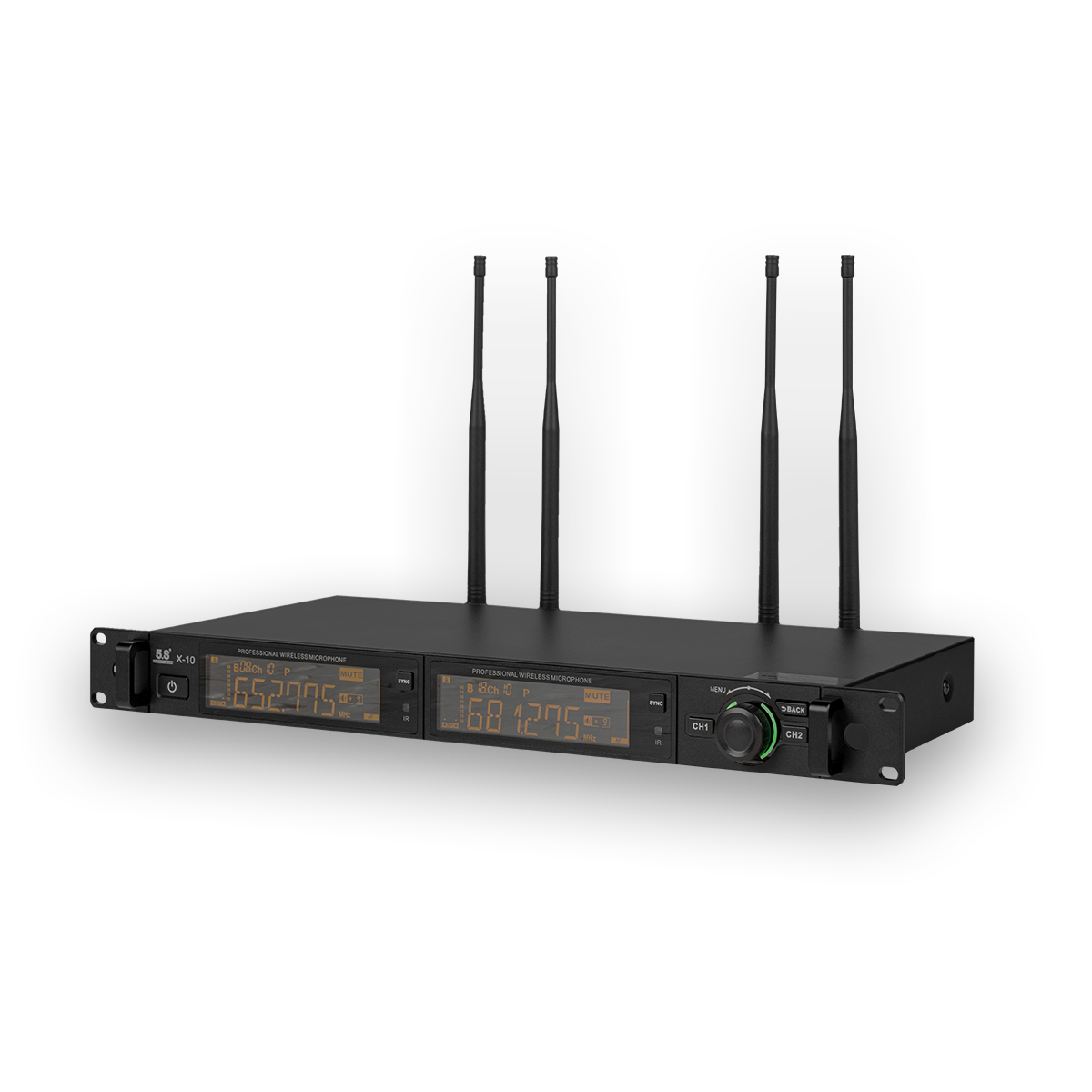

- LCD display shows standby status in orange and active status in white. Functions include automatic frequency selection signal, channel, frequency, transmitter battery level, reception sensitivity, mute threshold, and more.
- Unique CPU-controlled power on/off ensures no popping sound during startup or shutdown, regardless of the transmitter or receiver's state.
- Professional double-conversion and multi-stage RF filtering technology allow multiple systems to operate simultaneously without interference. Triple noise cancellation (tone code, RF strength, noise detection) effectively blocks disturbances.
- The transmitter's lock mode prevents accidental shutdown when enabled, and it features an OLED display.
- The system employs the most stable phase-locked loop (PLL) synthesizer tuner, effectively blocking noisy RF interference in the environment.
Receiver Parameters
| Chassis Specification: | EIA Standard 1U |
| Number of Channel Groups: | Dual Channel |
| Frequency Stability: | ±10PPM |
| Frequency Stability: | ±10ppm |
| Frequency Range: | 640 – 690MHz |
| Bandwidth: | 50MHz |
| Modulation Mode: | FM |
| Receiver Sensitivity: | -105dBm |
| Oscillation Mode: | PLL Phase-Locked Frequency Synthesis |
| Sensitivity: | At 25KHz deviation, input 4dBμV, S/N > 60dB |
| Bandwidth: | 50MHz |
| Maximum Deviation: | ±45KHz |
| Overall S/N Ratio: | >110dB |
| Distortion: | <1% |
| Overall Frequency Response: | 80Hz～18KHz (-3dB) |
| Power Supply: | DC 12V / 1000mA |
| Weight: | 3Kg |
| Dimensions: | 420(W) × 43(H) × 206(D) |

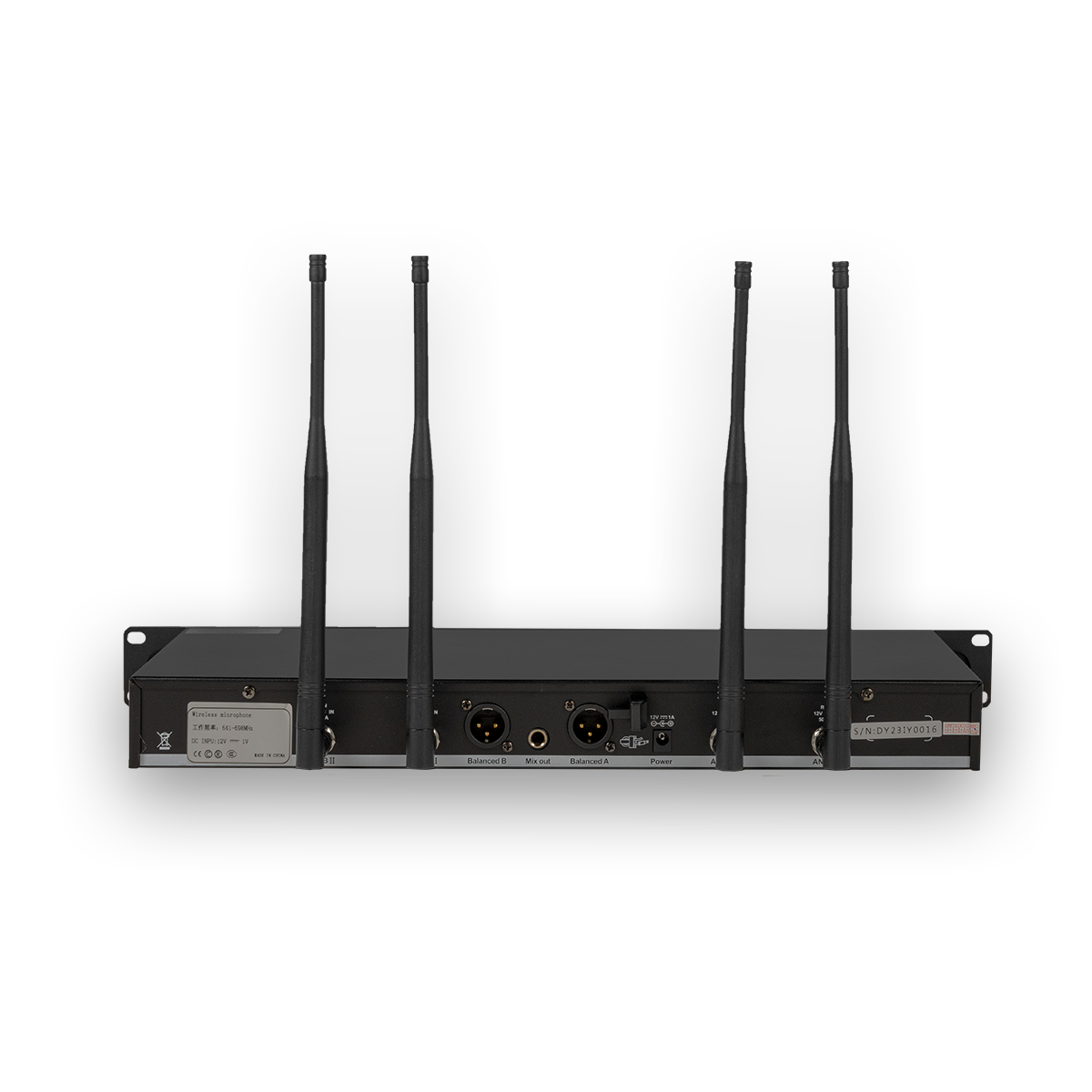

| Output Connectors: | XLR Balanced & φ6.3 Unbalanced Jacks |

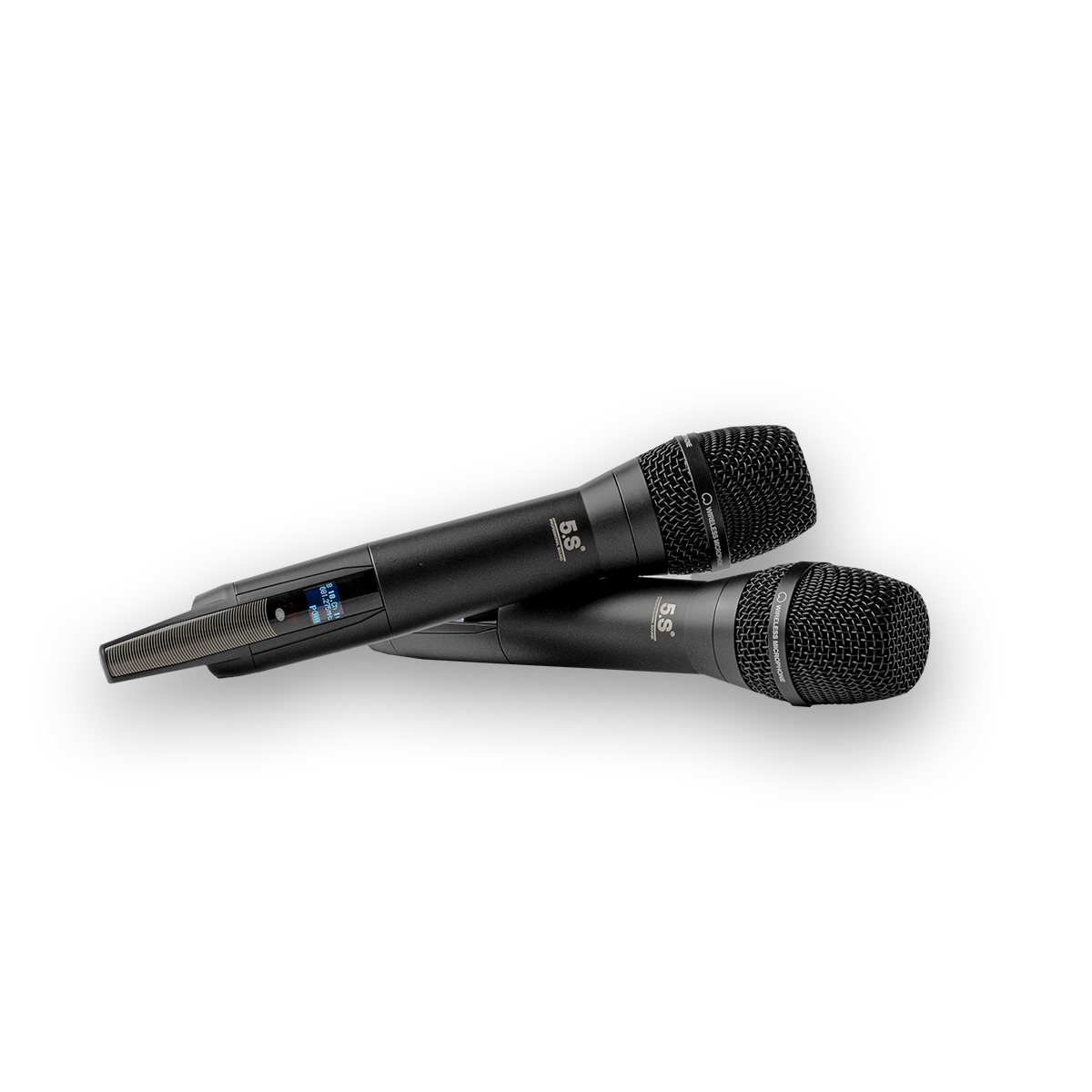

Handheld Microphone Parameters
| Frequency Range: | 640 – 690MHz |
| Bandwidth: | 50MHz |
| Frequency Stability: | ±10PPM |
| Adjustable Channels: | 200CH |
| Audio Frequency Response: | 80Hz-18KHz |
| Distortion: | <1% |
| Oscillation Mode: | PLL Phase-Locked Frequency Synthesis |
| Harmonic Radiation: | <-60dBC |
| Maximum Deviation: | ±45KHz |
| Microphone Capsule: | Dynamic, Cardioid Polar Pattern |
| RF Power Output: | 10mW |
| Battery: | AA × 2 |
| Current Consumption: | 120mA (Typical) |
| Battery Life: | Approx. 8 Hours |
QS-1 Wireless Microphone Features
Industry-first patented automatic hand-sensing technology. The microphone automatically mutes within 3 seconds after being placed stationary (in any direction or angle), enters energy-saving standby mode after 5 minutes, and automatically shuts down and completely cuts power after 15 minutes. A brand-new intelligent and automated wireless microphone concept.
- ◆ A brand-new audio circuit architecture delivers delicate highs, powerful mid-lows, and perfect detail reproduction. Superior dynamic tracking ensures smooth pickup at both near and far distances.
- ◆ Innovative digital pilot tone technology eliminates cross-frequency interference in KTV rooms—no more frequency clashes!
- ◆ 100×2 channels with 250KHz spacing
- ◆ Specially designed mute circuit eliminates popping noise when turning the microphone on/off
- ◆ Uses easily accessible AA batteries with a runtime of 6–10 hours
- ◆ Unique voltage boost design ensures consistent performance even as battery power declines
- ◆ Operational range of up to 60 meters in ideal conditions, suitable for various demanding environments
- ◆ Default configuration includes an LCD screen with blue backlight and an aluminum alloy microphone body
- ◆ Features infrared auto-frequency synchronization for quick channel matching with the receiver
- ◆ Designed for KTV projects—two microphones and one receiver easily support 50 KTV rooms. Unique structural design allows fast and simple maintenance.
QS-1 Wireless Microphone Technical Specifications
- Frequency Range: 640-690MHz
- Adjustable Channels: 100×2
- Frequency Stability: ±10ppm
- Audio Frequency Response: 80-13000Hz
- Harmonic Distortion: ≤0.5%
- Signal-to-Noise Ratio: ≥110dB
- Audio Output: Balanced and mixed output
- Transmission Power: 3-30mW
- Modulation Mode: FM
- Battery Specification: 2 × AA batteries
- Power Specification: 100-240V 50-60Hz 12VDC (switching power adapter) or 220VAC/50-60HZ 12VDC (linear power supply)
- Power Consumption: ≤10W
