L-15

Two-way multi-purpose full-range loundspeaker

L-15
L-15
L-15
L-15
L-15
L-15
L-15
L-15

Front-ported 15" high-power woofer

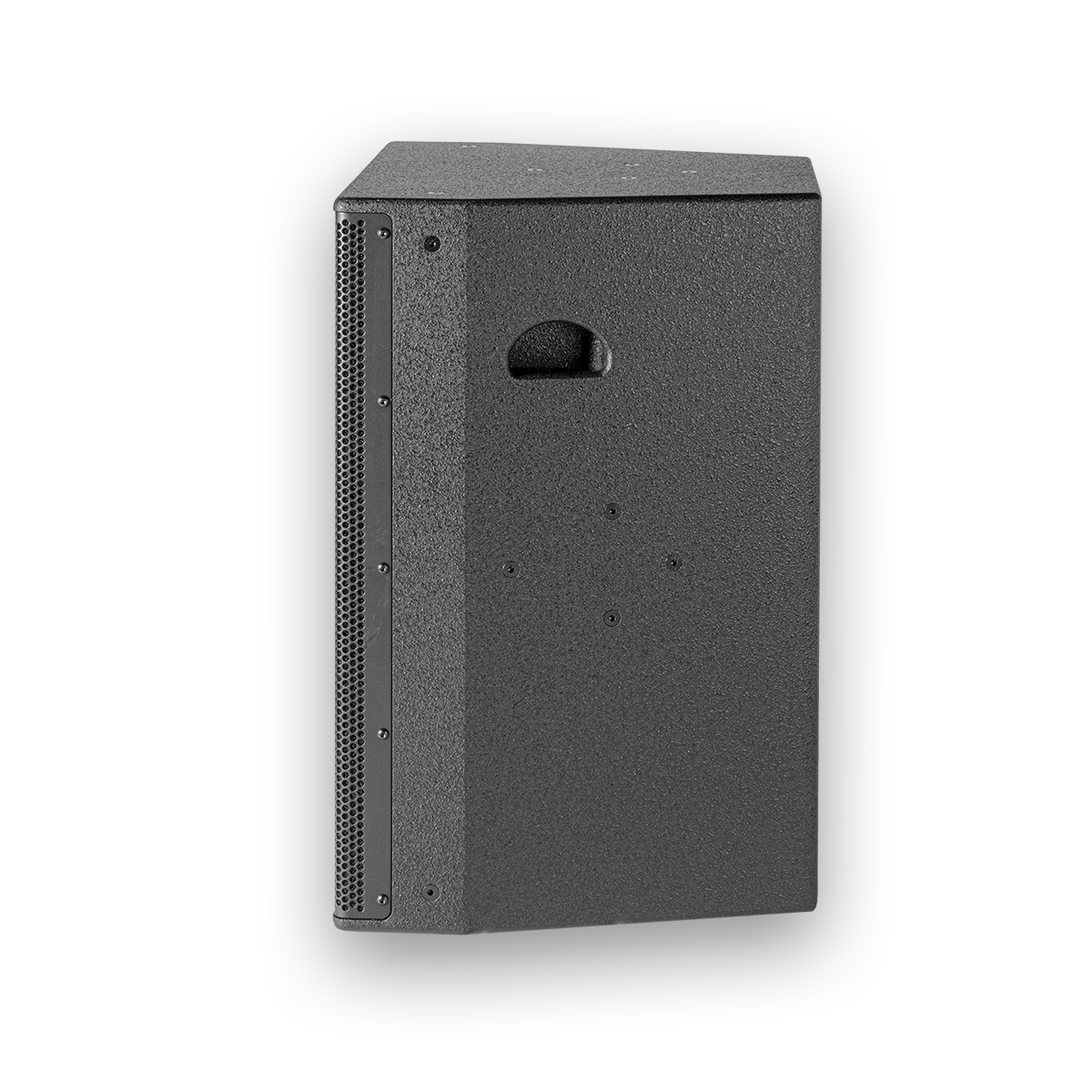

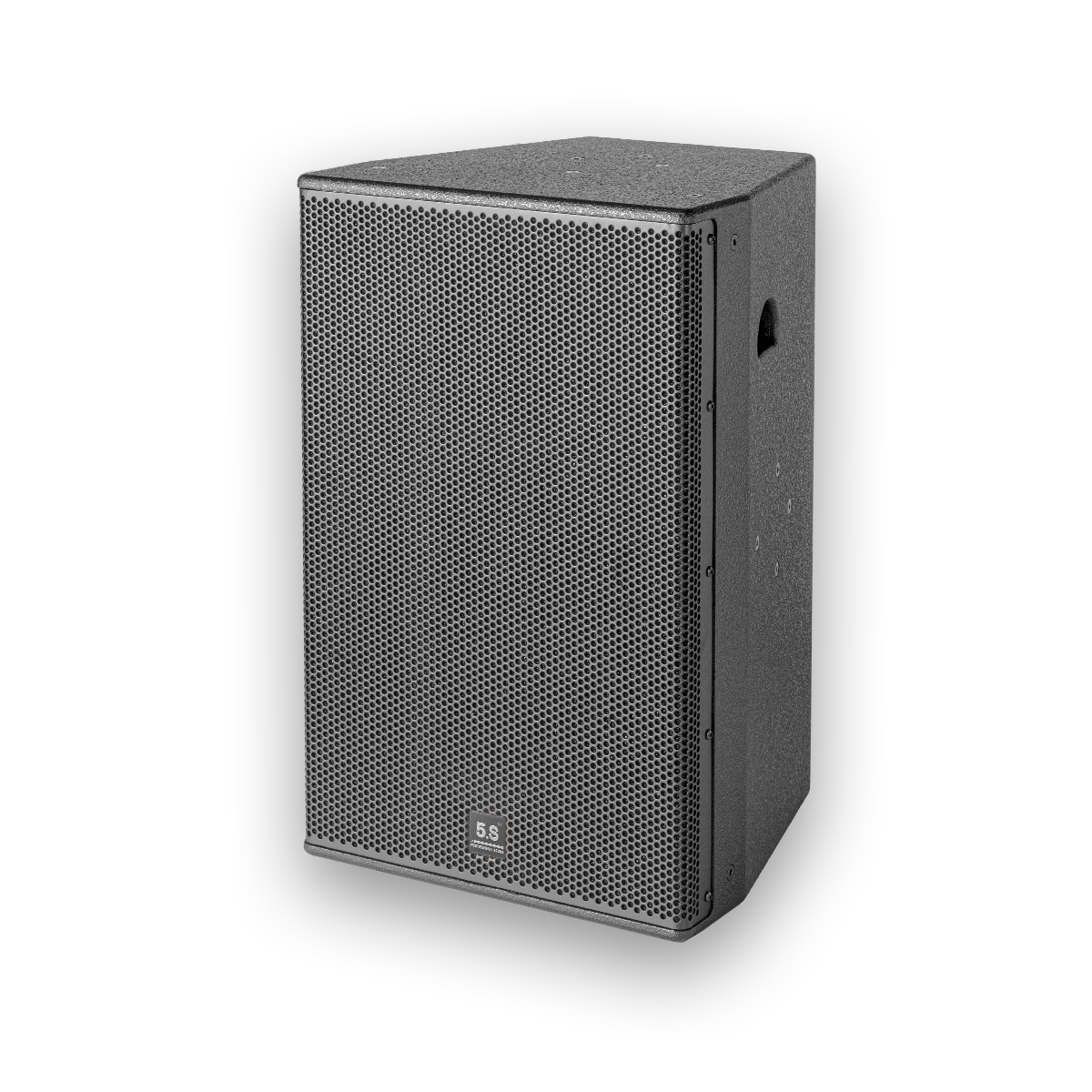

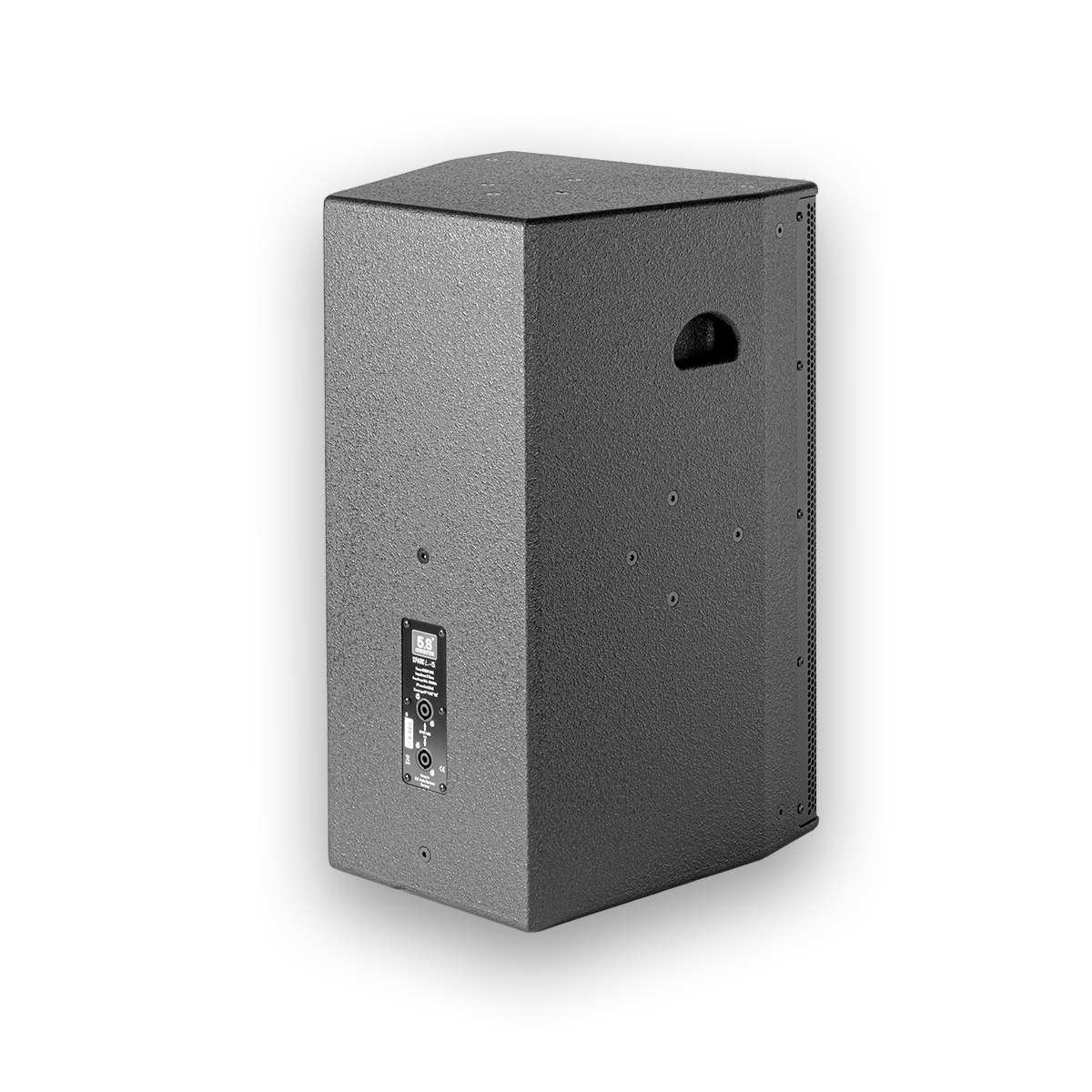

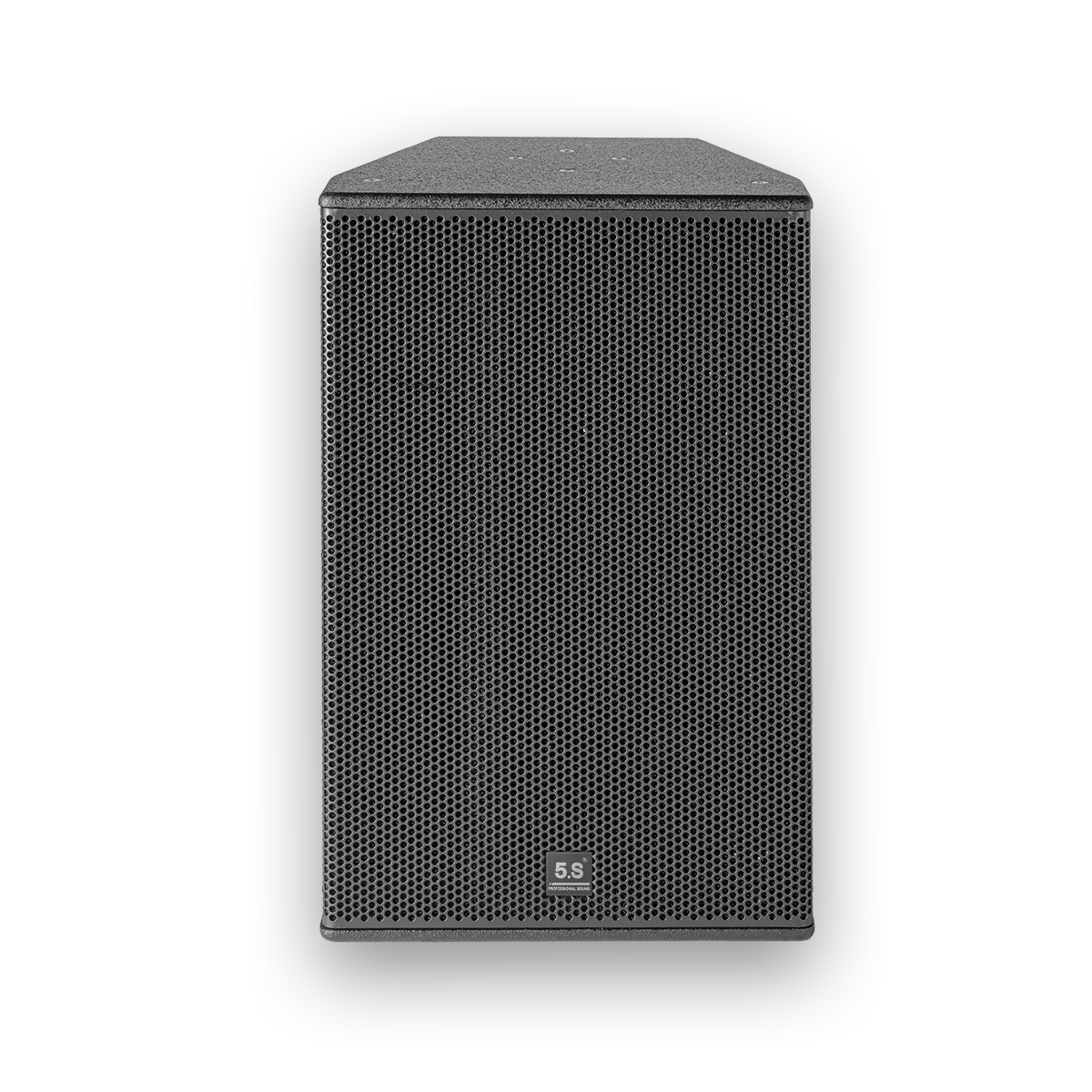

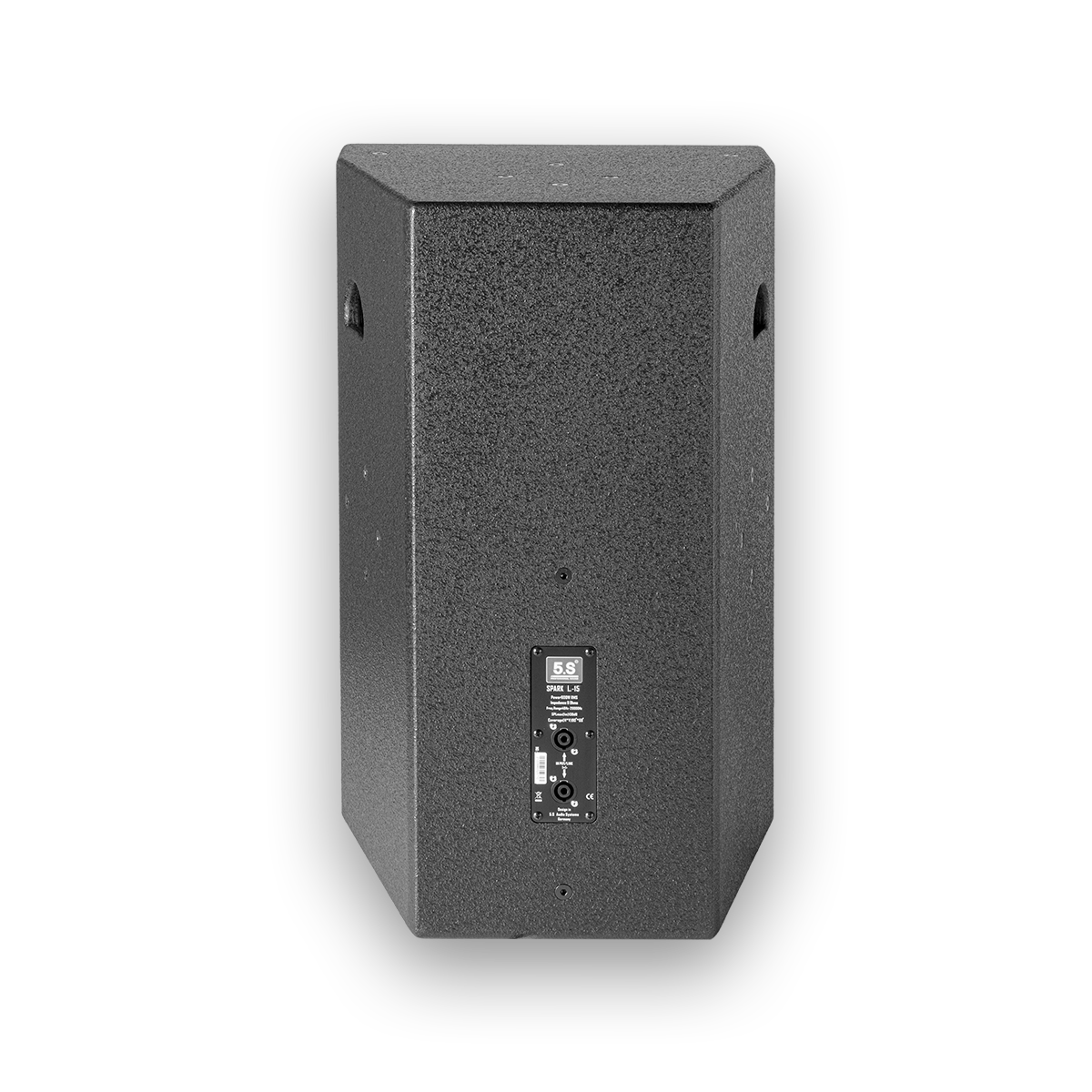

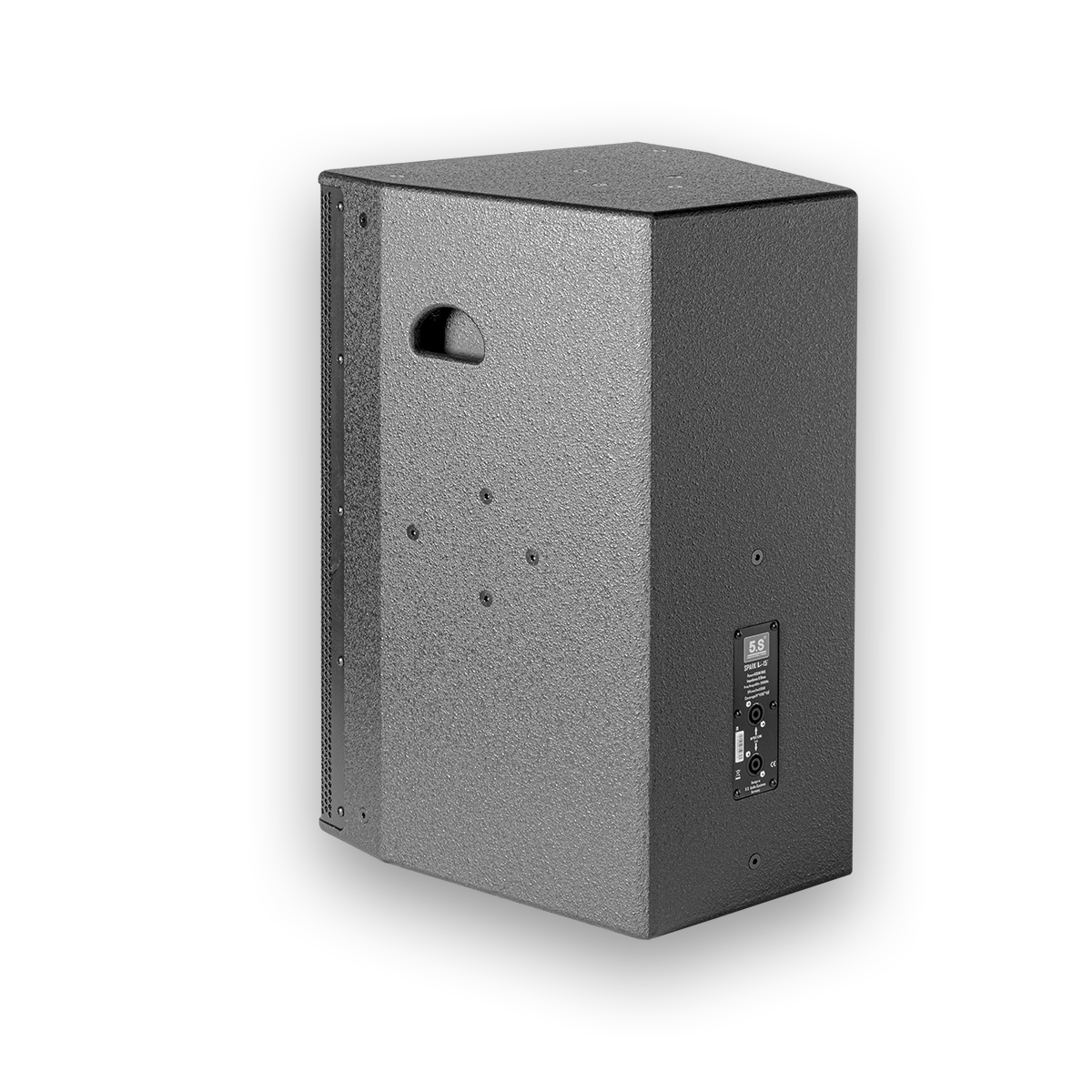

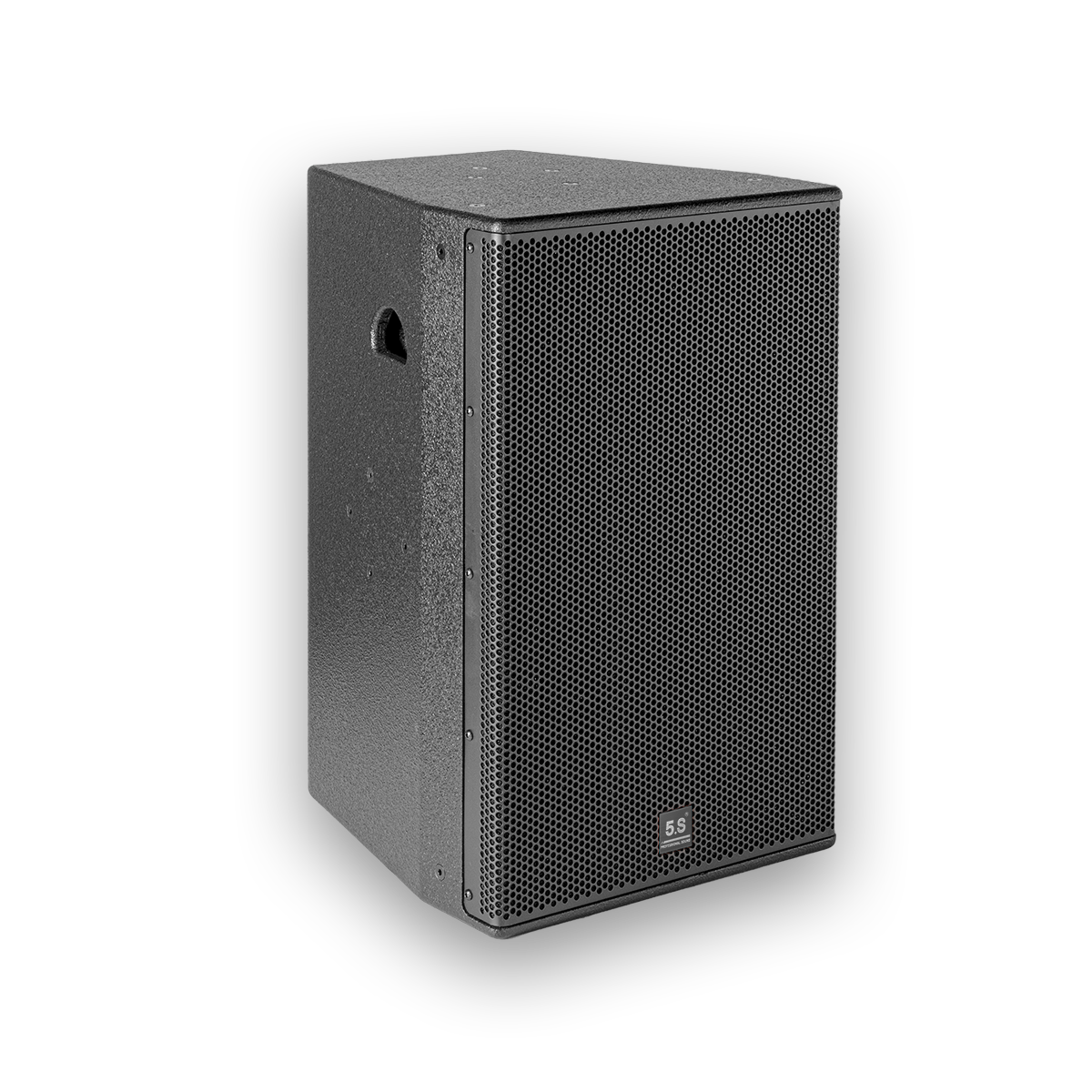

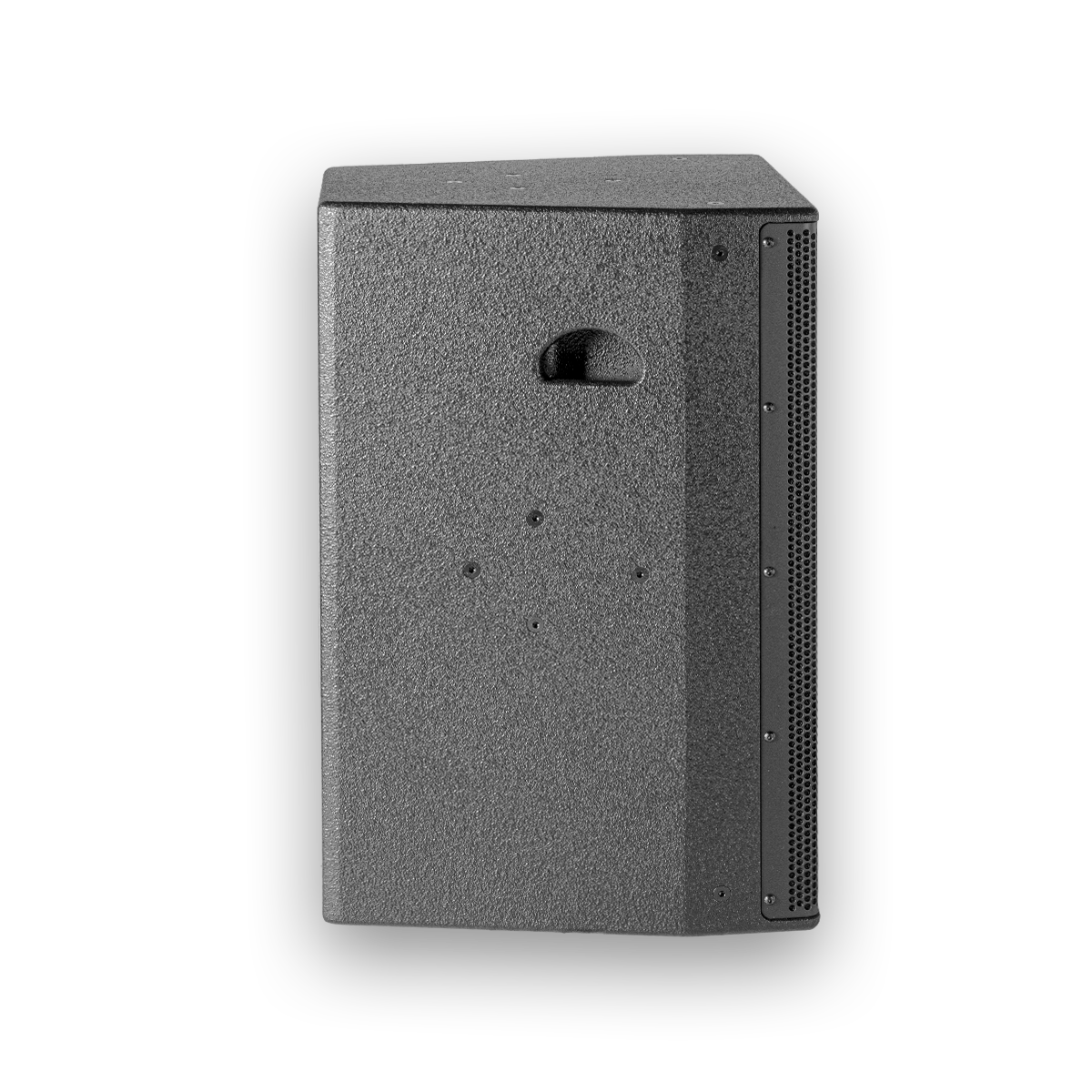

  • The Audio L-15 is a front-ported cabinet with a sturdy 2.0 steel grille for protection, covered by an acoustically transparent mesh fabric. It is equipped with a built-in 15" high-power, ultra-low distortion woofer and a 90°x60° horn.


Main Features

  • 额定功率: 620W(AES)
  • 峰值功率: 2480W(AES)
  • 输入连接:1*NeutrikTM 1+1-
  • 输灵敏度:98dB
  • 最大声压级: 131dB
  • 额定阻抗: 8欧姆
  • 覆盖角度: 90° X 60°
  • 净重: 30.55Kg
  • 箱体尺寸: 439mm*705mm*440mm(W*D*H)

Product Description

The L-15 speaker is a unique front-ported, compression-driven two-way full-range speaker with exceptional musical performance.

The brand-new and distinctive system combination of the L-15 impacts the music scene in nightclubs and bars. Its avant-garde, fashionable, and passionate musical style creates an electrifying atmosphere, gradually making it a mainstream product that keeps guests entertained and immersed in the excitement.

The L-15 is suitable for commercial KTVs, music bars, nightclubs, clubs, and small-scale events, providing a powerful sound reinforcement solution.

技术参数


类型: 2路全频多用途扬声器系统
频率响应: 46Hz-18kHz
功率: 320W
峰值功率: 1280W
阻抗:
覆盖角度: 90° X 60°
灵敏度: 98dB
最大声压: 131dB
分频点: 1.2kHz内置分频
输入连接器: 1*NeutrikTM 1+1-
低频: 15"喇叭单元组件采用欧洲进口低音单元, 3"(65mm)音圈,额定功率为:620W(AES)
高频: 1.5"喉口,采用欧洲进口高音压缩驱动单元, 2.35" (61mm)音圈, 额定功率为:100W(AES)
箱体材料: 15mm俄罗斯桦木夹板
箱体表面处理: 黑色水性油漆
净重: 30.5Kg
尺寸: 439mm*705mm*440mm(W*D*H)
