Product Description

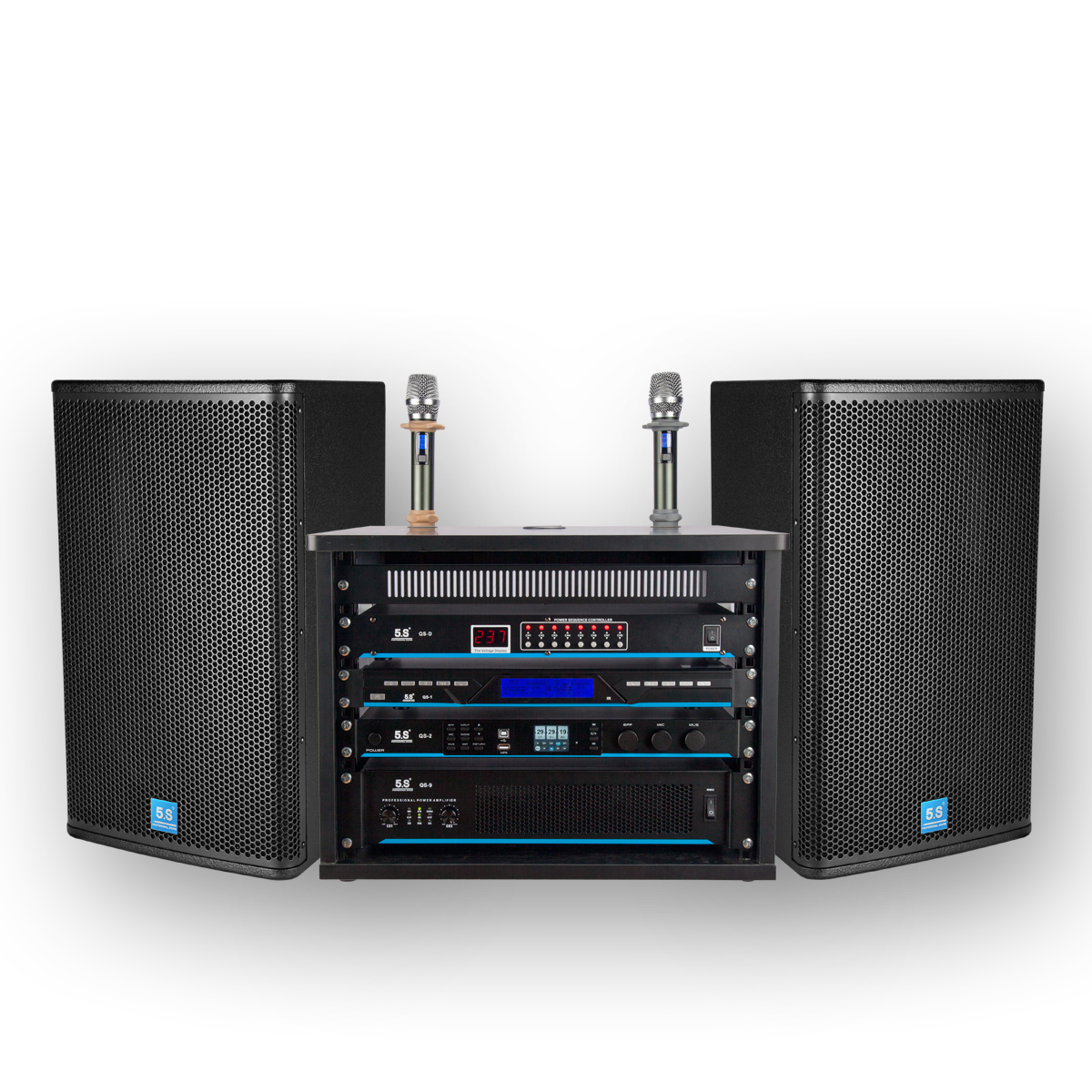

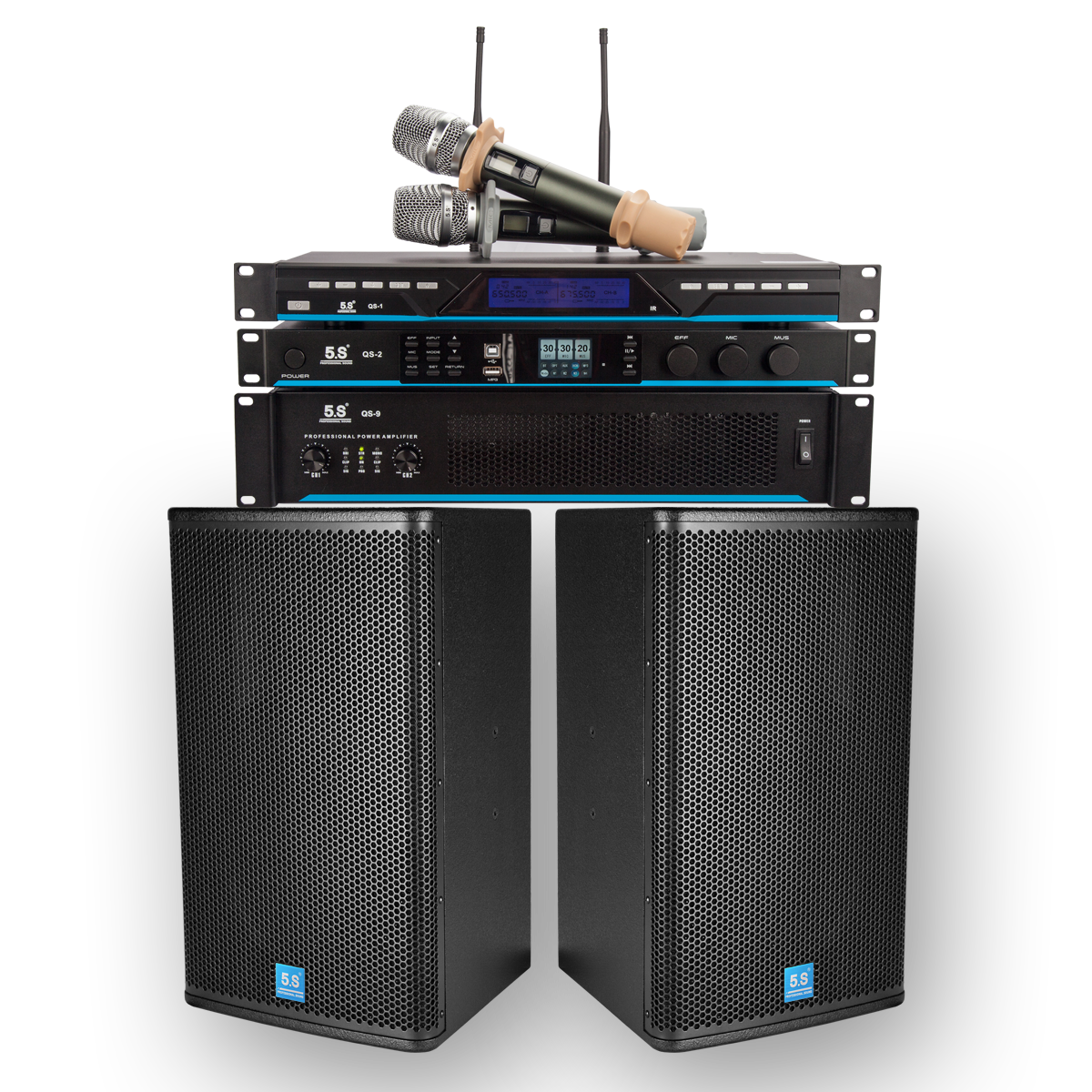

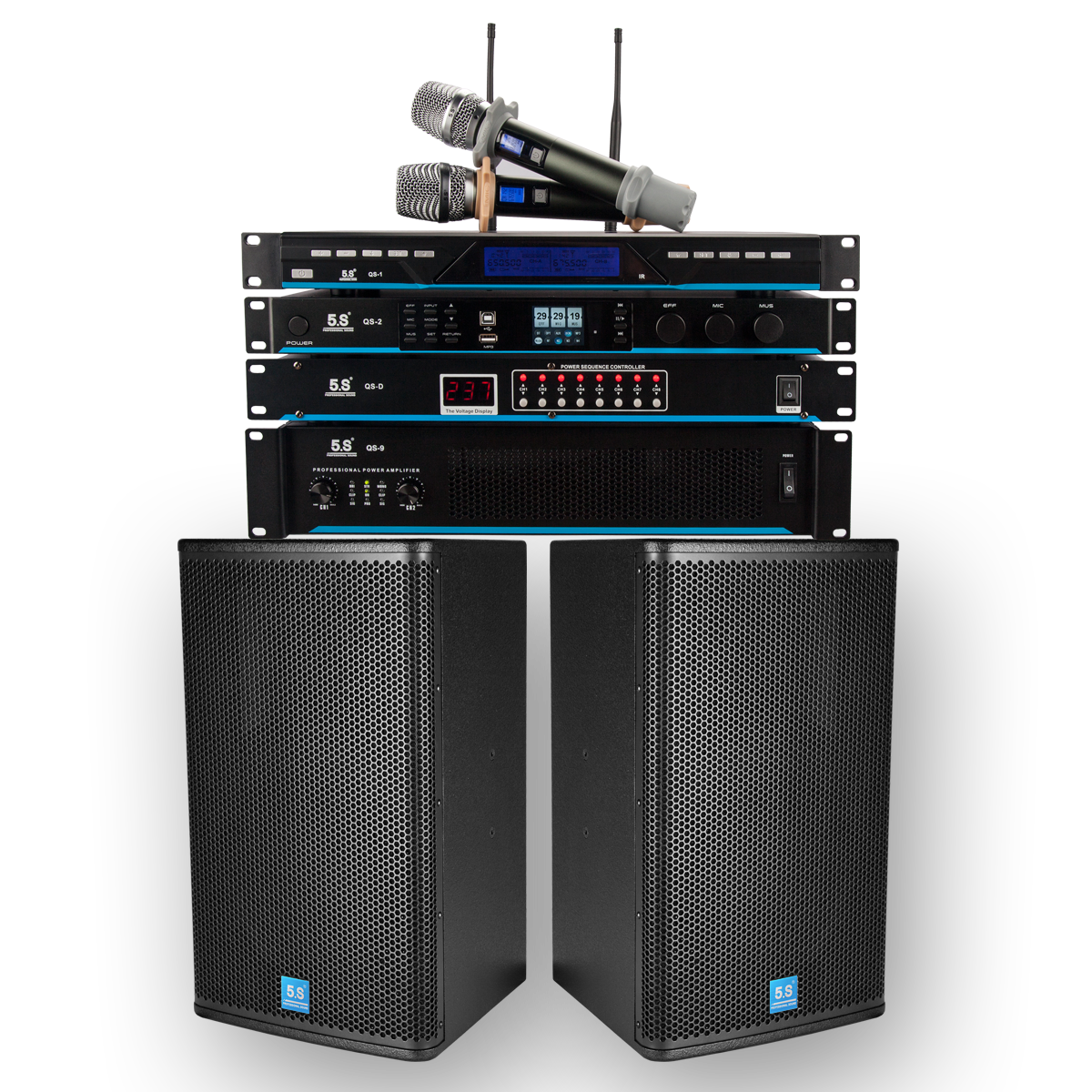

Audio QS Series 12" set is a newly developed multifunctional high-fidelity speaker by Shenglipu Enterprise in 2024. With a powerful 400W output and paired with a 600W pure post-stage amplifier, it features a 7-band equalizer preamp effects processor and includes KTV-engineered dedicated wireless microphones. It can easily support up to 50 KTV rooms. The product boasts a unique structural design for quick and simple maintenance, making it suitable for sound amplification needs in KTVs, parties, conferences, and other venues. Installation is super easy, requiring minimal debugging—just install and it's ready to use!
QS-12 Speaker Technical Specifications
| Frequency Response: | 48Hz-18kHz |
| Power: | 400W |
| Peak Power: | 1600W |
| Impedance: | 8Ω |
| Dispersion Angle: | 100° X 70° |
| Sensitivity: | 96dB |
| Maximum SPL: | 128dB |
| Crossover Point: | 1.2kHz Built-in Crossover |
| Input Connector: | 1*NeutrikTM 1+ 1- |
| Low Frequency: | 12" Cloth-edge Woofer, 2.55" (65mm) Voice Coil, Rated Power: 350W (AES) |
| High Frequency: | 1" Throat, Custom-made Compression Driver, 1.75" (44mm) Voice Coil, Rated Power: 50W (AES) |
| Cabinet Finish: | Black Water-based Paint |
| Net Weight: | 18.5Kg |
| Dimensions: | 353mm*600mm*370mm (W*H*D) |

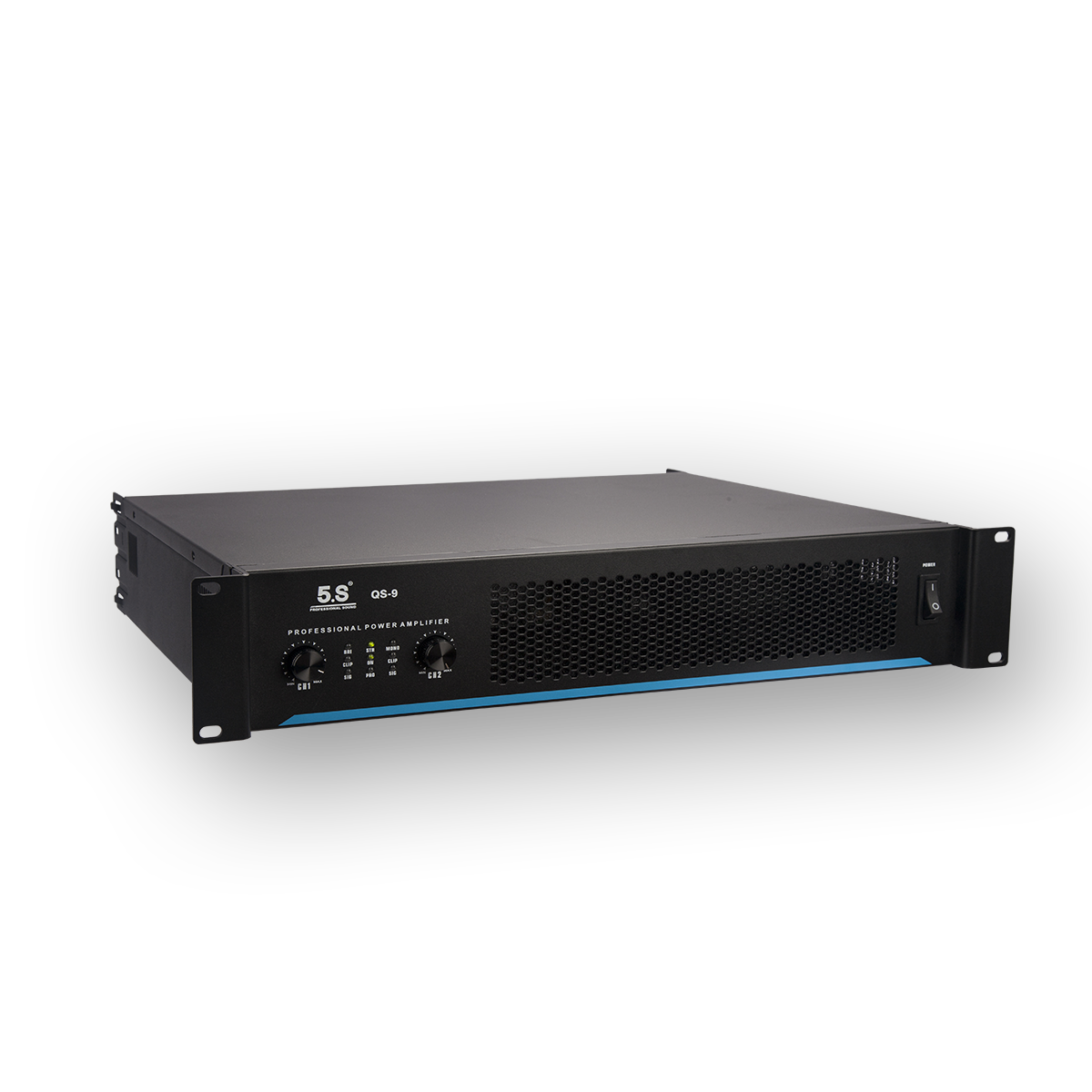

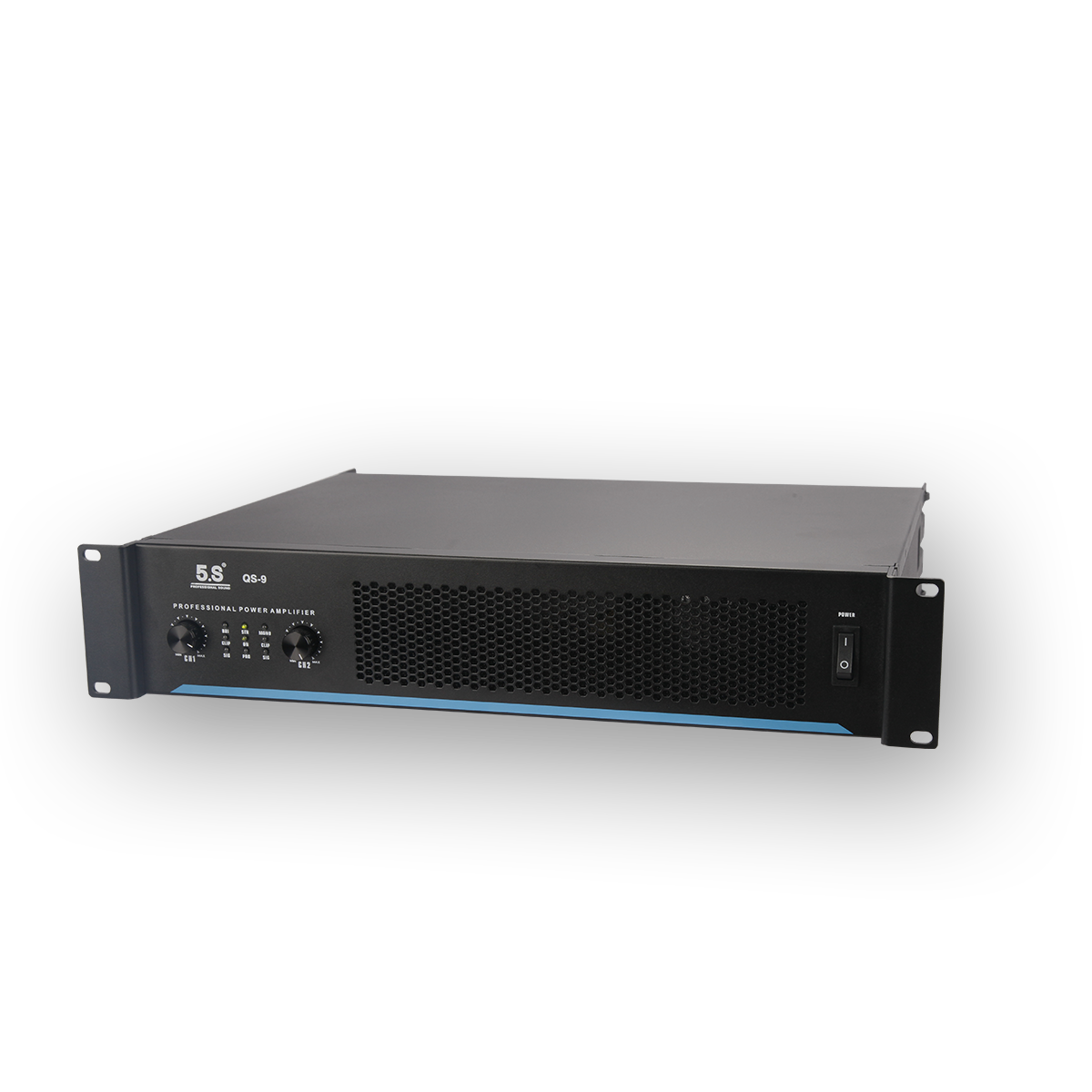

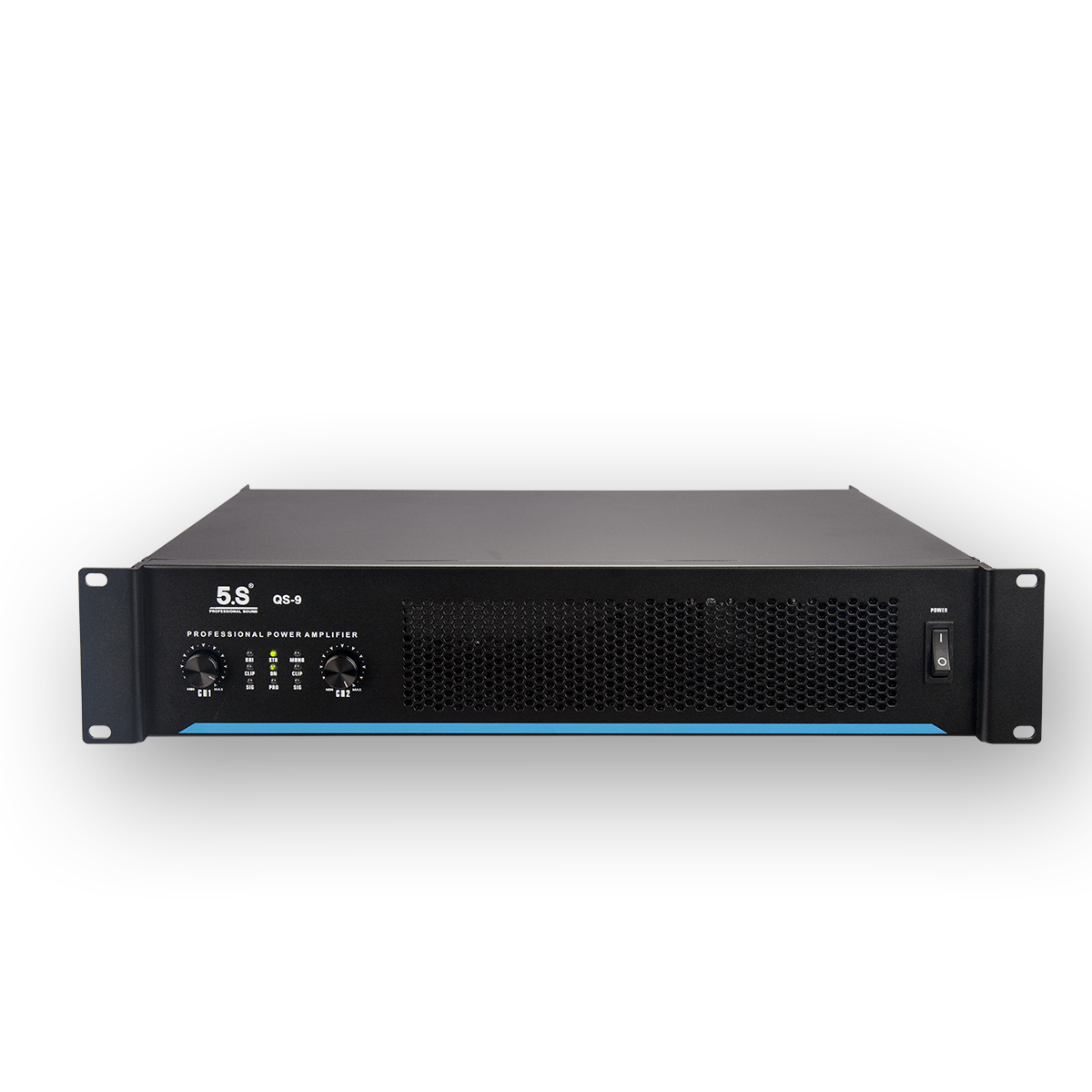

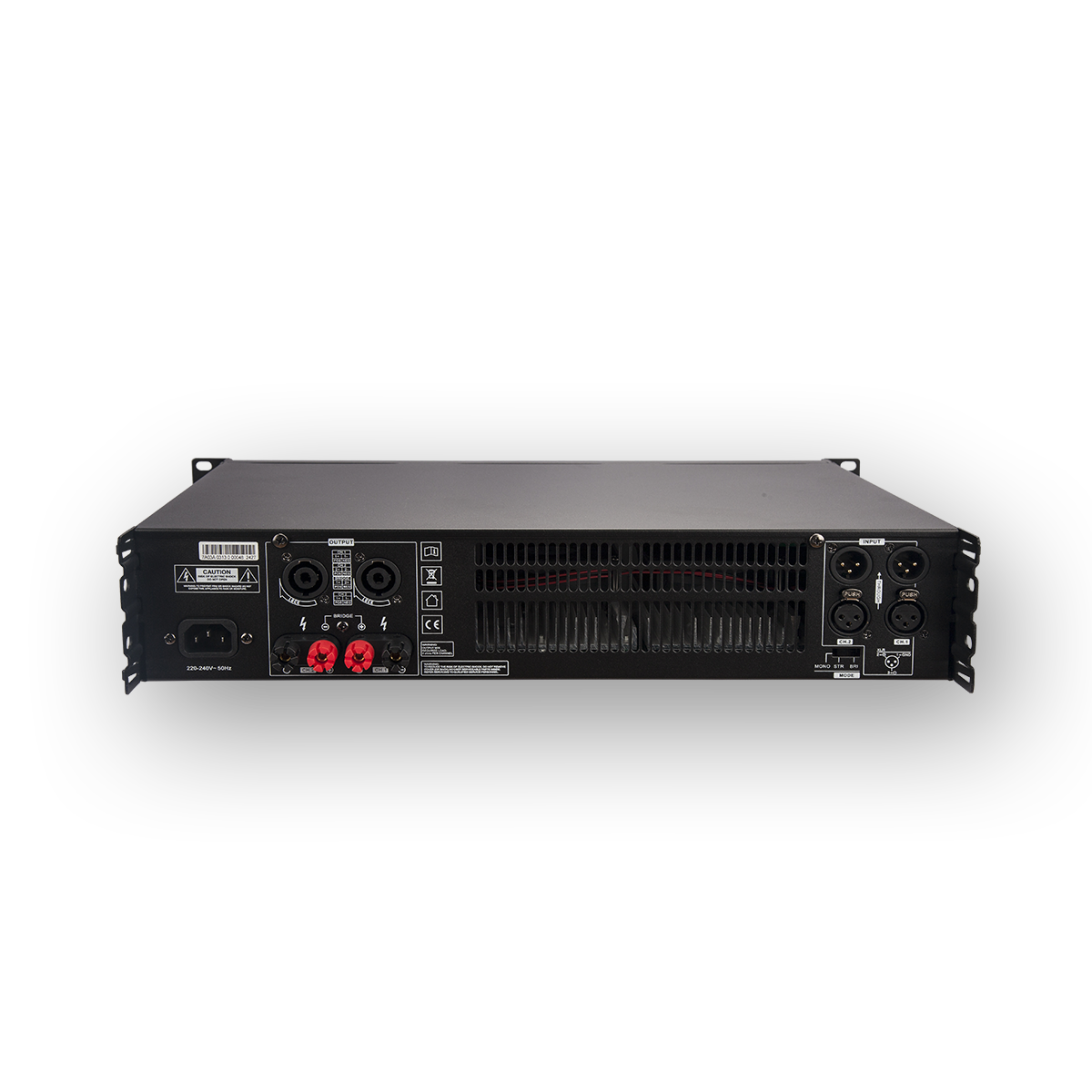

QS-9 Amplifier Technical Specifications
| Output Power: | Stereo 8Ω: 2X600W | Stereo 4Ω: 2X900W | Bridged 8Ω: 1800W |
| Frequency Response: | 20Hz-20kHz, ±0.5dB |
| Output Connectors: | Binding and Speakon |
| Input Sensitivity: | 0.775V |
| Balanced Input Impedance: | 20kΩ/Balanced, 10kΩ/un-Balanced |
| Signal-to-Noise Ratio: | ≥95dB |
| Total Harmonic Distortion: | ≤0.03% |
| Separation at Rated Output Power (8Ω, 1kHz): | >70 dB |
| Slew Rate: | 15V/uS |
| Protection: | Soft Start, Short Circuit, Limiter, DC Fault, AC Line Fuse, Thermal Cut |
| Cooling System: | Dual Fans |
| Power Supply: | AC: 220-230V, 50Hz/60Hz |
| Net Weight: | 11.1Kg |
| Dimensions: | 482mm x 346mm × 95mm (W*D*H) |

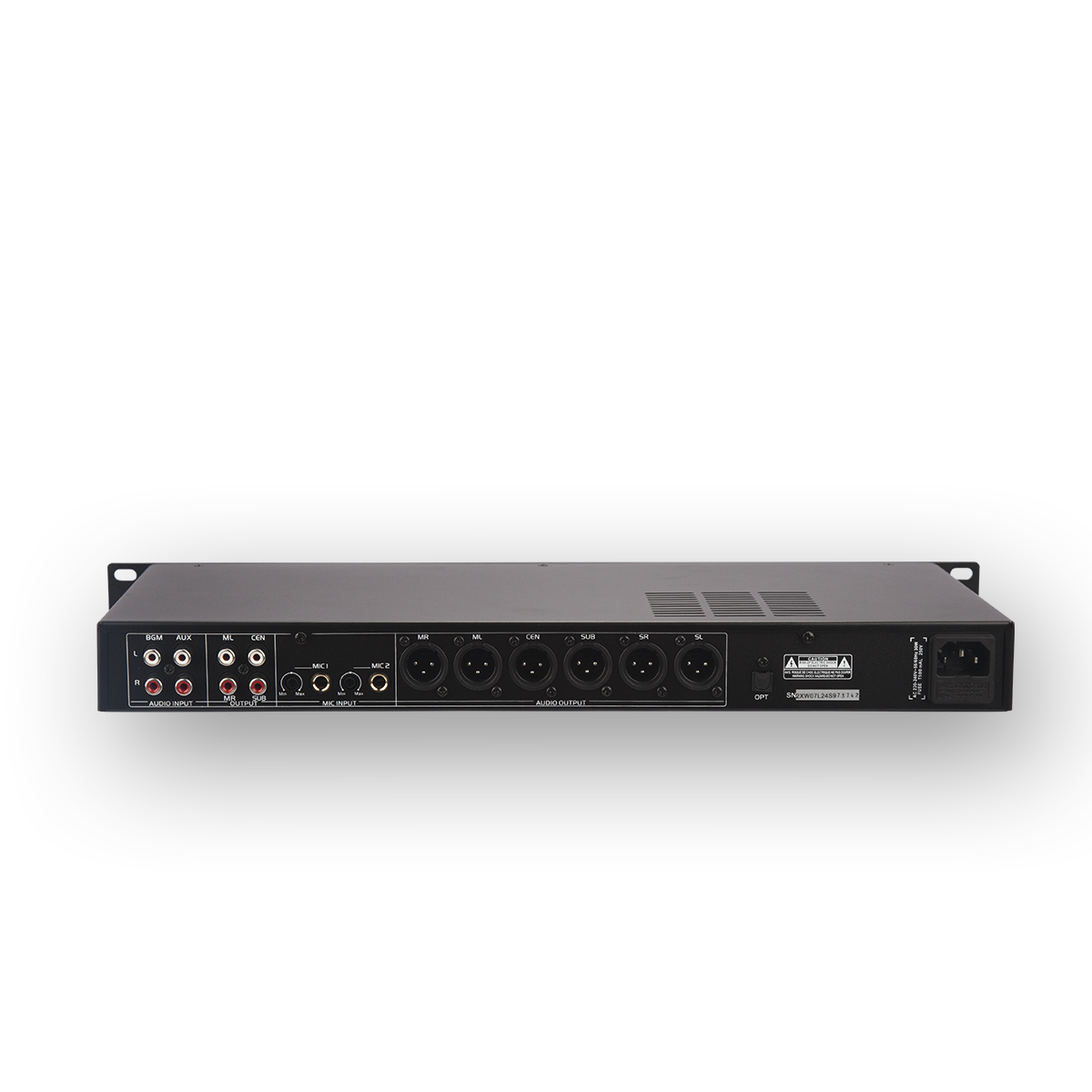

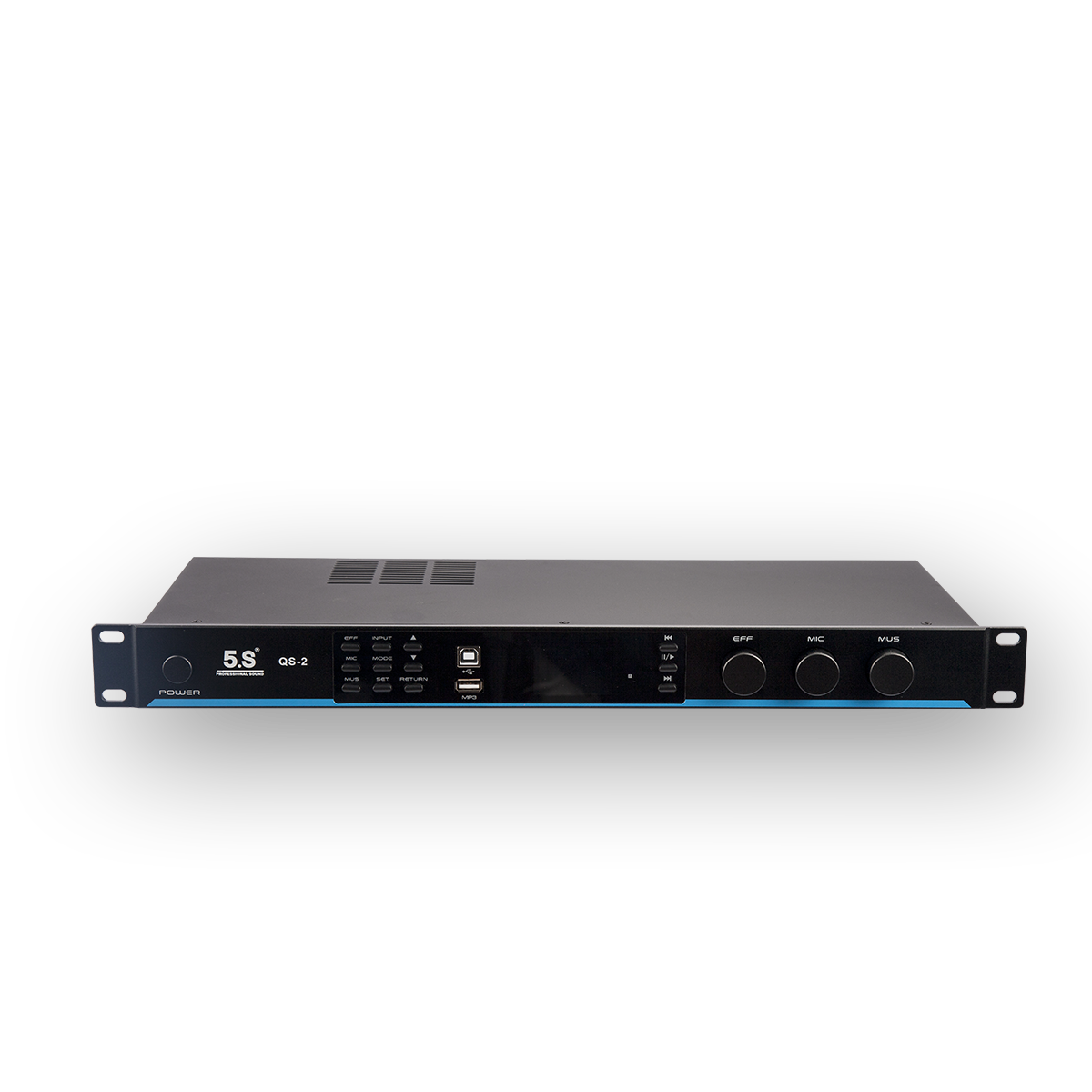

QS-2 Preamp Effects Processor Product Features
Color screen design + Bluetooth playback digital + analog preamp effects processor, more suitable for home and other venues' playback requirements.
- Self-developed 3×DSP digital processing technology
- 4 preset professional modes
- 5.1 output channels
- Pitch shift function (up 5 levels, down 5 levels)
- 7-band parametric equalizer for music and microphone tone adjustment
- 3-band parametric equalizer for effects, center output, and subwoofer output
- Self-developed professional anti-feedback technology
- Power-on delay and power-off mute function to protect the amplifier
- Startup volume settings and maximum volume lock for music, microphone, and effects
- Startup mode settings for music, microphone, and effects
- USB interactive tuning software control interface
- Exclusive digital-analog audio processing circuit for an unprecedented KTV experience
- Latest dual DSP effect processing circuit for natural and detailed vocal performance
- Professional PCB layout for clearer and more coordinated circuitry
Technical Specifications
- Frequency Range (MUSIC, MIC): 20Hz–20kHz
- Input Sensitivity: (MIC) 11mV | (MUSIC) 210mV
- Music Tone (±10dB): 7-band parametric equalizer
- Microphone Tone (±10dB): 7-band parametric equalizer
- Subwoofer Tone (±10dB): 3-band parametric equalizer
- Center Tone (±10dB): 3-band parametric equalizer
- Microphone Low Cut: 0Hz–200Hz
- Signal-to-Noise Ratio (A-weighted): ≥95dB

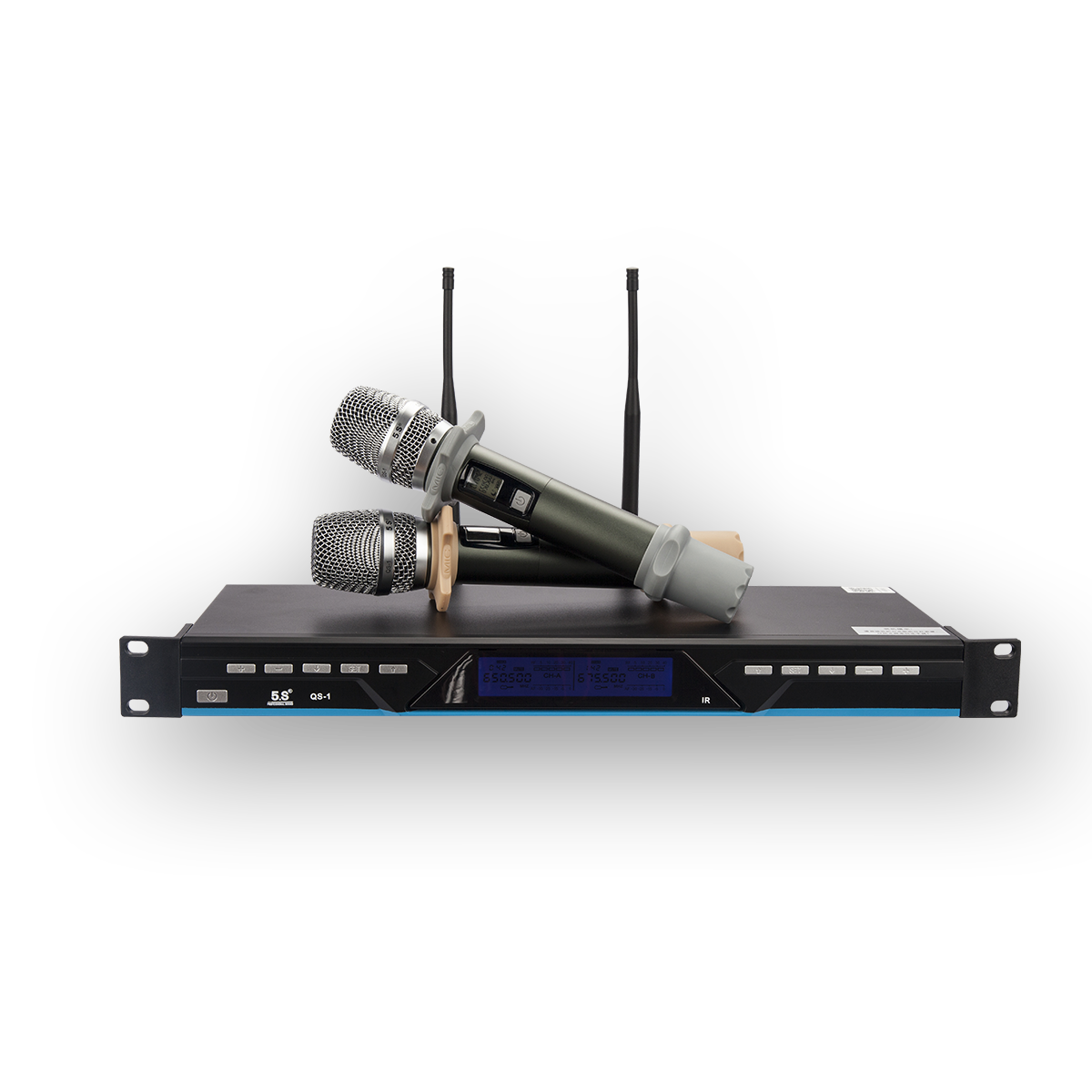

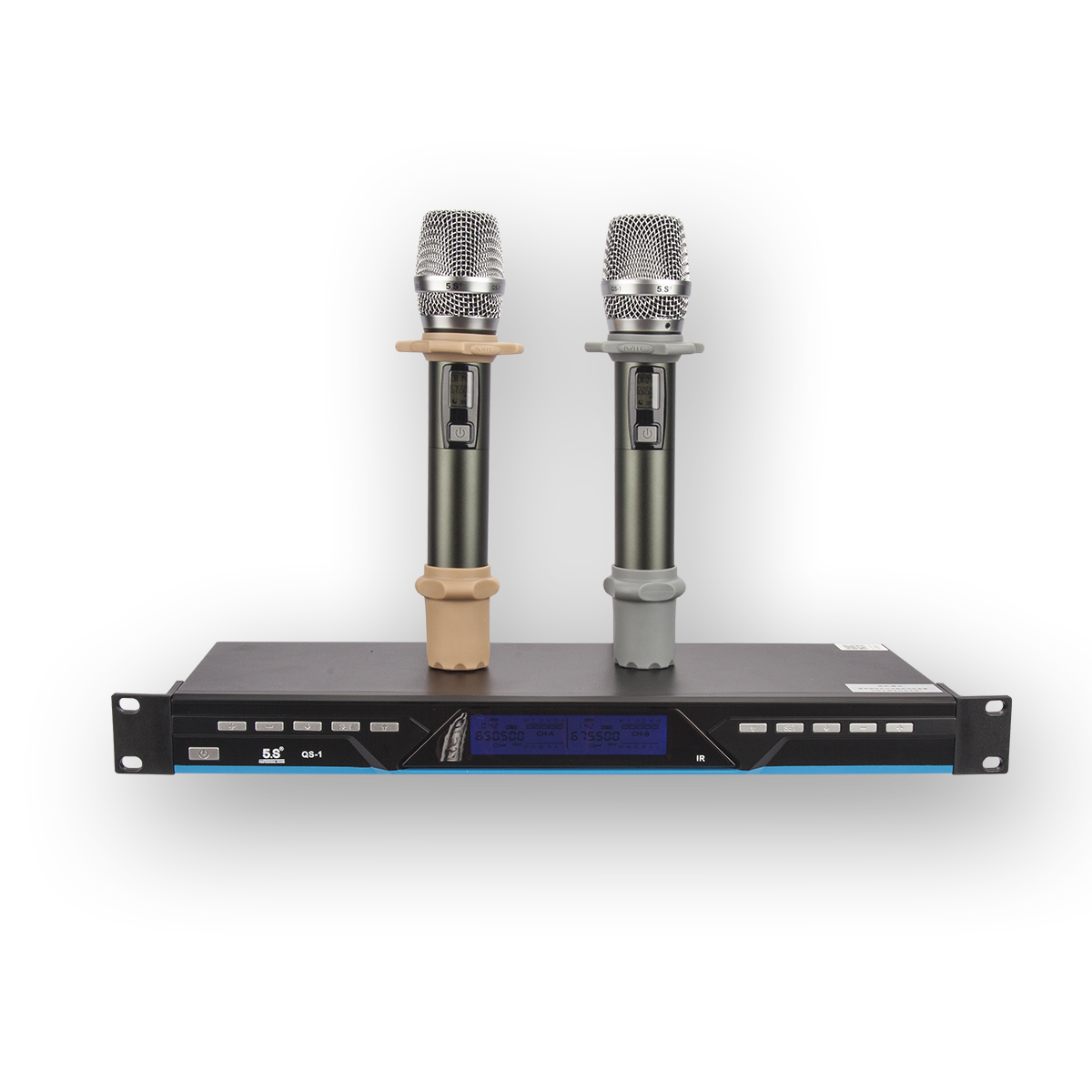

QS-1 Wireless Microphone Product Features
Industry-first automatic hand-sensing patent technology. The microphone automatically mutes within 3 seconds after being placed stationary (works in any direction or angle), enters energy-saving standby mode after 5 minutes, and automatically shuts down after 15 minutes, completely cutting off power. A brand-new intelligent and automated wireless microphone.
- New audio circuit architecture delivers crisp highs, powerful mid-lows, and perfect detail reproduction. Superior dynamic tracking ensures excellent pickup at any distance.
- Innovative digital pilot tone technology eliminates cross-frequency interference in KTV rooms—no more frequency clashes!
- 100×2 channels, 250kHz channel spacing
- Specially designed mute circuit eliminates popping noise when turning the microphone on/off
- Uses standard AA batteries with 6–10 hours of continuous use
- Unique voltage boost design ensures consistent performance even as battery power declines
- Operating range up to 60 meters in ideal conditions, suitable for various venues
- Default configuration includes LCD screen with blue backlight and aluminum microphone body
- Infrared auto-frequency synchronization for quick channel matching with the receiver
- KTV engineering-specific model: two microphones, one host. Easily configures 50 KTV rooms. Unique structural design for quick and simple maintenance.

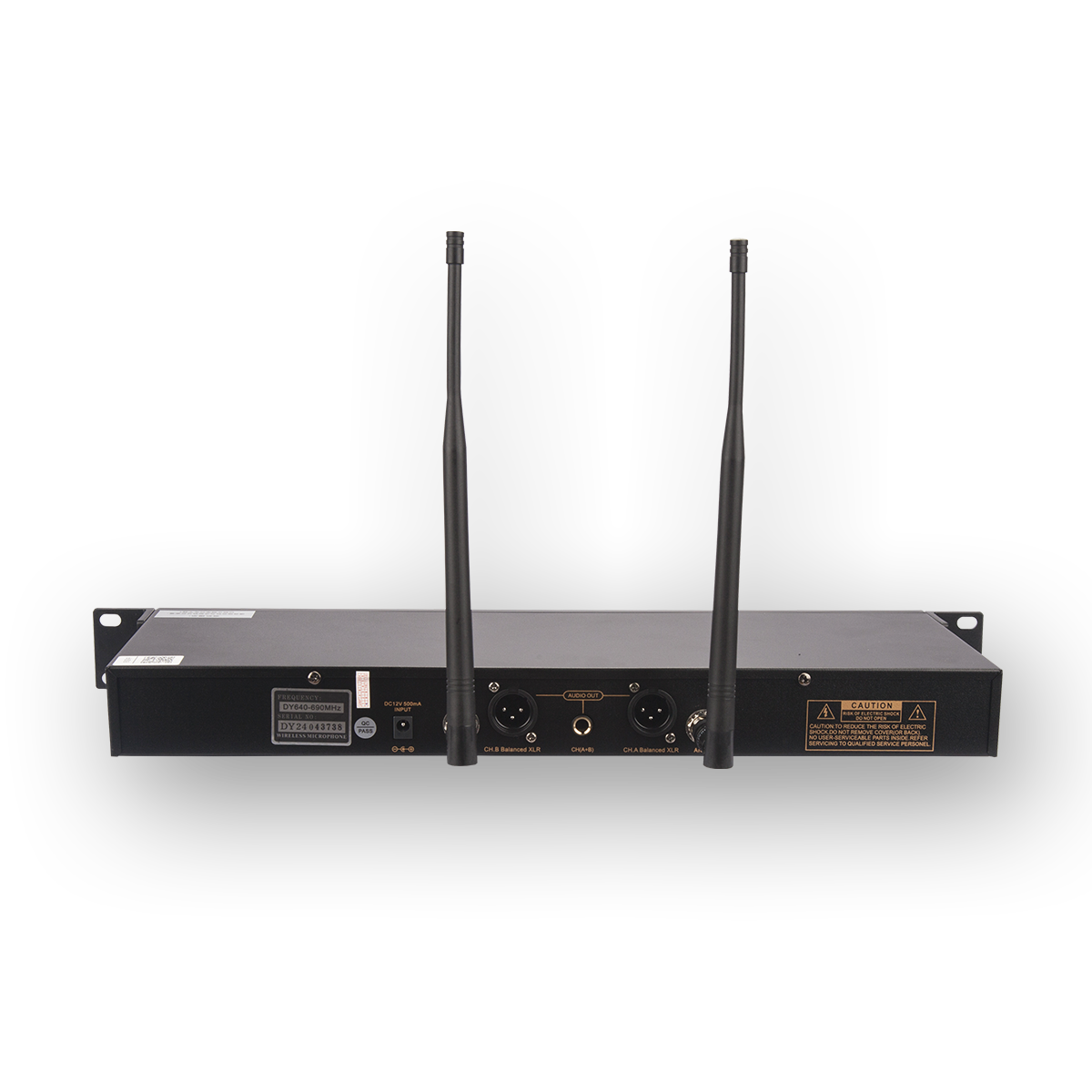

QS-1 Wireless Microphone Technical Specifications
- Frequency Range: 640-690MHz
- Adjustable Channels: 100×2
- Frequency Stability: ±10ppm
- Audio Frequency Response: 80-13000Hz
- Harmonic Distortion: ≤0.5%
- Signal-to-Noise Ratio: ≥110dB
- Audio Output: Balanced and mixed output
- Transmission Power: 3-30mW
- Modulation: FM
- Battery: 2×AA
- Power Supply: 100-240V, 50-60Hz, 12VDC (switching adapter) or 220VAC/50-60Hz, 12VDC (linear power supply)
- Power Consumption: ≤10W
