Product Description

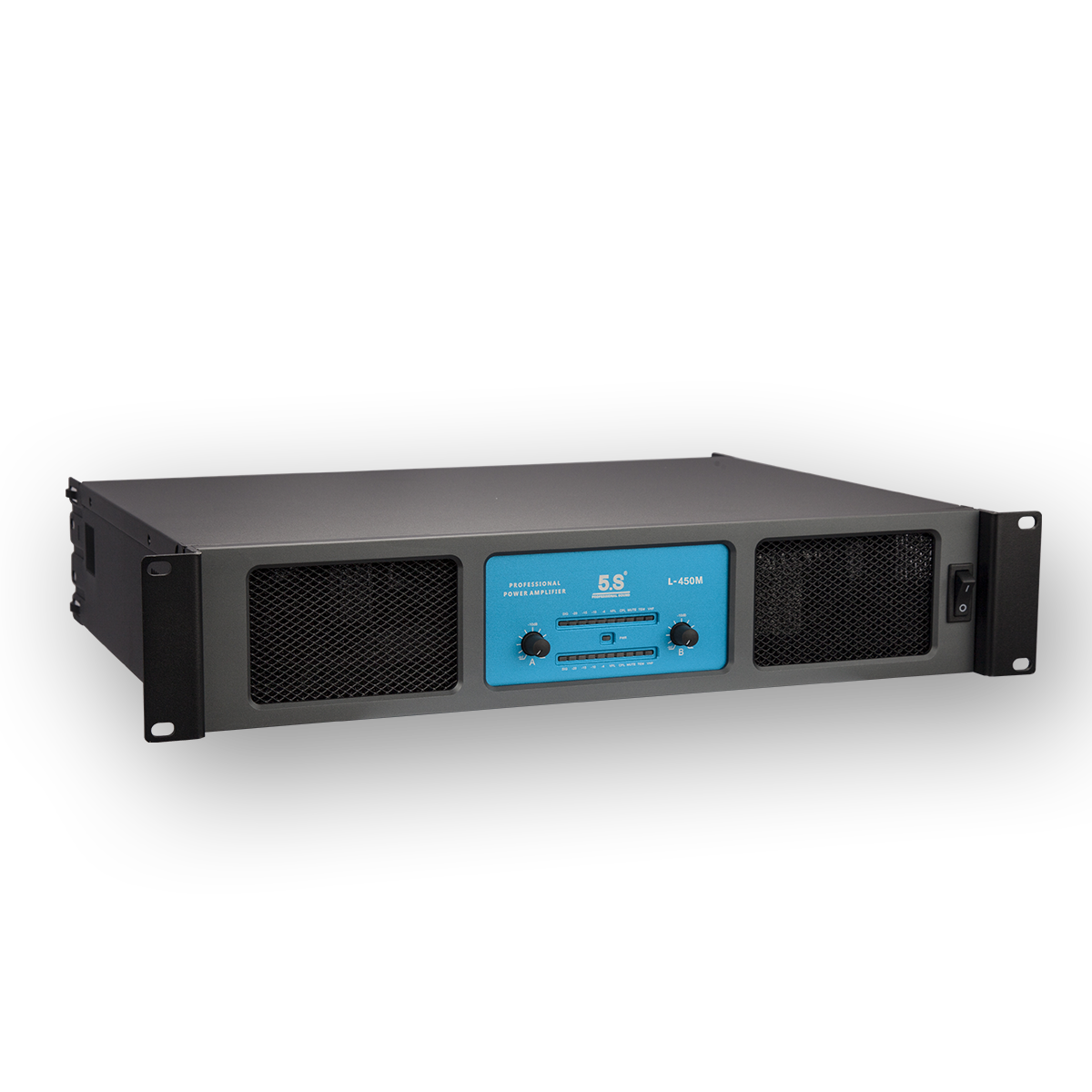

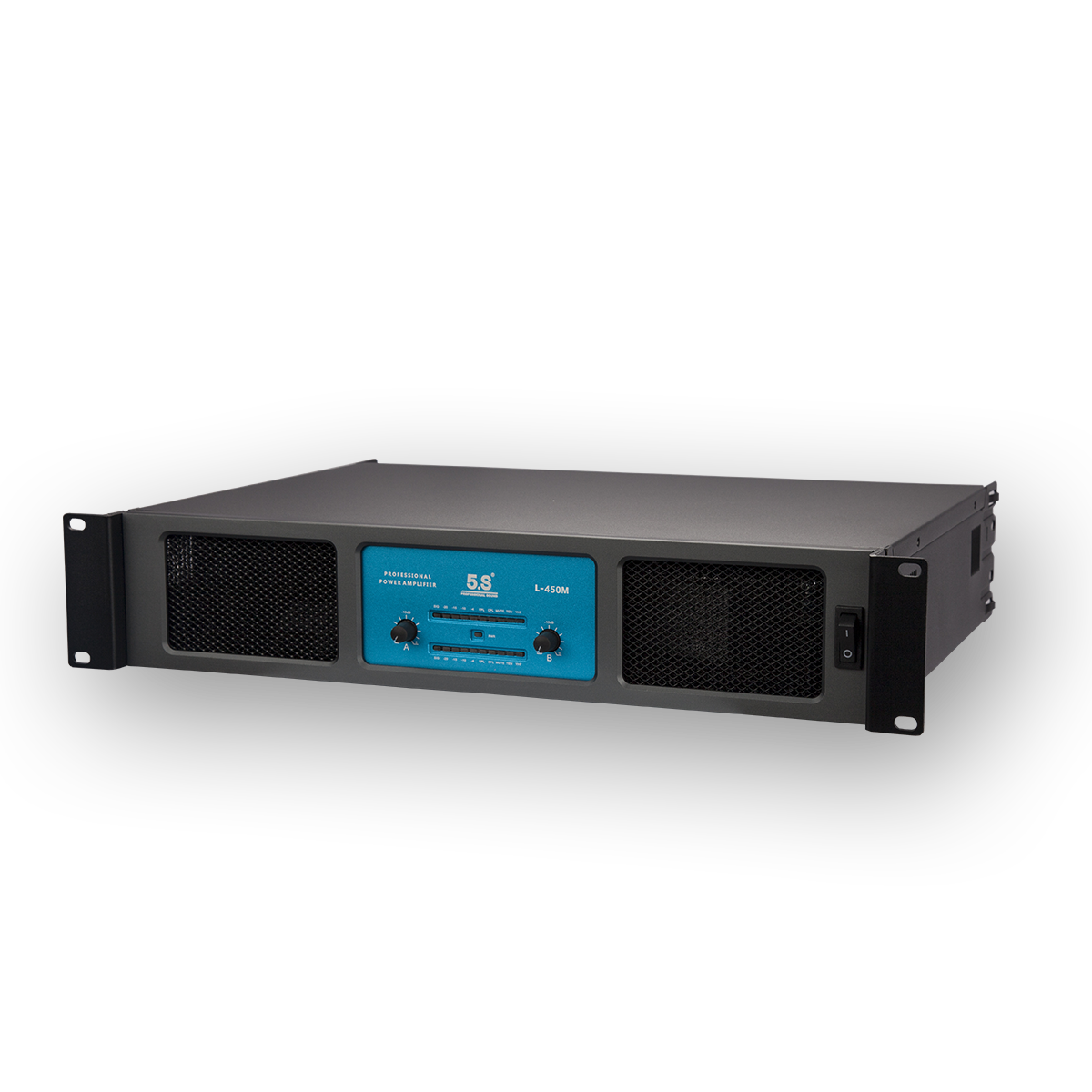

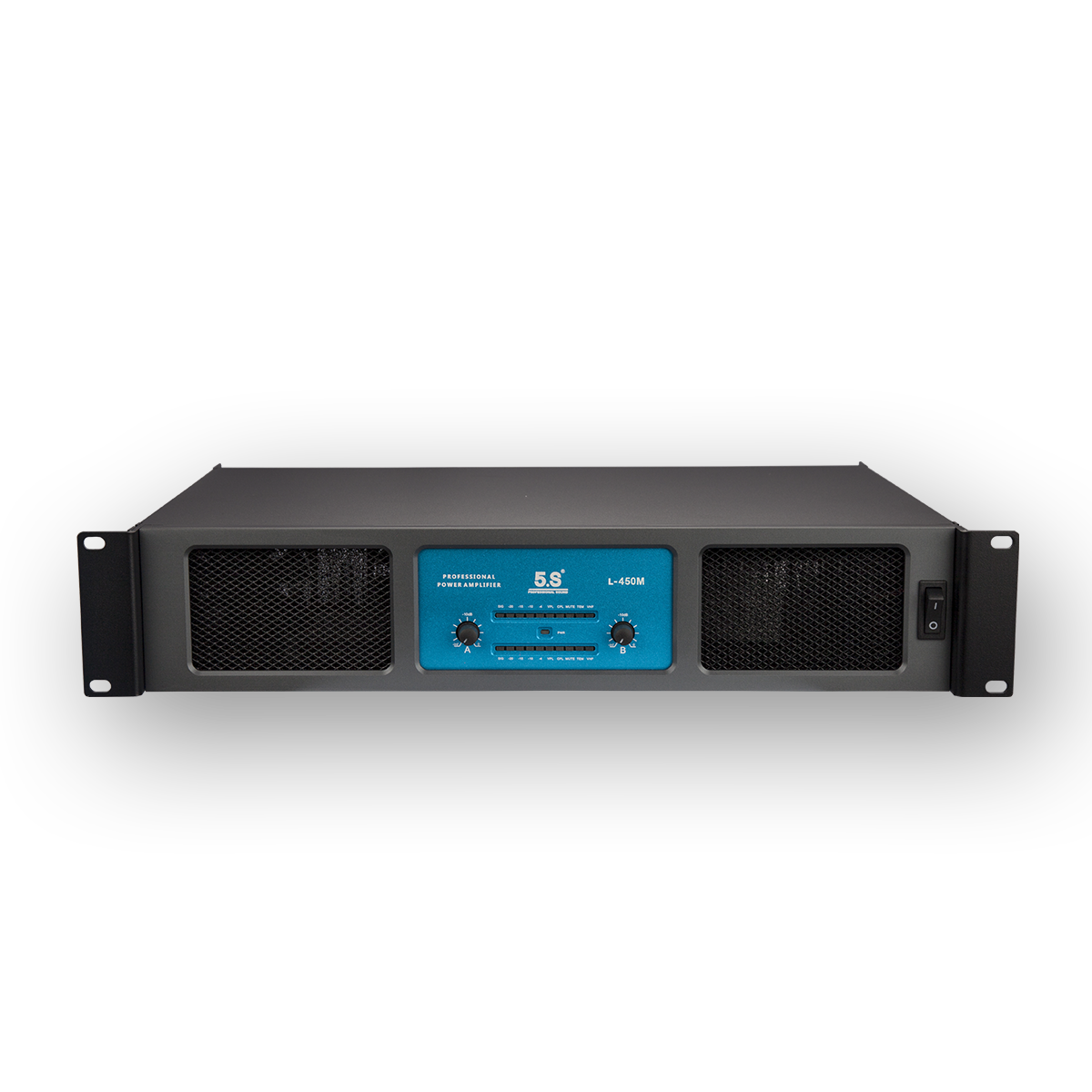

The L-450M is a 2-channel digital circuit processing power amplifier capable of amplifying weak electrical signals from the signal source to drive speakers and produce sound. With a maximum output power of up to 900W, the massive power output ensures the greatest power headroom, enabling 5S speakers to deliver superior sound quality.
The L-450M power amplification circuit adopts a true Class I circuit design, providing more precise sound while maintaining substantial power headroom, allowing the speakers to perform at their best. A high-quality audio system relies heavily on the indispensable role of the amplifier.
Model: | L-450M |
Output Power: | Stereo 8Ω: 2X450W | Stereo 4Ω: 2X675W | Bridged 8Ω: 1350W |
Frequency Response: | 20Hz-20kHz, ±0.5dB |

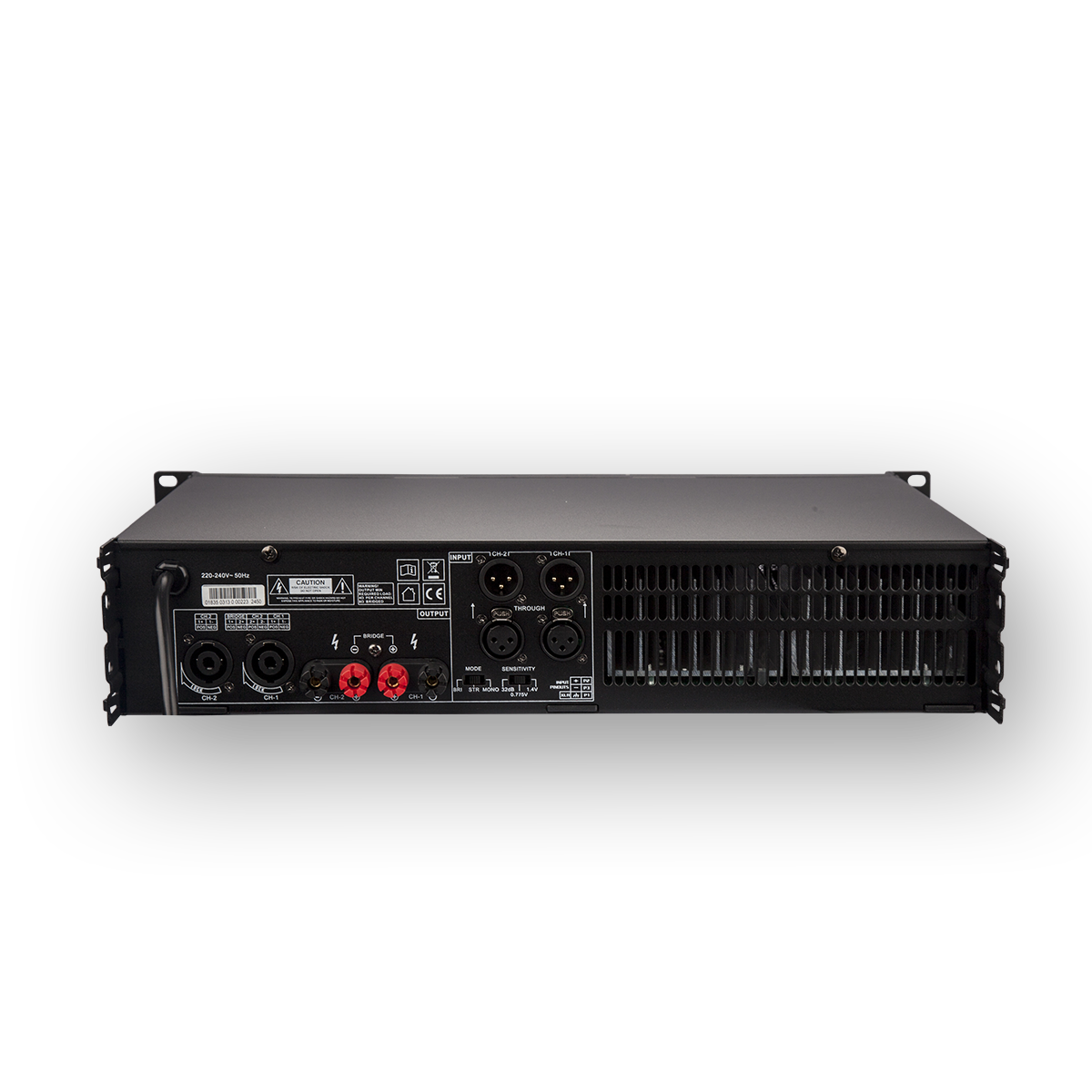

Output Connectors: | Binding Post and Speakon |
Input Sensitivity: | 0.77V |
Balanced Input Impedance: | 20kΩ (Balanced) | 10kΩ (Unbalanced) |
Signal-to-Noise Ratio: | ≥95dB |
Total Harmonic Distortion: | ≤0.03% |
Channel Separation at Rated Power (8Ω, 1kHz): | >70dB |
Slew Rate: | 15V/μS |
Protection: | Soft Start, Short Circuit, Limiter, DC Fault, AC Line Fuse, Thermal Cutoff |
Cooling System: | Dual Fan |
Power Supply: | AC: 220-230V, 50Hz/60Hz |
Net Weight: | 12.7 kg |
Dimensions (W×D×H): | 482mm × 344mm × 88mm |
