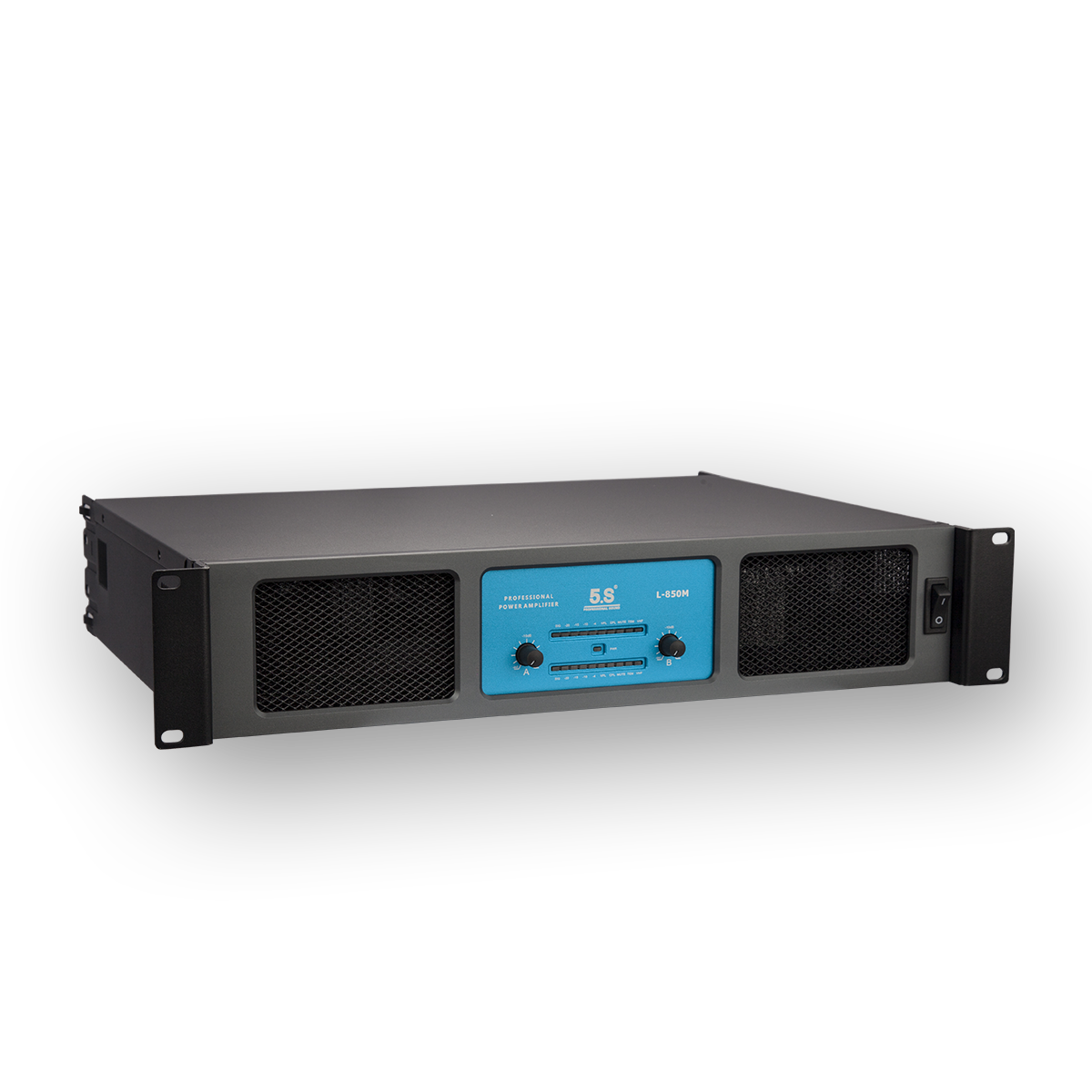

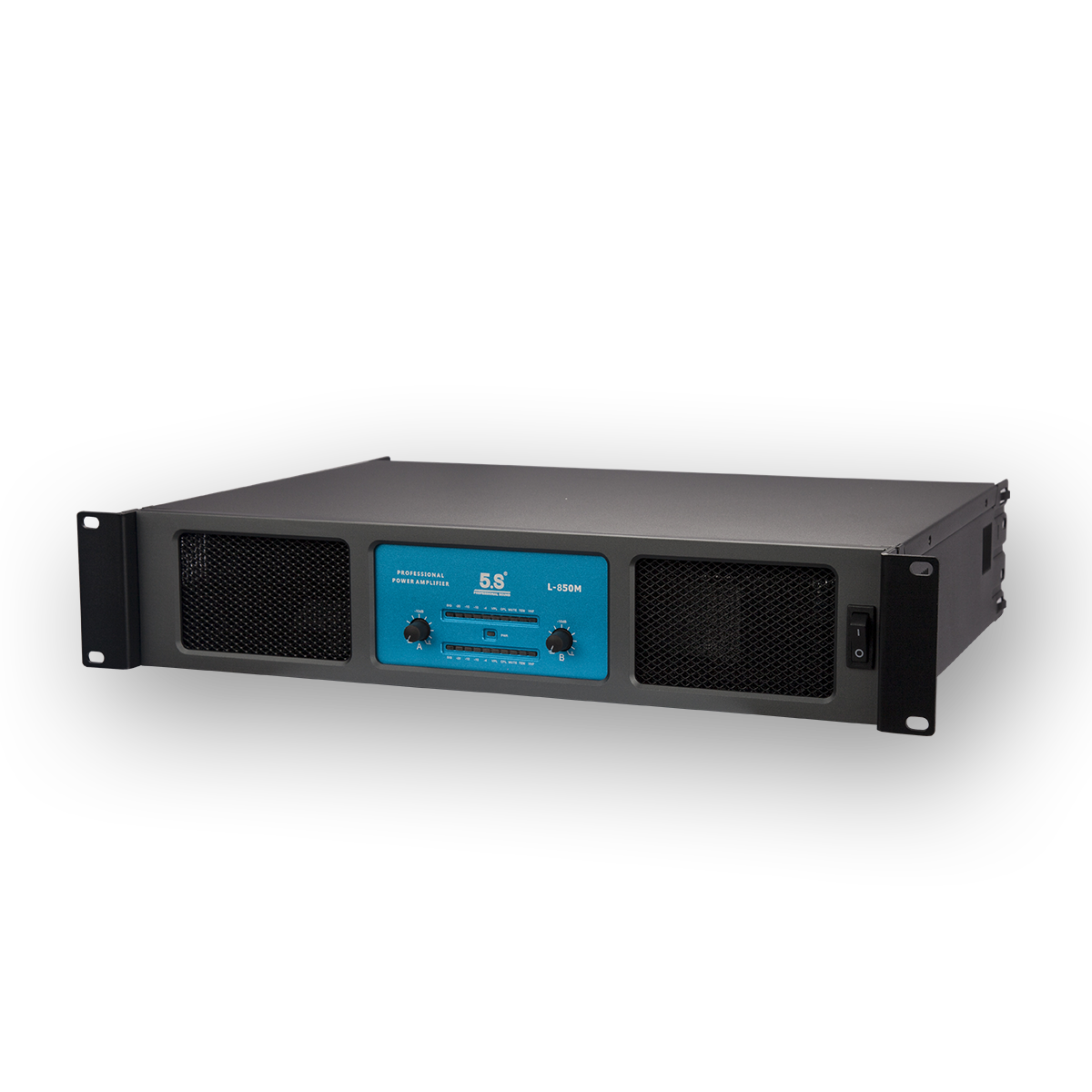

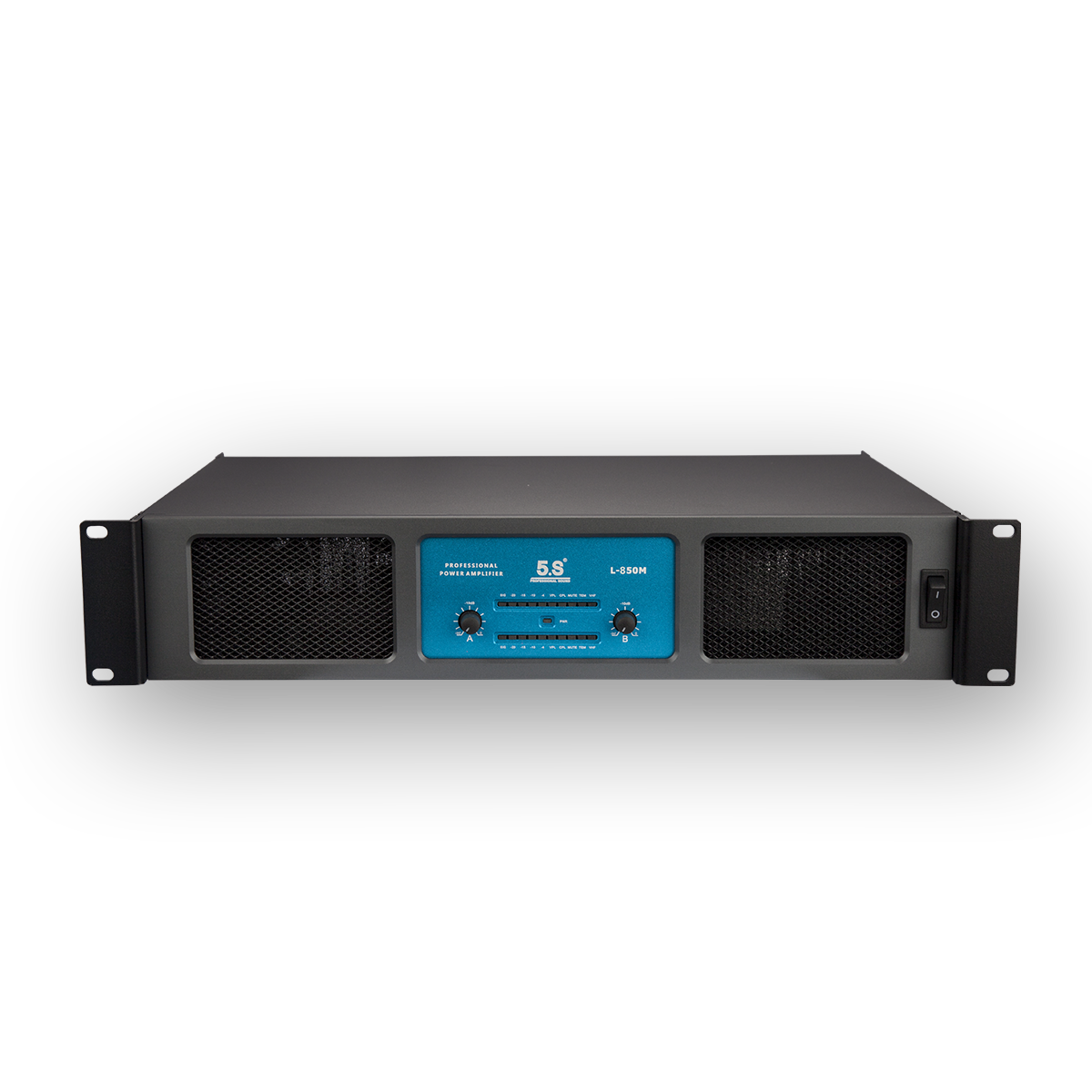

L-850M

Two-channel power amplifier

L-850M
L-850M
L-850M

The 850W power amplifier features high energy efficiency, low distortion, and ultra-light weight, making it an economical and cost-effective choice.

  • The L-850M is a 2-channel digital circuit processing power amplifier capable of amplifying weak electrical signals from a source to drive speakers and produce sound.


Main Features

  • Output Power: Stereo 8Ω: 2X850W, Stereo 4Ω: 2X1300W, Bridged 8Ω: 2600W
  • Frequency Response: 20Hz-20kHz, ±1.5dB
  • Output Connectors: Binding and Speakon
  • Input Sensitivity: 0.77V
  • Signal-to-Noise Ratio: ≥100dB
  • Total Harmonic Distortion: ≤0.05%
  • Net Weight: 15.55kg
  • Dimensions: 482mm x 402mm x 88mm (W x D x H)

Product Description

The L-850M is a 2-channel digital circuit processing power amplifier capable of amplifying weak electrical signals from the signal source to drive speakers and produce sound. With a maximum output power of up to 1700W, the substantial output power ensures ample headroom, enabling the 5S speakers to deliver superior sound quality.
The power amplification circuit of the L-850M adopts a true Class I circuit design, providing more precise sound reproduction while maintaining immense power headroom, thereby allowing the speakers to perform at their best.
In a high-quality audio system, the role of the amplifier is crucial.
Model: L-850M
Output Power: Stereo 8Ω: 850W x 2; Stereo 4Ω: 1300W x 2; Bridged 8Ω: 2600W
Frequency Response: 20Hz-20kHz, ±1.5dB
Output Connectors: Binding and Speakon
Input Sensitivity: 0.77V
Balanced Input Impedance: 20kΩ (Balanced), 10kΩ (Unbalanced)
Signal-to-Noise Ratio: ≥100dB
Total Harmonic Distortion: ≤0.05%
Separation at Rated Power (8Ω, 1kHz): >65 dB
Slew Rate: 15V/μS
Protection: Soft Start, Short Circuit, Limiter, DC Fault, AC Line Fuse, Thermal Cut
Cooling System: Dual Fans
Power Supply: AC: 220-230V, 50Hz/60Hz
Net Weight: 15.55 kg
Dimensions: 482mm × 402mm × 88mm (W × D × H)
