- Rated Power: 600W (AES)
- Peak Power: 2400W (AES)
- Input Connectors: 2*NeutrikTM 1+1-
- Sensitivity: 97dB
- Maximum SPL: 132dB
- Nominal Impedance: 8 Ohms
- Coverage Angle: 90° × 60°
- Net Weight: 20Kg
- Enclosure Dimensions: 420mm × 700mm × 370mm (W × D × H)

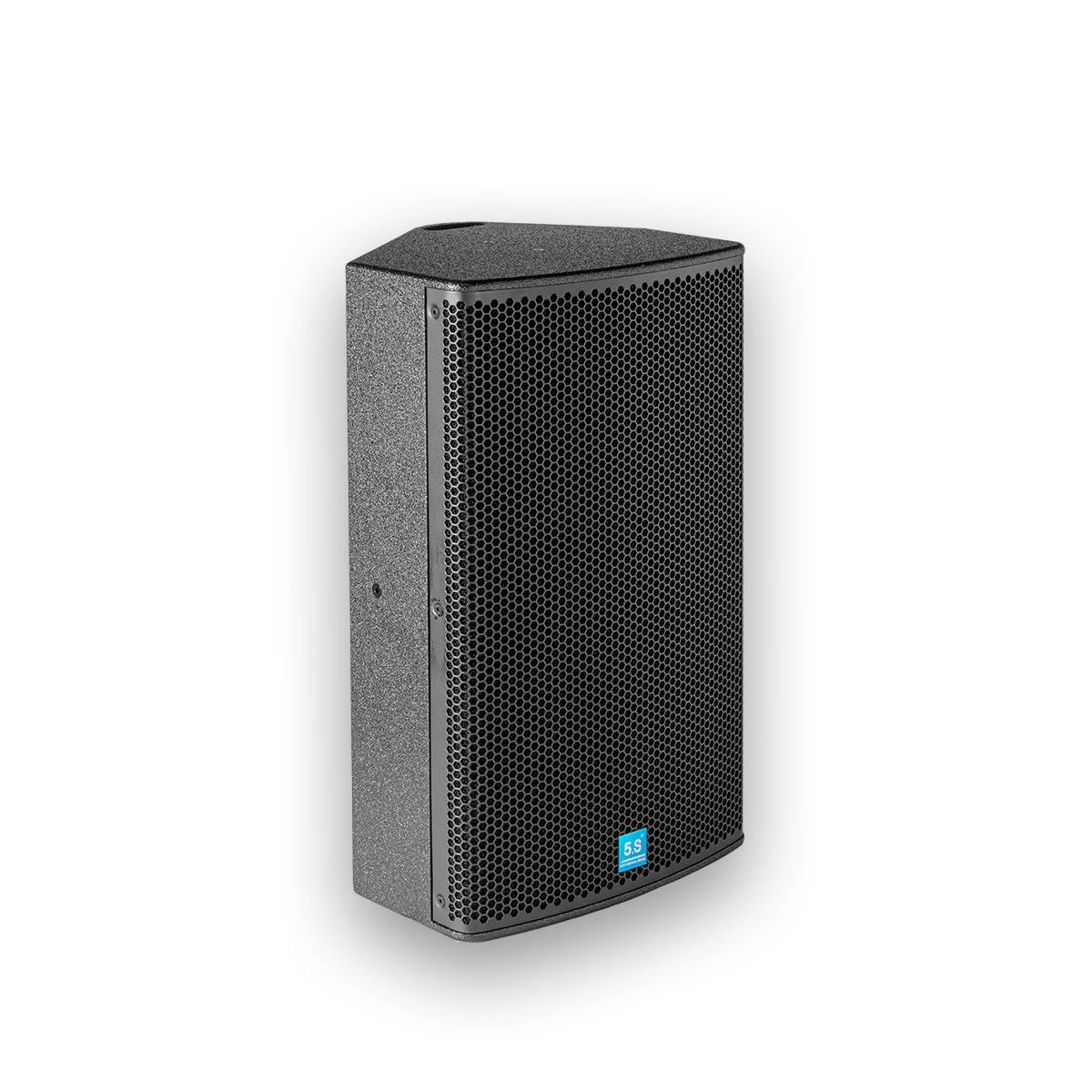

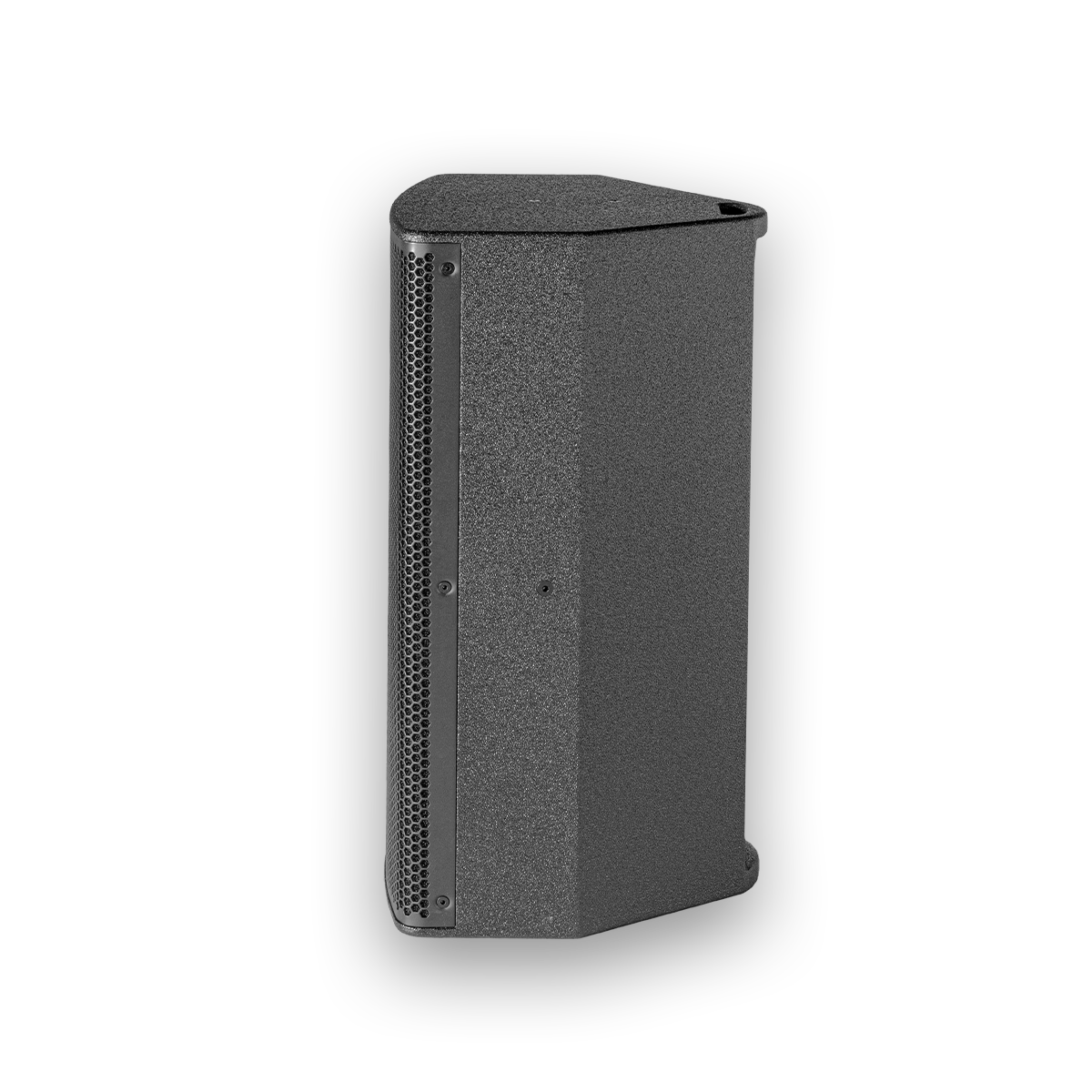

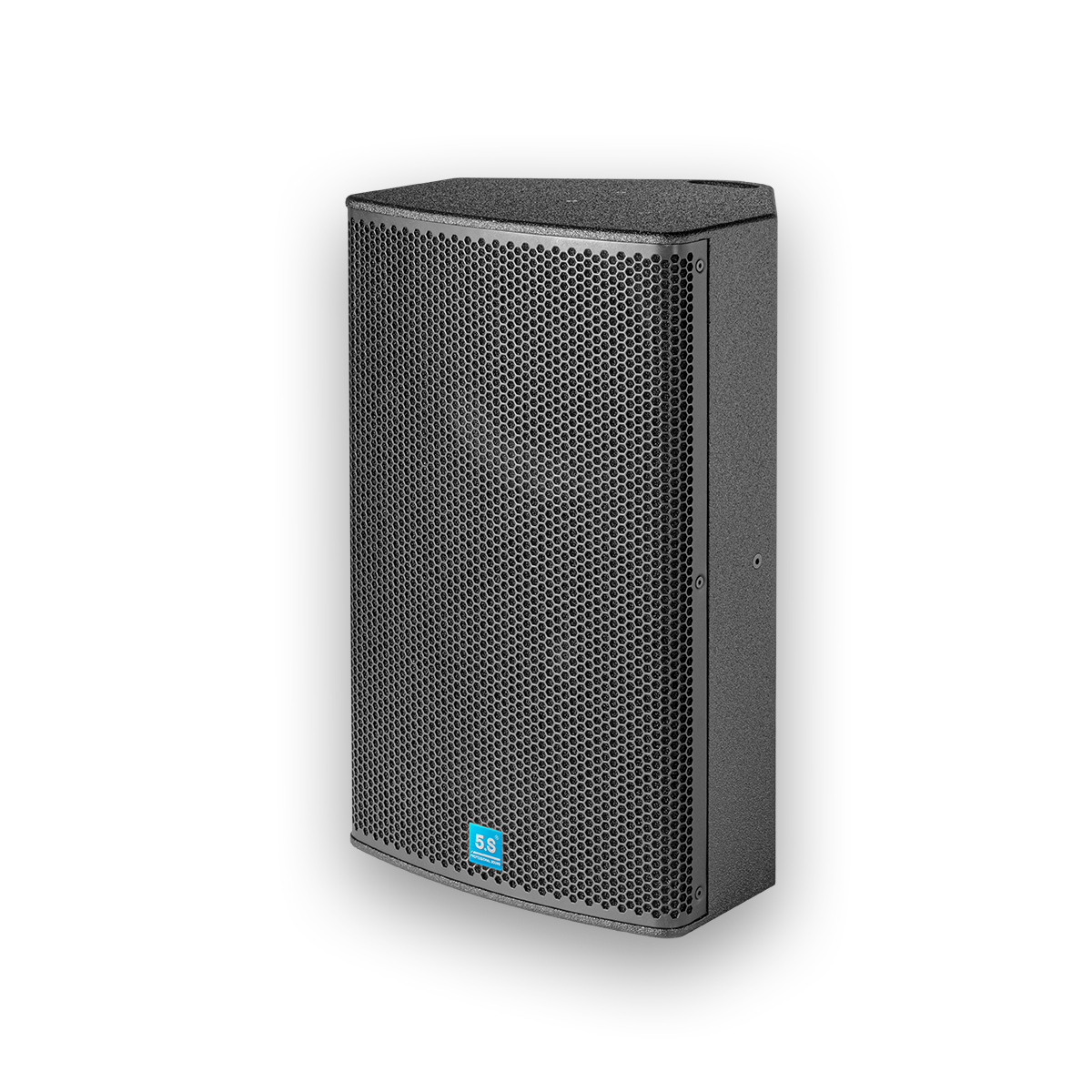

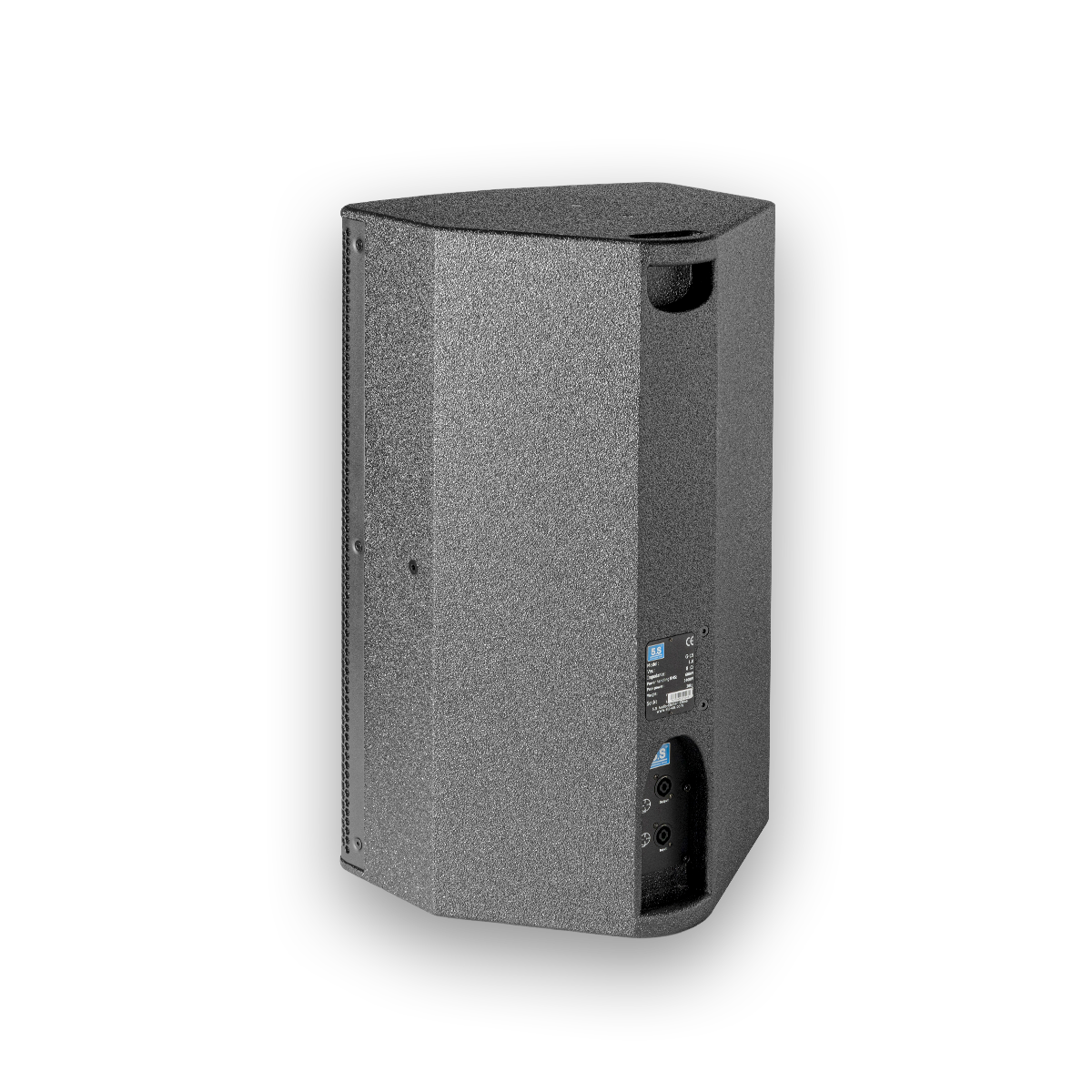

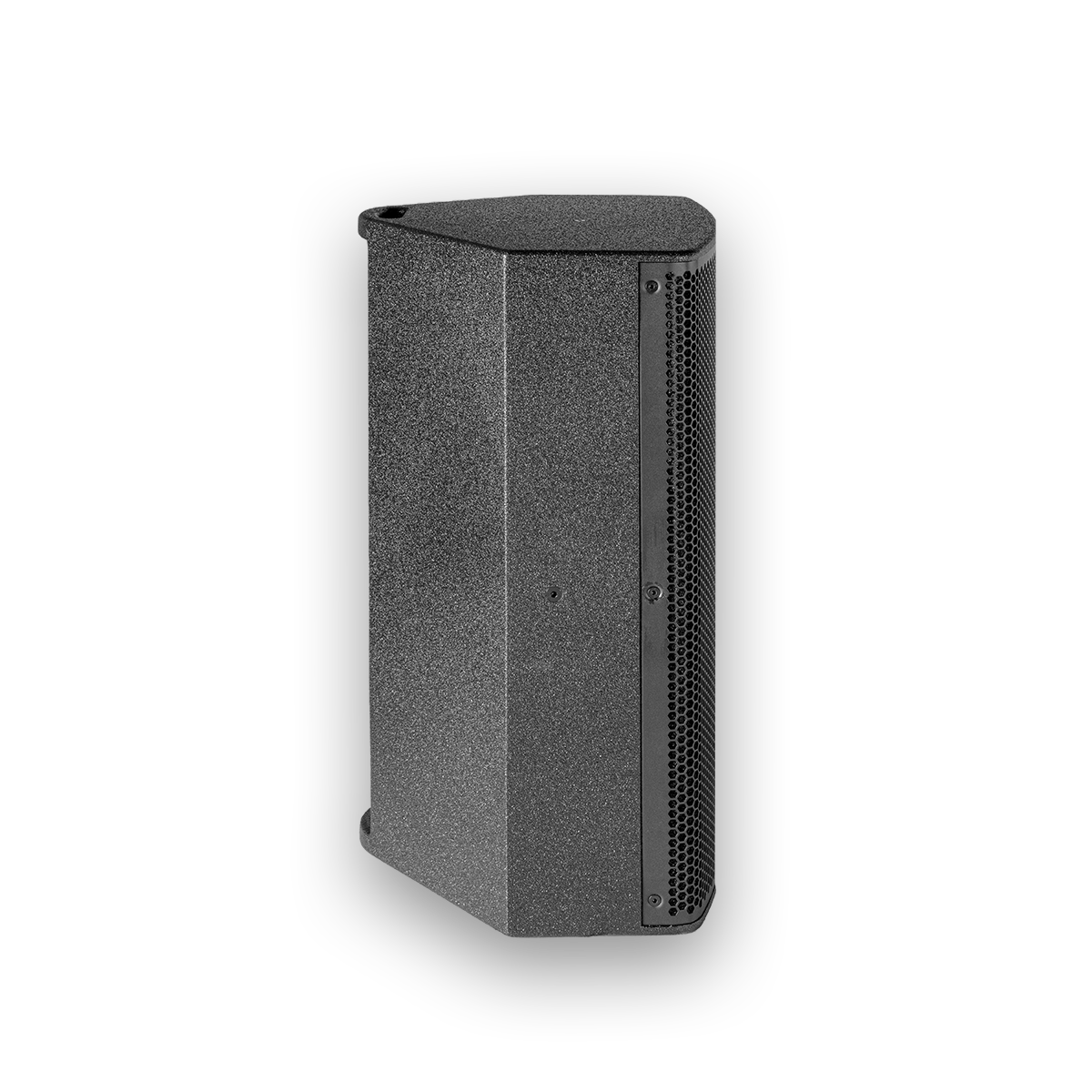

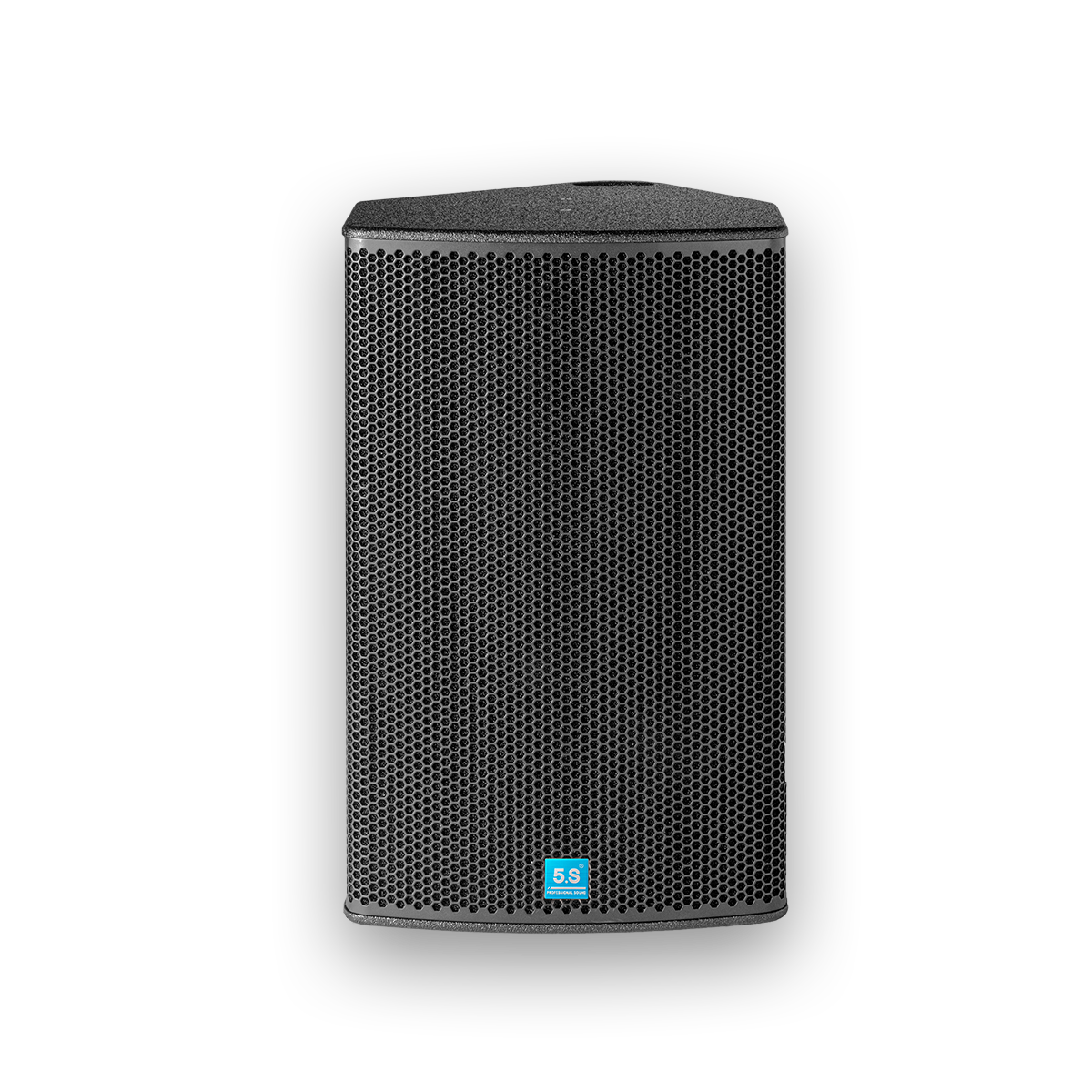

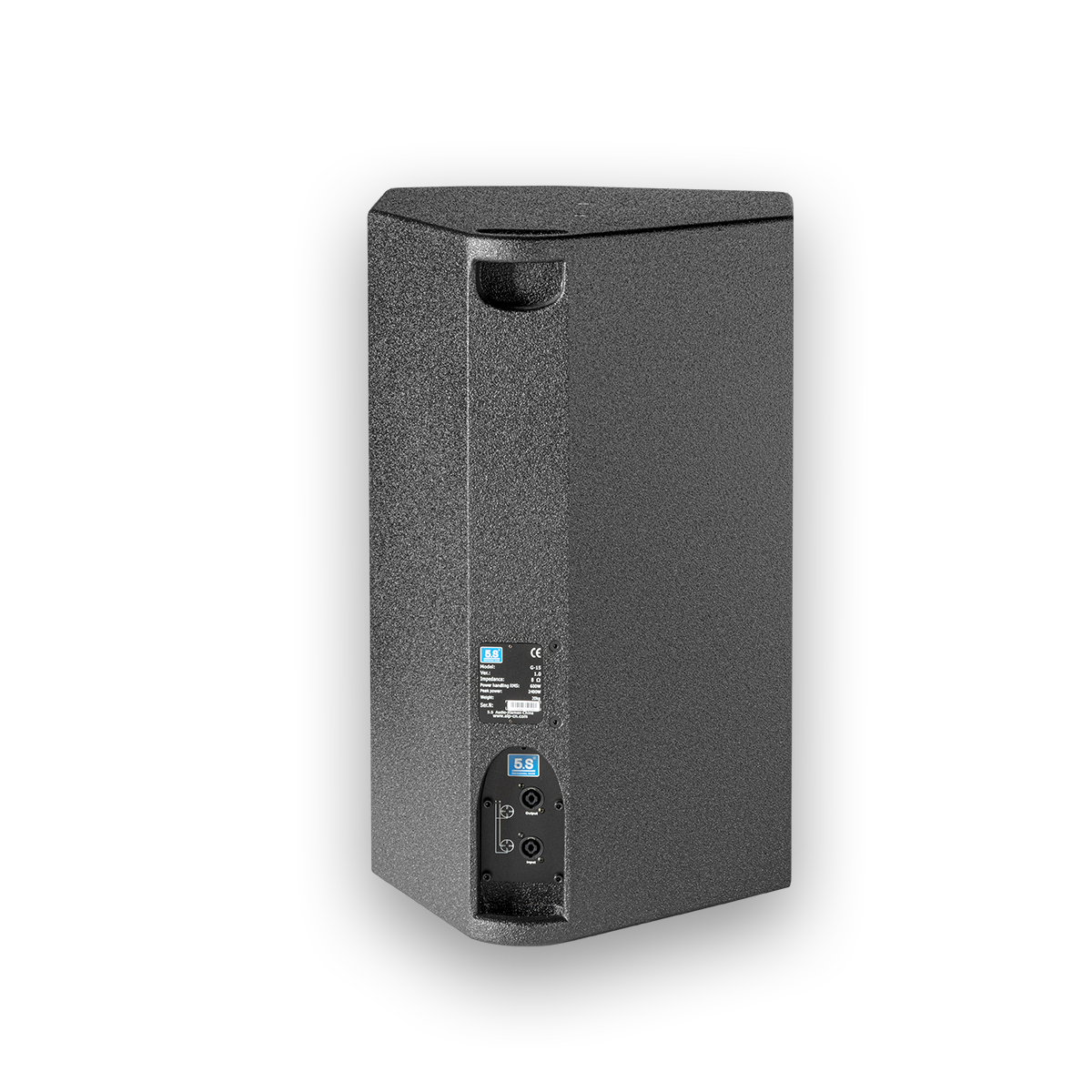

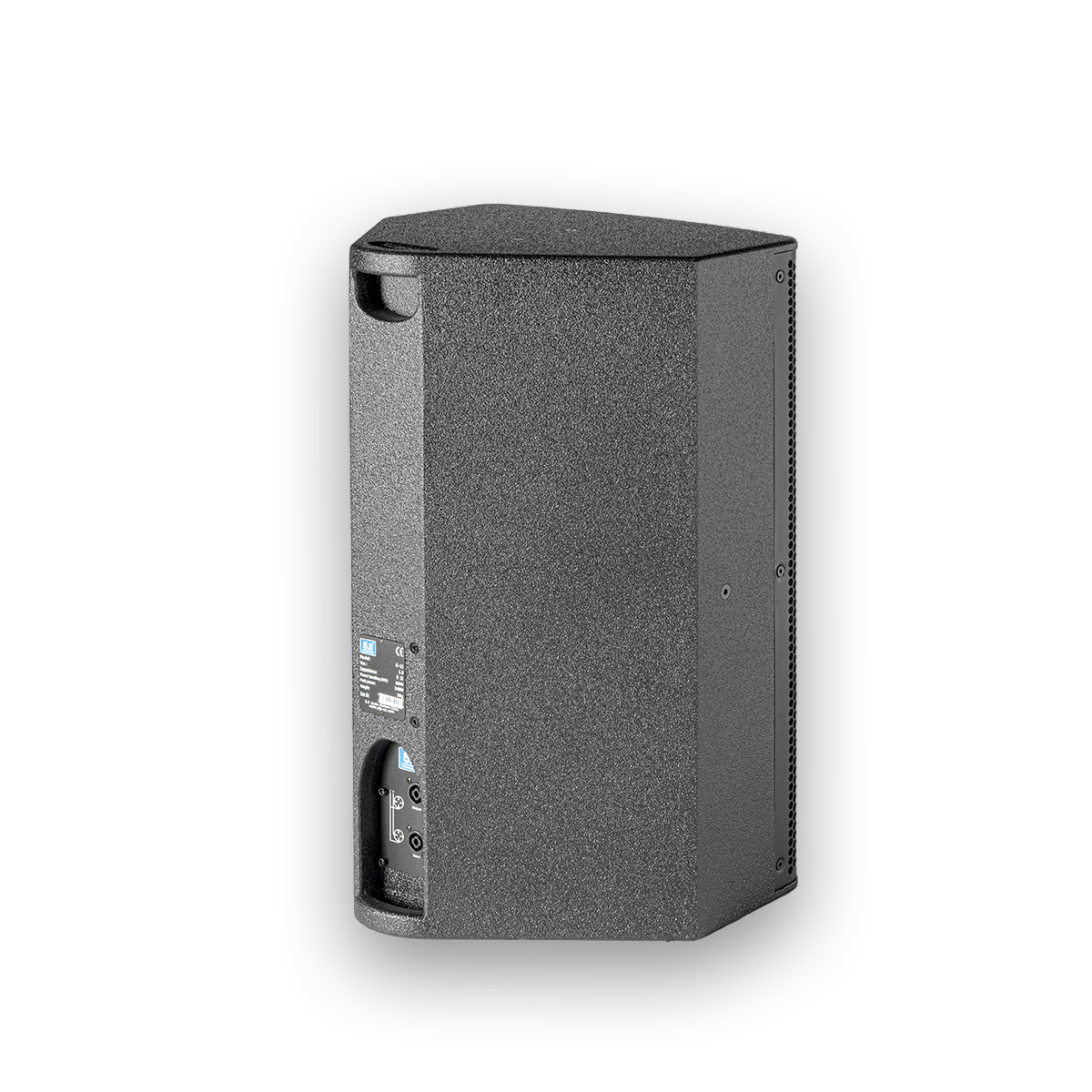

Single 15" two-way compact versatile full-range loundspeaker
The G15 features a high-quality 1" patented annular high-frequency driver unit and an ultra-low distortion neodymium low-frequency driver unit equipped with a triple demodulation ring and a 3-inch voice coil.
The G15 has a rated nominal power of 600W, incorporating one ultra-low distortion 15" neodymium low-frequency driver unit and one 1" neodymium compression driver unit coupled to a rotatable 90° x 60° elliptical waveguide. Of course, this is no ordinary compression driver unit: the high-frequency driver unit of the G-15 incorporates Audio's unique technology, which significantly reduces intermodulation distortion (IMD), resulting in exceptionally clear and transparent sound performance.
| Type: | 2-way compact versatile full-range loudspeaker system |
|---|---|
| Frequency Response: | 50Hz–20kHz (-6dB) |
| Power: | 600W |
| Peak Power: | 2400W |
| Impedance: | 8Ω |
| Dispersion: | 90° × 60° |
| Sensitivity: | 97dB |
| Maximum SPL: | 132dB |
| Crossover Frequency: | 1.2kHz built-in crossover |
| Input Connectors: | 2 × NeutrikTM 1+1- |
| Low-Frequency: | 15" aerospace-grade neodymium woofer, 3" (75mm) voice coil, rated power: 600W (AES) |
| High-Frequency: | 1" exit, aerospace-grade neodymium compression driver, 1.75" (44mm) voice coil, rated power: 80W (AES) |
| Cabinet Material: | 15mm marine-grade birch plywood |
| Cabinet Finish: | Black polyurea coating |
| Net Weight: | 20kg |
| Dimensions: | 420mm × 700mm × 370mm (W × H × D) |
