Y-10

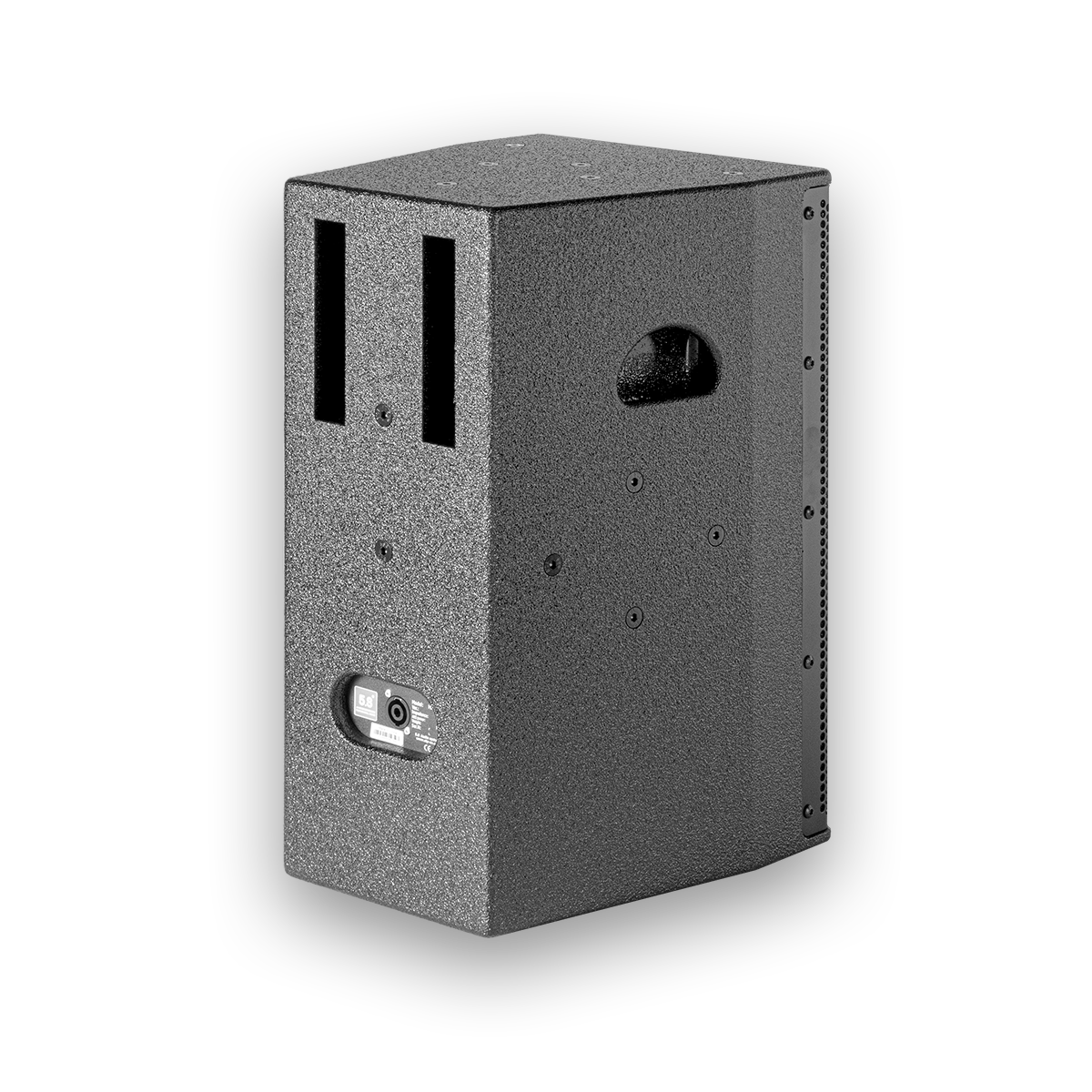

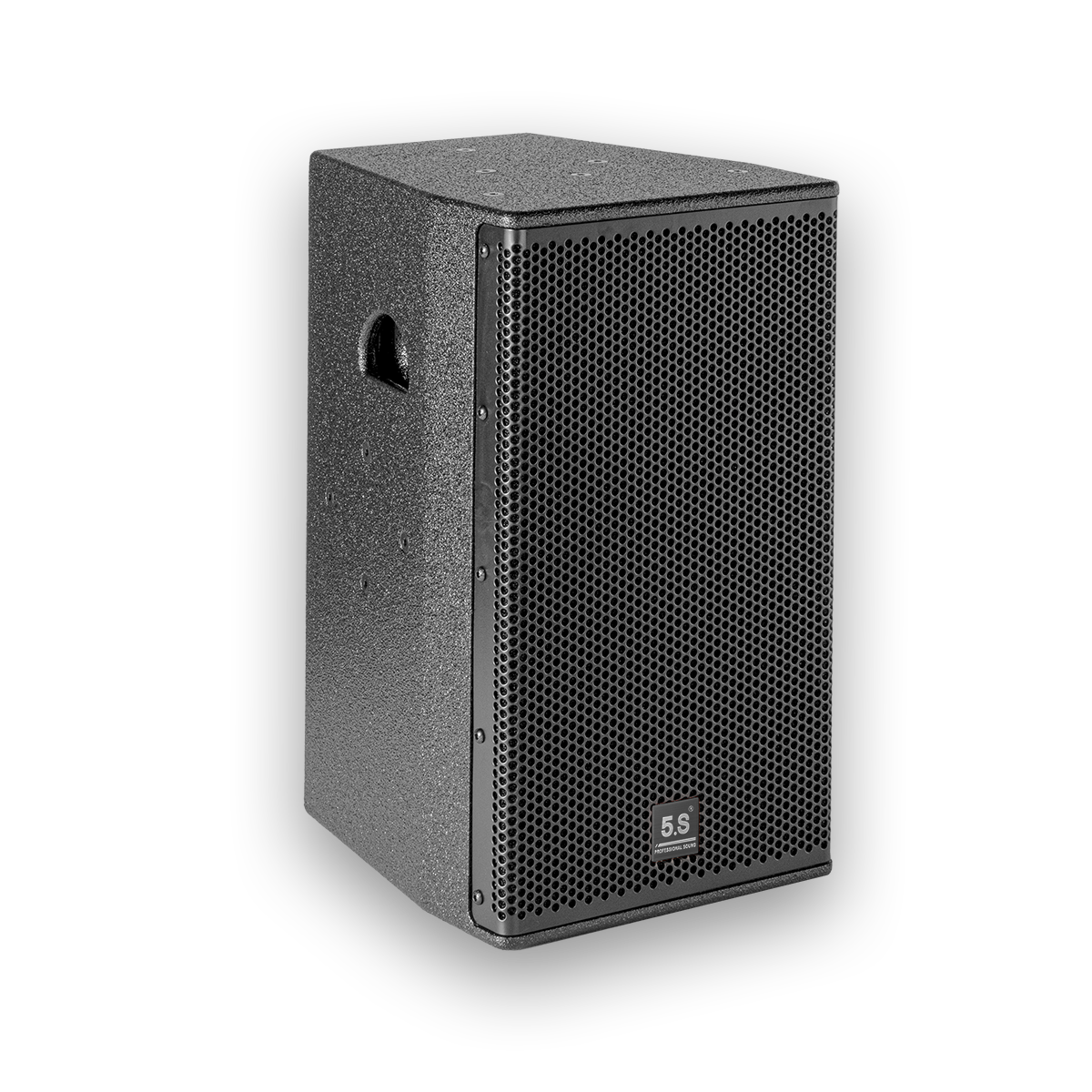

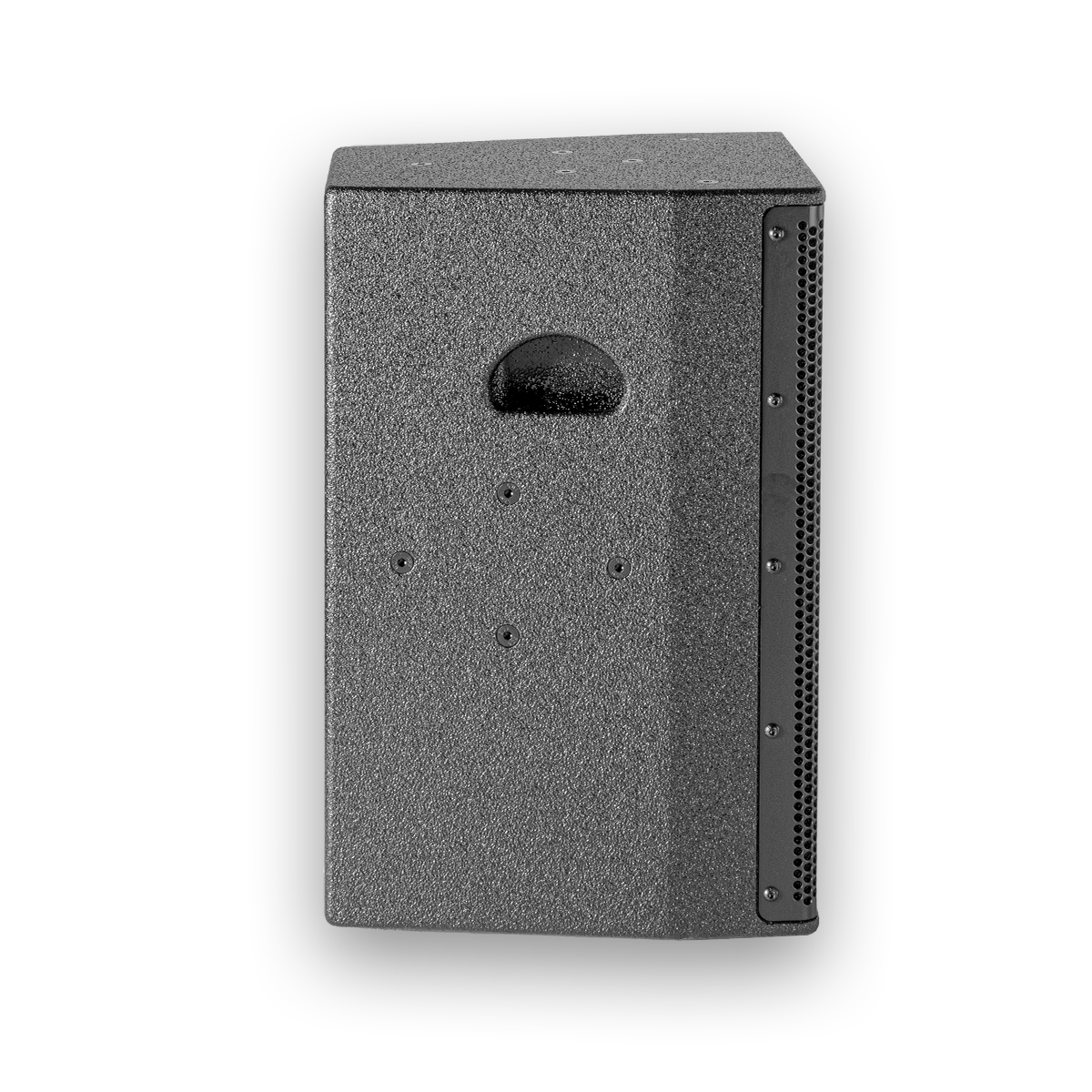

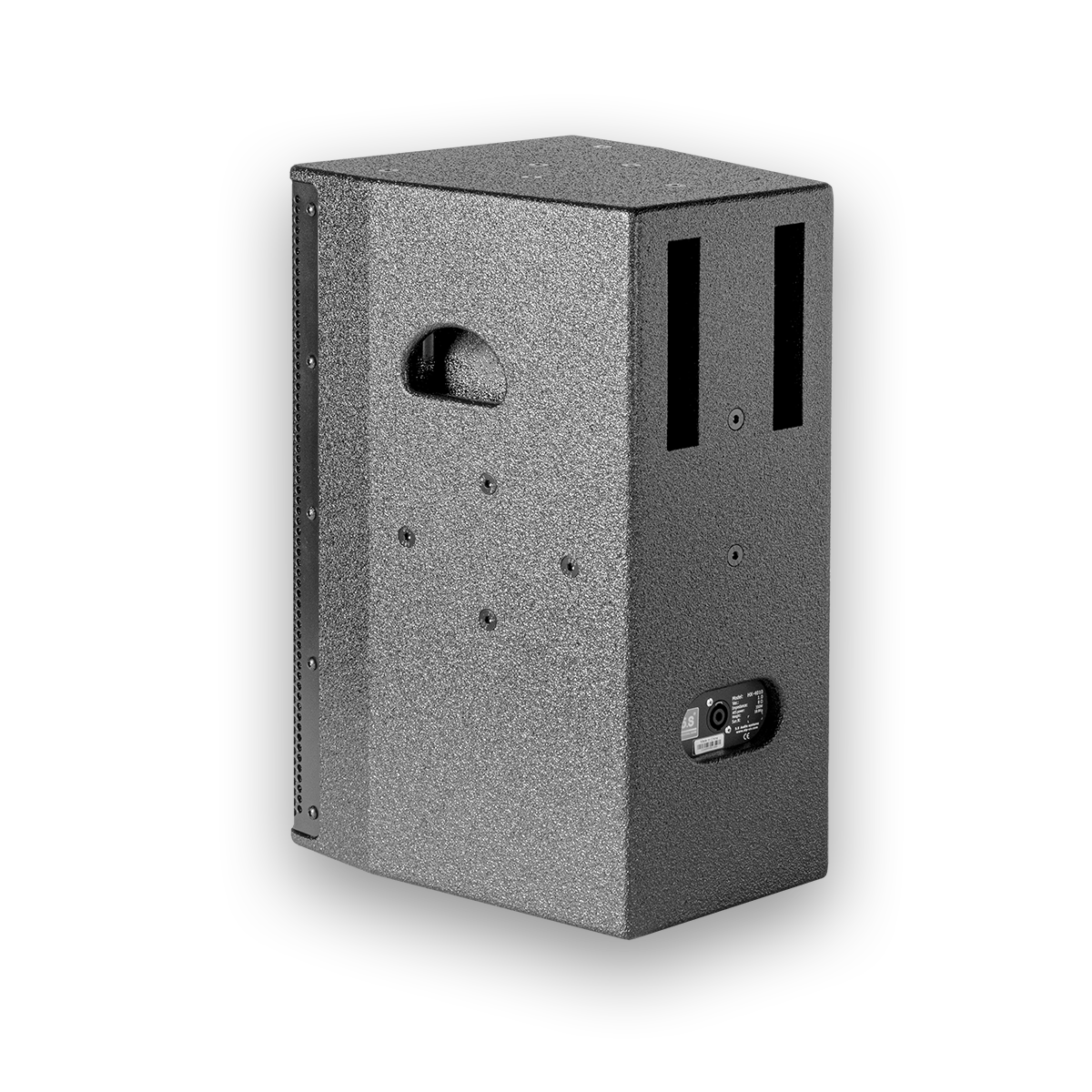

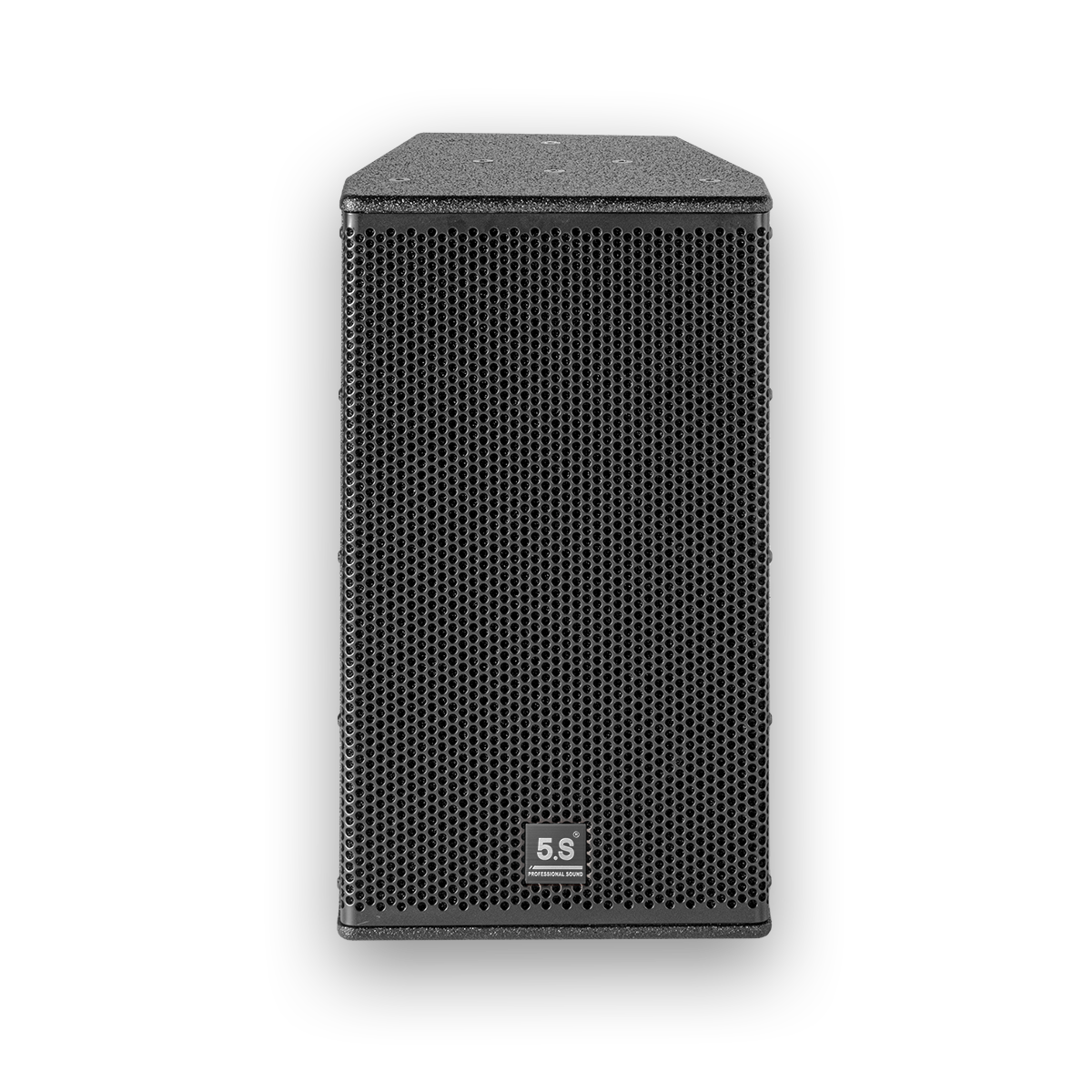

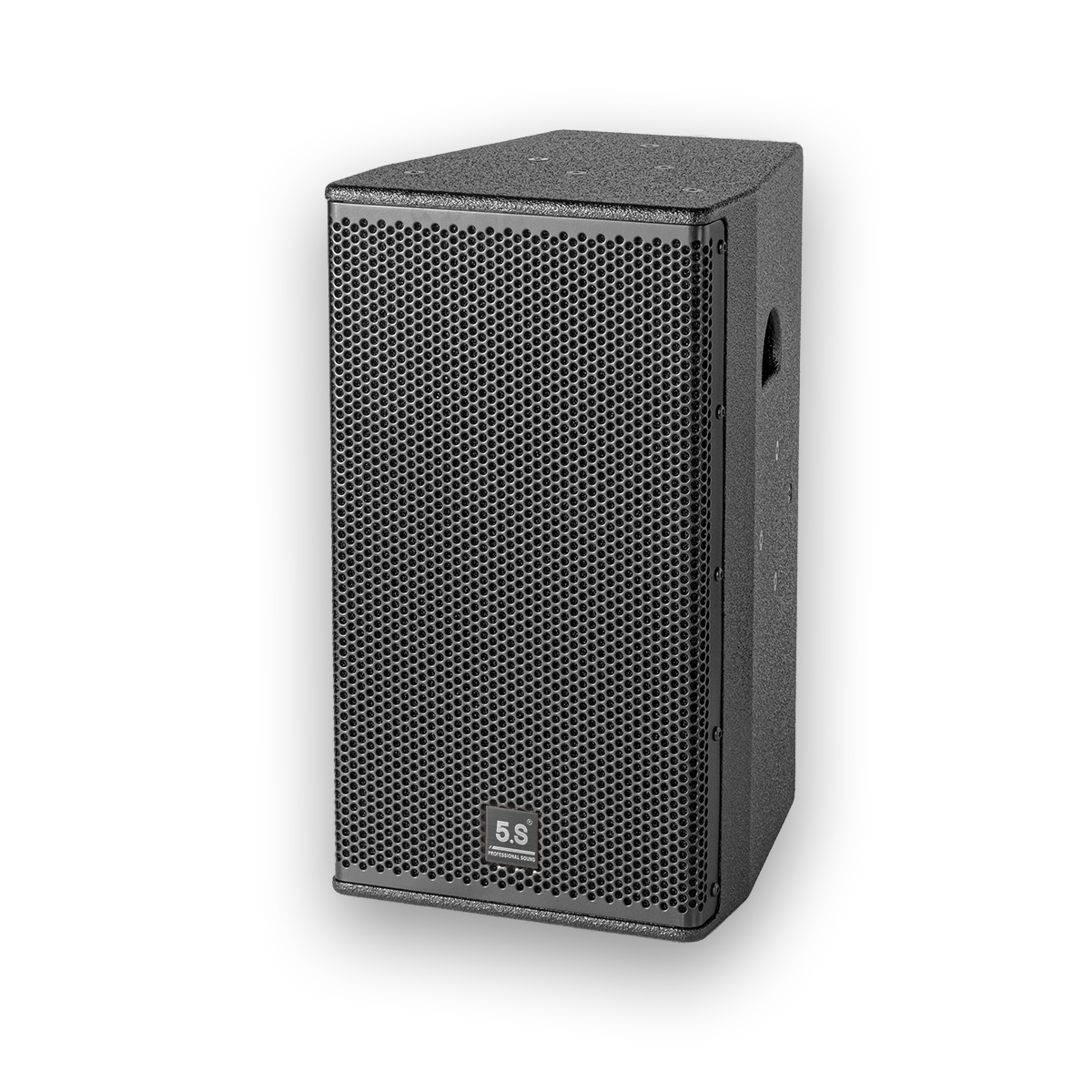

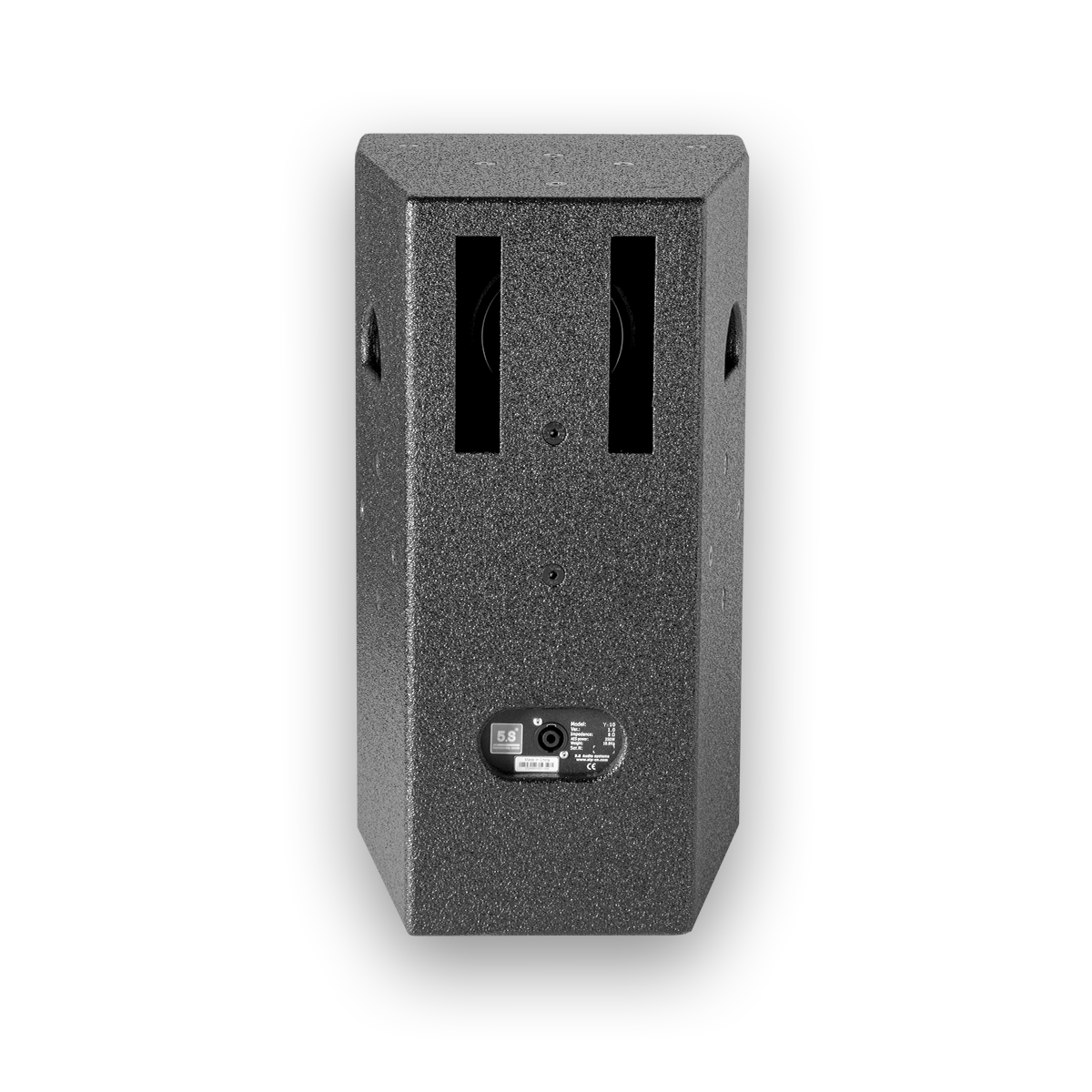

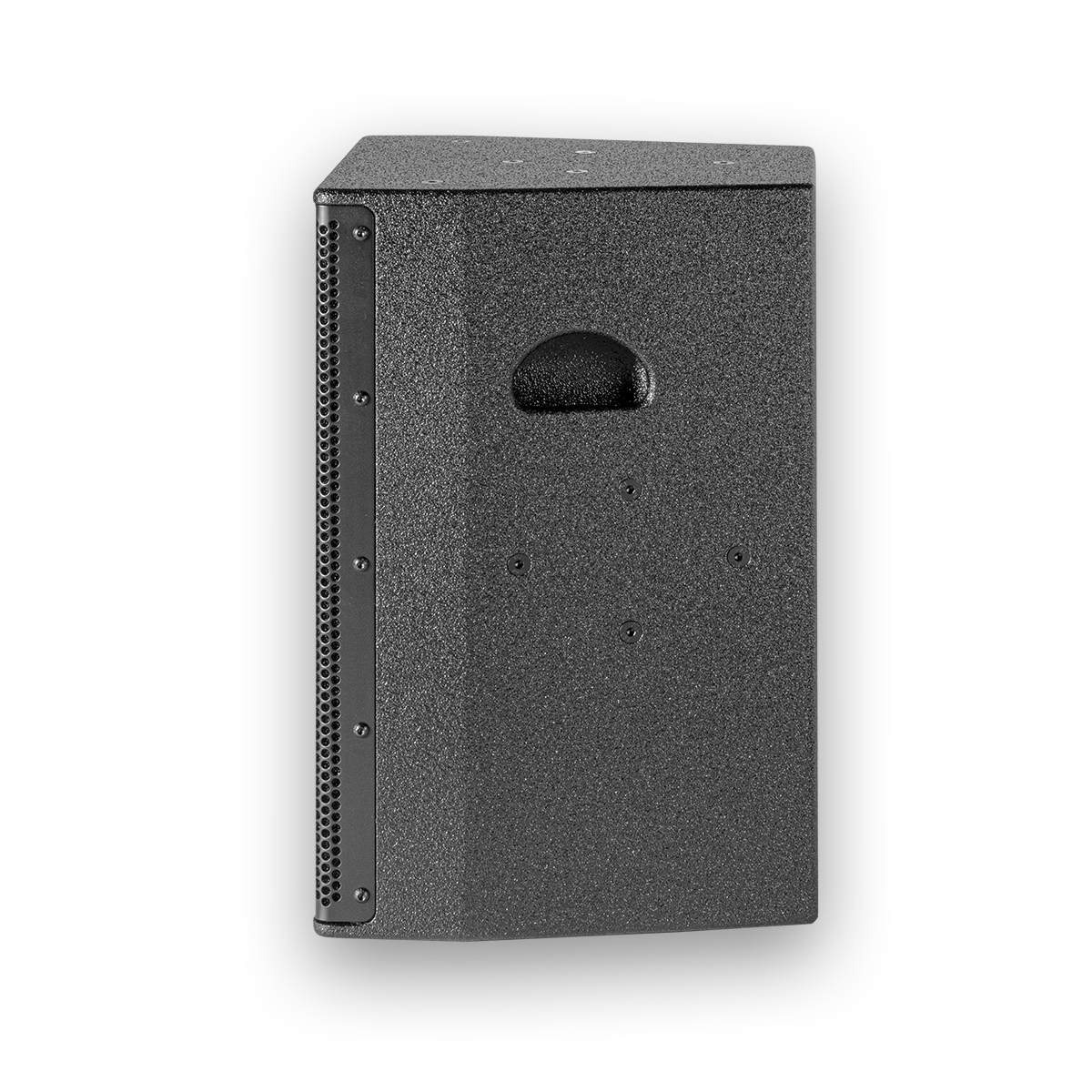

10" Two-Way Multi-Purpose Full-Range loundspeaker

Y-10
Y-10
Y-10
Y-10
Y-10
Y-10
Y-10
Y-10

10" high-power, ultra-low distortion woofer

  • The S Y-10 delivers high-fidelity sound quality and is a unique two-way full-range speaker with a rear bass reflex design.


Main Features

  • Rated Power: 320W (AES)
  • Peak Power: 1280W (AES)
  • Input Connector: 1×NeutrikTM 1+1-
  • Sensitivity: 96dB
  • Maximum Sound Pressure Level (SPL): 125dB
  • Nominal Impedance: 8Ω
  • Dispersion: 90° × 60°
  • Net Weight: 16.25kg
  • Dimensions (W×D×H): 295mm × 540mm × 340mm

Product Description

, with its TY series offering high-fidelity sound quality, is a uniquely designed balanced rear-ported two-way full-range speaker. It boasts exceptional midrange performance, combined with delicate, extended highs and a solid, elastic low-frequency response, delivering perfectly balanced tonal quality. It ranks among the top brands in the domestic audio industry.

The brand continues to innovate in the field of entertainment audio equipment. The TY series aims to break the limitations of private rooms while preserving flawless sound quality, achieving the ultimate in cross-border audio excellence through professional expertise.

The TY series features a design that blends artistry with patented acoustic technology. Within its elegant exterior lie three key components that unleash unparalleled sound quality, delivering an ultra-responsive high-frequency performance that is smooth, extended, and ultra-low distortion. Every corner of the room is filled with rich detail, meeting the demands of both music playback and singing with a stunning dynamic range. It can be placed in any environment while maintaining highly accurate tonal reproduction. The TY series is suitable for a wide range of applications, including karaoke venues, nightclubs, business lounges, clubs, and small events, providing a powerful sound reinforcement solution.

Technical Specifications


Type: 2-Way Full-Range Multi-Purpose Loudspeaker System
Frequency Response: 55Hz–18kHz
Power: 320W
Peak Power: 1280W
Impedance:
Coverage Angle: 90° × 60°
Sensitivity: 95dB
Maximum SPL: 129dB
Crossover Point: 1.5kHz Built-in Crossover
Input Connector: 1 × NeutrikTM 1+1-
Low-Frequency: 10" Woofer with European-imported bass driver, 2.5" (63mm) voice coil, rated power: 320W (AES)
High-Frequency: 1" Throat, European-imported compression driver, 1.75" (44mm) voice coil, rated power: 80W (AES)
Cabinet Material: 15mm Marine-Grade Birch Plywood
Cabinet Finish: Black Polyurea Paint
Net Weight: 16.25kg
Dimensions: 295mm × 540mm × 340mm (W × D × H)
