Y-12

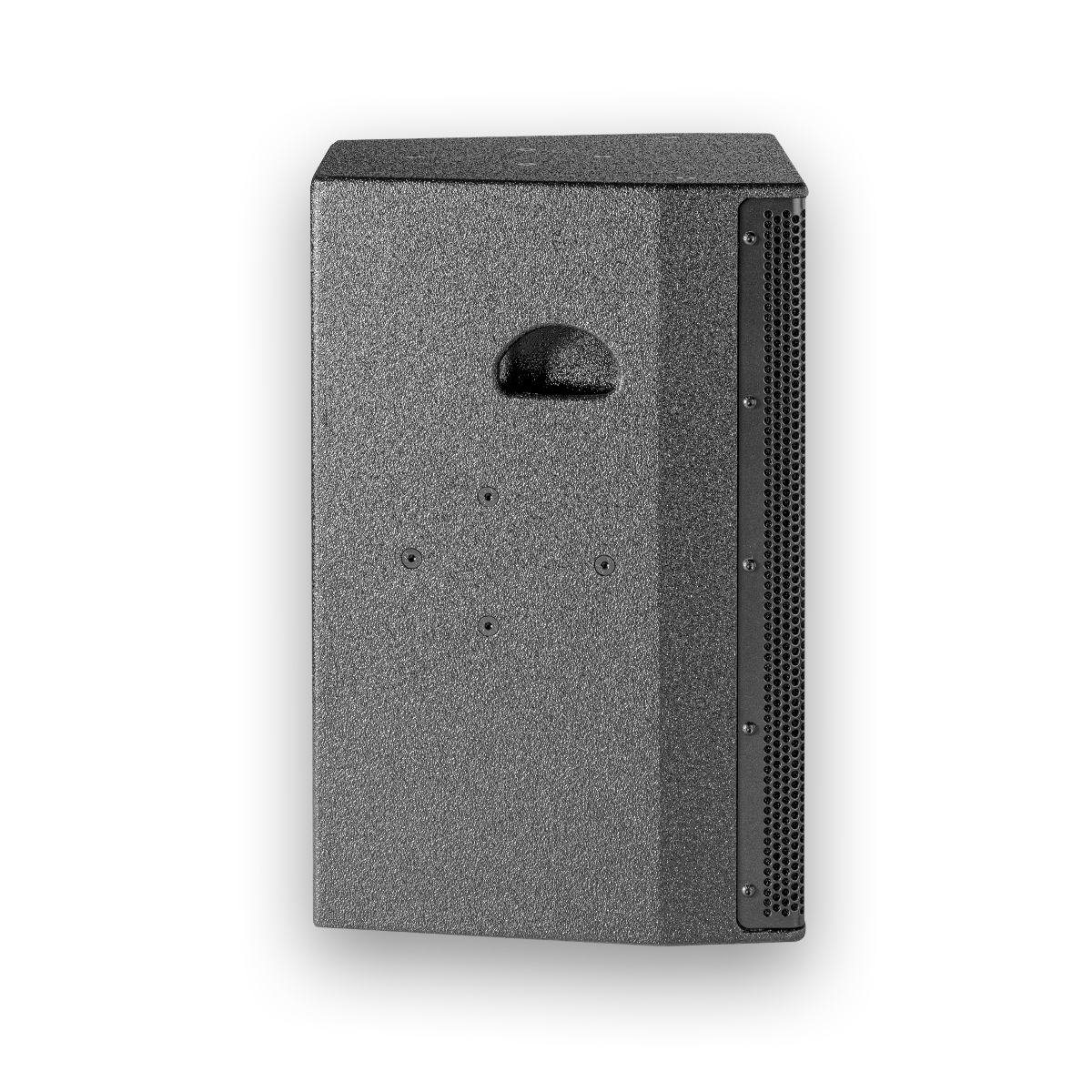

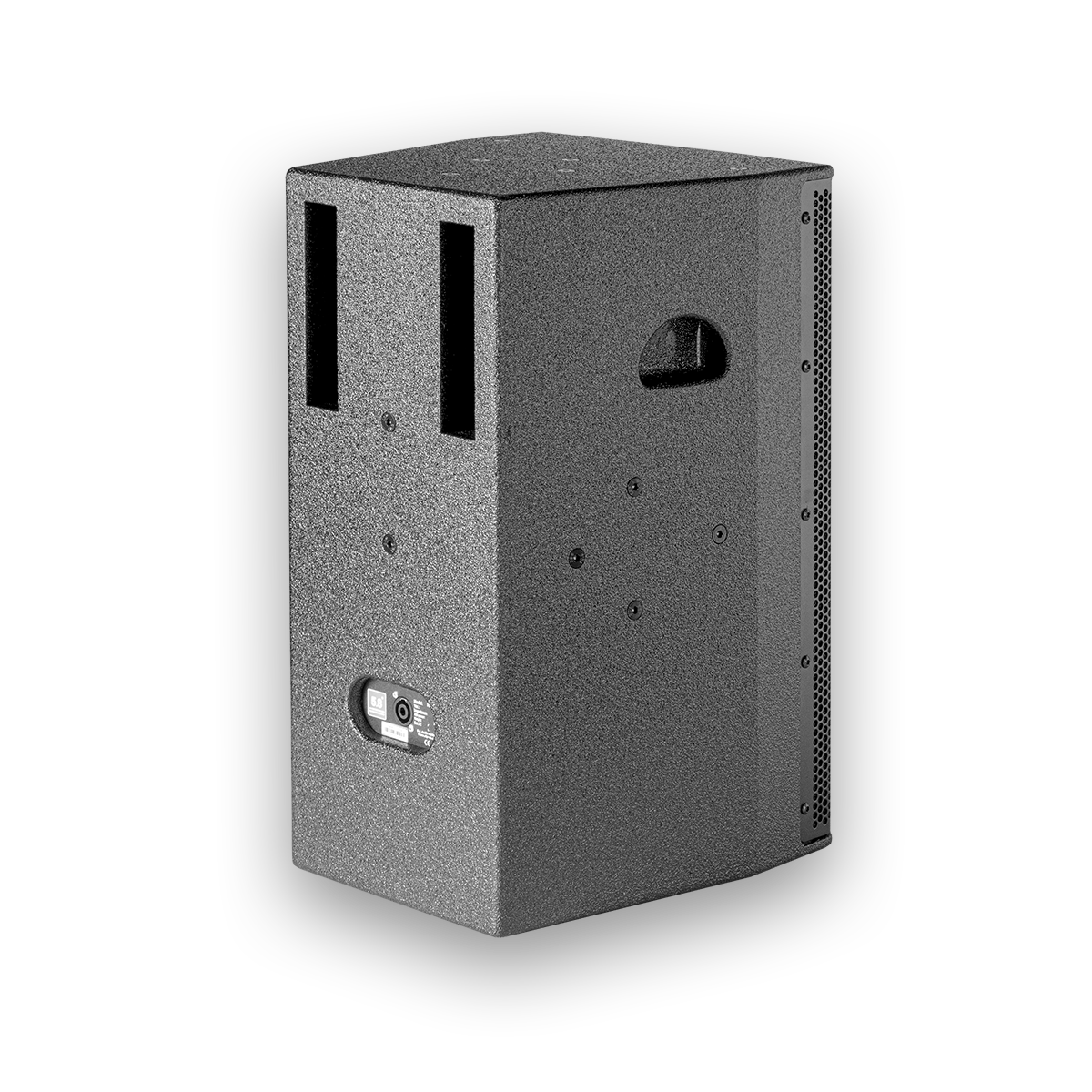

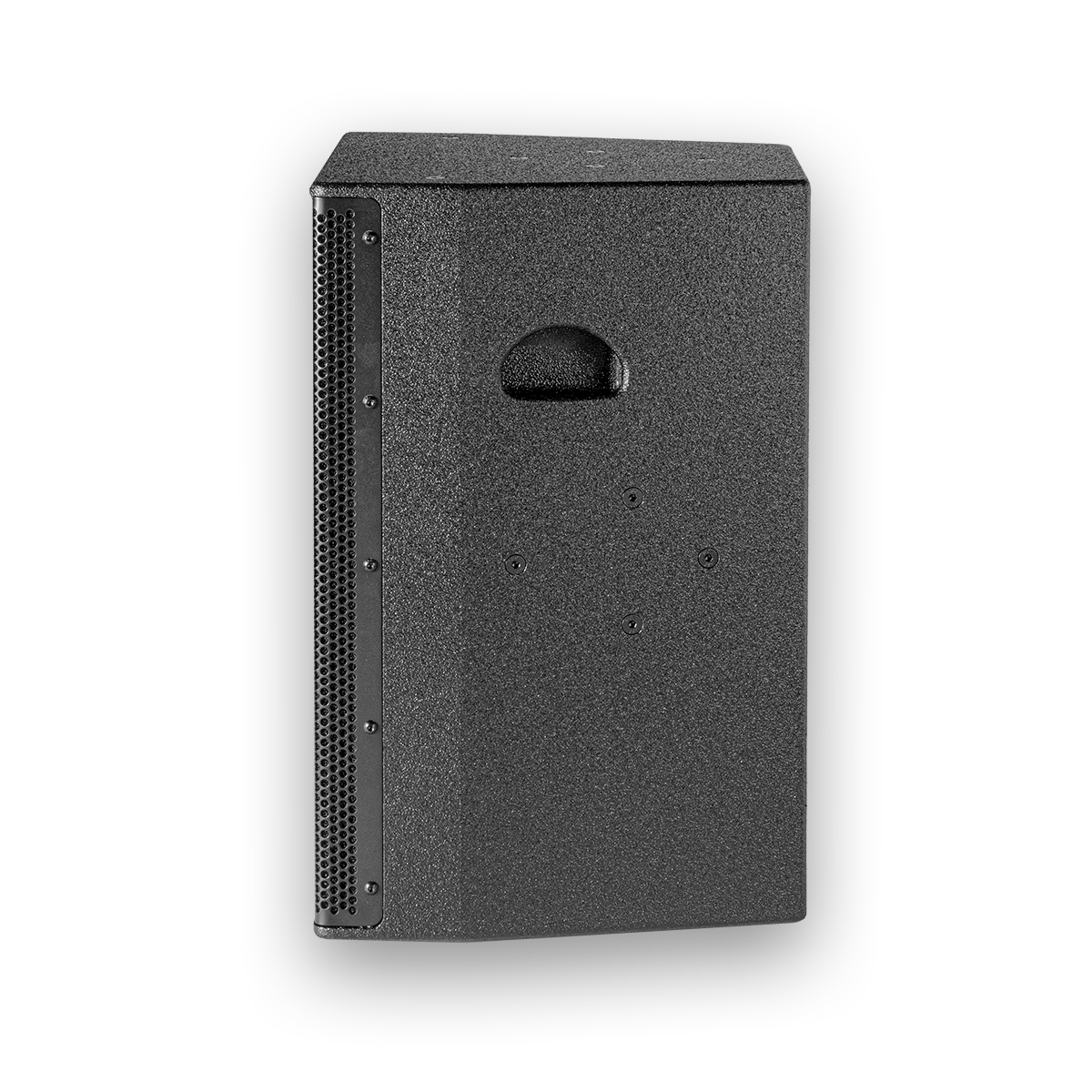

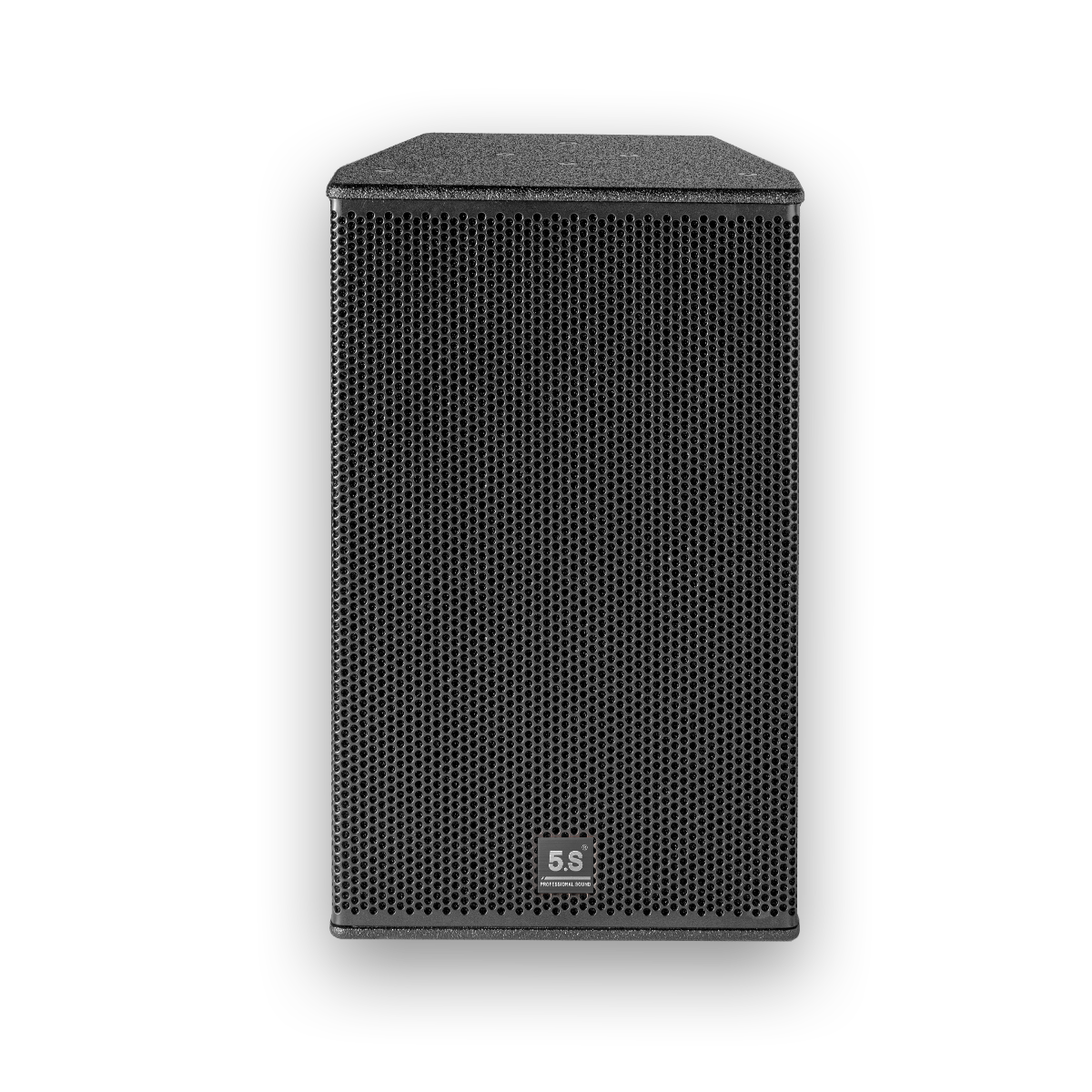

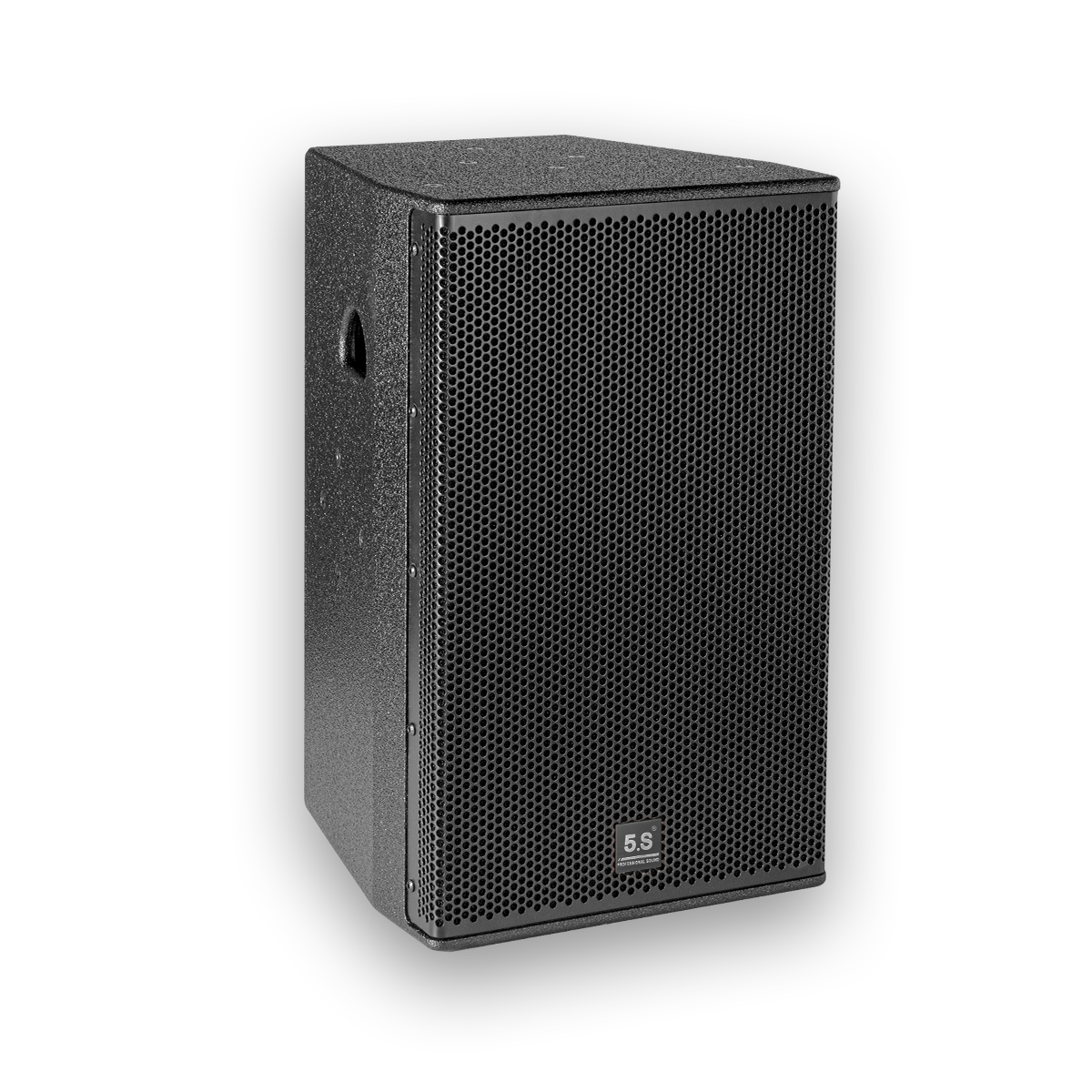

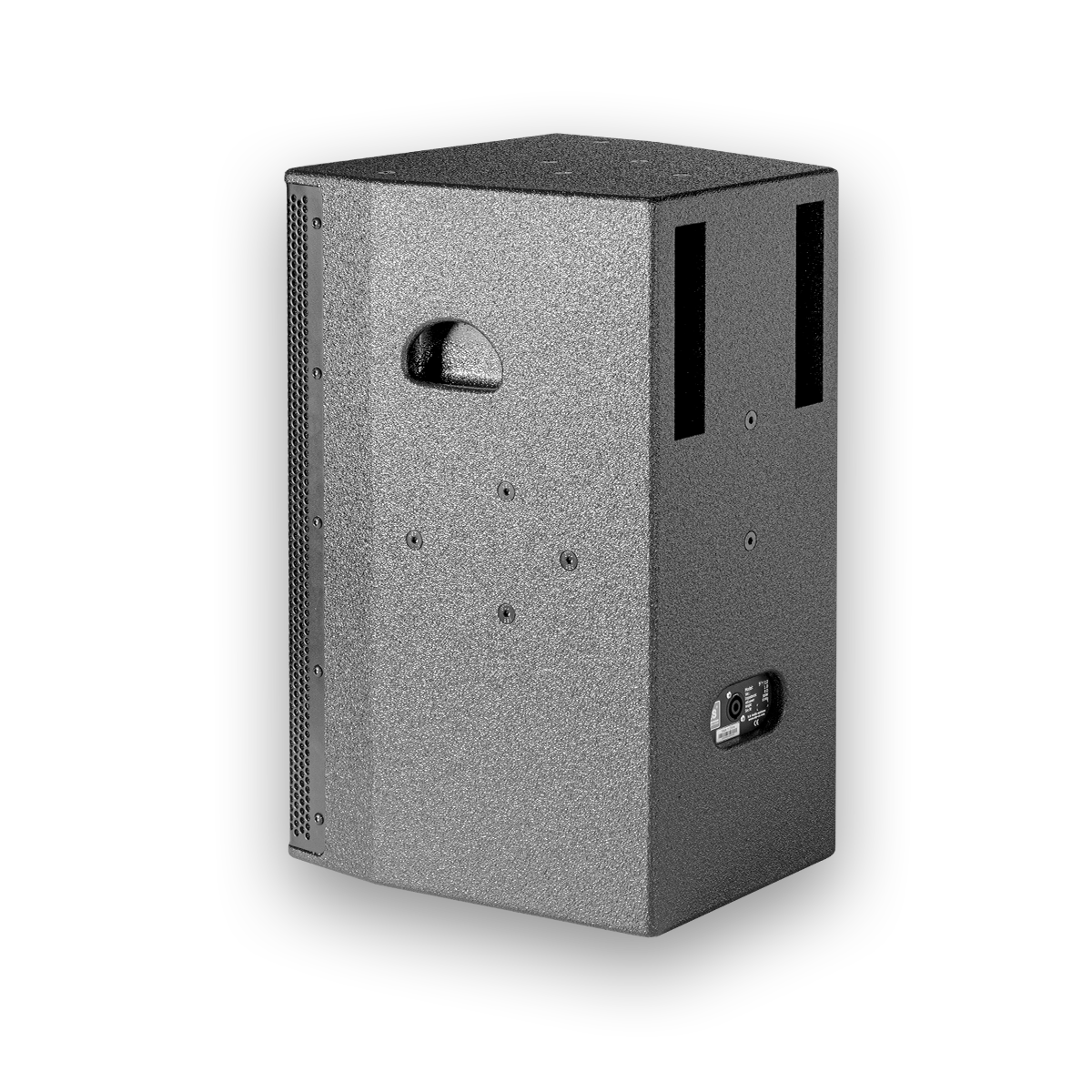

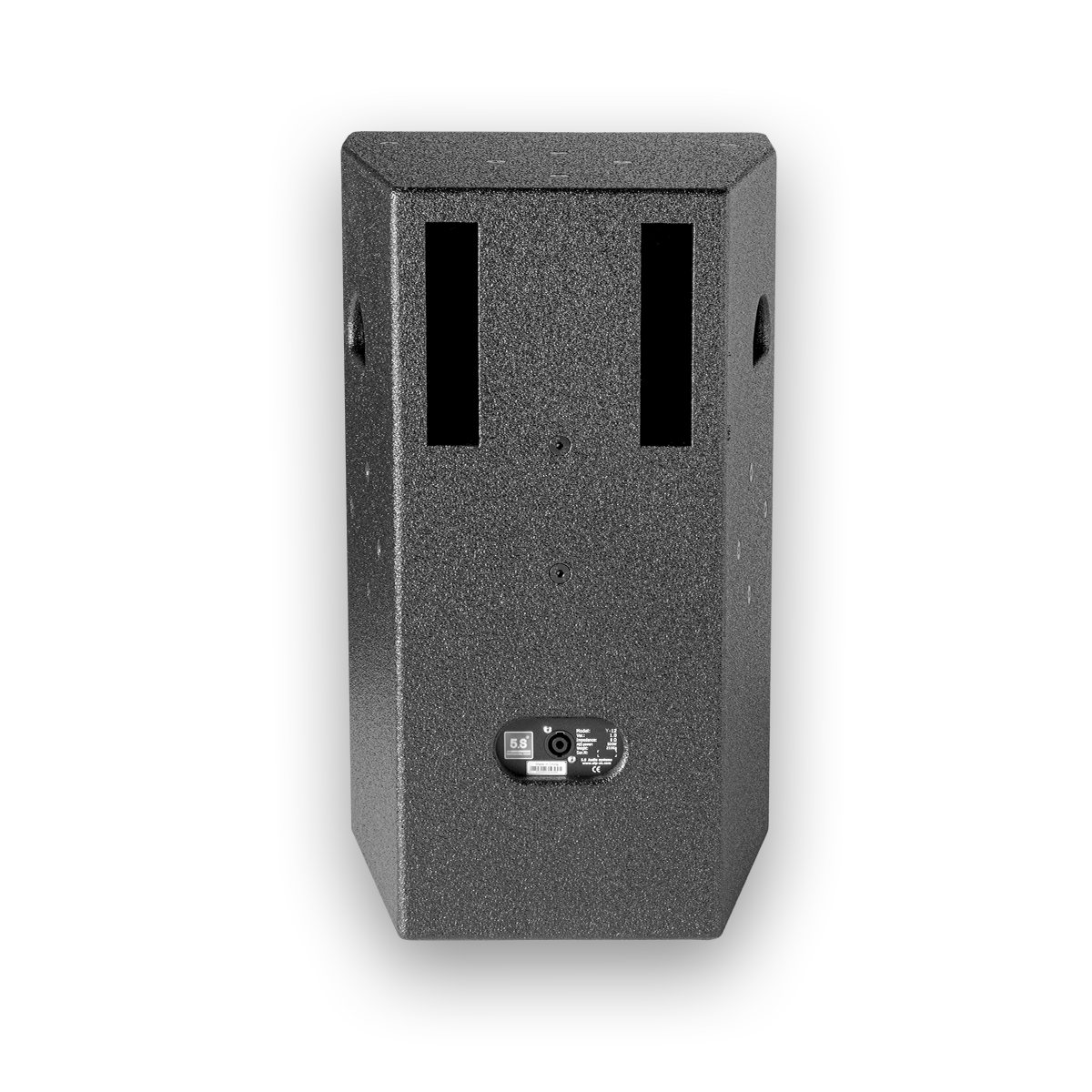

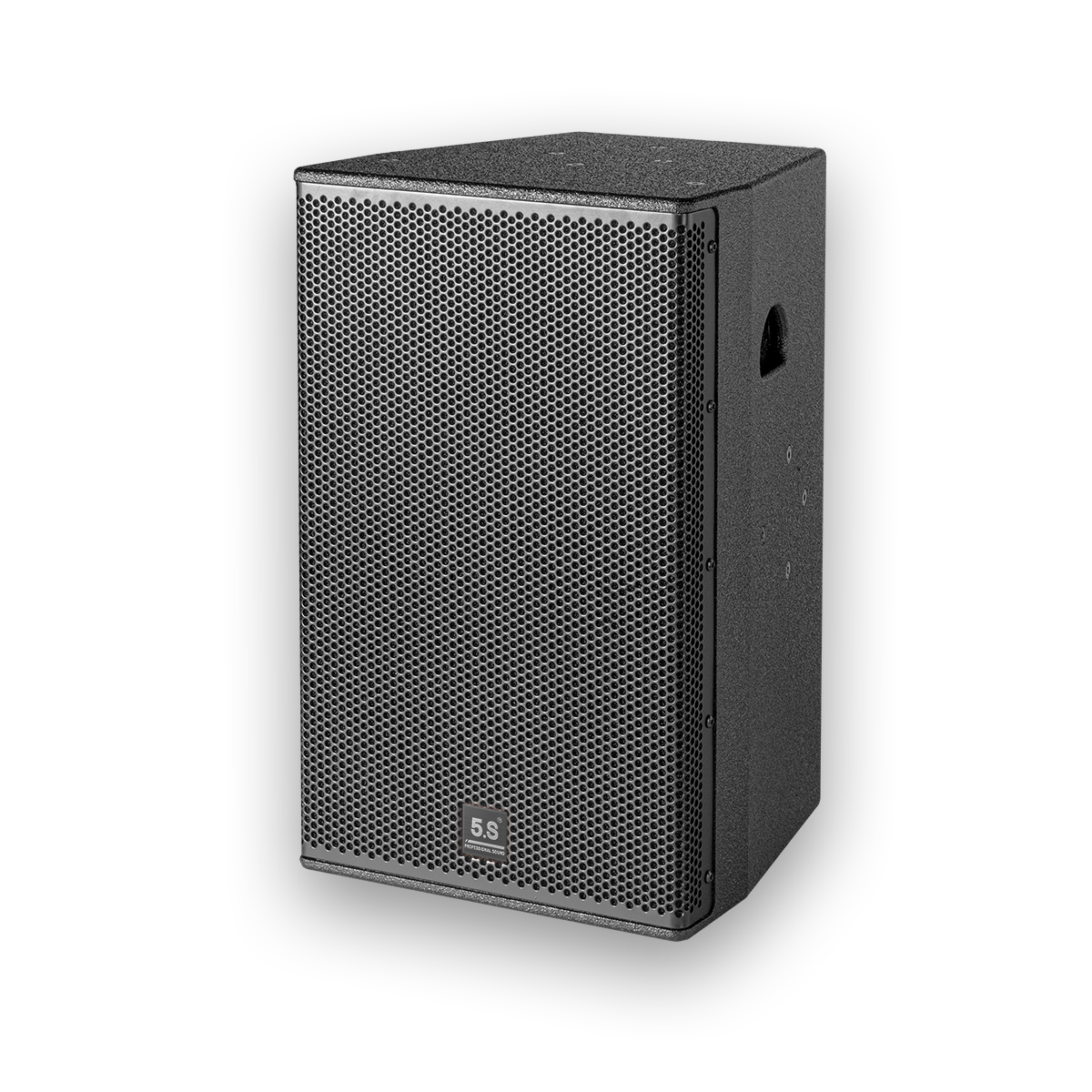

12" Two-Way Multi-Purpose Full-Range loundspeaker

Y-12
Y-12
Y-12
Y-12
Y-12
Y-12
Y-12
Y-12

12" high-power, ultra-low distortion woofer

  • The S Y-12 delivers high-fidelity sound quality and is a unique two-way full-range speaker with a rear bass reflex design.
Contact us

Main Features

  • Rated Power: 520W (AES)
  • Peak Power: 2080W (AES)
  • Input Connection: 1×NeutrikTM 1+1-
  • Sensitivity: 96dB
  • Maximum Sound Pressure Level: 130dB
  • Nominal Impedance: 8Ω
  • Dispersion: 90° × 60°
  • Net Weight: 20.5kg
  • Dimensions: 360mm × 605mm × 380mm (W × D × H)

Product Description

, with its TY series offering high-fidelity sound quality, is a uniquely designed balanced rear-ported two-way full-range speaker. It boasts exceptional midrange performance, combined with delicate, extended highs and a solid, elastic low-frequency response, delivering perfectly balanced tonal quality. It ranks among the top brands in the domestic audio industry.

Technical Specifications


Type: 2-Way Full-Range Multi-Purpose Loudspeaker System
Frequency Response: 50Hz–18kHz
Power: 520W
Peak Power: 2080W
Impedance: 8Ω
Coverage Angle: 90° × 60°
Sensitivity: 96dB
Maximum SPL: 130dB
Crossover Frequency: 1.3kHz (Built-in Crossover)
Input Connector: 1 × Neutrik? NL4MP
Low-Frequency: 12" Woofer with European-imported bass driver, 3" (75mm) voice coil, rated power: 520W (AES)
High-Frequency: 1" Exit, European-imported compression driver, 1.75" (44mm) voice coil, rated power: 80W (AES)
Enclosure Material: 15mm Marine-Grade Birch Plywood
Enclosure Finish: Black Polyurea Paint
Net Weight: 20.5kg
Dimensions: 360mm × 605mm × 380mm (W × D × H)
