N-5T

Two-way coaxial speaker system

N-5T
N-5T
N-5T
N-5T
N-5T

Ultra-compact enclosure passive two-way loundspeaker

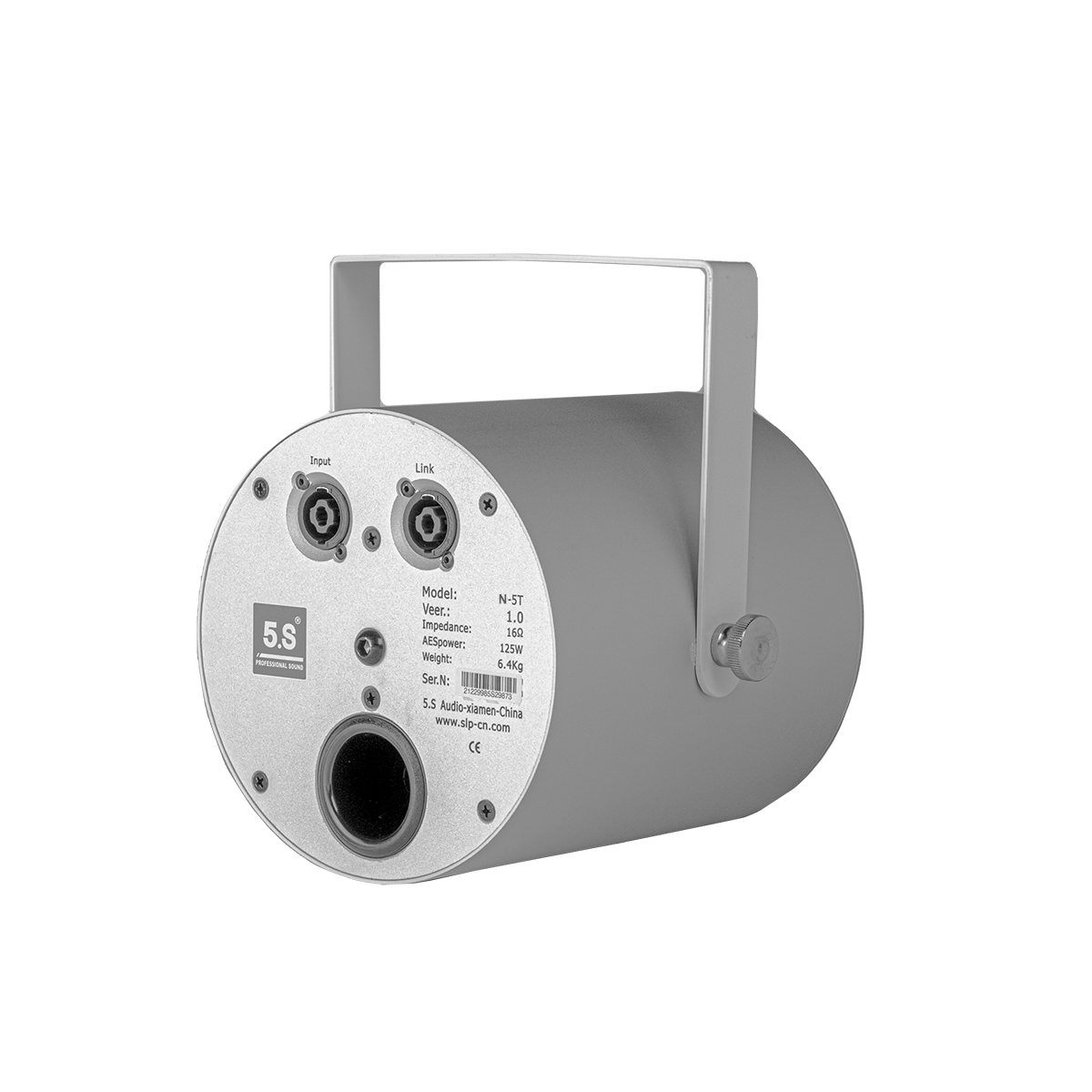

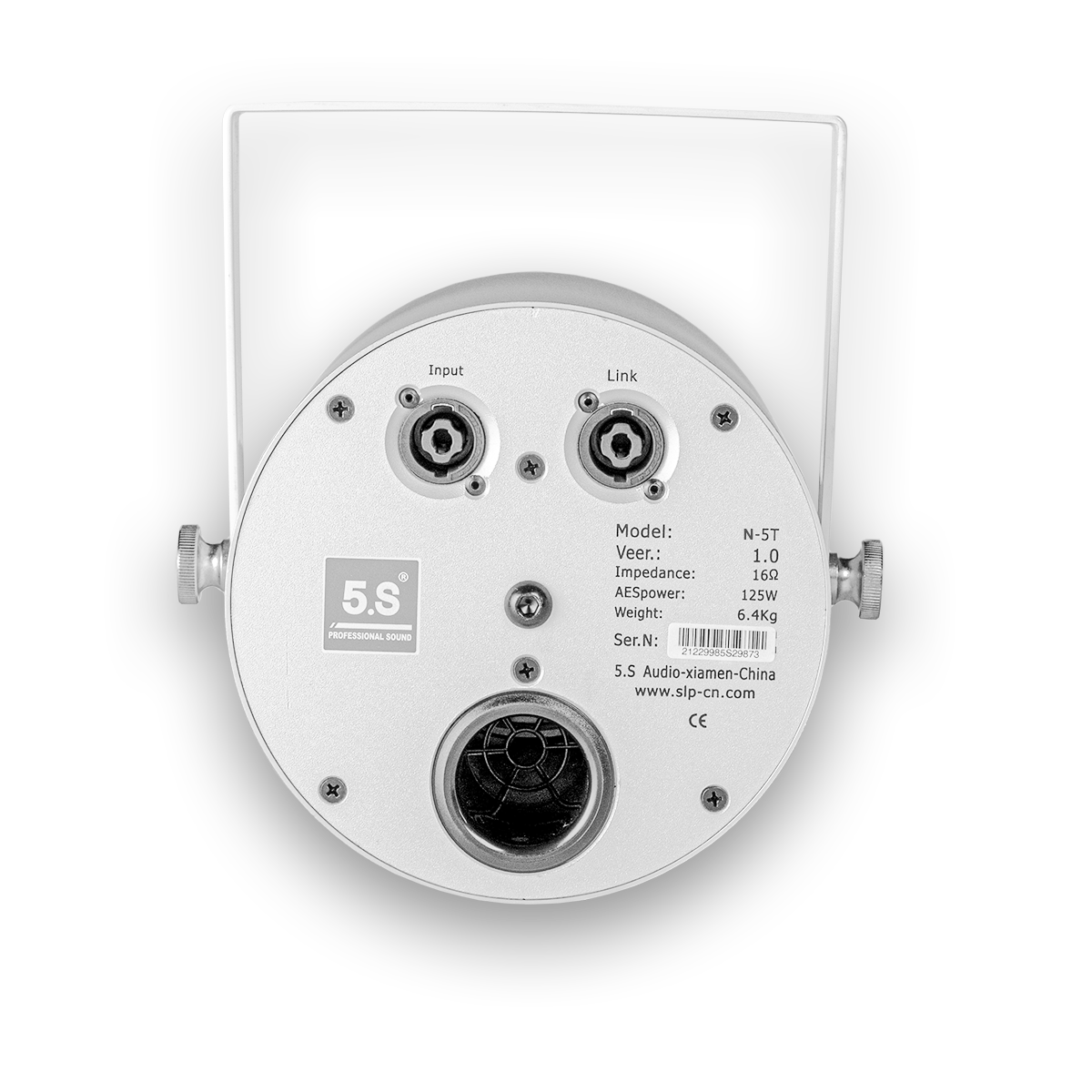

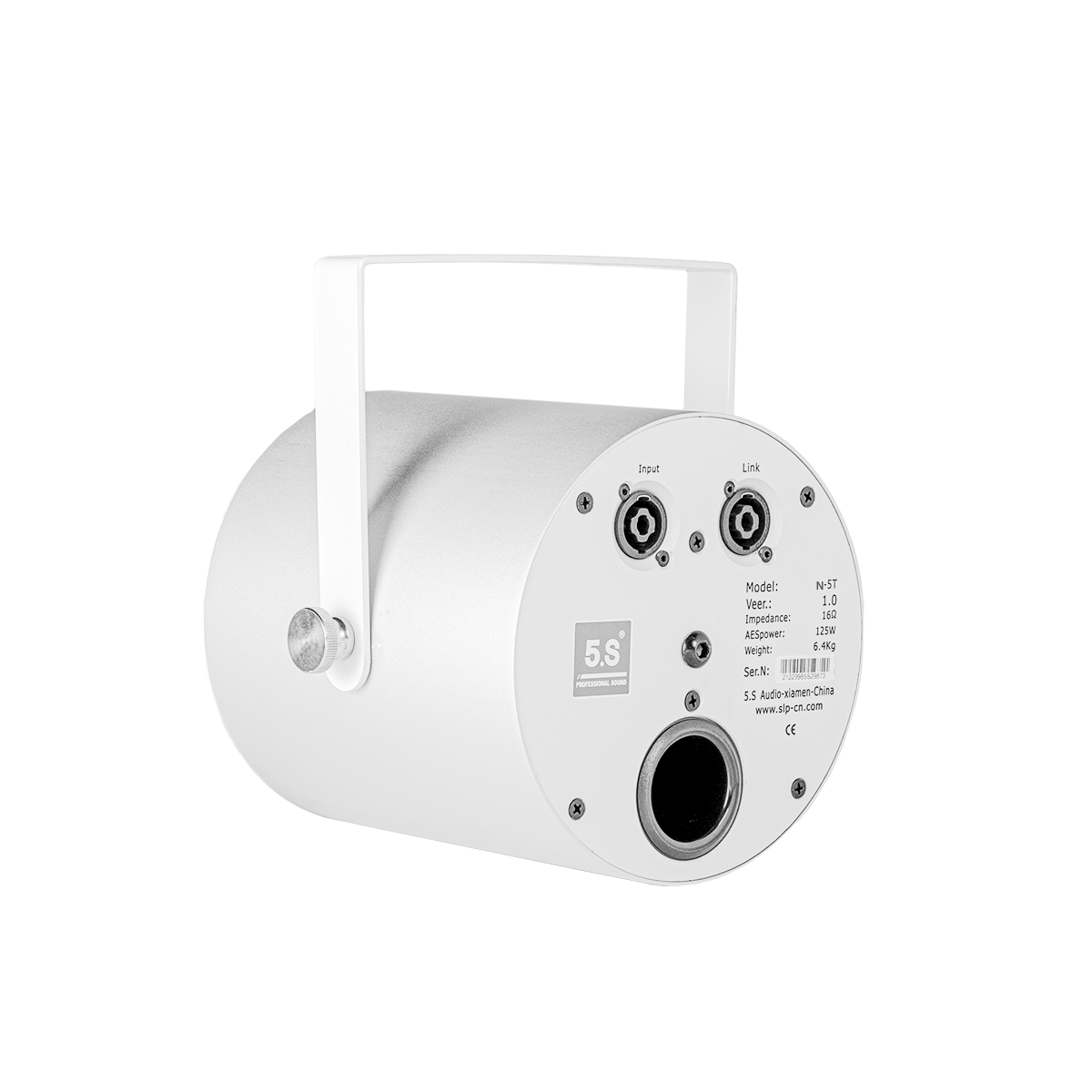

  • The N-5T is an ultra-compact enclosure passive two-way 5"/1" coaxial speaker system, delivering uncompromising craftsmanship for a true point source. Featuring a striking solid aluminum cylindrical enclosure, the N-5T comes with a U-shaped mounting bracket.


Main Features

  • Rated Power: 150W (AES)
  • Peak Power: 600W (AES)
  • Input Connector: 2*Neutrik 1+1-
  • Sensitivity: 91dB
  • Maximum Sound Pressure Level: 117dB
  • Nominal Impedance: 8 Ohms
  • Dispersion: 100° conical
  • Net Weight: 4.0Kg
  • Dimensions: 170mm*193mm (Diameter*Depth)

Product Description

The N-5T is an ultra-compact passive two-way 5"/1" coaxial loudspeaker system, delivering a true point source with uncompromising craftsmanship. Featuring a visually striking solid aluminum cylindrical enclosure, the N-5T comes with a built-in U-shaped mounting bracket.
The N-5T incorporates a high-power 5" low-frequency driver and a ferromagnetic-driven compression driver with a 44.4mm voice coil, coaxially mounted. This advanced design aligns the acoustic centers of the transducers to create a single point source. This unique loudspeaker technology produces a unified, coherent wavefront free from interference. Precise 90° conical directivity ensures perfect time alignment across all components, delivering consistent sound coverage.

Technical Specifications



Type: 2-Way Coaxial Multi-Purpose Loudspeaker System
Frequency Response: 90Hz–20kHz
Power: 150W
Peak Power: 600W
Impedance:
Coverage Angle: 100° Conical
Sensitivity: 93dB
Maximum SPL: 119dB
Crossover Point: 1.8kHz Built-in Crossover
Input Connectors: 2×Neutrik? 1+1-
Low-Frequency: 5" Woofer with Aerospace-Grade Ferrite Magnet, 1.5" (38mm) Voice Coil, Rated Power: 150W (AES)
High-Frequency: 1" Throat, Aerospace-Grade Ferrite Driver, 1.75" (44mm) Voice Coil, Rated Power: 80W (AES)
Enclosure Material: Solid Aluminum
Surface Finish: Anodized
Net Weight: 4.0kg
Dimensions: 170mm × 193mm (Diameter × Depth)
