Product Description

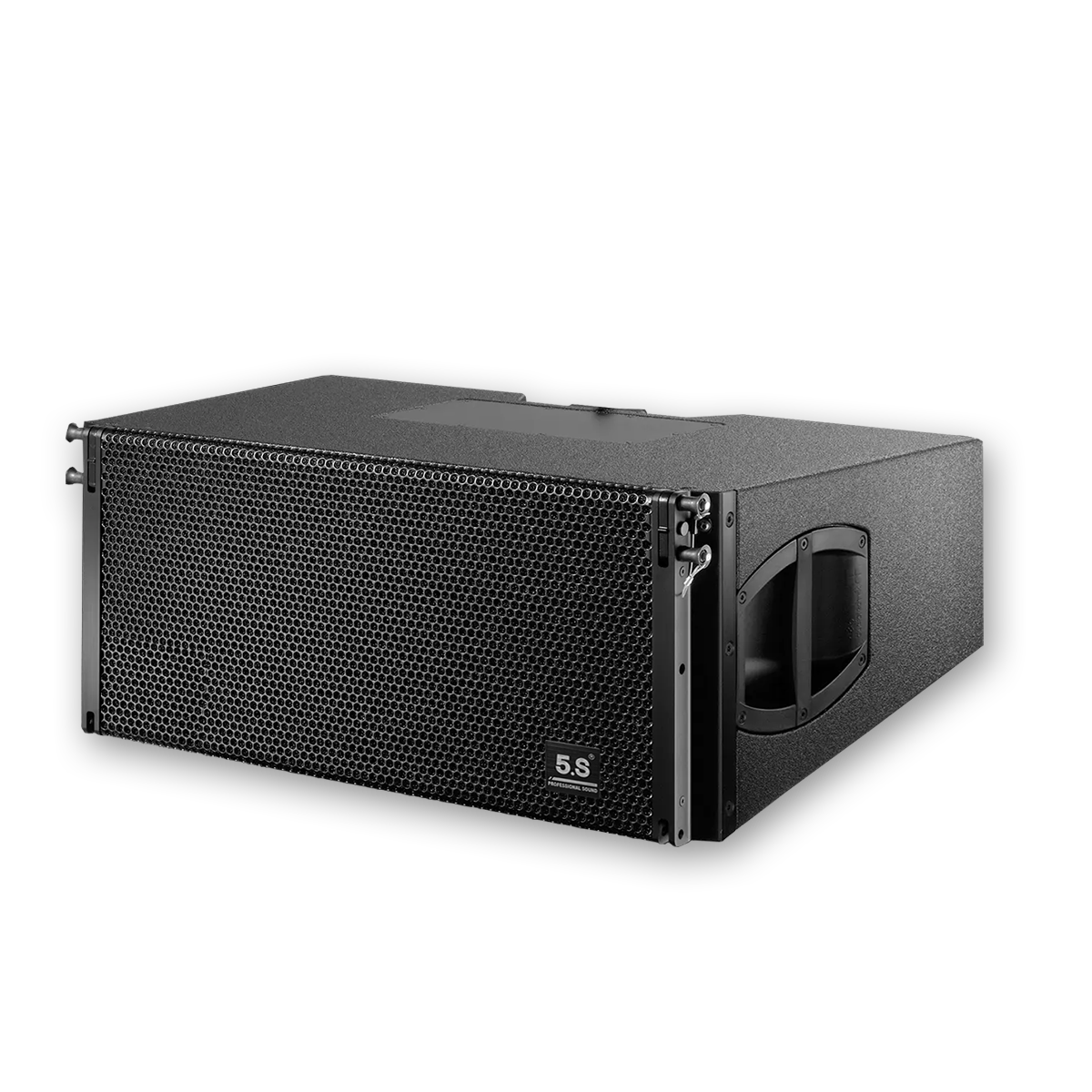

The TZ Series Z-208 is a compact line array speaker specifically designed for vertical line array applications. This passive two-way system features two 8" low-frequency drivers arranged in a symmetrical dipole configuration, along with a 1.4The TZ Series Z-208 is a compact line array speaker specifically designed for vertical line array applications. This passive two-way system features two 8" low-frequency drivers arranged in a symmetrical dipole configuration, along with a 1.4" compression driver equipped with a waveguide. Its precise geometric structure, combined with an advanced bass-reflex port design, extends low-frequency output, achieving full-range capabilities. These high-performance line array modules provide 80° horizontal directivity control, extending down to 500 Hz.

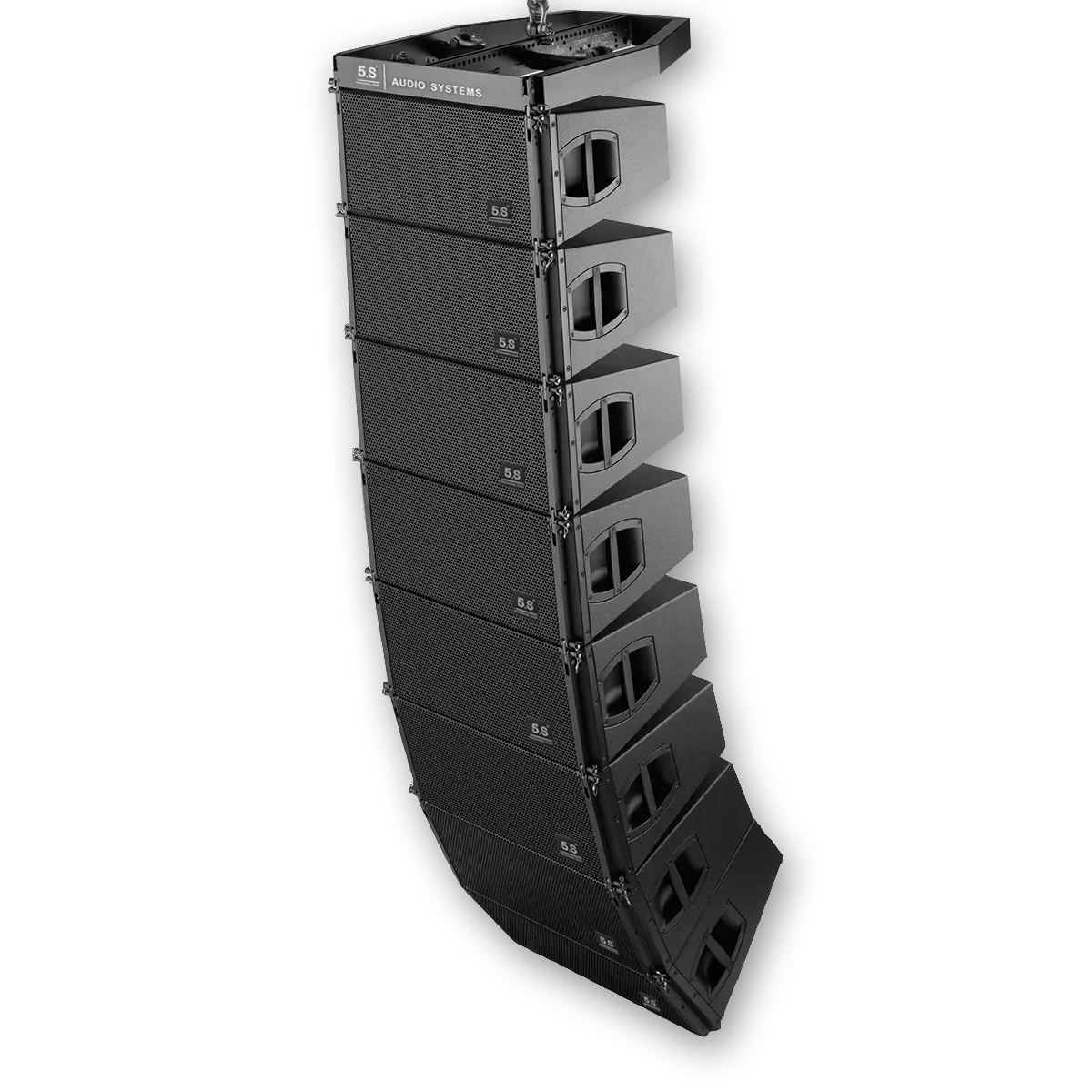

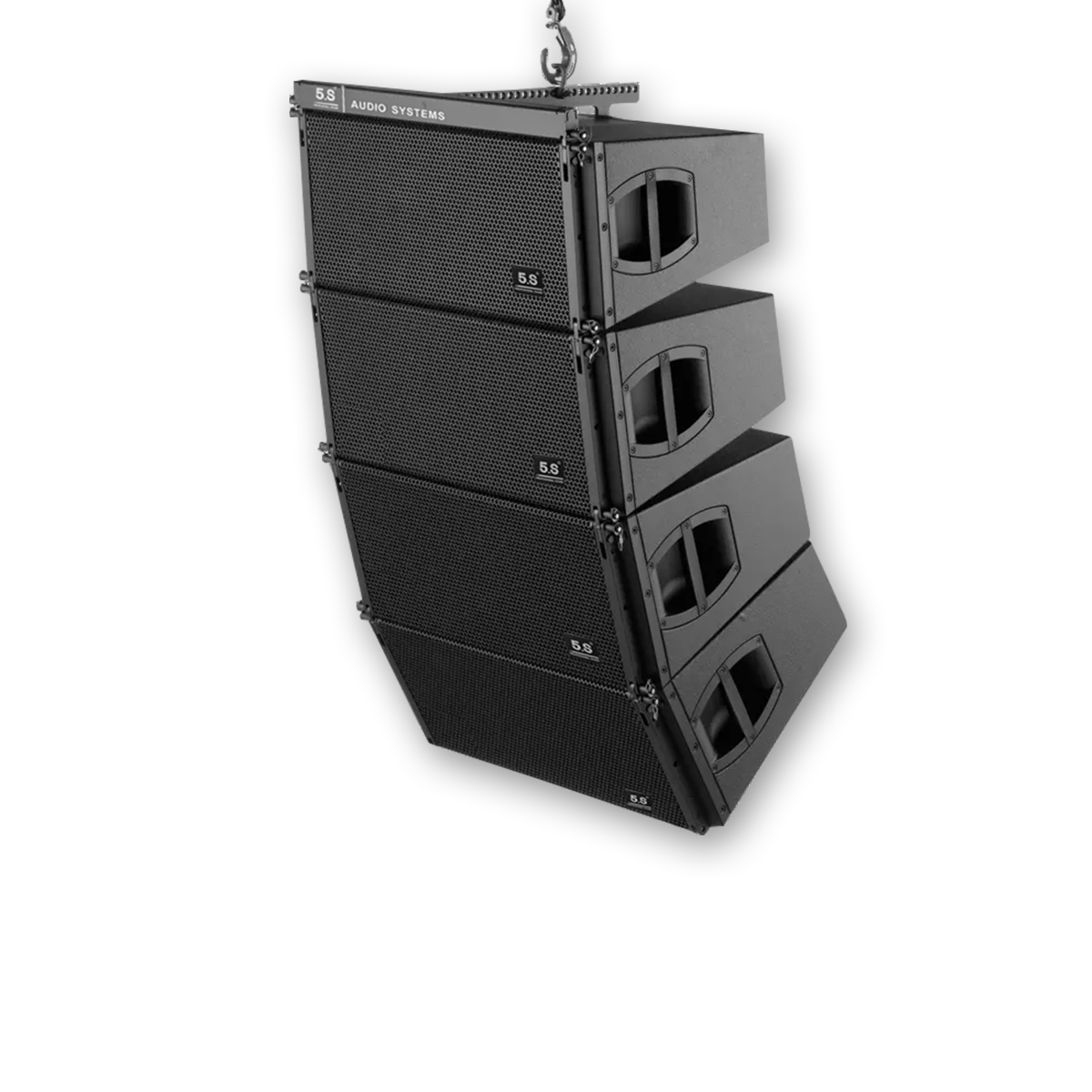

Mechanically and acoustically, up to twenty-four units can be combined into a vertical line array for suspension, with a vertical splay angle adjustable from 0° to 14° in 1° increments. Within a single array, all units can be Z-208 speakers, or they can be combined with Z-118SUB subwoofers for installation.

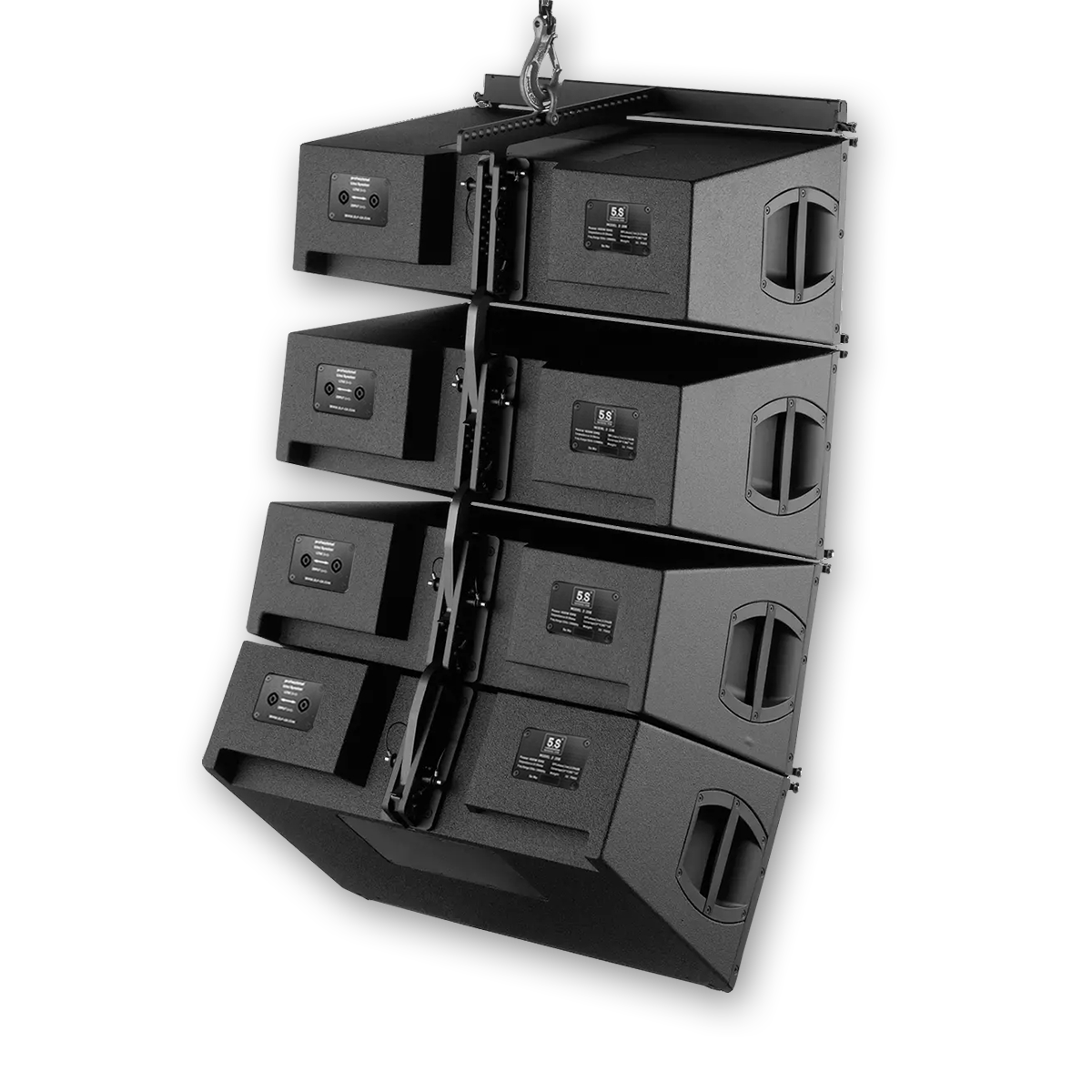

The enclosure is constructed from marine-grade plywood and coated with impact-resistant, weatherproof PCP (polyurea cabinet protection). The front of the speaker is protected by a rigid metal grille, backed by acoustically transparent foam. Each side panel features a handle, while the rear includes two additional hidden handles. The cabinet is equipped with integrated three-point suspension hardware. Designed for theaters, entertainment venues, auditoriums, banquet halls, stadiums, and large-scale live events." compression driver equipped with a waveguide. Its precise geometric structure, combined with an advanced bass-reflex port design, extends low-frequency output, achieving full-range capabilities. These high-performance line array modules provide 80° horizontal directivity control, extending down to 500 Hz. Mechanically and acoustically, up to twenty-four units can be combined into a vertical line array for suspension, with a vertical splay angle adjustable from 0° to 14° in 1° increments. Within a single array, all units can be Z-208 speakers, or they can be combined with Z-118SUB subwoofers for installation. The enclosure is constructed from marine-grade plywood and coated with impact-resistant, weatherproof PCP (polyurea cabinet protection). The front of the speaker is protected by a rigid metal grille, backed by acoustically transparent foam. Each side panel features a handle, while the rear includes two additional hidden handles. The cabinet is equipped with integrated three-point suspension hardware.

Designed for theaters, entertainment venues, auditoriums, banquet halls, stadiums, and large-scale live events.
