Product Description

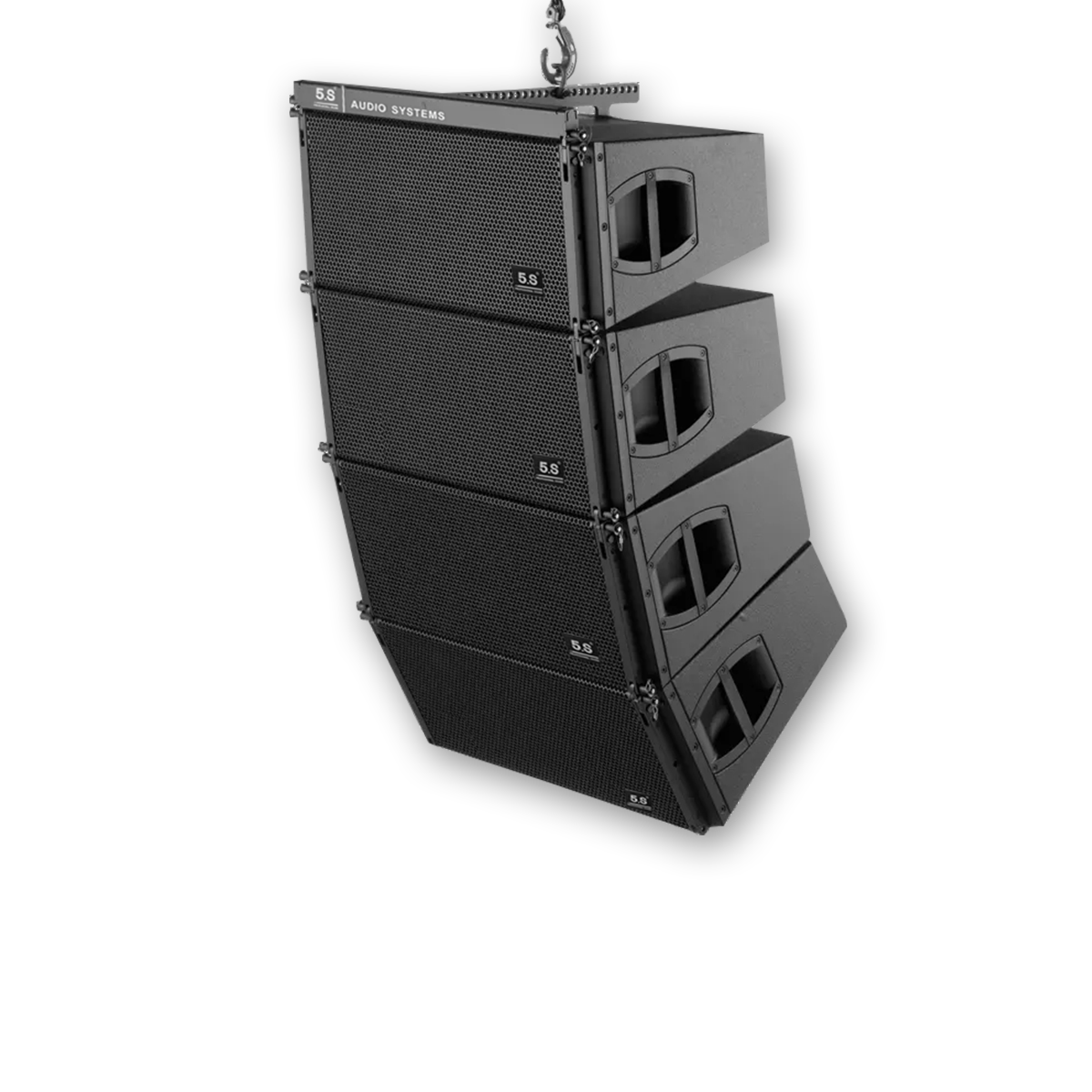

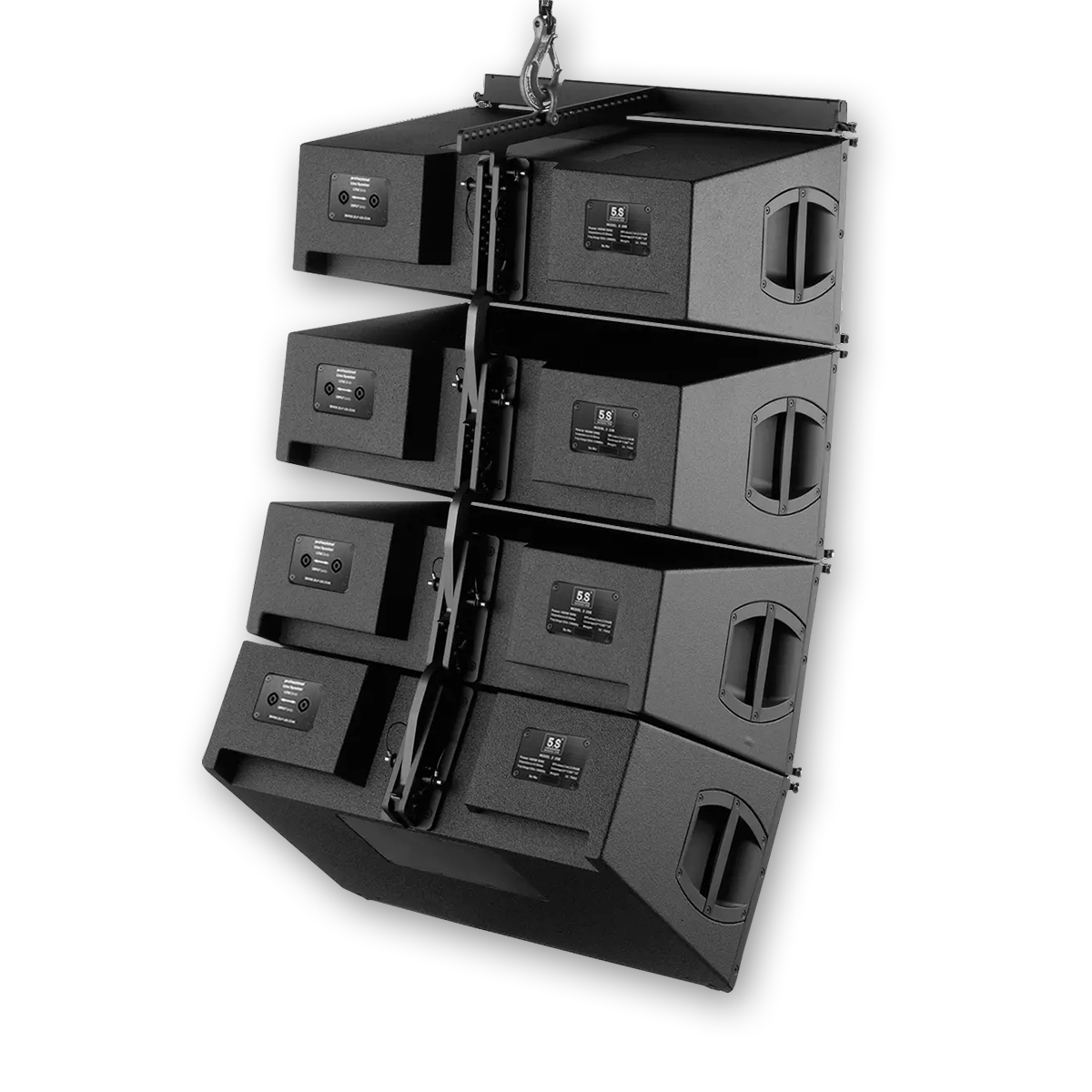

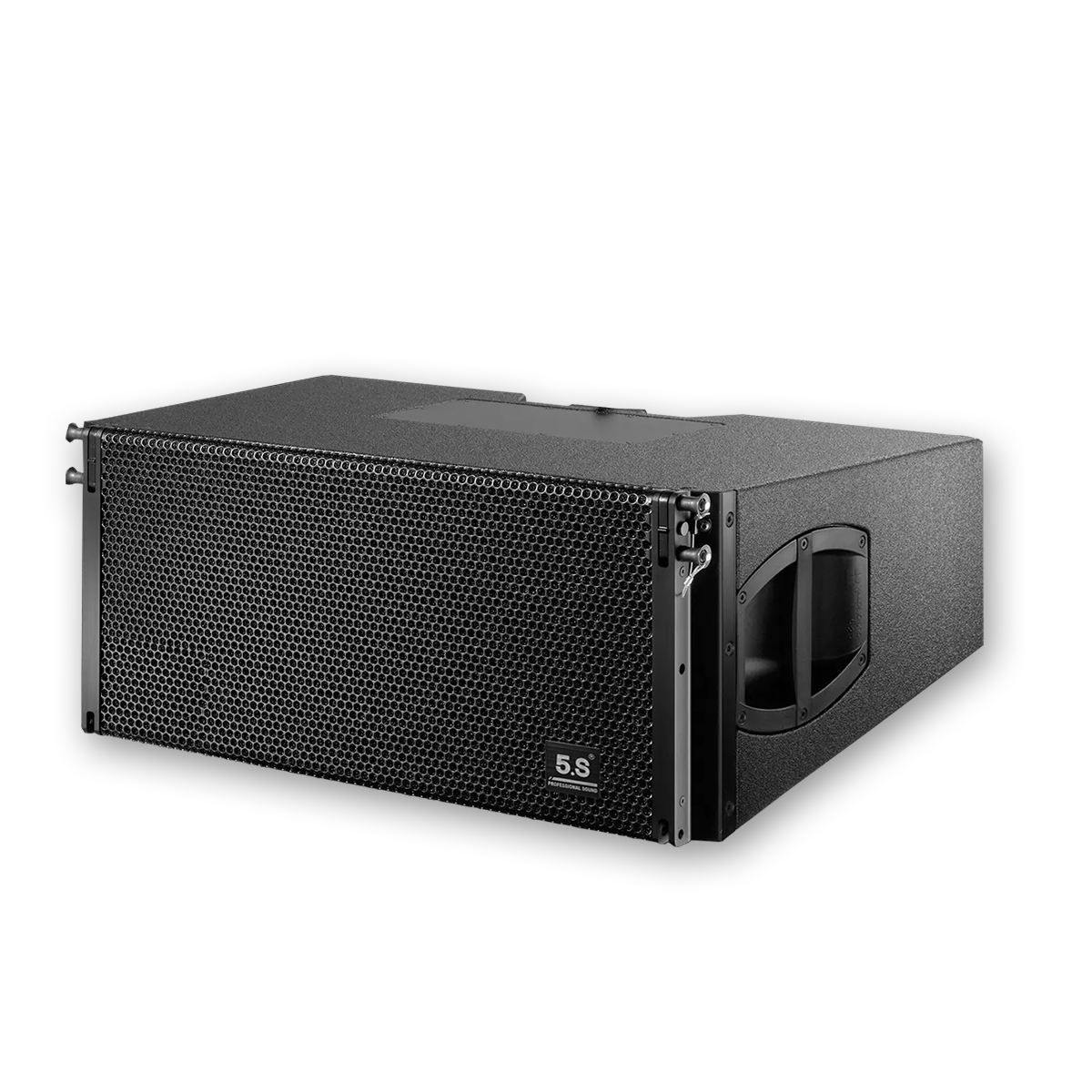

The TZ Series Z-210 features a passive three-way design, incorporating 2x10" low-frequency drivers, an 8" midrange unit, and two high-frequency compression drivers with a 1.4" throat and 2.5" voice coil. The high-frequency compression drivers are equipped with dedicated waveguide devices and are arranged in a dipole-symmetrical configuration around the center of the enclosure, which houses coaxially designed midrange and high-frequency components. This design ensures smooth overlap of adjacent frequency bands in the crossover network. The system delivers a highly controlled 80° horizontal constant-directivity coverage, extending down to 250Hz. Mechanically and acoustically, up to twenty-four Z-210 units can be combined to form a vertical line array for suspension. In a line array setup, the Z-210 can be fully integrated with the Z-118BSUB subwoofer. The Z-210 enclosure is constructed from marine-grade plywood and coated with a durable, impact- and weather-resistant PCP (polyurea cabinet protection) finish. The front of the enclosure is protected by a rigid metal grille backed with acoustically transparent foam. Each side panel is fitted with a handle, while two additional hidden handles are located at the bottom rear of the cabinet. Designed for theaters, entertainment venues, auditoriums, banquet halls, stadiums, and large-scale live events.
