A-III

Digital effects processor

A-III
A-III
A-III
A-III

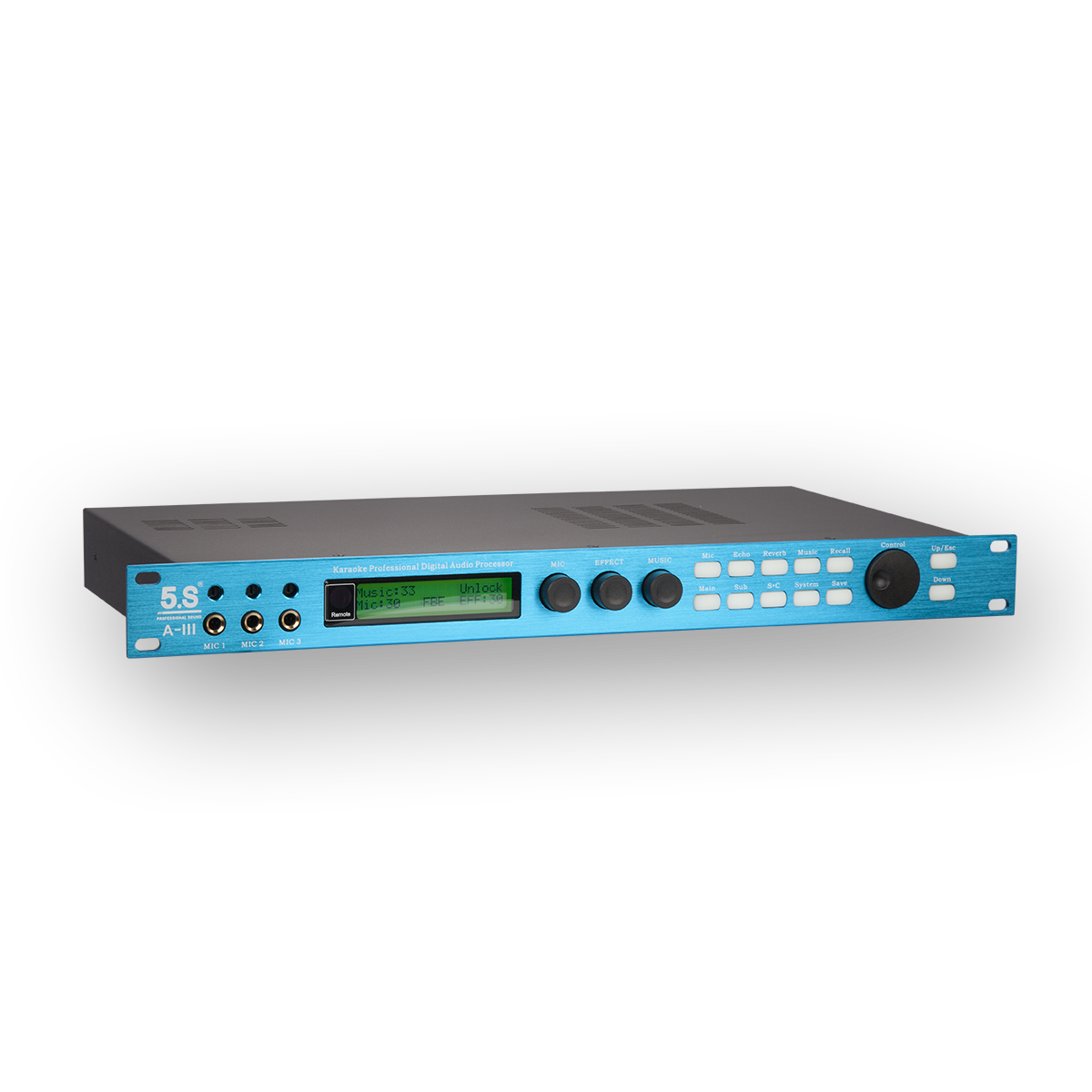

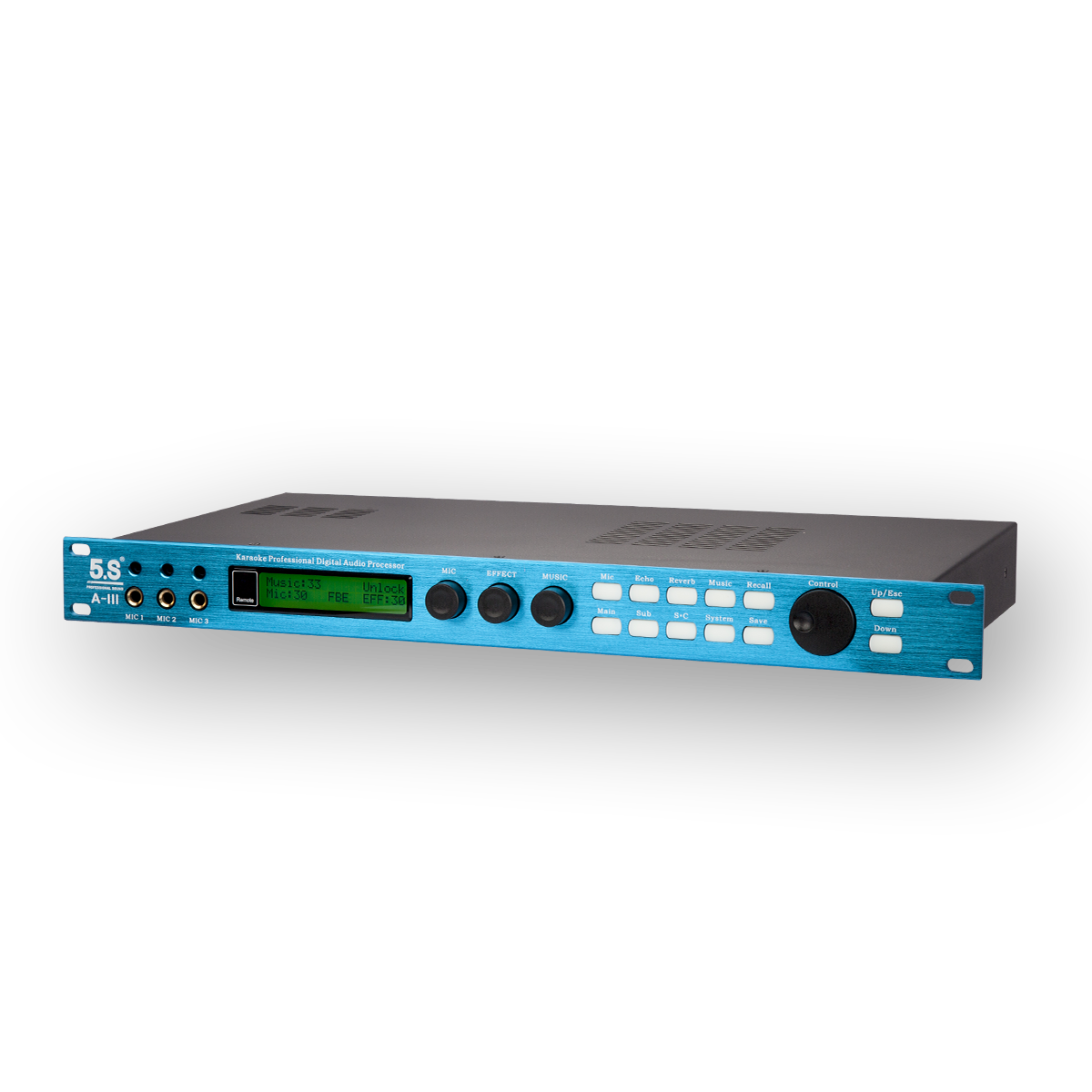

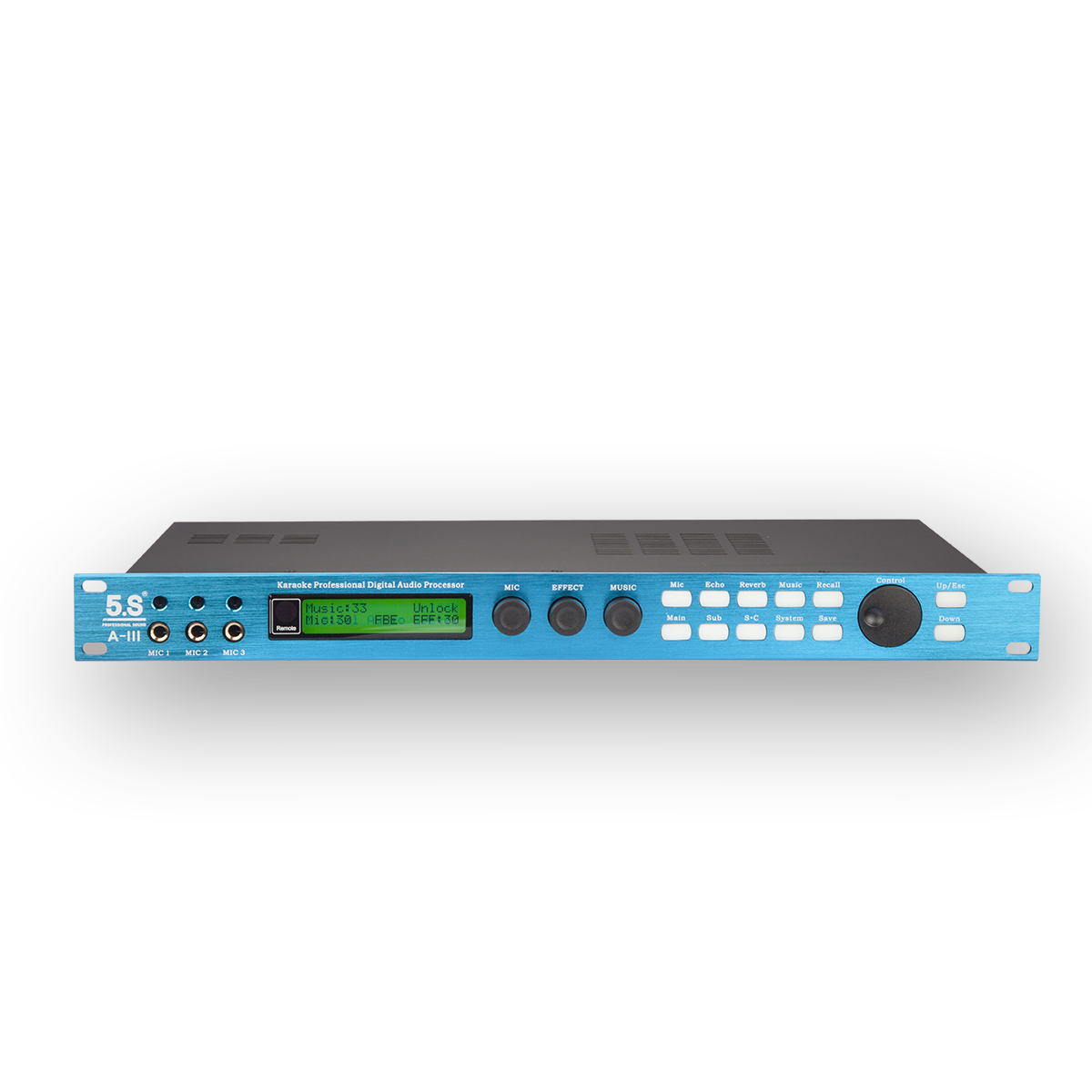

A Karaoke effector with speaker processor functionality, where each part of the function is independently adjustable.

  • Adopting a 24-bit data bus and a 32-bit DSP, the MUSIC features a 7-band parametric equalizer.


Main Features

  • Maximum Input Level: 4V (RMS)
  • Maximum Output Level: 4V (RMS)
  • Music Gain: MAX: 12dB
  • Microphone Sensitivity: 64mV (Out: 4V)
  • Signal-to-Noise Ratio: >80dB
  • Power Supply: 220V/AC/50Hz

Product Description

● Karaoke effector with speaker processor functionality, each part independently adjustable.

● Utilizes a 24-bit data bus and 32-bit DSP.

● MUSIC features 7-band parametric EQ. High-pass filter for MUSIC to main output: 12dB-24dB (0Hz-303Hz).

● MIC features 15-band parametric EQ, with compression/limiting functionality.

● Main output includes 5-band parametric EQ and compression/limiting functionality.

● Center output, rear output, and subwoofer each feature 3-band parametric EQ.

● Microphone offers 4 types of feedback suppression, selectable as OFF, 1, 2, or 3.

● Supports storage of 16 preset modes.

● Microphone output, main output, center output, subwoofer output, and rear output all feature compression/limiting and delay functionality.

● Includes administrator mode and user mode. User mode does not save parameter adjustments.

● Equipped with a full-featured menu and can also be configured via PC interface.

Technical Parameters

Maximum Input Level: 4V (RMS)

Maximum Output Level: 4V (RMS)

Music Gain: MAX: 12dB

Microphone Sensitivity: 64mV (Out: 4V)

Signal-to-Noise Ratio: >80dB

Power Supply: 220V/AC/50Hz

Dimensions: 483*218.5*47.5mm

Net Weight: 3.5KG
