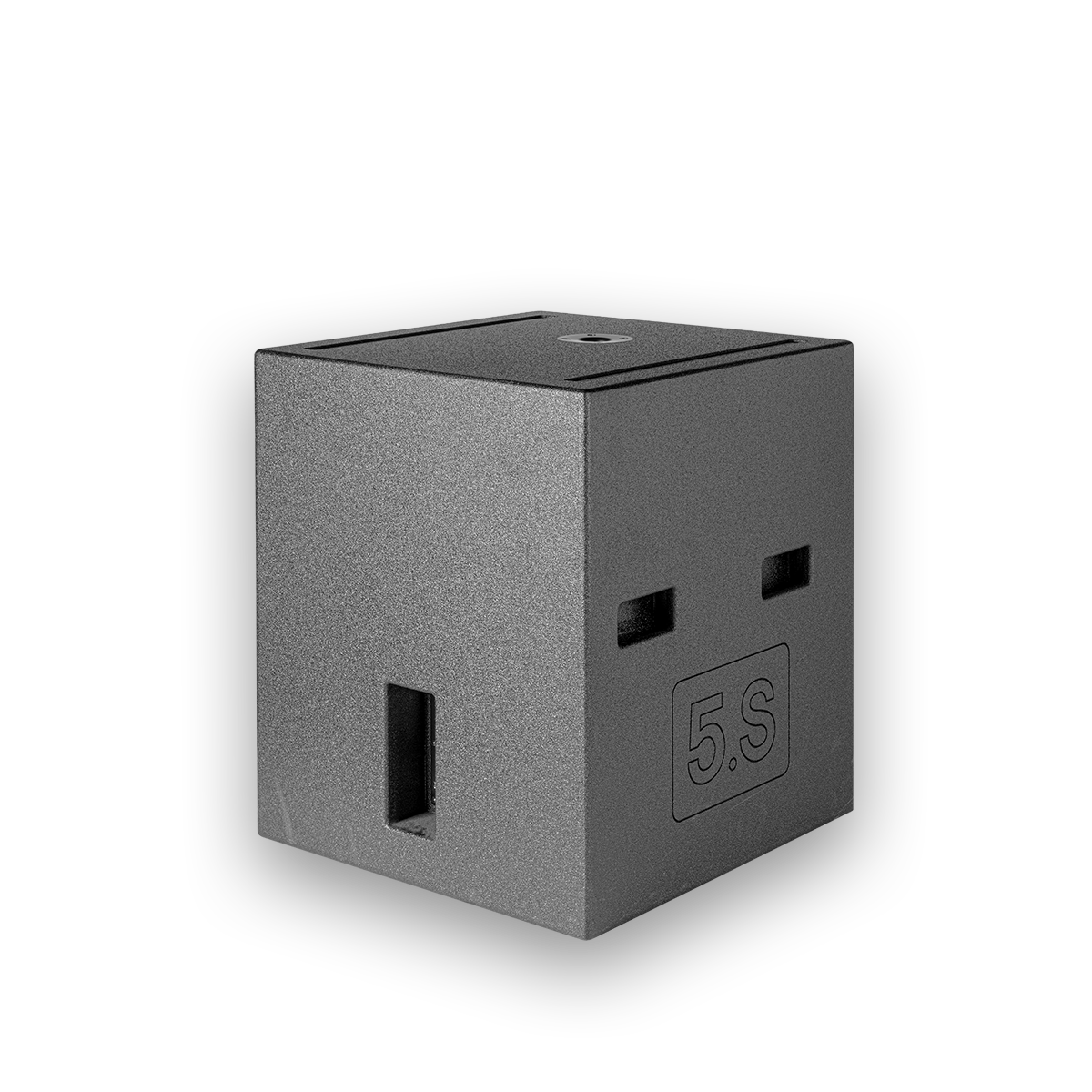

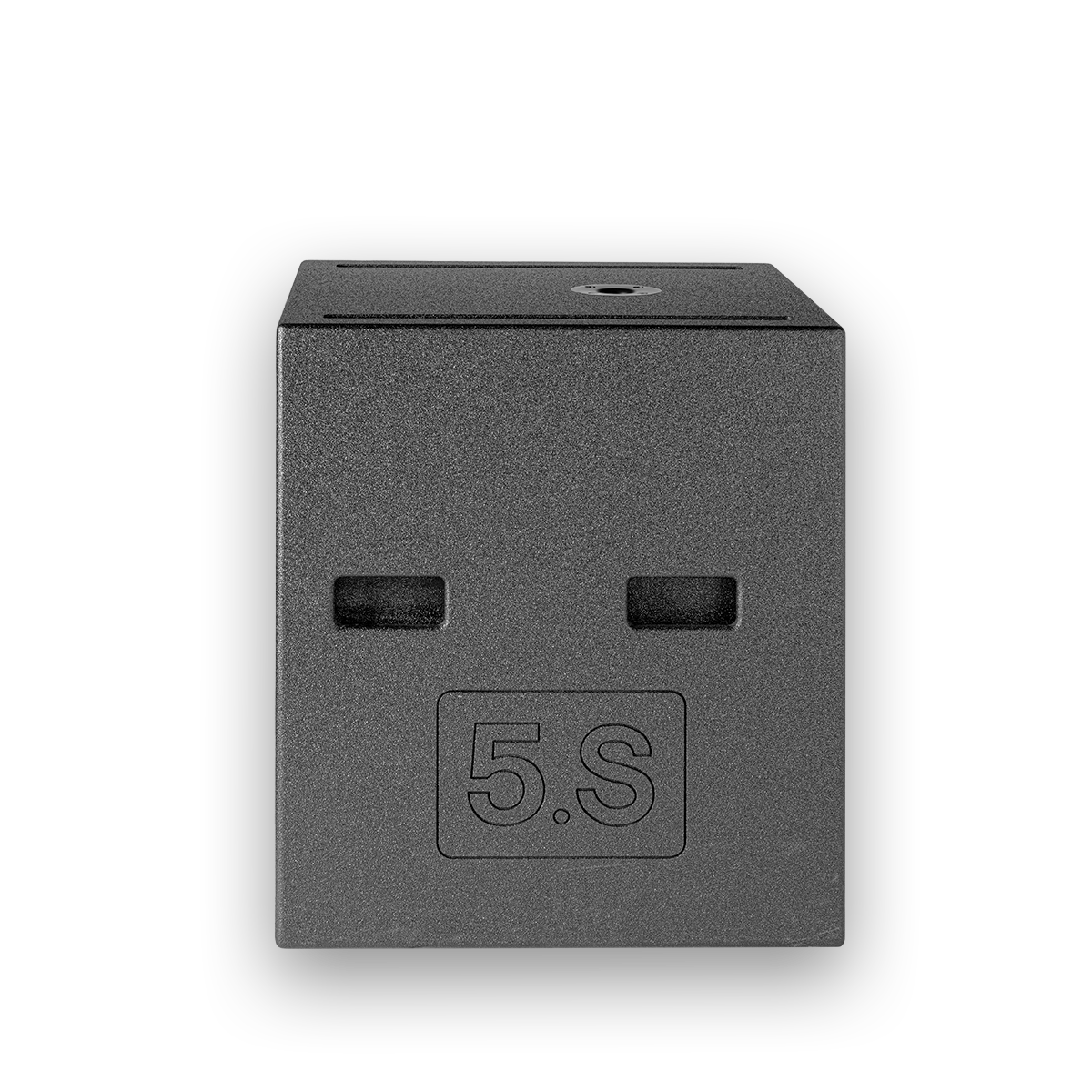

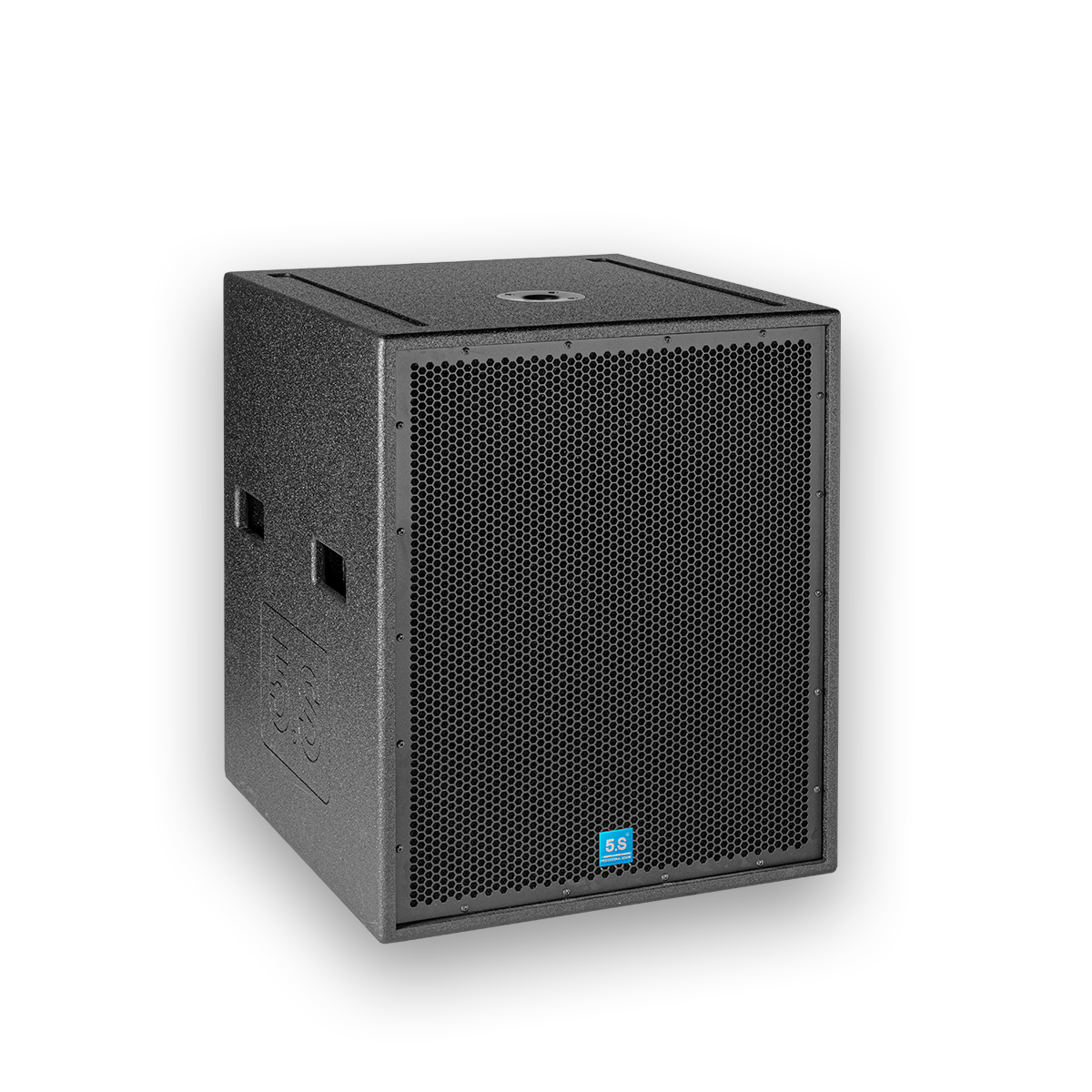

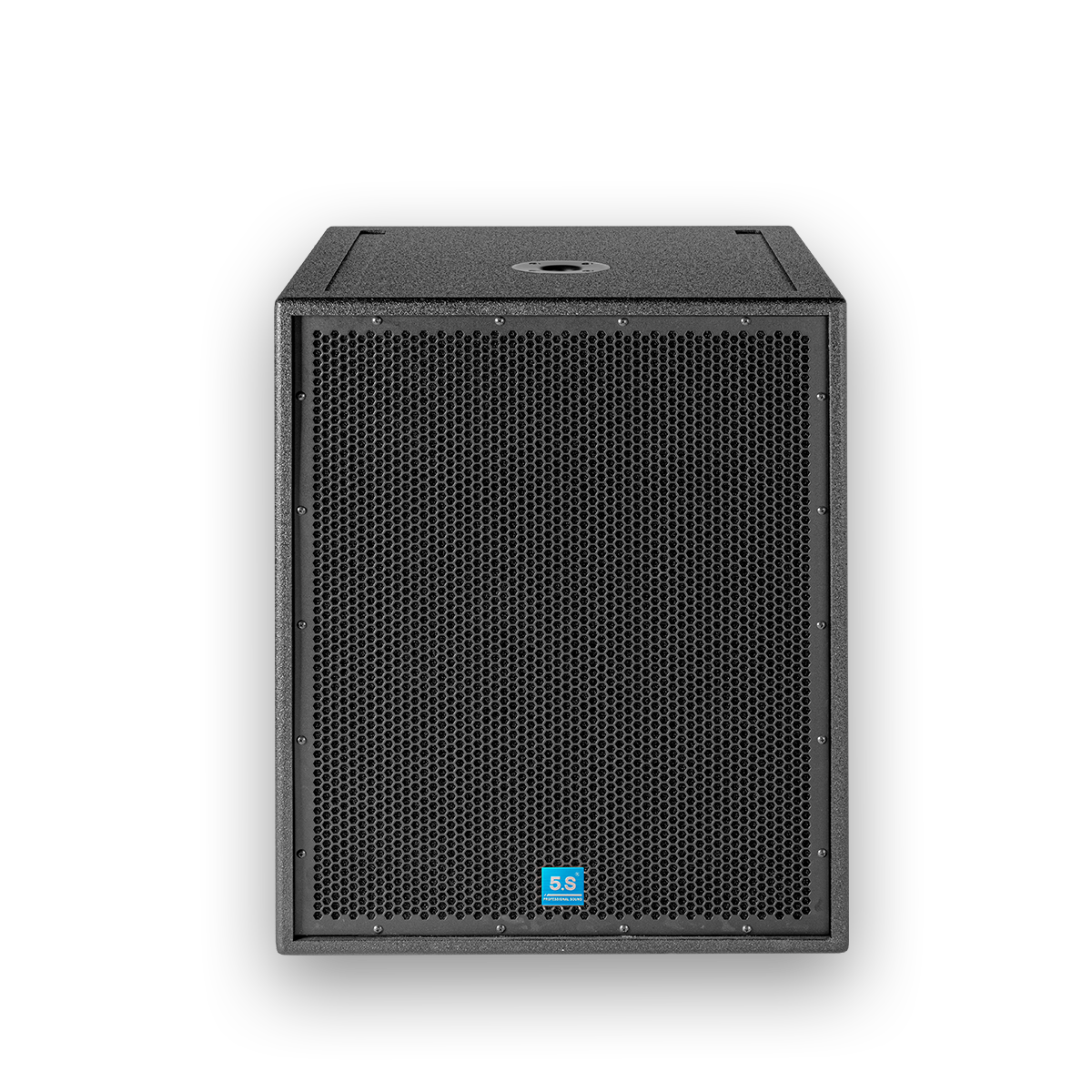

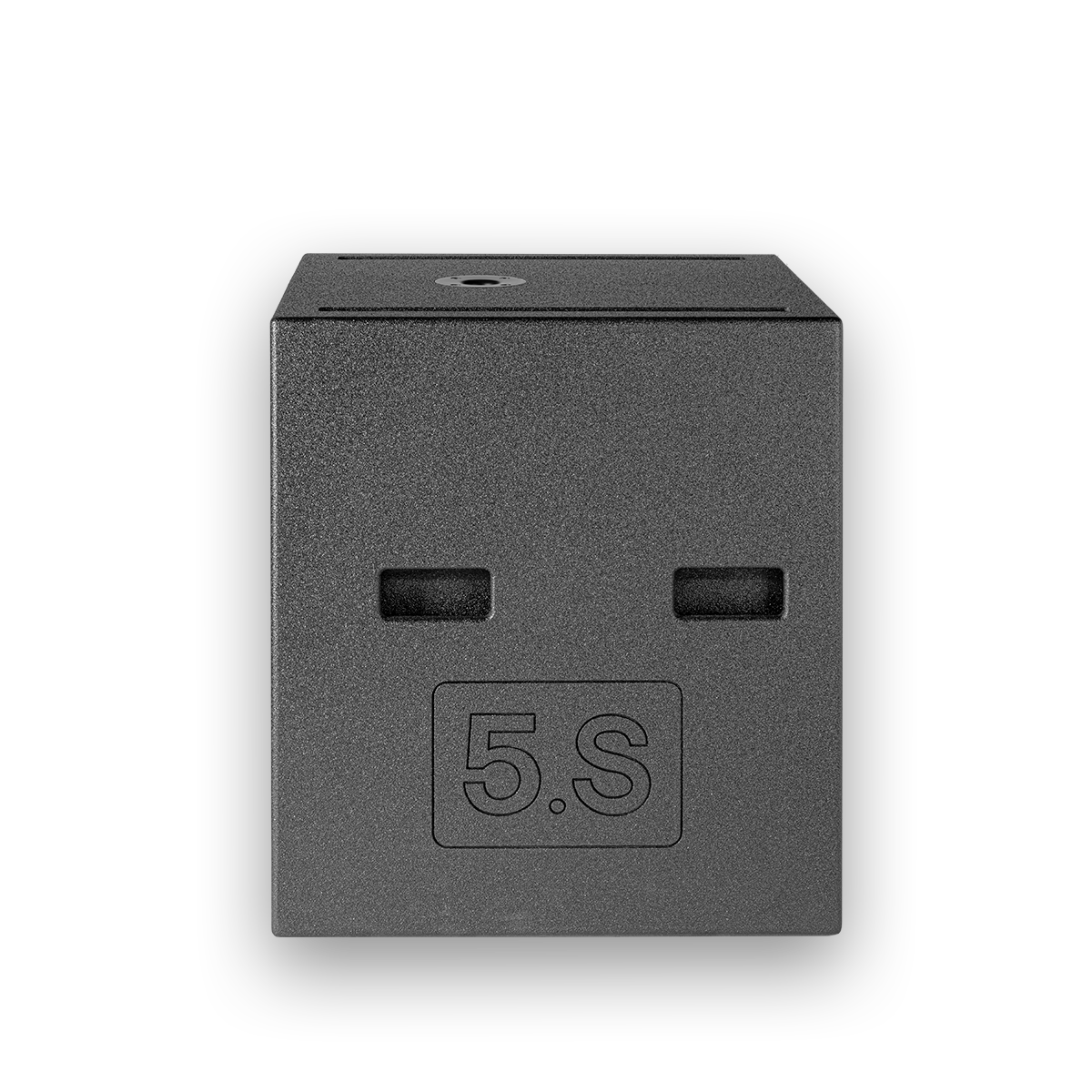

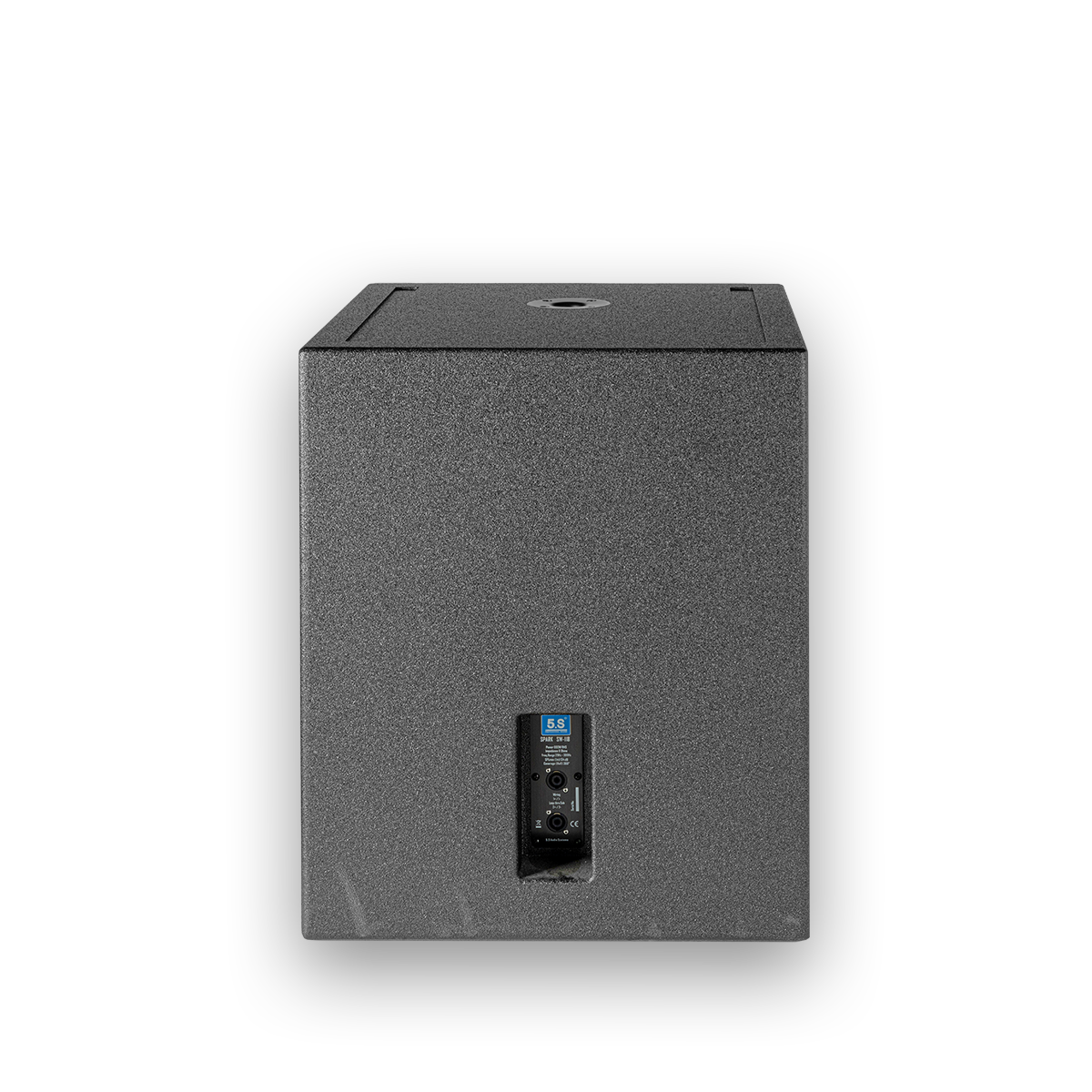

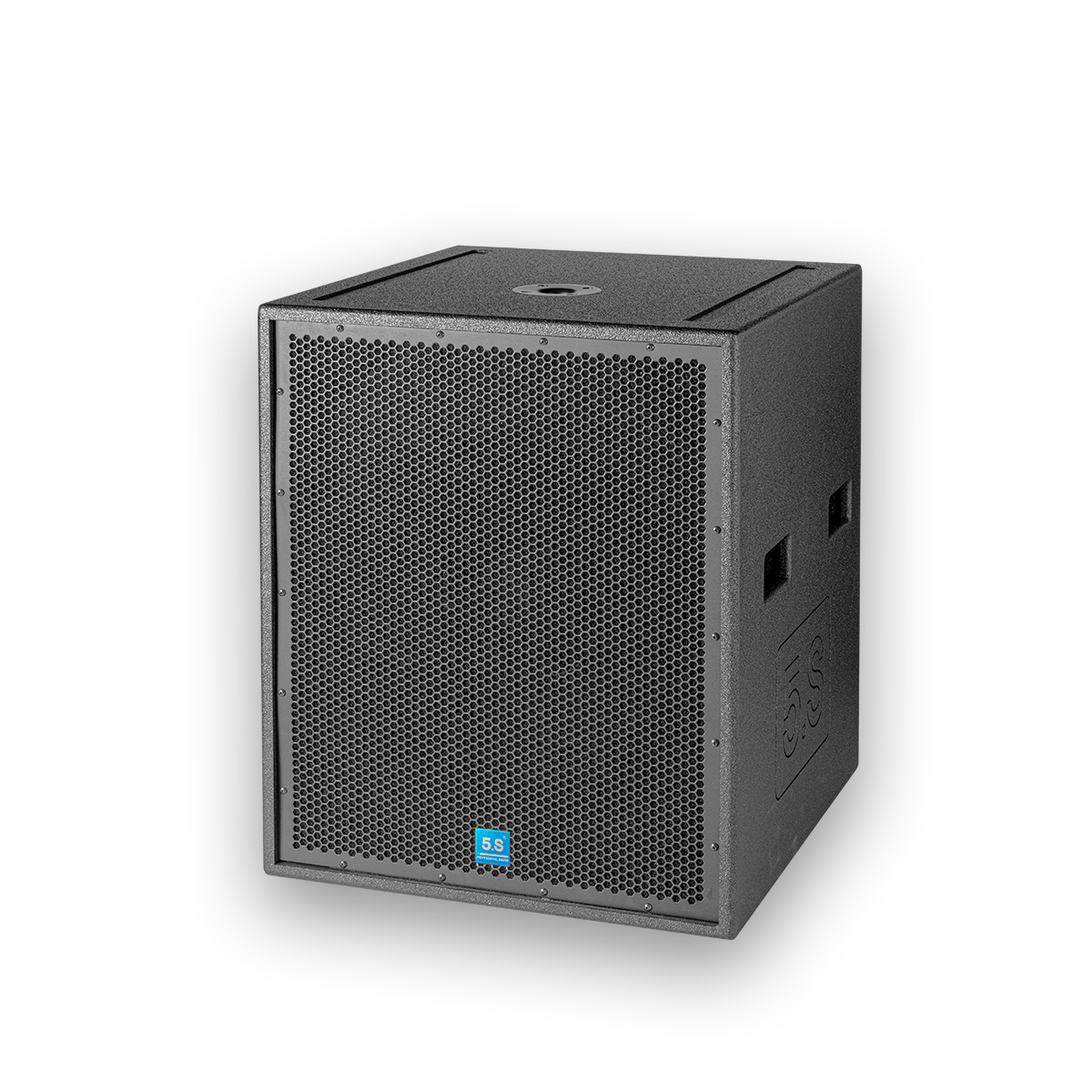

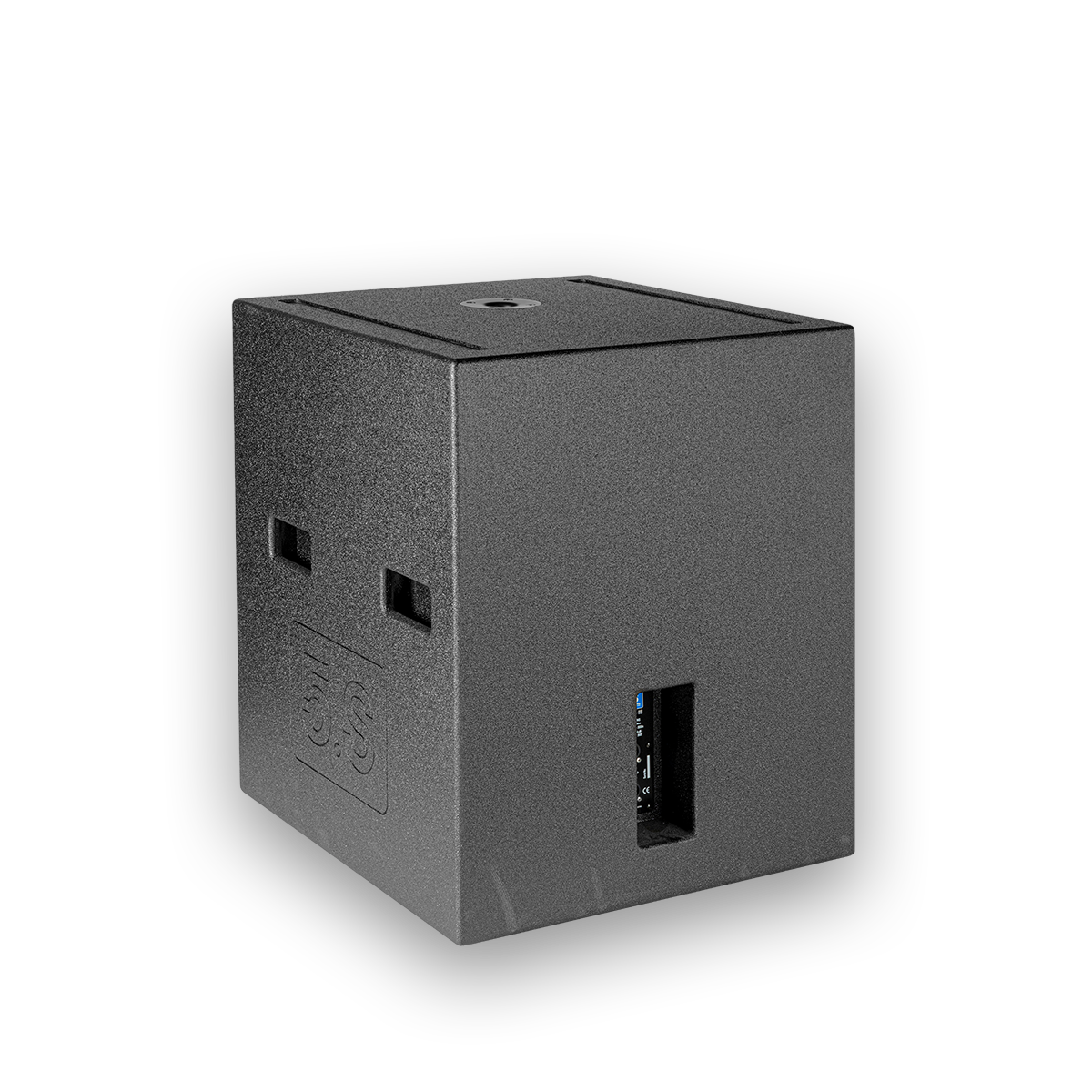

SW-118B

Single 18" passive subwoofer system

SW-118B
SW-118B
SW-118B
SW-118B
SW-118B
SW-118B
SW-118B
SW-118B

18" large magnetic circuit ultra-low distortion woofer

  • Audio SW-118B is a compact 18" subwoofer speaker that delivers powerful ultra-low frequency response.


Main Features

  • Rated Power: 1000W (AES)
  • Peak Power: 4000W (AES)
  • Input Connection: 2*NeutrikTM 2+2-
  • Sensitivity: 98dB
  • Maximum Sound Pressure Level: 137dB
  • Nominal Impedance: 8 Ohms
  • Dispersion Angle: --
  • Net Weight: 50Kg
  • Enclosure Dimensions: 560mm*691mm*595mm (W*H*D)

Product Description

The Audio SW-118B is a compact 18" subwoofer that delivers powerful ultra-low frequency response. Its woofer and wooden cabinet design provide tight and precise bass response, making it an ideal match for the LY-12.
The driver features a long excursion design with a high magnetic flux for increased efficiency, thanks to its large magnet. The 4" voice coil (38mm height) ensures a 26mm peak-to-peak (PP) continuous magnetic drive excursion. The specially treated pulp fiber cone maximizes rigidity and minimizes inertial displacement.
Additionally, the triple heat-resistant flat copper wire reduces power compression caused by voice coil heating, comprehensively improving sound quality and performance.

Technical Parameters


Type: 18" Ultra-Low Frequency Multi-Purpose Speaker System
Frequency Response: 30Hz-300kHz
Power: 1000W
Peak Power: 3200W
Impedance:
Dispersion Angle: --
Sensitivity: 98dB
Maximum SPL: 137dB
Crossover Point: External Crossover
Input Connector: 2*NeutrikTM 2+2-
Low Frequency: 18" woofer with European custom-designed driver, large magnetic circuit. 4" (100mm) voice coil, rated power: 1000W (AES)
High Frequency: --
Enclosure Material: 15mm+18mm marine-grade birch plywood
Enclosure Finish: Black polyurea paint
Net Weight: 50Kg
Dimensions: 560mm*691mm*595mm (W*H*D)
