Product Description

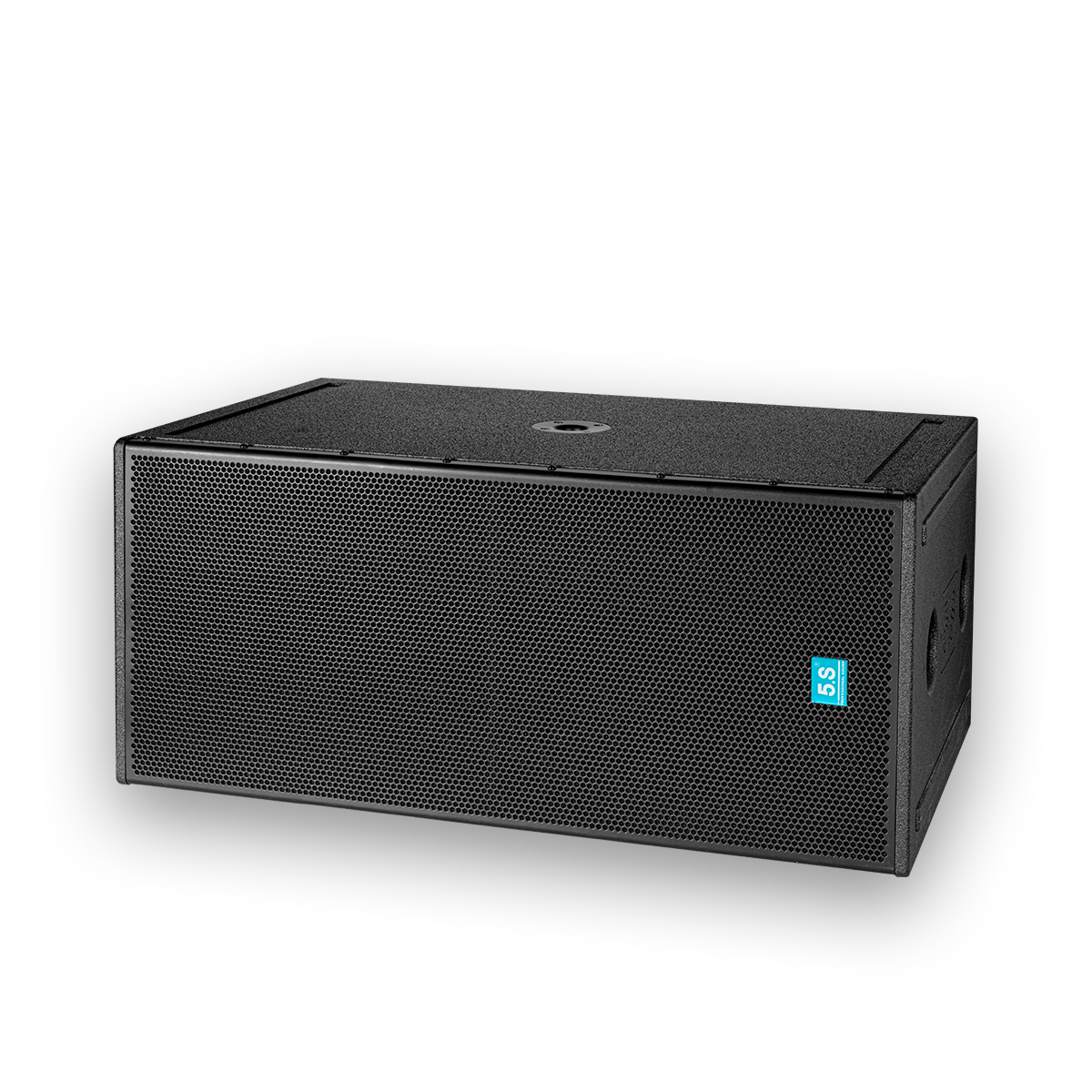

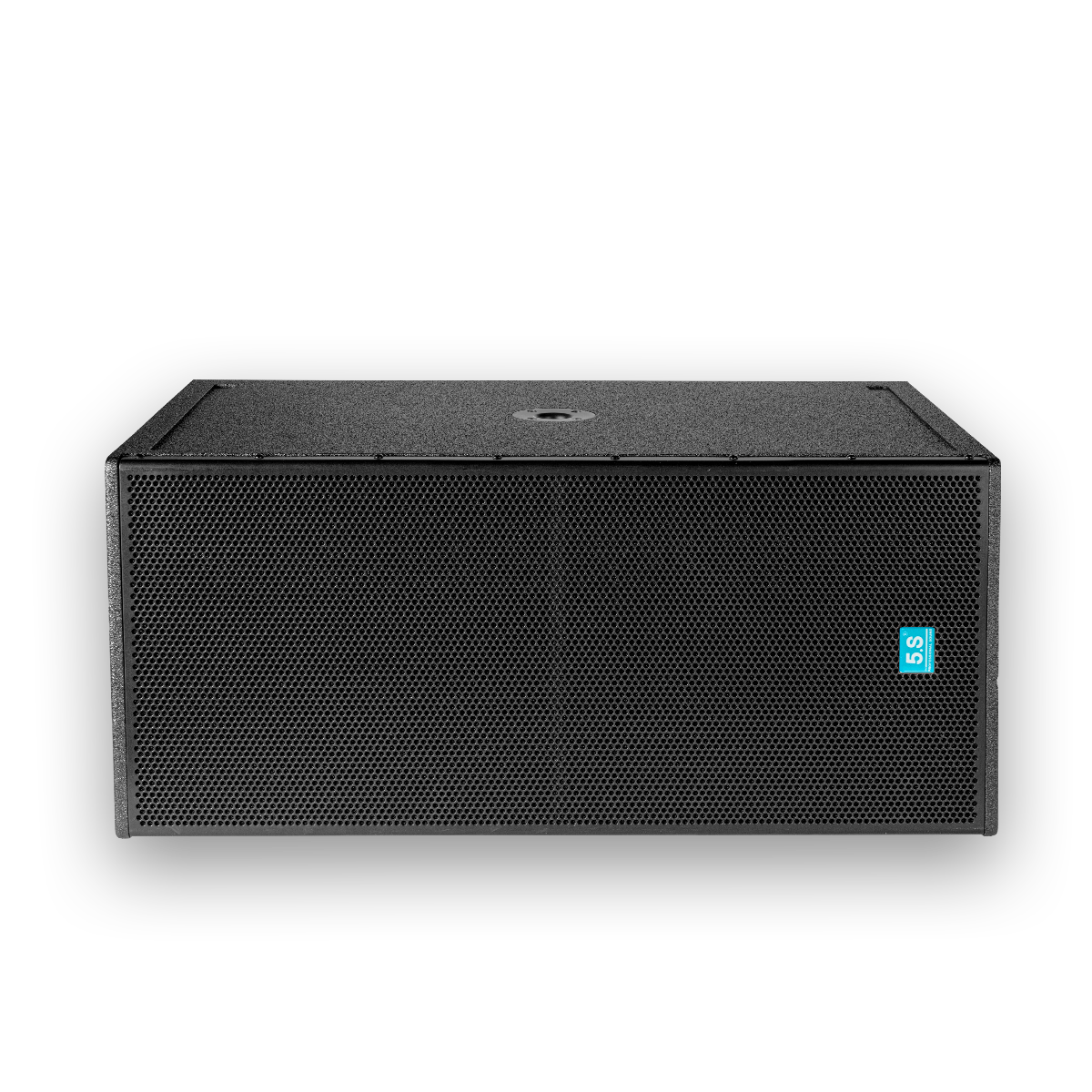

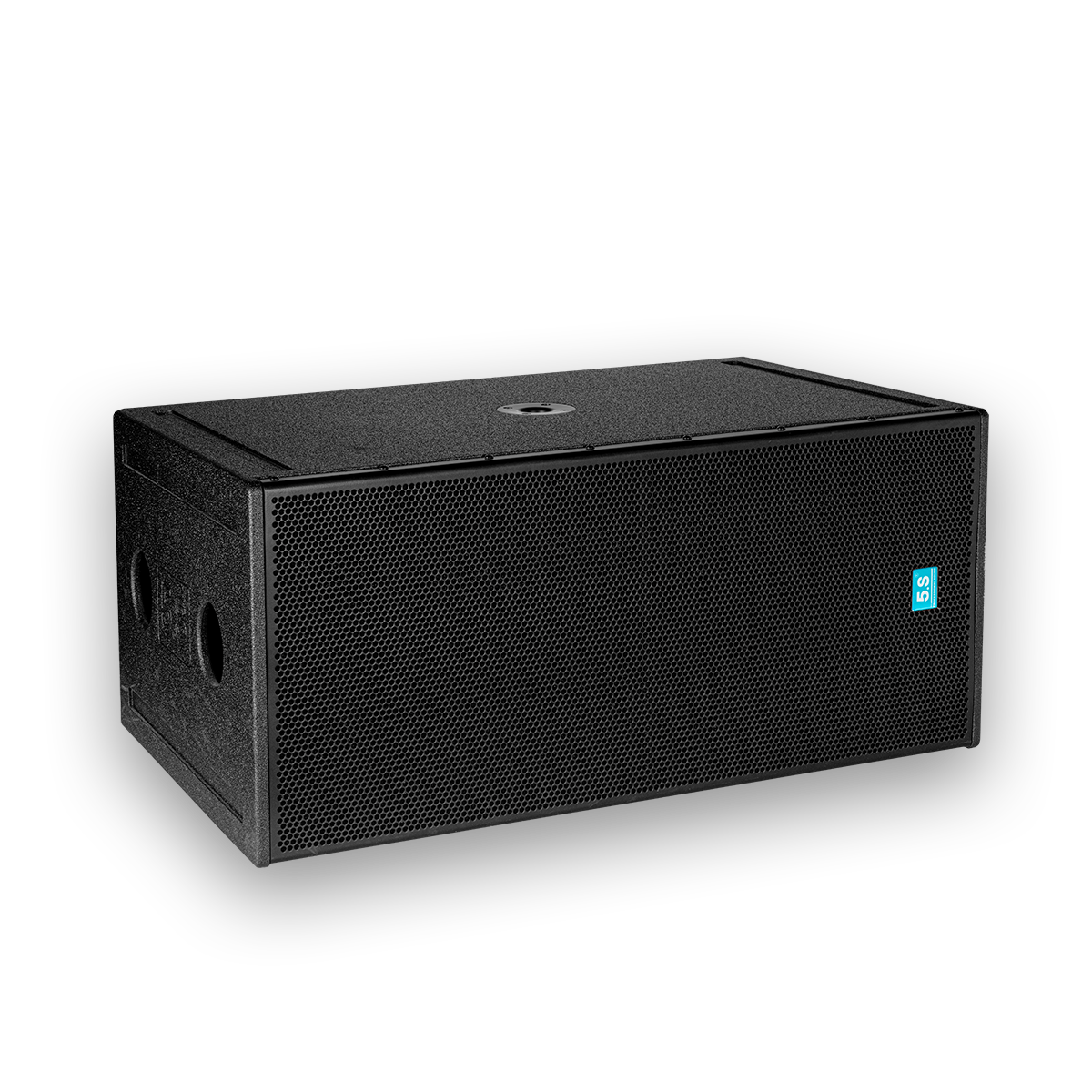

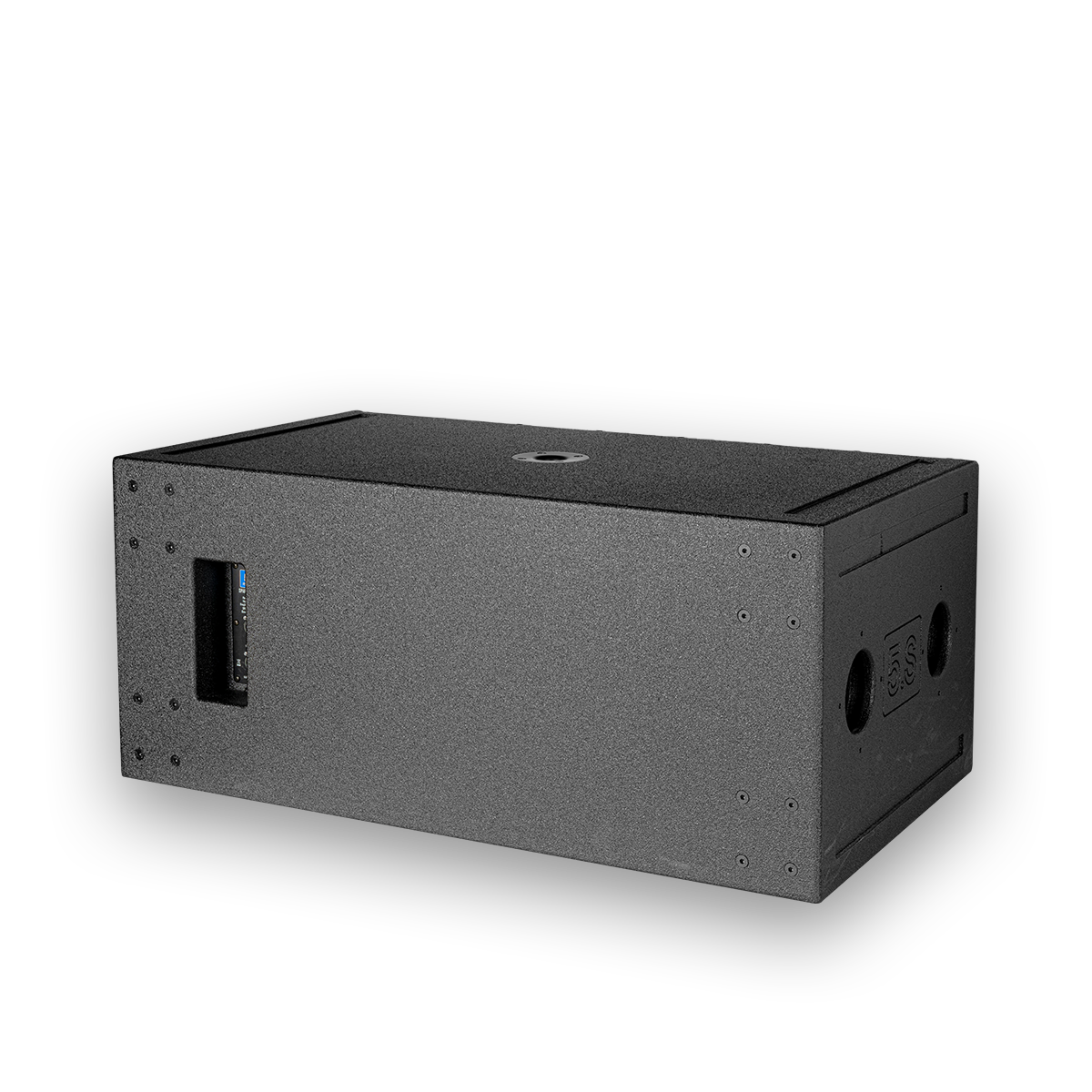

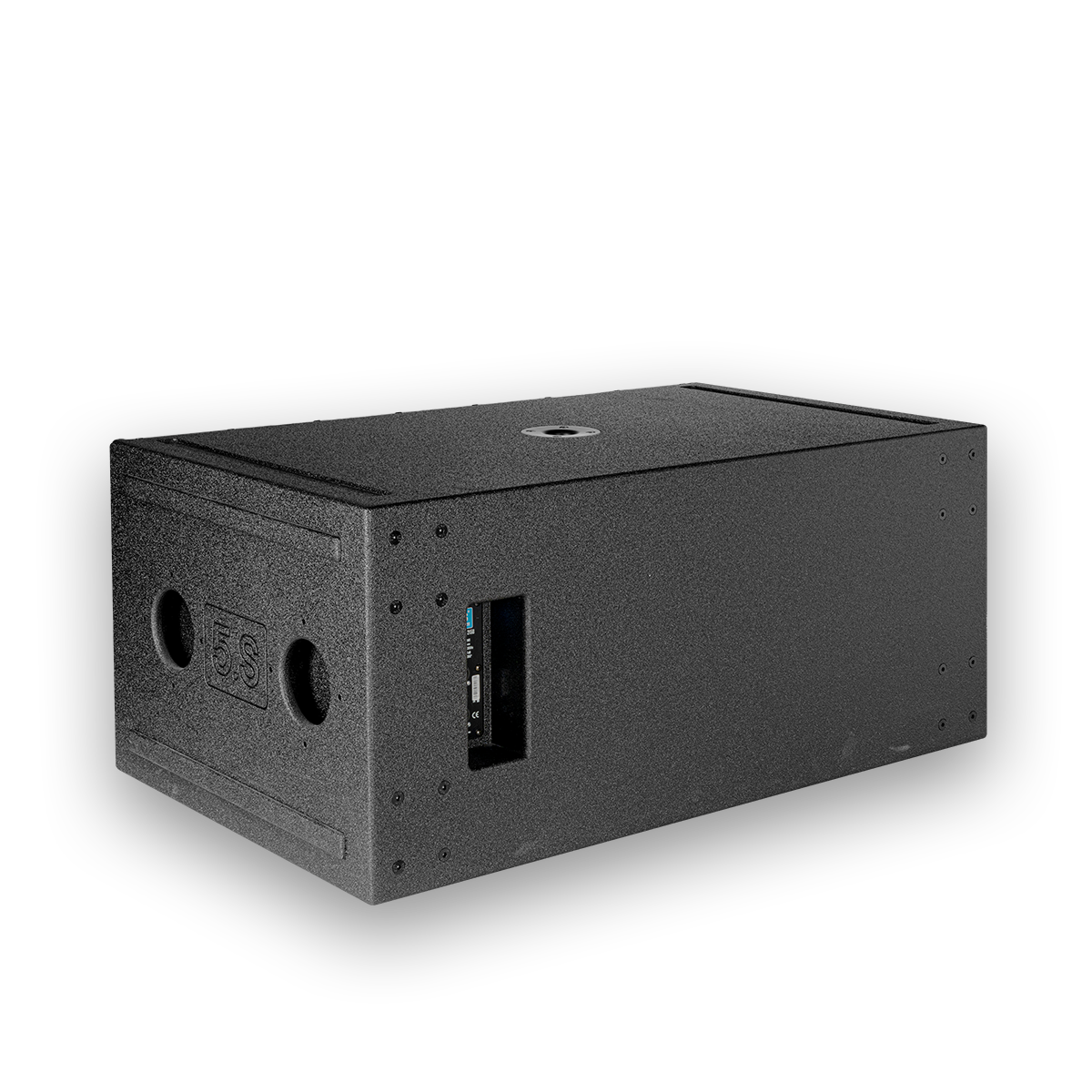

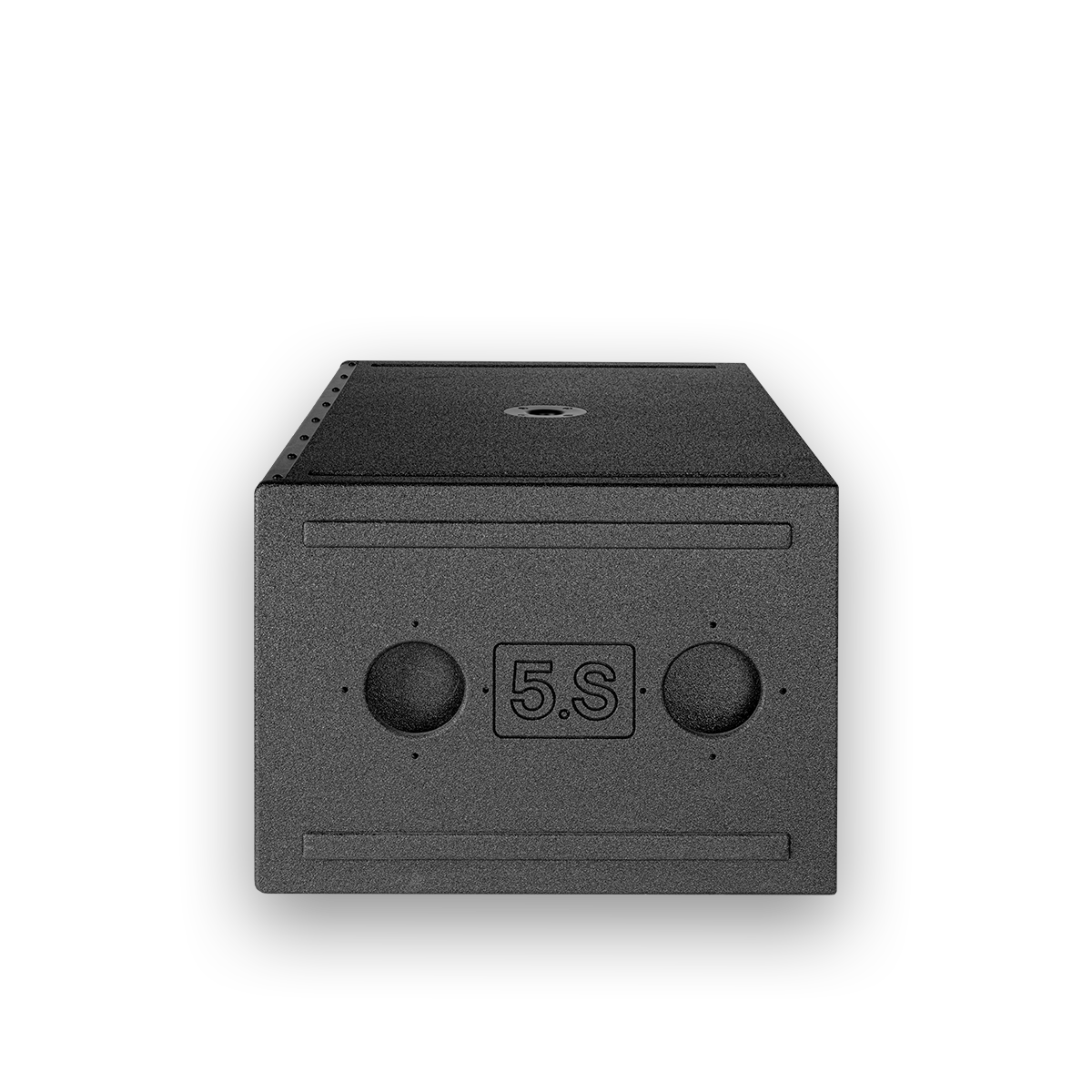

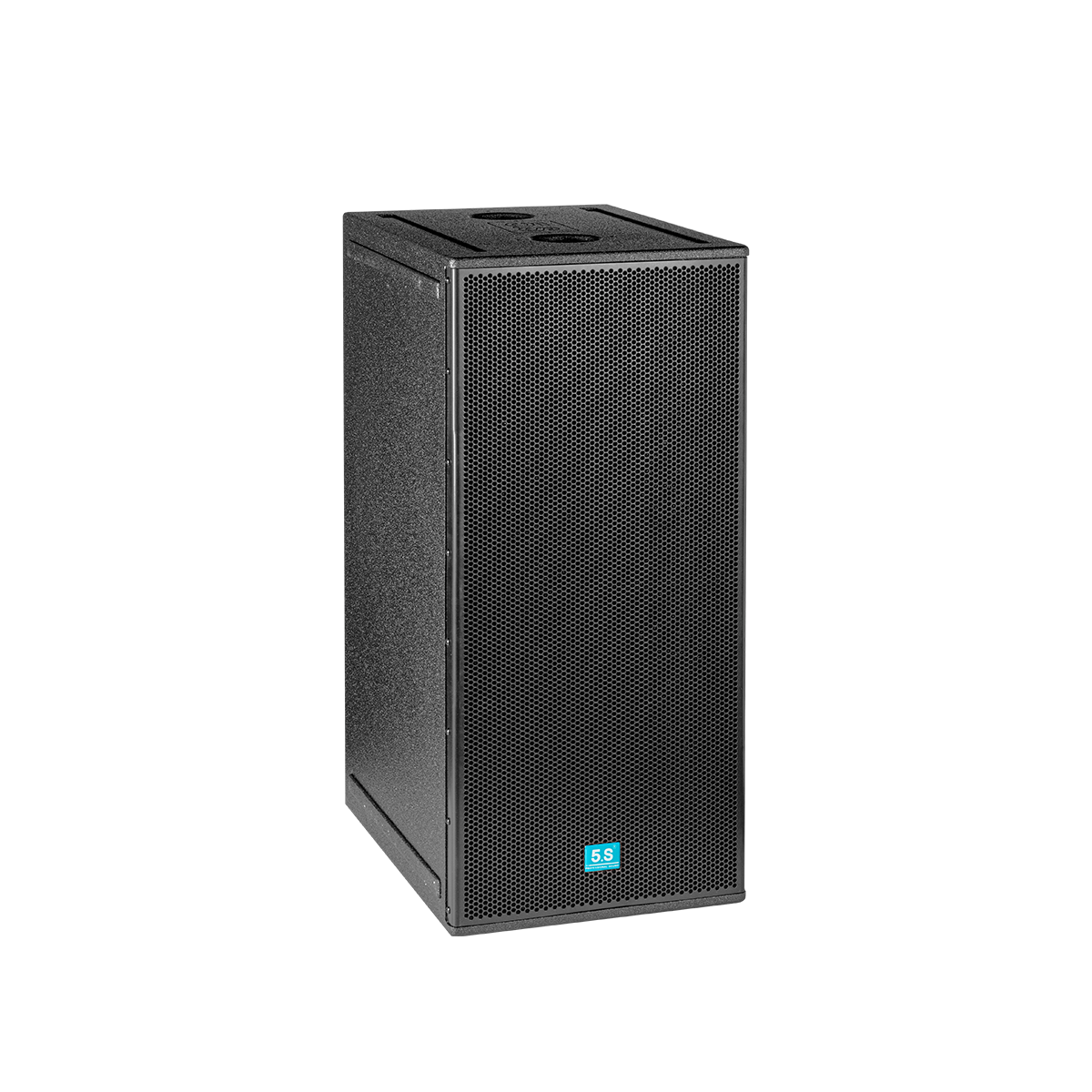

The Audio SW-215B is a compact 15" subwoofer that delivers powerful ultra-low frequency response. The woofer and wooden cabinet design provide tight and precise bass response, making it an ideal match for the LY-12.
Featuring an advanced driver with long excursion and a high magnetic force design, it offers extremely high magnetic flux to enhance efficiency. The 40mm-high 4" voice coil ensures stable performance under a 26mm/PP continuous magnetic drive. The specially treated pulp fiber cone maximizes rigidity and minimizes inertial displacement.
Additionally, the triple heat-resistant copper flat wire reduces power compression caused by voice coil heating, comprehensively improving sound quality and performance.
Technical Specifications
| Type: | 2*15" Ultra-Low Frequency Multi-Purpose Speaker System |
| Frequency Response: | 36Hz–300kHz |
| Power: | 1600W |
| Peak Power: | 5600W |
| Impedance: | 4Ω |
| Dispersion Angle: | -- |
| Sensitivity: | 100dB |
| Maximum SPL: | 136dB |
| Crossover Point: | External Crossover |

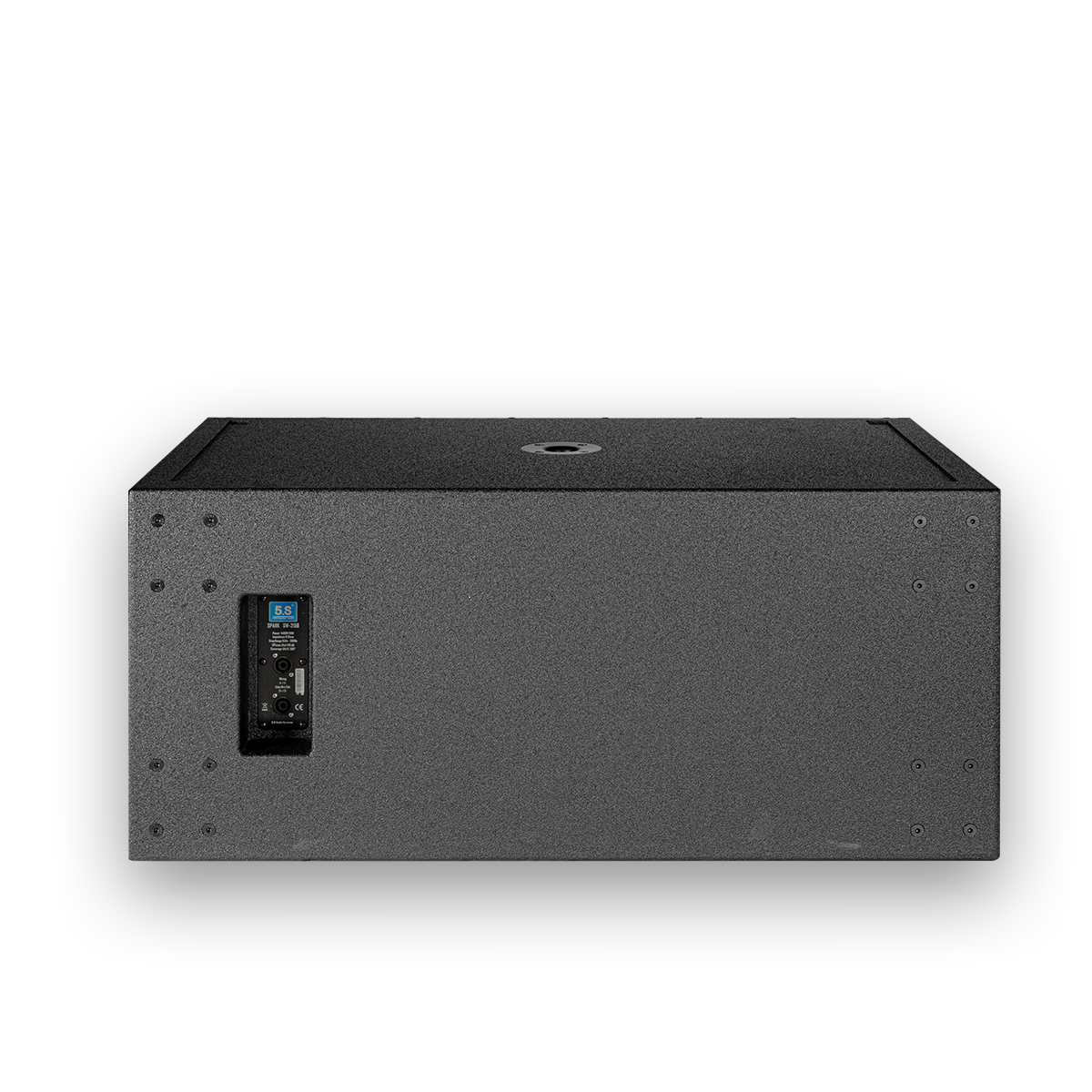

| Input Connector: | 2*NeutrikTM 1+1- |
| Low Frequency: | 2*15" woofers with custom European-made bass drivers, large magnetic circuit design. 4" (100mm) voice coil, rated power: 1600W (AES) |
| High Frequency: | -- |
| Cabinet Material: | 15mm marine-grade birch plywood |
| Cabinet Finish: | Black polyurea paint |
| Net Weight: | 64.5kg |
| Dimensions: | 1000mm*450mm*600mm (W*H*D) |
