D-206

Dual 6-inch full-range line array loundspeaker

D-206
D-206
D-206
D-206
D-206
D-206
D-206
D-206
D-206
D-206

6" high-power, ultra-low distortion woofer

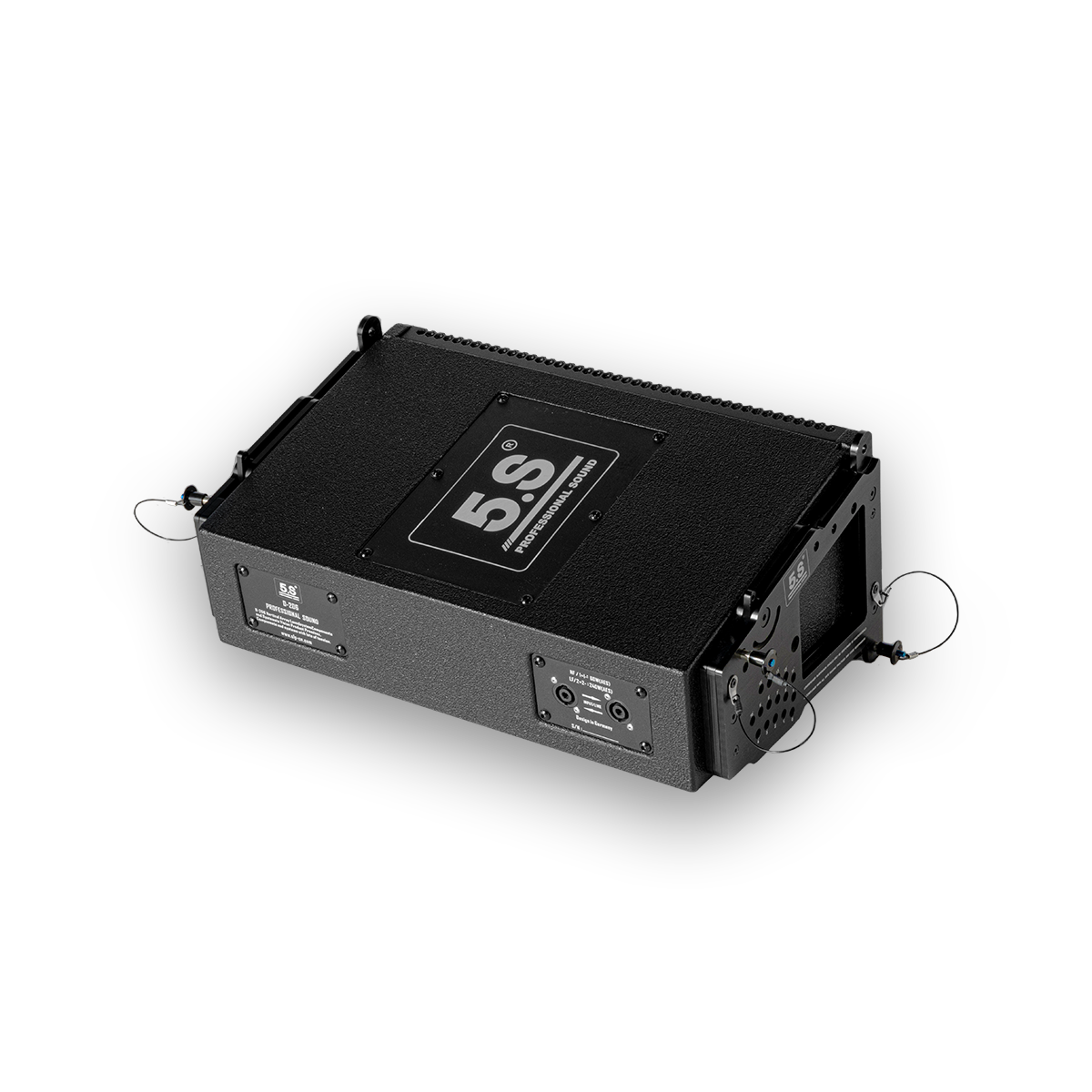

  • The Audio D-206 speaker features two built-in 6" 38mm voice coil, high-power, ultra-low distortion neodymium woofer units and a 120°x20° flat square fiber-reinforced plastic horn with a 1" throat and a 44mm voice coil neodymium compression driver. Both the high and low-frequency units are custom-made imports from Europe, offering flexible professional mounting accessories. It is a 2-way versatile full-range loudspeaker system.


Main Features

  • Type: LF/2*6〞 + HF/1*1〞 throat
  • Frequency Response: LF/125Hz–10KHz  HF/1KHz–20KHz
  • Power (AES): LF/120W (AES)/PCS, HF/60W (AES)/PCS
  • Impedance: 16Ω
  • Dispersion: 120°×10°
  • Maximum SPL: 133dB
  • Sensitivity: LF/97dB (1W&1M), HF/109dB (1W&1M)
  • Weight: 13.5kg
  • Enclosure Dimensions: 522mm×230mm×320mm (W×H×D)

Product Description

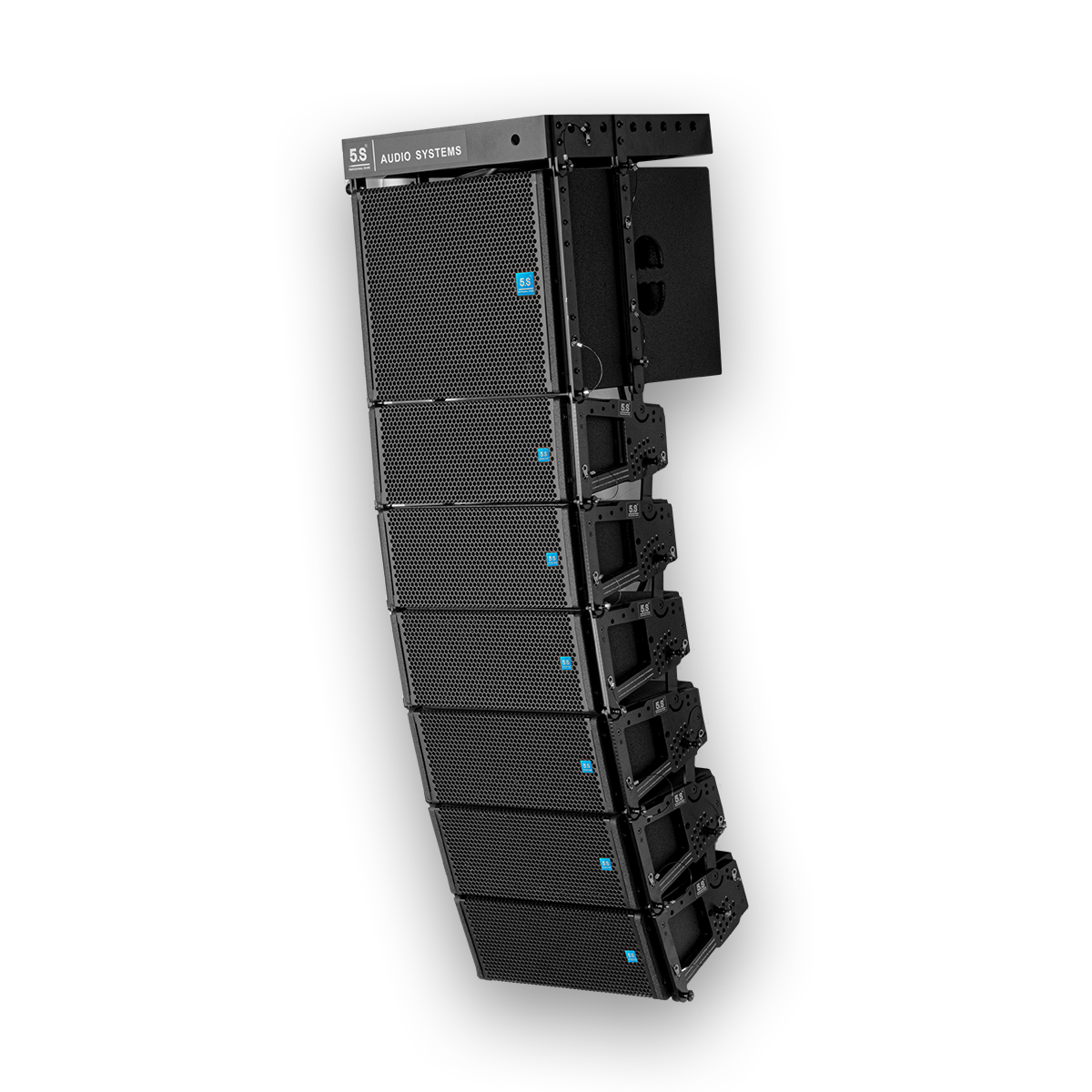

The Audio D-206 speaker features two built-in 6" 38mm voice coil, high-power, ultra-low distortion neodymium woofer units and a 120°x20° flat square fiber-reinforced plastic horn with a 1" throat and a 44mm voice coil neodymium compression driver. Both the high and low-frequency units are custom-made imports from Europe, offering flexible professional mounting options. As a 2-way system, the D-206 can be directly driven or paired with a bi-amplified system for superior high-output performance. The Audio D-206 is suitable for stadiums, auditoriums, hotel conferences, theaters, large-scale events, and more, providing a powerful audio solution.

Technical Specifications


Type: LF/2×6〞 + HF/1×1" Throat
Frequency Response: LF/125Hz–10KHz   HF/1KHz–20KHz
Power: LF/120W (AES) per unit   HF/60W (AES) per unit
Impedance: 16Ω
Dispersion: 120° × 10°
Sensitivity: LF/97dB (1W & 1M), HF/107dB (1W & 1M)
Maximum SPL: 133dB
Crossover Point: External crossover
Input Connector: 10-pin waterproof professional connector
Enclosure Connection Components: Aluminum profile 206
Enclosure Material: 15mm marine-grade birch plywood
Enclosure Finish: Black polyurea paint
Speaker Mounting Hardware: D-206 compatible accessories
Line Array Pin Components: Φ10mm × 50mm
Enclosure Cover: Black anodized fine-textured
Net Weight: 13.5Kg
Dimensions: 522mm × 230mm × 320mm (W × D × H)
