Product Description

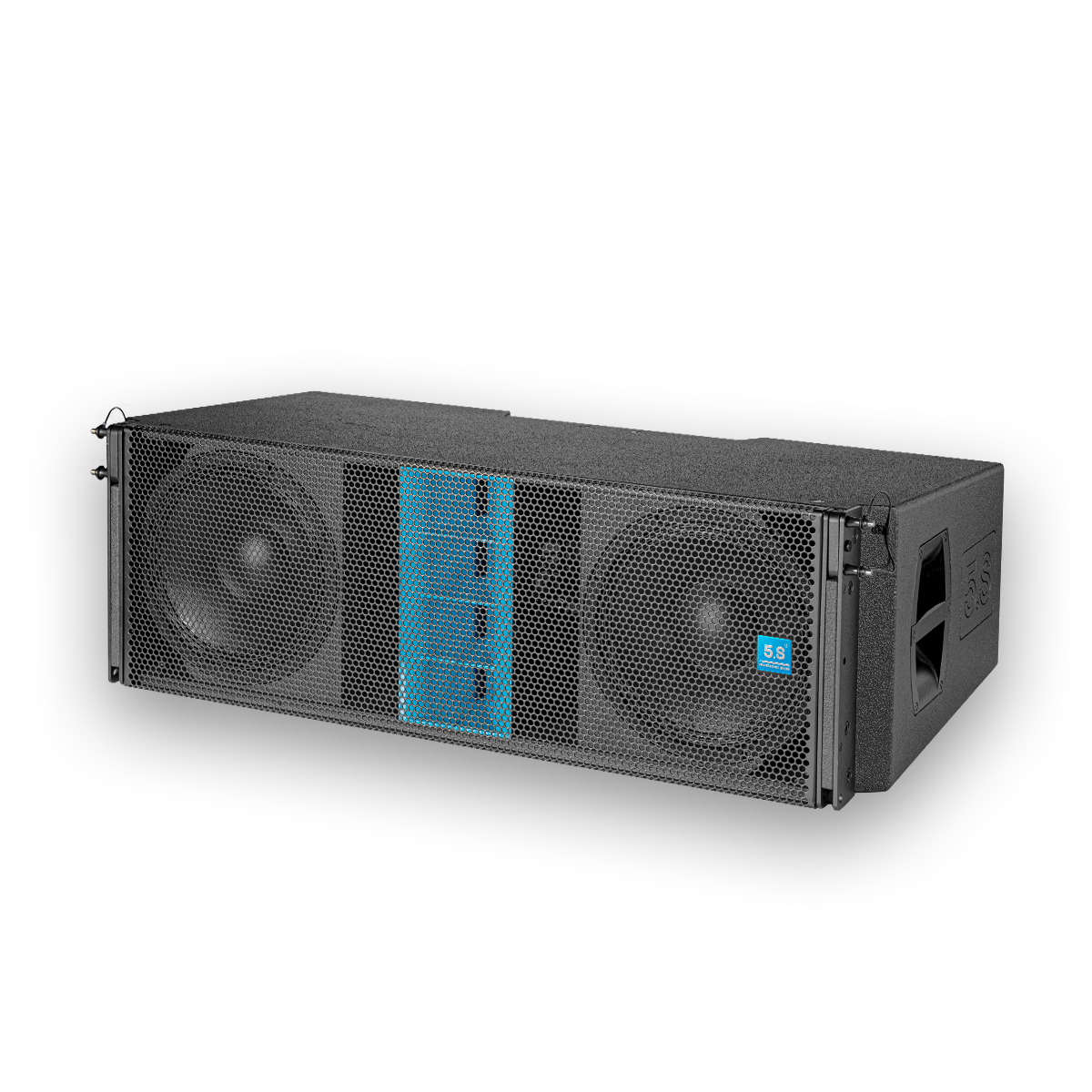

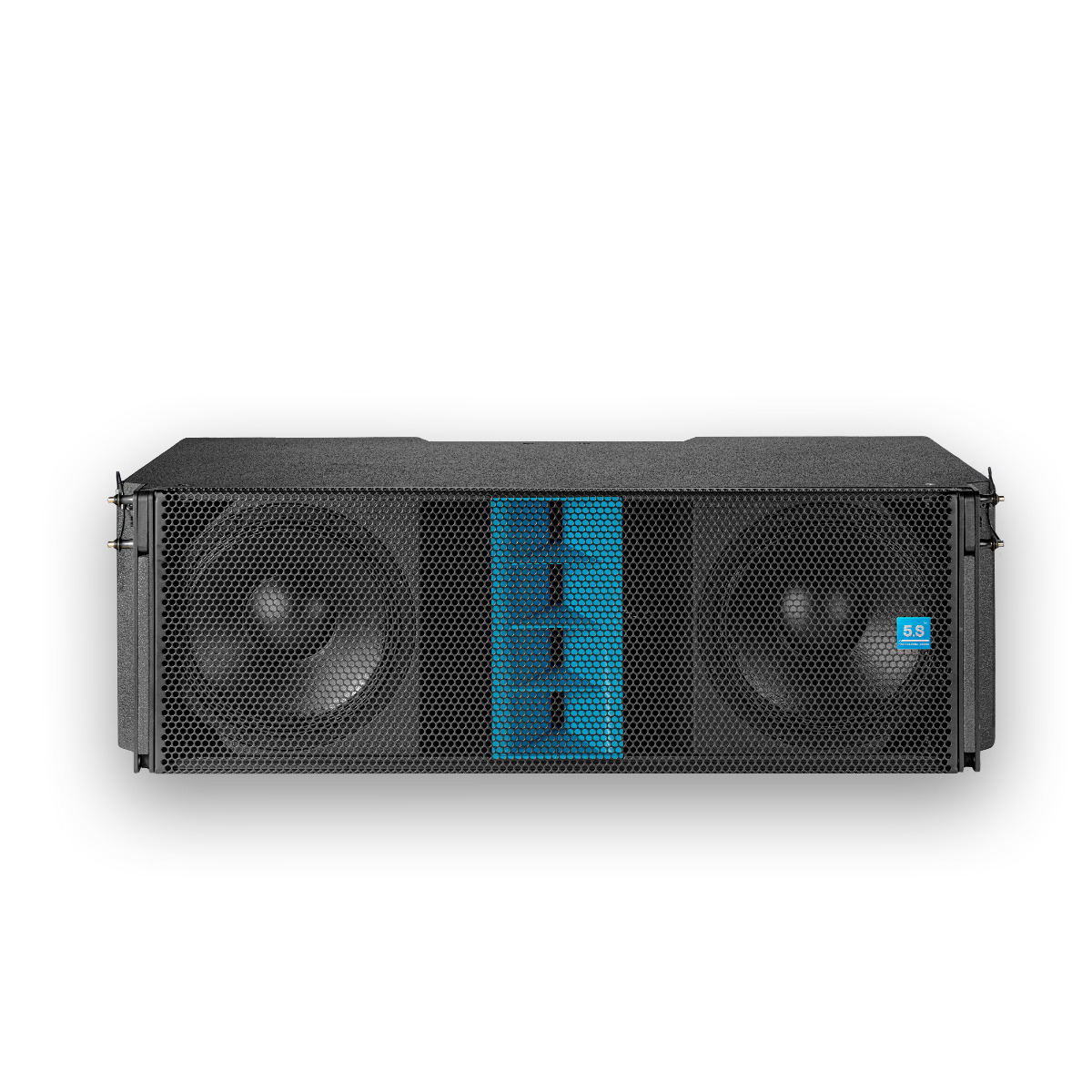

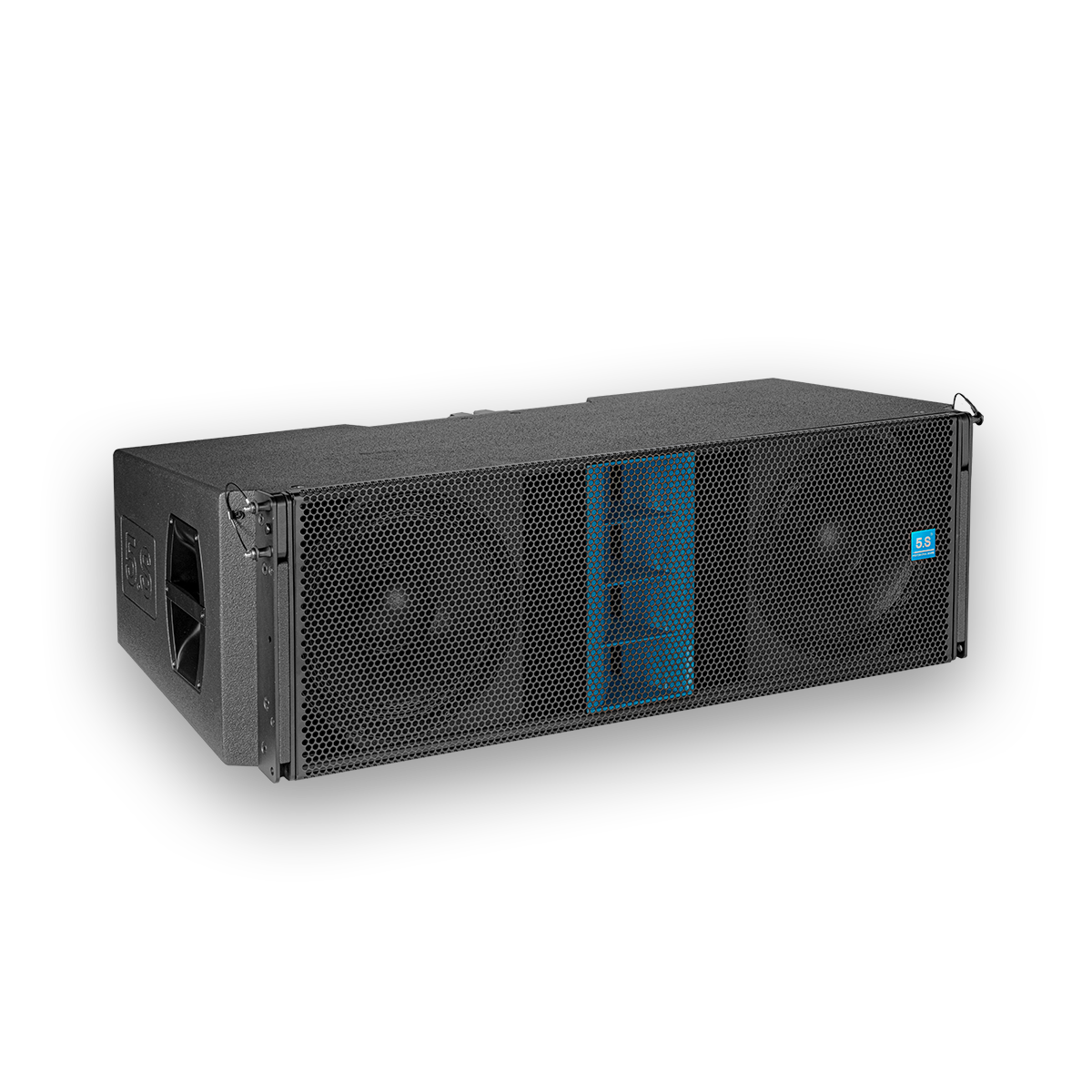

The Audio D-212 features two built-in 12" woofers with 88mm voice coils, high-power, ultra-low distortion neodymium magnet bass units, one 10" high-power, ultra-low distortion neodymium magnet midrange unit, and two 120°x20° flat fiber-reinforced plastic horns with 1.5" throats and 75mm voice coil neodymium compression drivers for the high frequencies. The high, mid, and low-frequency units are all custom-made imports from Europe, offering flexible application with professional hanging hardware. As a 3-way full-range speaker system, the D-212 can be driven directly or paired with a bi-amplified system for higher output performance. The Audio D-212 is suitable for stadiums, auditoriums, mobile performances, theaters, large-scale events, and other applications, providing a powerful audio system solution.
Technical Specifications
| Type: | LF/2×12〞+ MF/1×10〞+ HF/2×1.5〞 throat |
| Frequency Response: | LF/50Hz-4000Hz, MF/125Hz-8000Hz, HF/800Hz-20000Hz |
| Power: | LF/500W (AES)/unit, MF/W (AES)/unit, HF/60 (AES)/unit |
| Impedance: | 16Ω |
| Dispersion: | 120° × 10° |
| Sensitivity: | LF/98dB (1W & 1M), MF/97dB (1W & 1M), HF/110dB (1W & 1M) |
| Maximum SPL: | 143dB |
| Crossover Point: | External crossover |

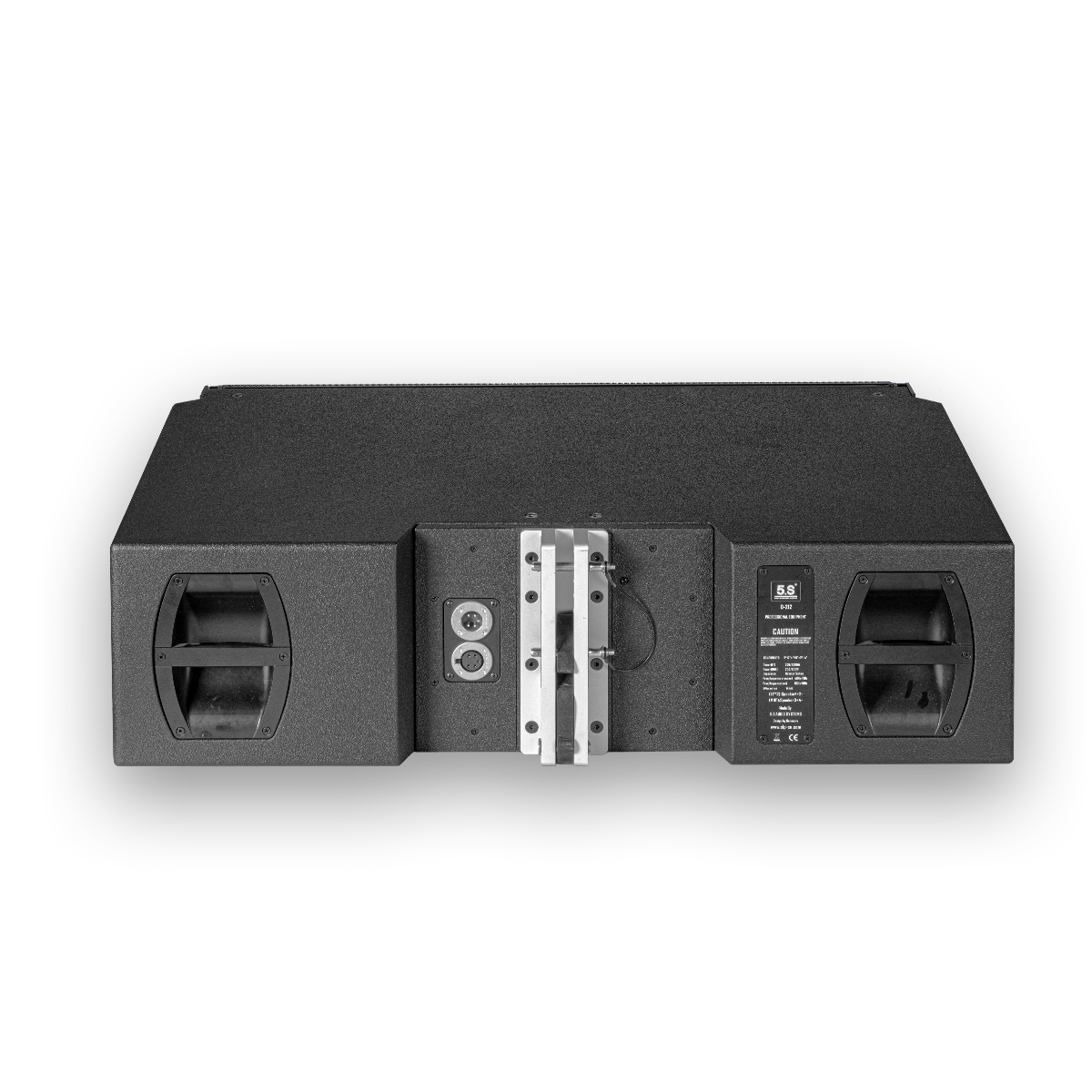

| Input Connector: | 10-pin waterproof professional plug |
| Enclosure Connection Components: | Aluminum profile 212 |
| Enclosure Material: | 15mm marine-grade birch plywood |
| Enclosure Surface Finish: | Black polyurea paint |
| Speaker Mounting Hardware: | D-212 matching accessories |
| Line Array Pin Components: | Φ10mm × 50mm |
| Enclosure Cover Plate: | Black oxidized fine-textured pull |
| Net Weight: | 62Kg |
| Dimensions: | 1100mm × 360mm × 570mm (W × H × D) |
