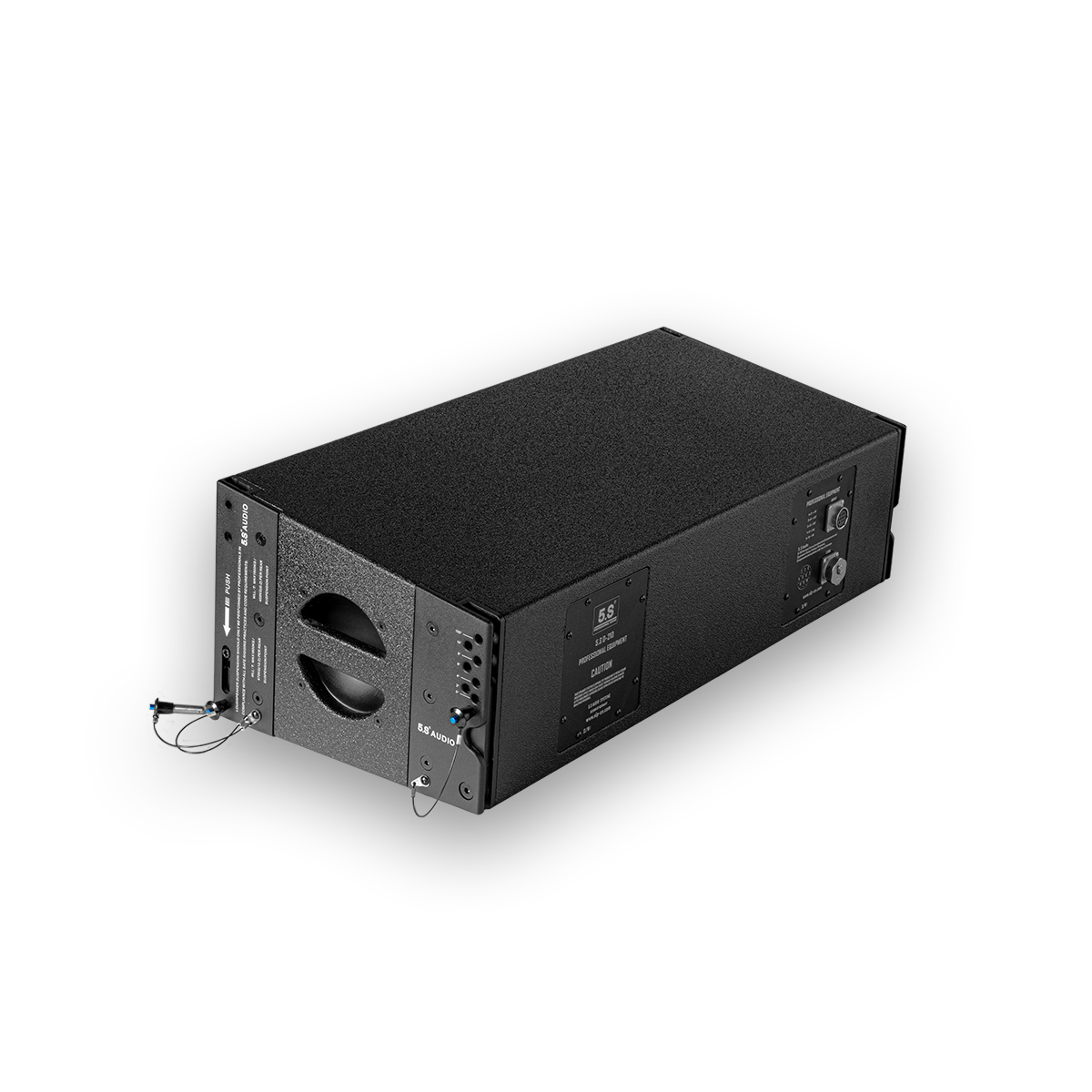

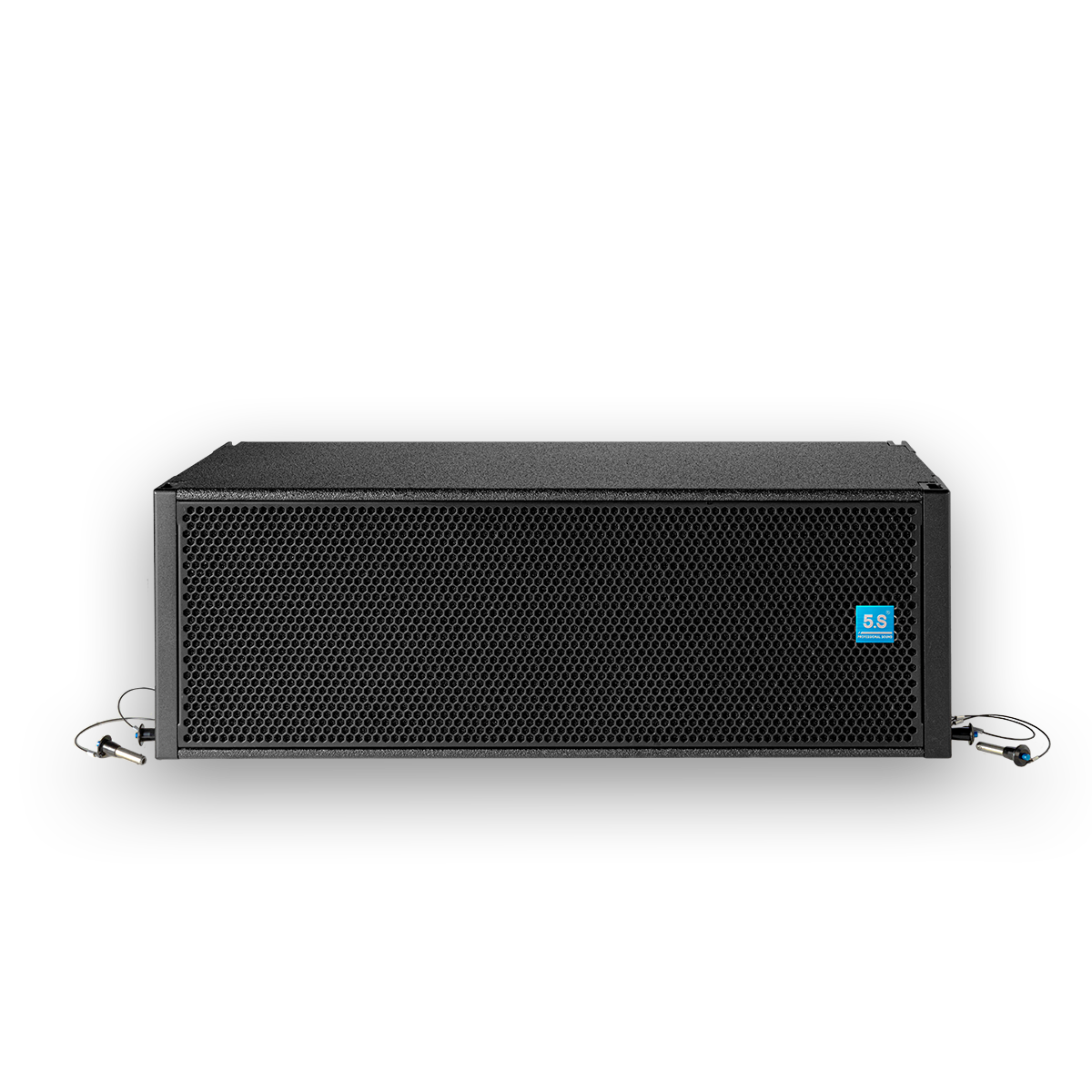

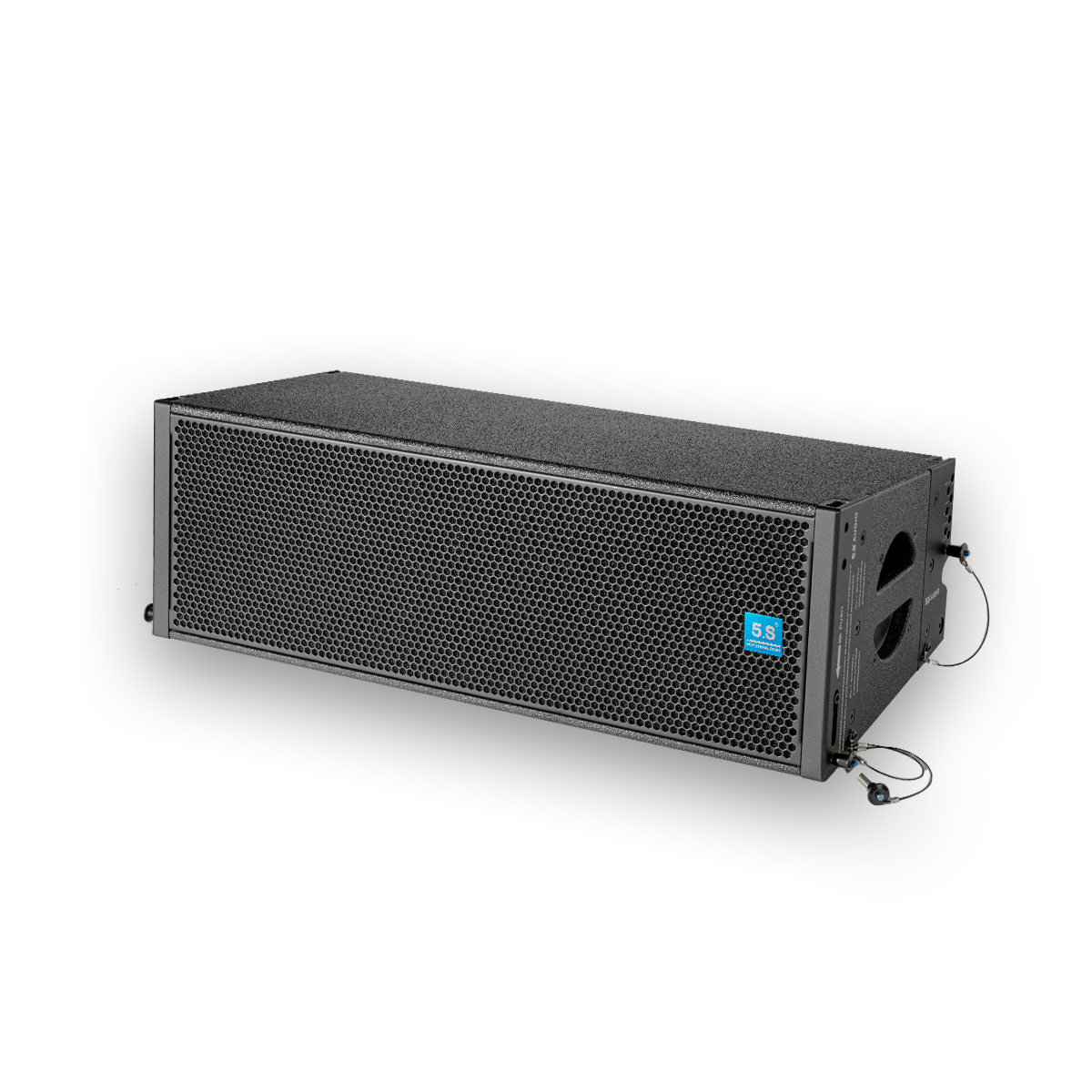

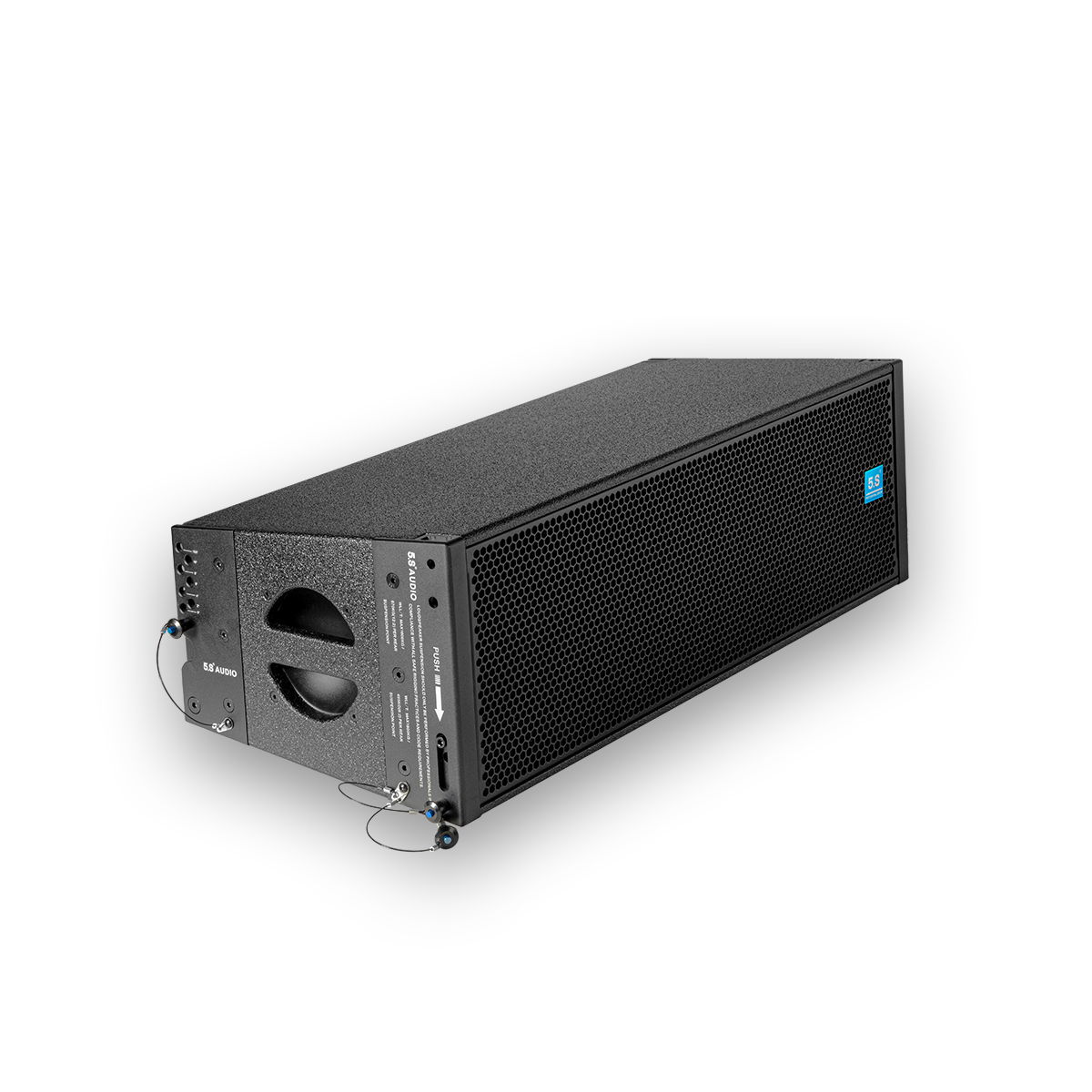

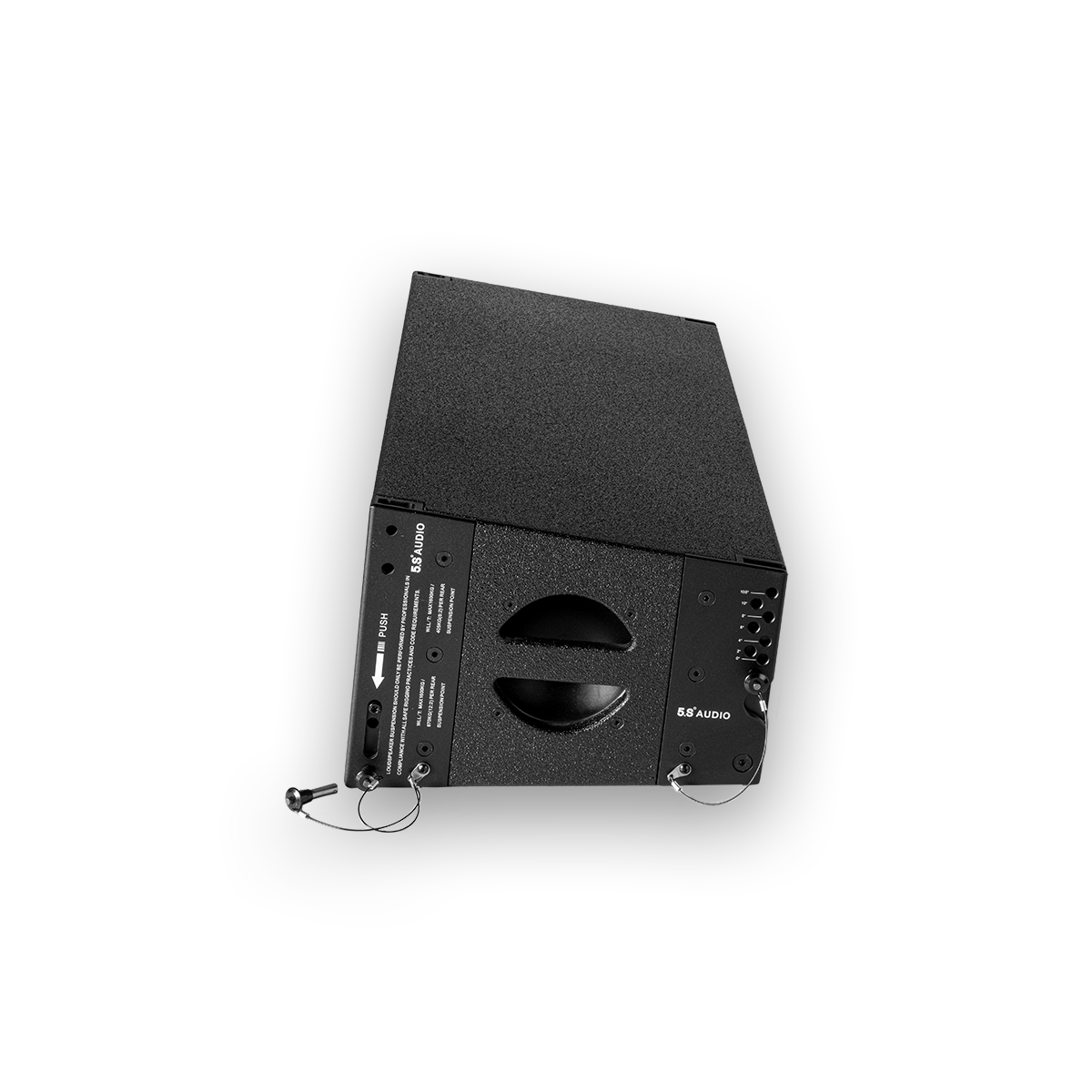

D-210

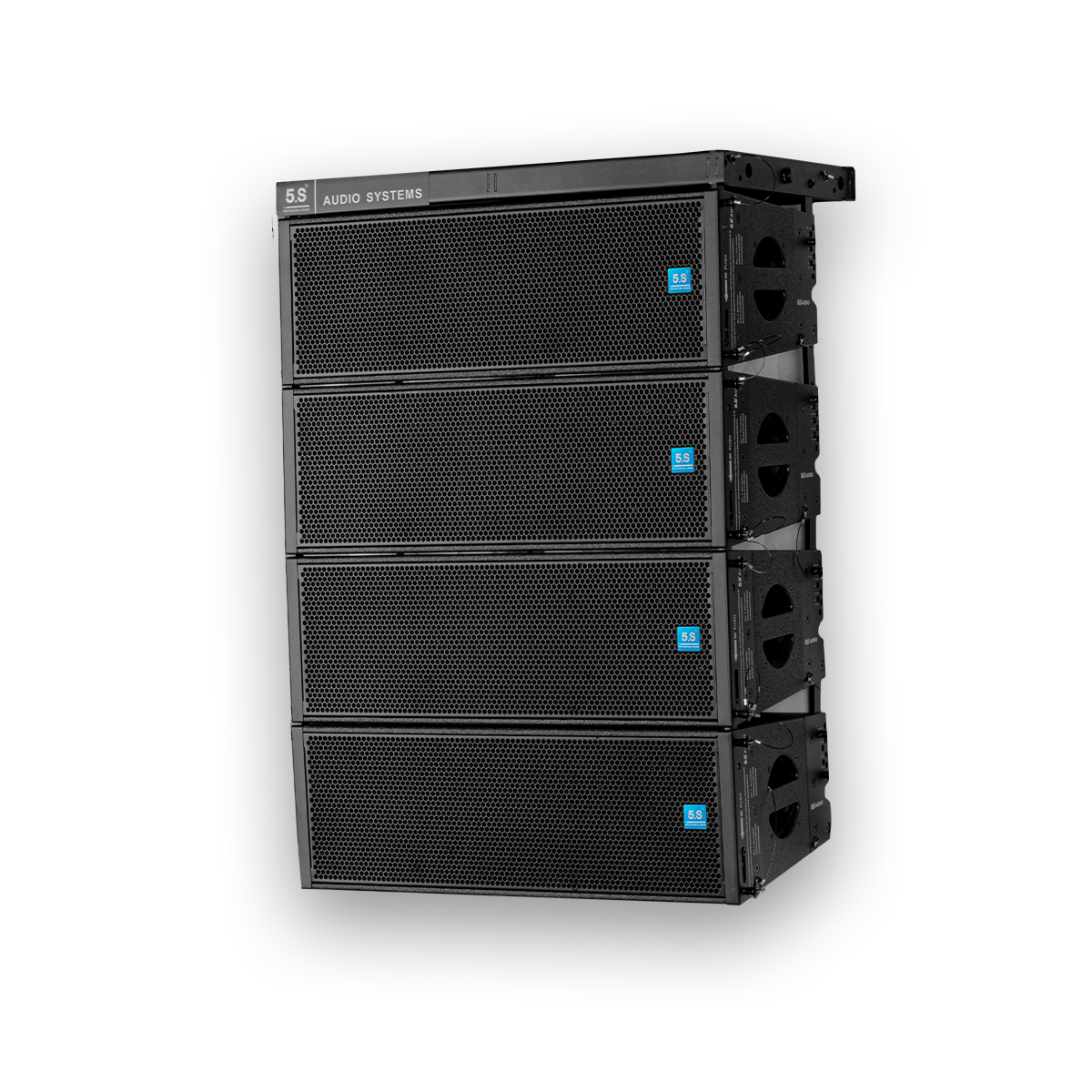

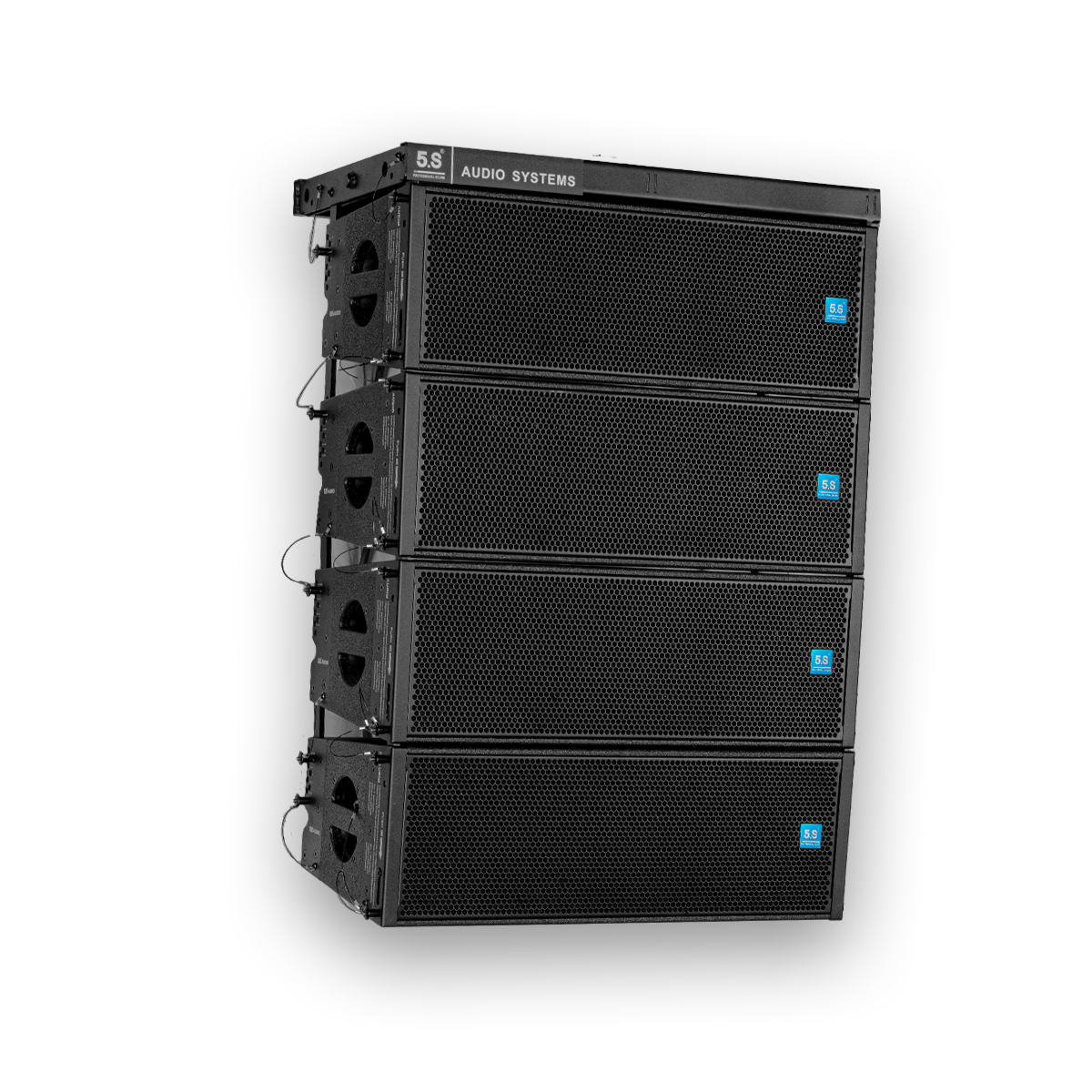

Dual 10" full-range line-array loundspeaker

D-210
D-210
D-210
D-210
D-210
D-210
D-210
D-210
D-210
D-210

10" high-power, ultra-low distortion woofer

  • The Audio D-210 speaker features two built-in 10" 75mm voice coil, high-power, ultra-low distortion neodymium bass units, and a 120°x20° flat-square fiber-reinforced plastic + PU horn with a 1.5" throat and a 75mm voice coil neodymium compression driver. Both the high and low-frequency units are custom-made imports from Europe, offering flexible professional mounting options. It is a 2-way multi-purpose full-range speaker system.


Main Features

  • Type: LF/2×10″ + HF/1×1.5″ throat
  • Frequency Response: LF/63Hz–3500Hz, HF/1200Hz–19000Hz
  • Power (AES): LF/400W (AES) per unit, HF/110W (AES) per unit
  • Impedance: 16Ω
  • Dispersion: 120°×10°
  • Maximum SPL: 139dB
  • Sensitivity: LF/97dB (1W & 1M), HF/108dB (1W & 1M)
  • Weight: 36.6kg
  • Enclosure Dimensions: 870mm × 303mm × 400mm (W × H × D)

Product Description

The Audio D-210 speaker features two built-in 10" 75mm voice coil, high-power, ultra-low distortion neodymium magnet woofers and a 120°x20° flat rectangular fiber-reinforced plastic + PU horn with a 1.5" throat and a 75mm voice coil neodymium magnet compression driver. Both the high and low frequencies utilize custom-made European imported components, offering flexible professional hanging accessories. As a 2-way system, the D-210 can be driven directly or paired with a bi-amplified system for superior high output. The Audio D-210 is suitable for stadiums, auditoriums, hotel conferences, theaters, large-scale events, and more, providing a powerful audio system solution.

Technical Specifications


Type: LF/2×10〞+HF/1×1.5" throat
Frequency Response: LF/63Hz–3500Hz, HF/1200Hz–19000Hz
Power: LF/400W (AES)/unit, HF/110W (AES)/unit
Impedance: 16Ω
Coverage Angle: 120° × 10°
Sensitivity: LF/97dB (1W & 1M), HF/108dB (1W & 1M)
Maximum SPL: 139dB
Crossover Point: External crossover

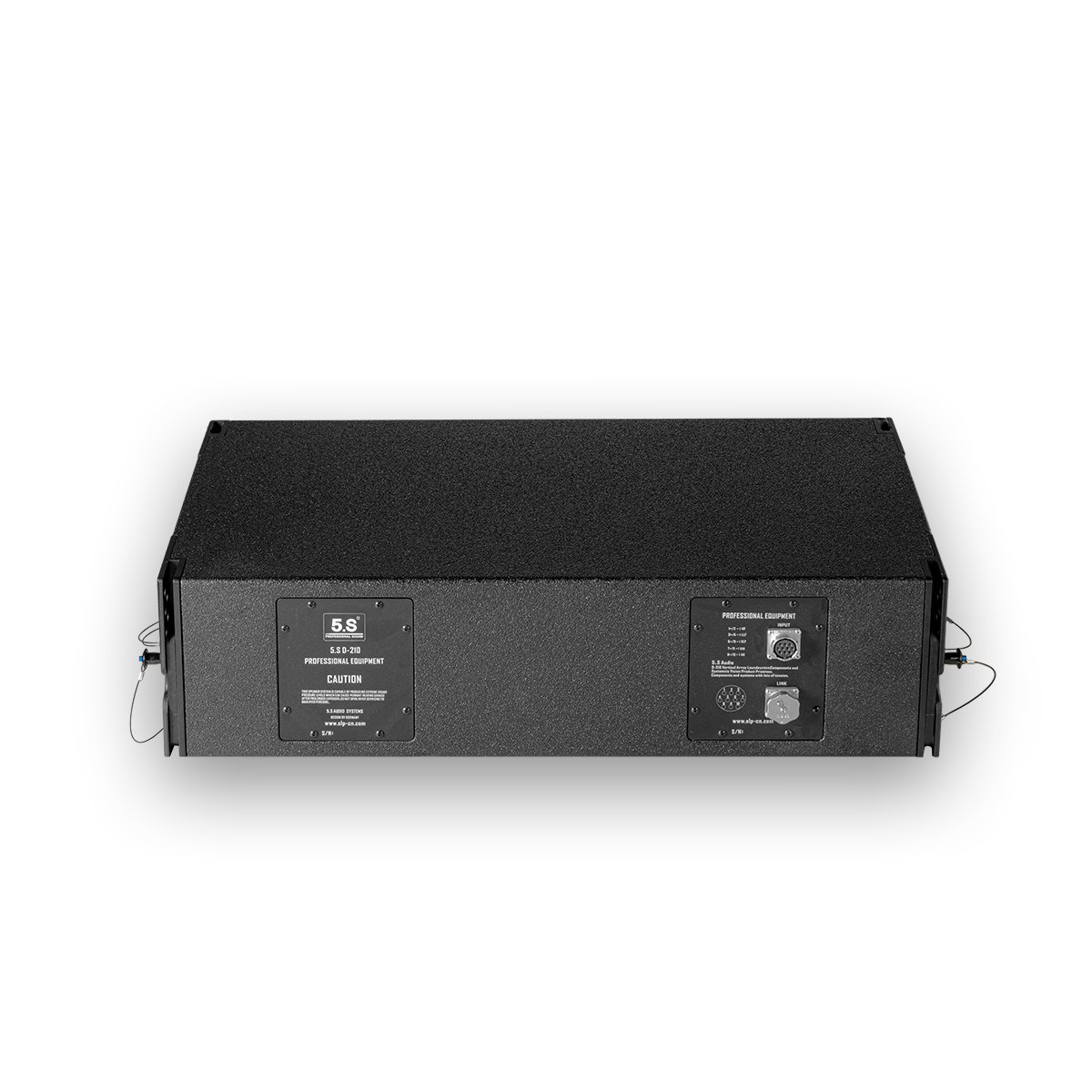

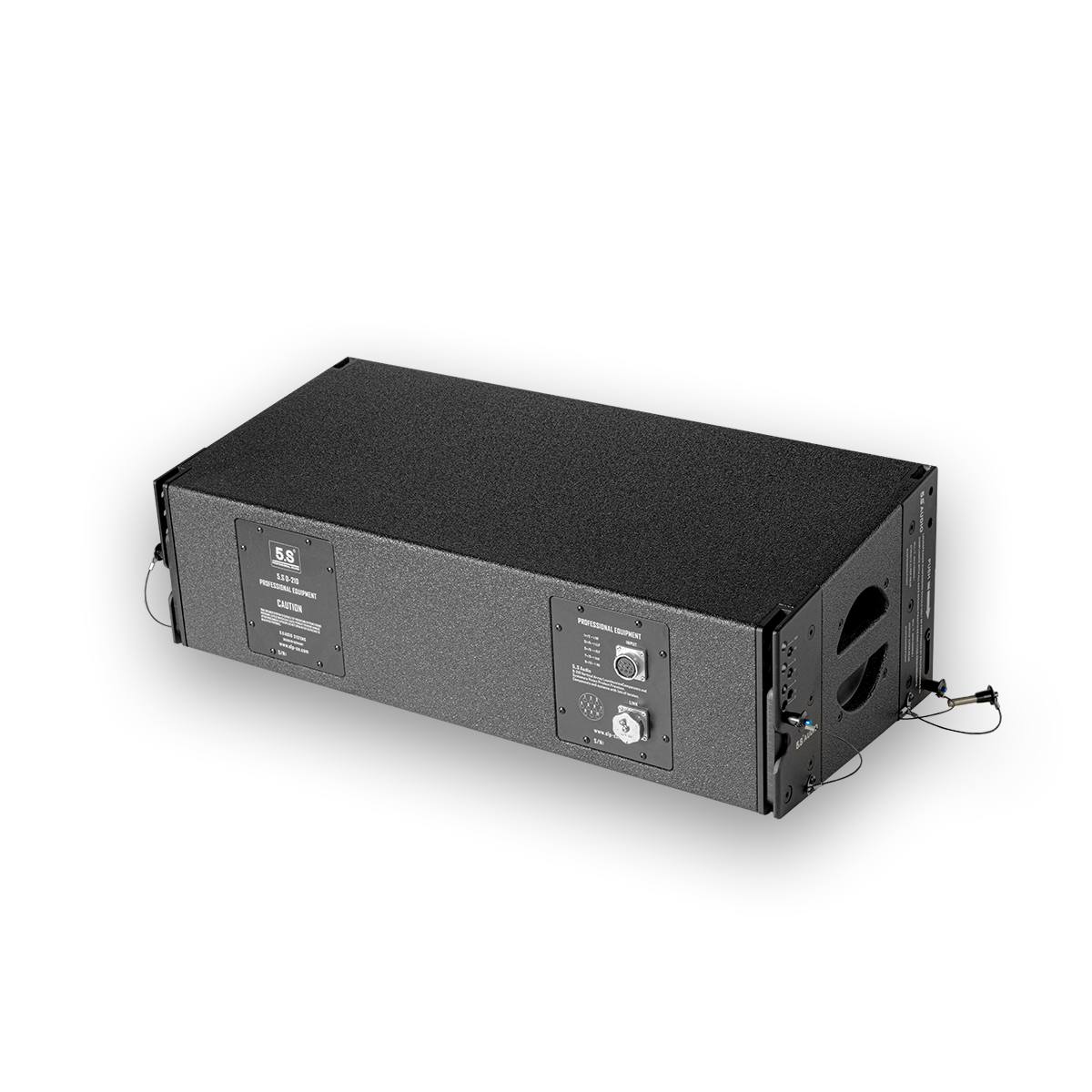

Input Connector: 10-pin waterproof professional plug
Enclosure Connection Components: Aluminum profile 210
Enclosure Material: 15mm marine-grade birch plywood
Enclosure Surface Finish: Black polyurea paint

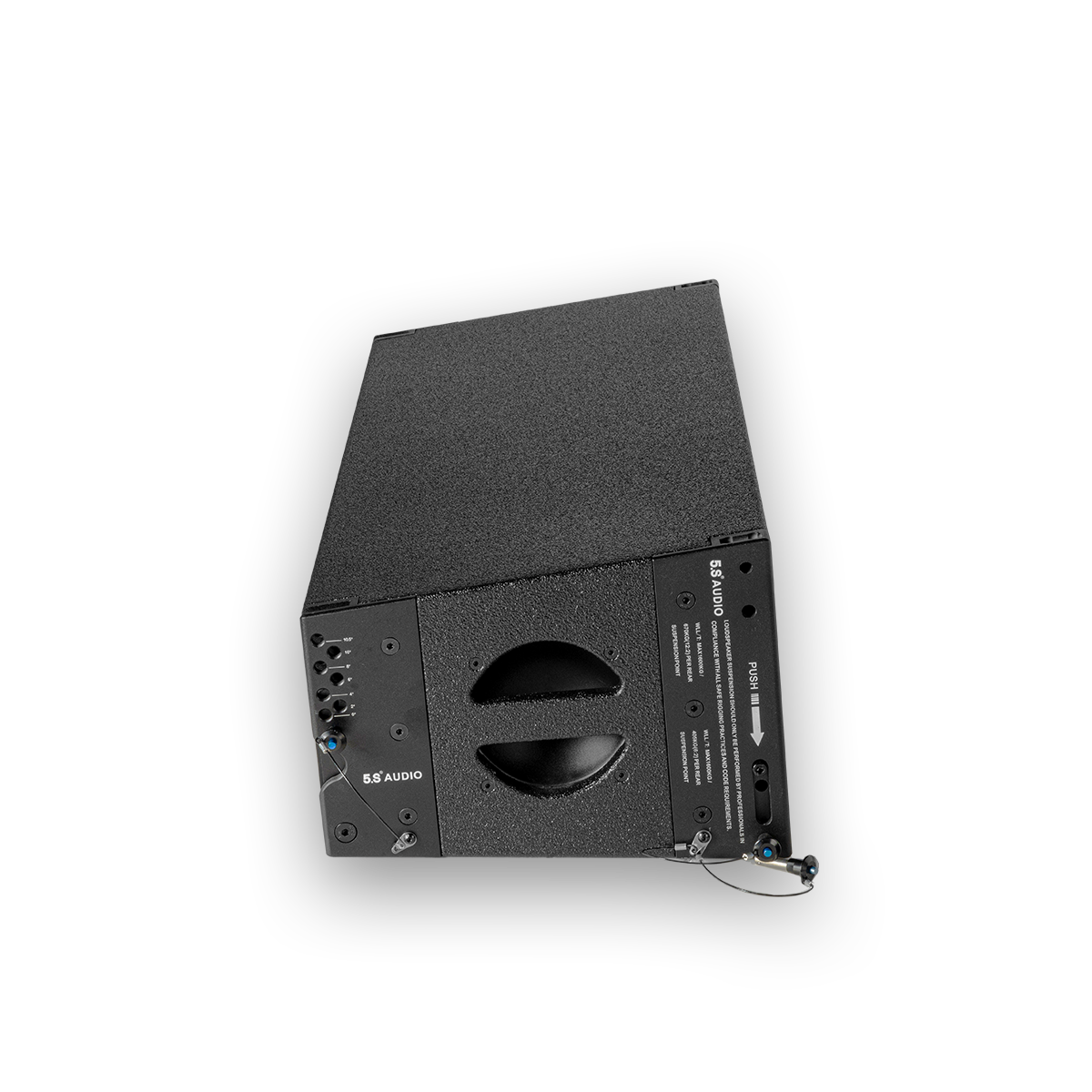

Speaker Mounting Hardware: D-210 compatible accessories
Line Array Pin Component: Φ10mm × 50mm
Enclosure Cover Plate: Black oxidized fine-textured finish
Net Weight: 36.6kg
Dimensions: 870mm × 303mm × 400mm (W × H × D)
